Flatbed UV Solutions
H0609EP

High end small flatbed UV printer Actualize your creativity into colours and shapes!


Epson l1600 U1 Print Heads


Precise Vacuum Platen

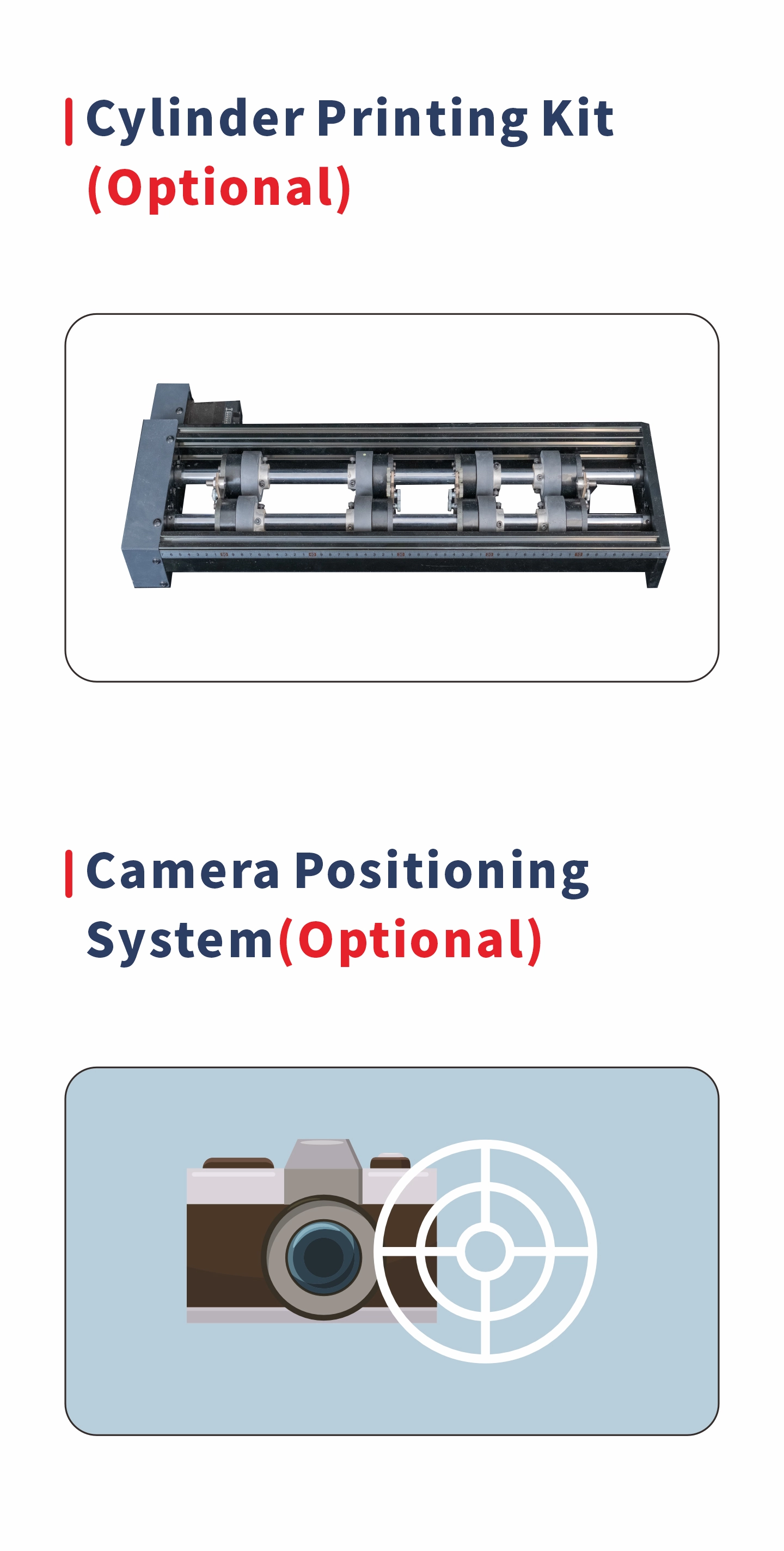

Cylinder Printing Kit (Optional)


Camera Positioning System (Optional)

LED UV Lamps

Anti-Collision Unit

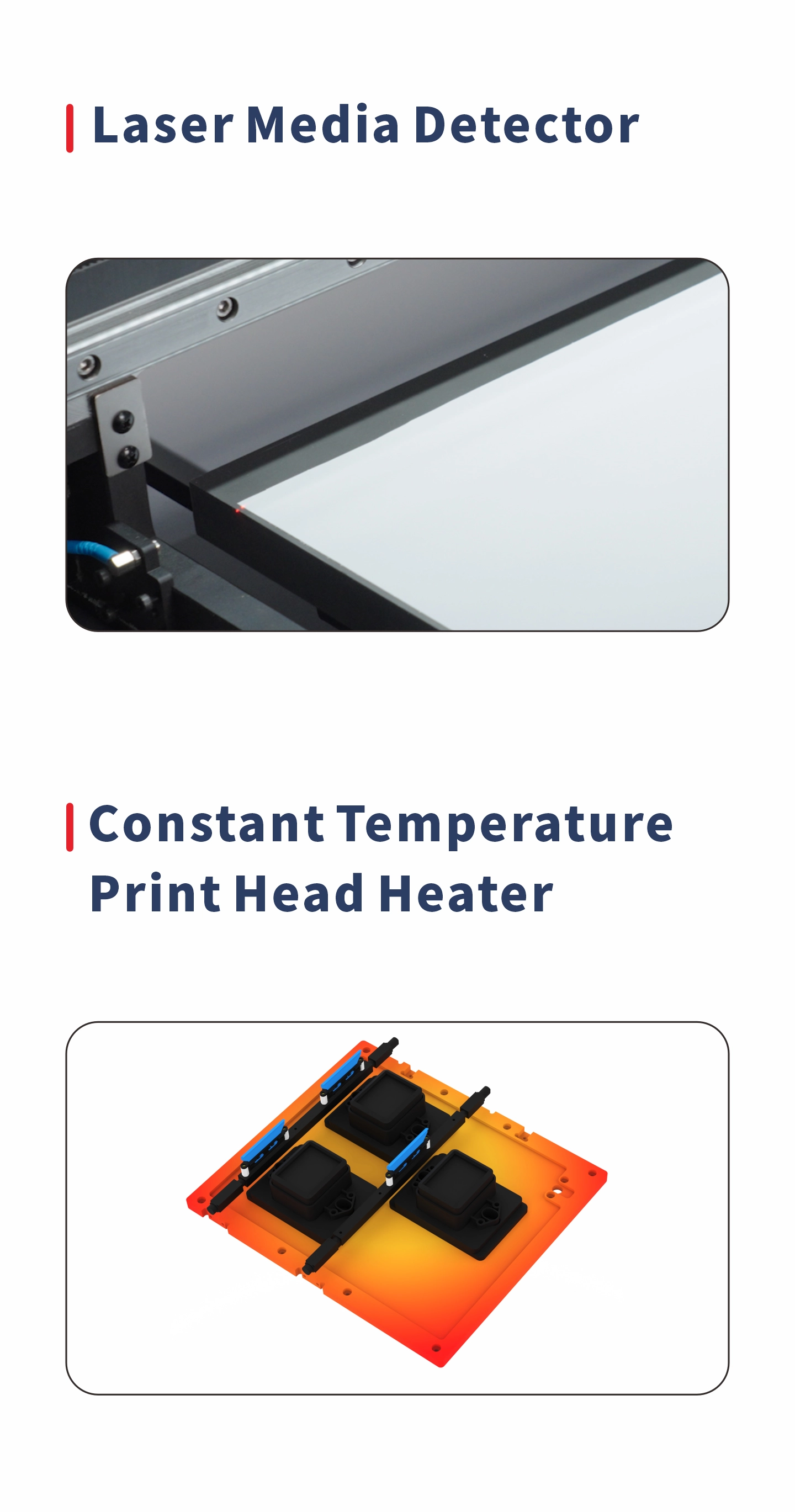

Laser Media Detector

Constant Temperature Print Head Heater

Model

H0609EP

Print Head

3 Epson 11600 U1 print heads

Print Technology

Drop-On-Demand Piezo with Variable Dot

Resolution

720x600dpi~720x900dpi

Curing System

Four water cooling LED UV curing lamps

Ink

UV curable ink

Color Configuration

CMYK; CMYK+W; CMYK+W+V

Ink Supply System

Bulk ink supply system

Ink Tank

1.2L

Media Thickness

Up to 180mm

Media Type

Acrylic,Aluminum sheet,Foam board,PVC board,Leather,Glass bottle,Wood,Ceramic tile,etc.

Printing Size

Max.600x900mm

Printing Speed

Printing mode               Resolution            Feather              CMYK+W                   CMYK+W+V

Draft                             720x600dpi           Weak                 7.9mins/sheet            8.5mins/sheet

Production                   720x600dpi           Medium             9.4mins/sheet            10.3mins/sheet

Hi-resolution                720x900dpi           Weak                 11.8mins/sheet          12.8mins/sheet

Photo                            720x900dpi          Medium             14.1mins/sheet          15.6mins/sheet

Data lnterface

Gigabit Ethernet

Working Environment

Temp. 20℃~30℃, Humidity: 35%~65%

Software

FlexiPRINT Mini UV+GZ control console

Power Requirements

Single-phase, AC220V±10%, 50/60Hz, 10A

Power Consumption

Printer: Approx.1100W; UV controller: Approx. 800W

Packed / Installed Size

LxWxH(mm): 2180x1565x1371 / 2300x1770x1600

N.W. / G.W.

492KGS / 690KGS
