RTR UV Solutions
ThunderJet AQ1802UVZ

High Speed and High-Quality 1.8m RTR UV Printer

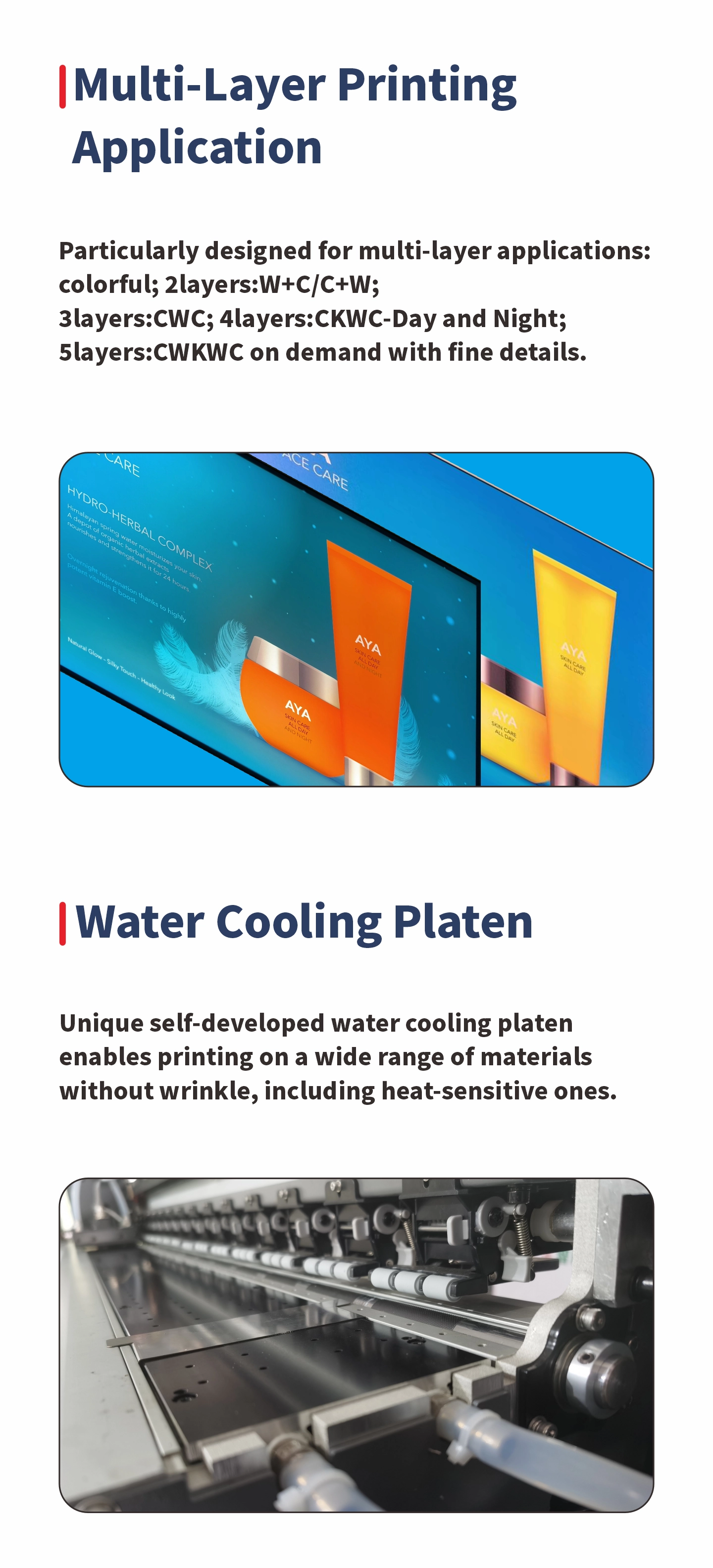

Multi-Layer Printing Application

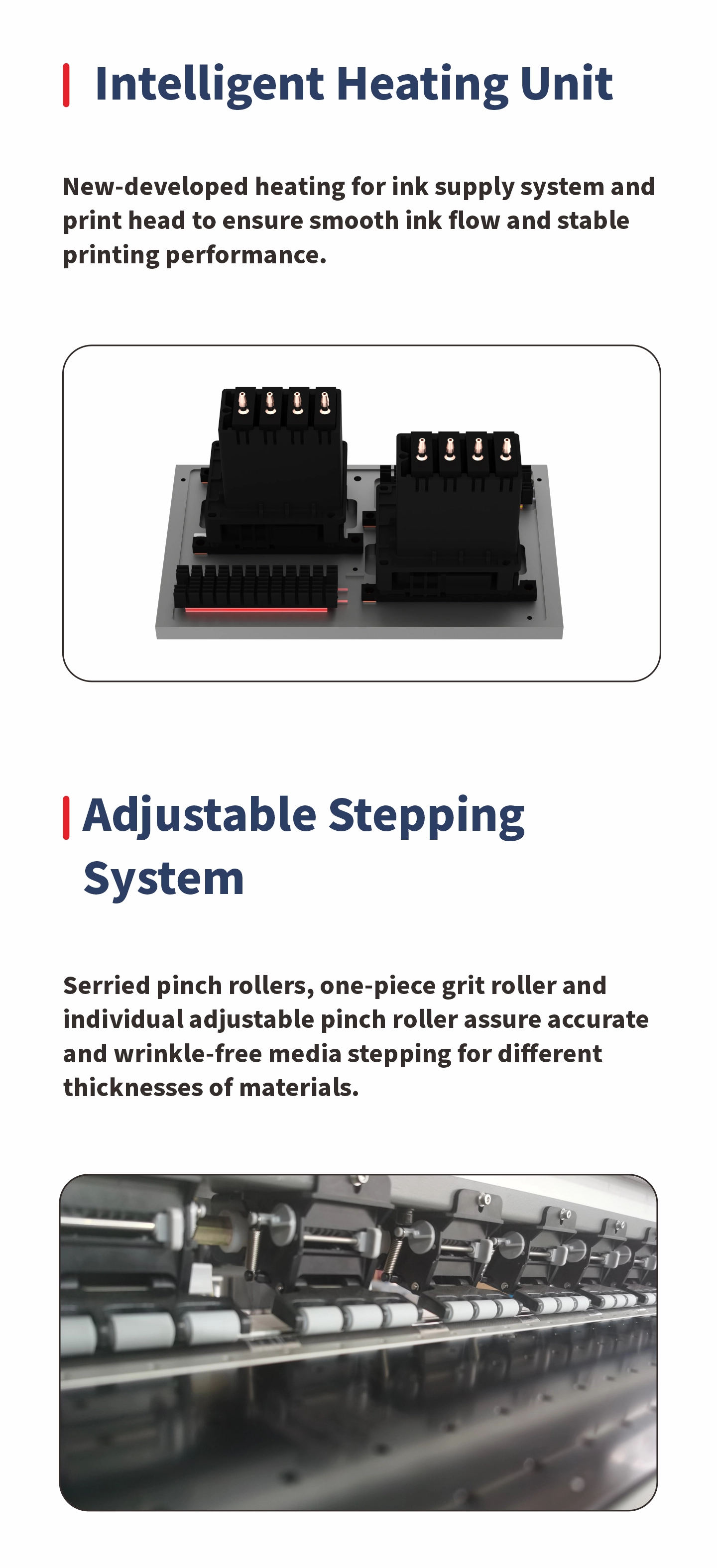

Intelligent Heating Unit

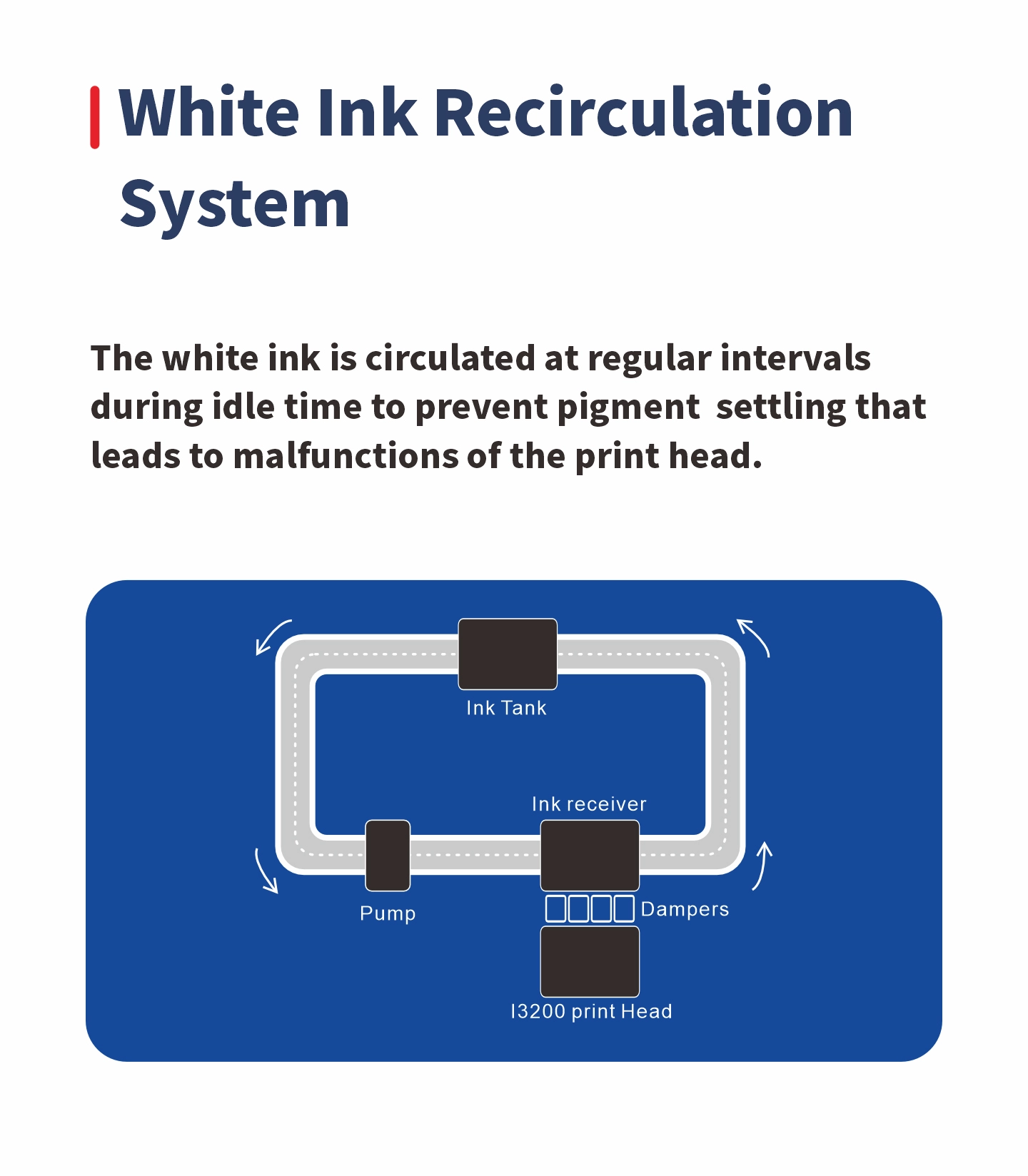

White Ink Recirculation System
Water Cooling Platen
Adjustable Stepping System

Model

ThunderJet AQ1802UVZ

Print Head

2x Epson I3200-U1 Print Heads

Technology

Drop-on-Demond Piezo with Variable Dot

Curing System

Dual Water Cooling LED UV Lamps

Ink

Gongzheng UV Ink: REI-3

Color Config.

1xKCMY; W+1xKCMY

Ink Supply System

Bulk Ink Supply System + White Ink Recirculation & Stirring System

Ink Tank

1500ml

Printing Width

Max. 1890mm

Media Type

Banner, Coated PP, Vinyl, Backlit Textile, PVC Film, PET Film......

Roll Diameter

Max. 300mm

Roll Weight

Max. 50kgs

Core Diameter

3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

Mode                      Resolution             Color(1H)                CWC               CWKWC

Draft                     720x1200 dpi           11.5/h                 6.2㎡/h

Production            720x1200 dpi           9.5/h                   4.4/h             2.6/h

High-Res              720x1800 dpi             7/h                    4.1/h

Photo                    720x1800 dpi             6/h                    2.9/h             1.7/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp. 23°C~29°C, Humidity: 50%~80%

Software

FlexiPRINT Mini TX22 / ONYX RIPCenter (Optional)...+ GZ Printer Manager

Power

Single-Phase, 50Hz/AC, 220±10%; 5A (Printer+UV Controller)

Packed / Installed Size

LxWxH(mm): 3190x1050x750 / 3064x815x1525

G.W. / N.W.

388kgs / 288kgs

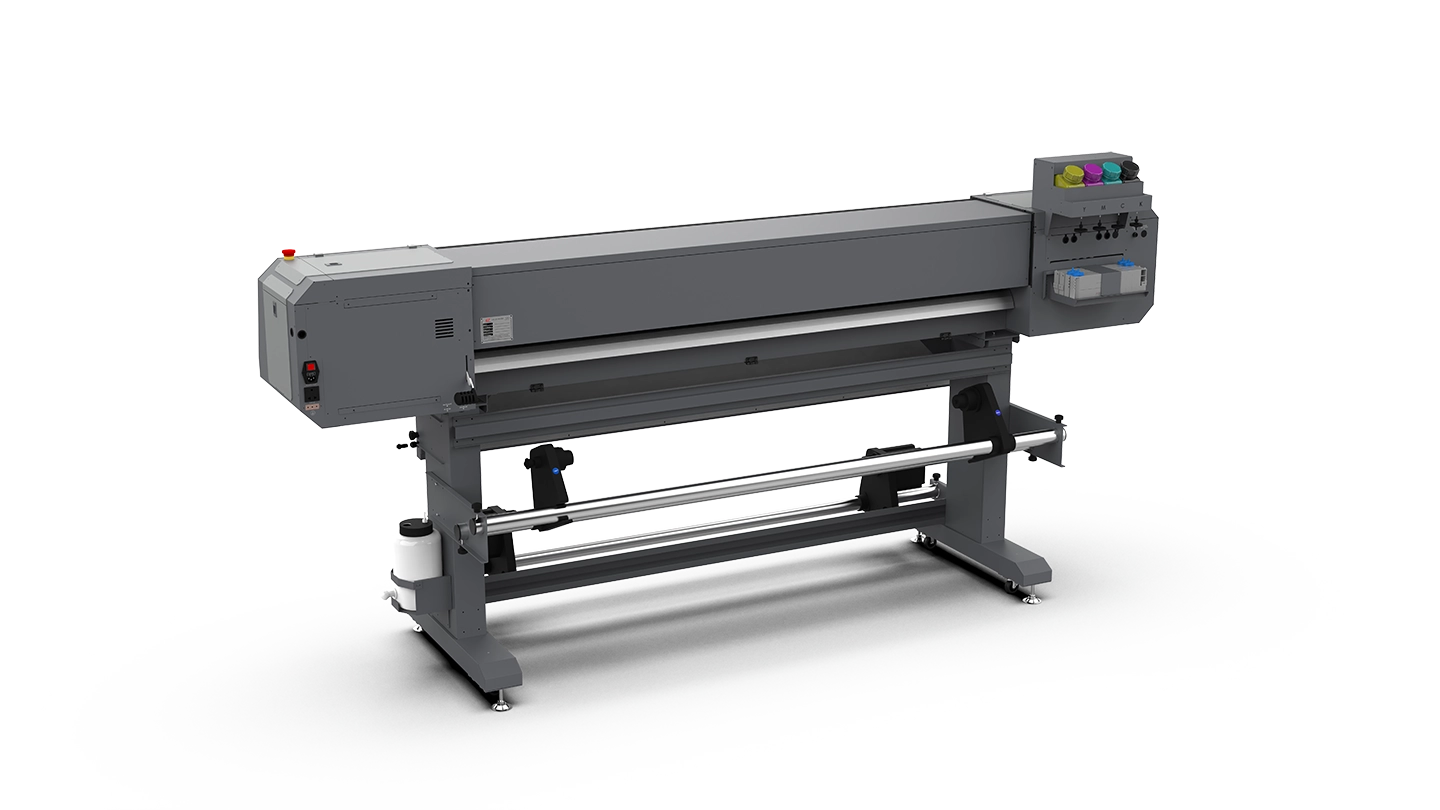

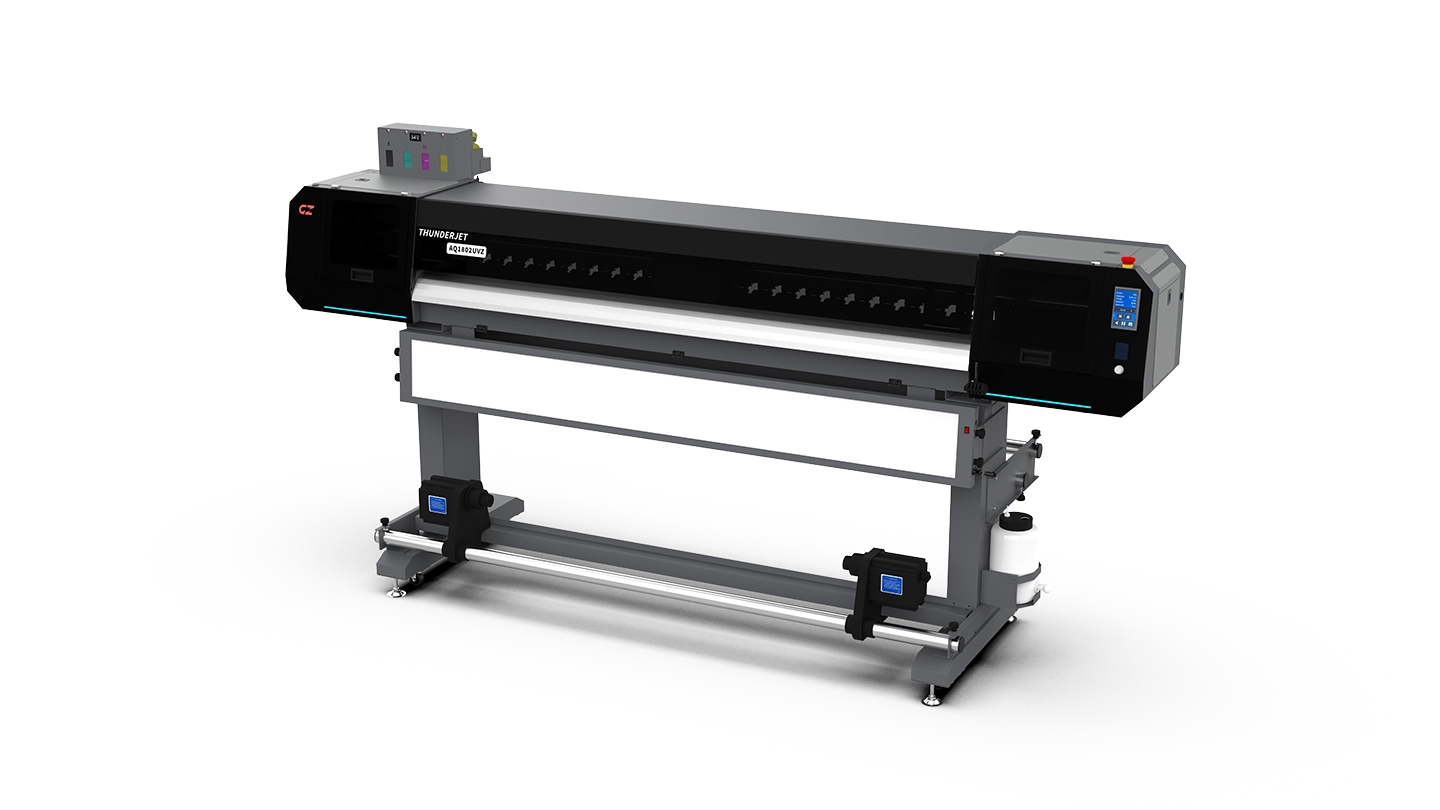

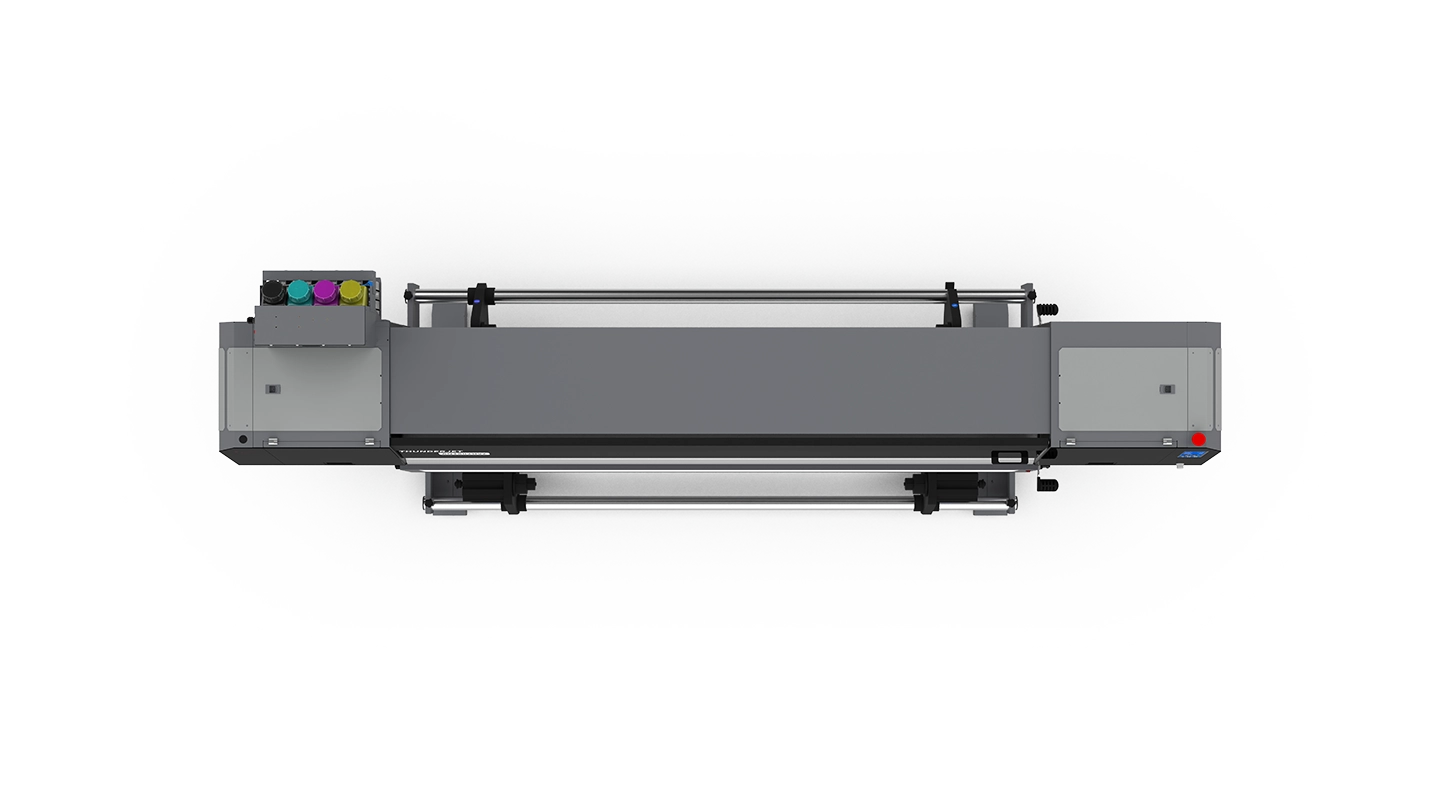

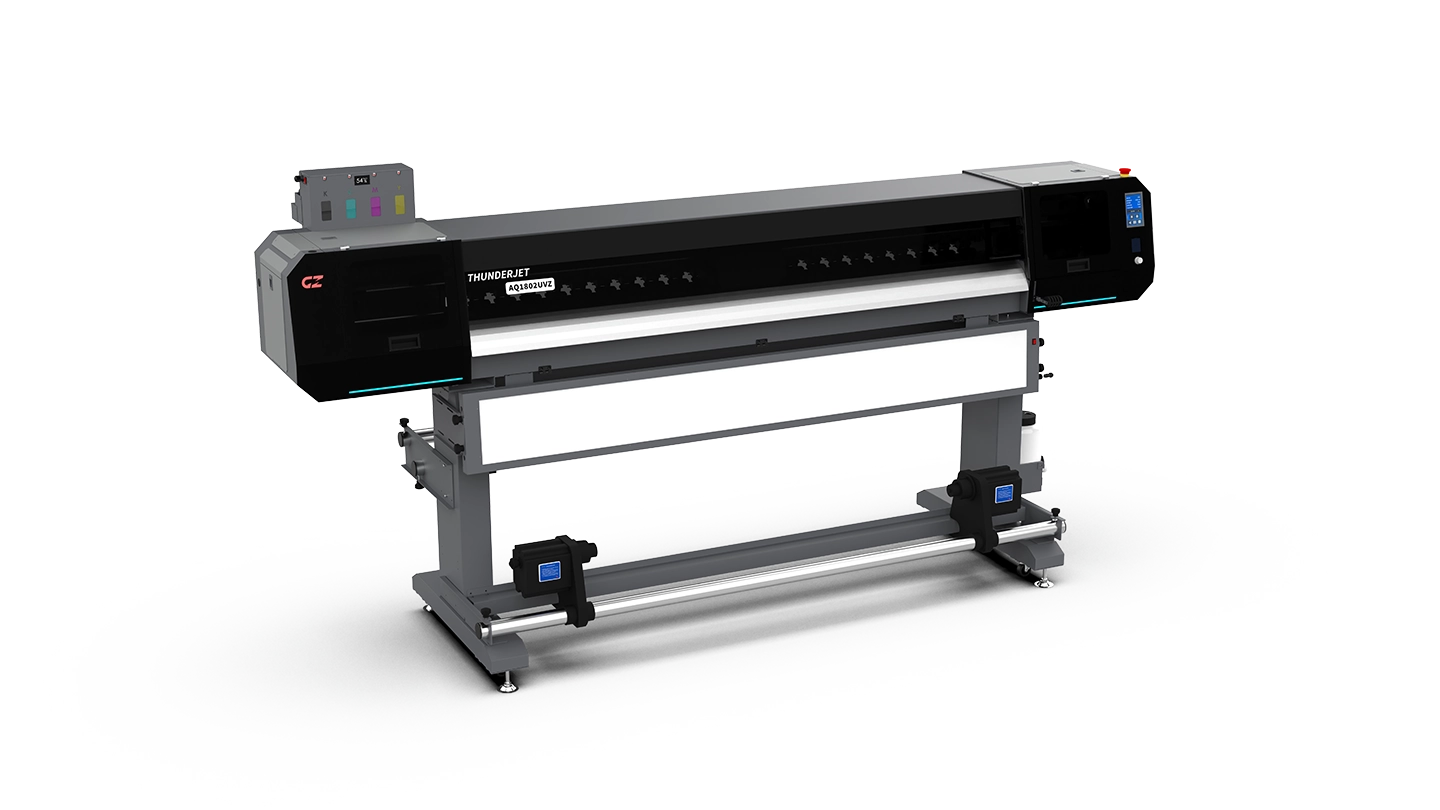

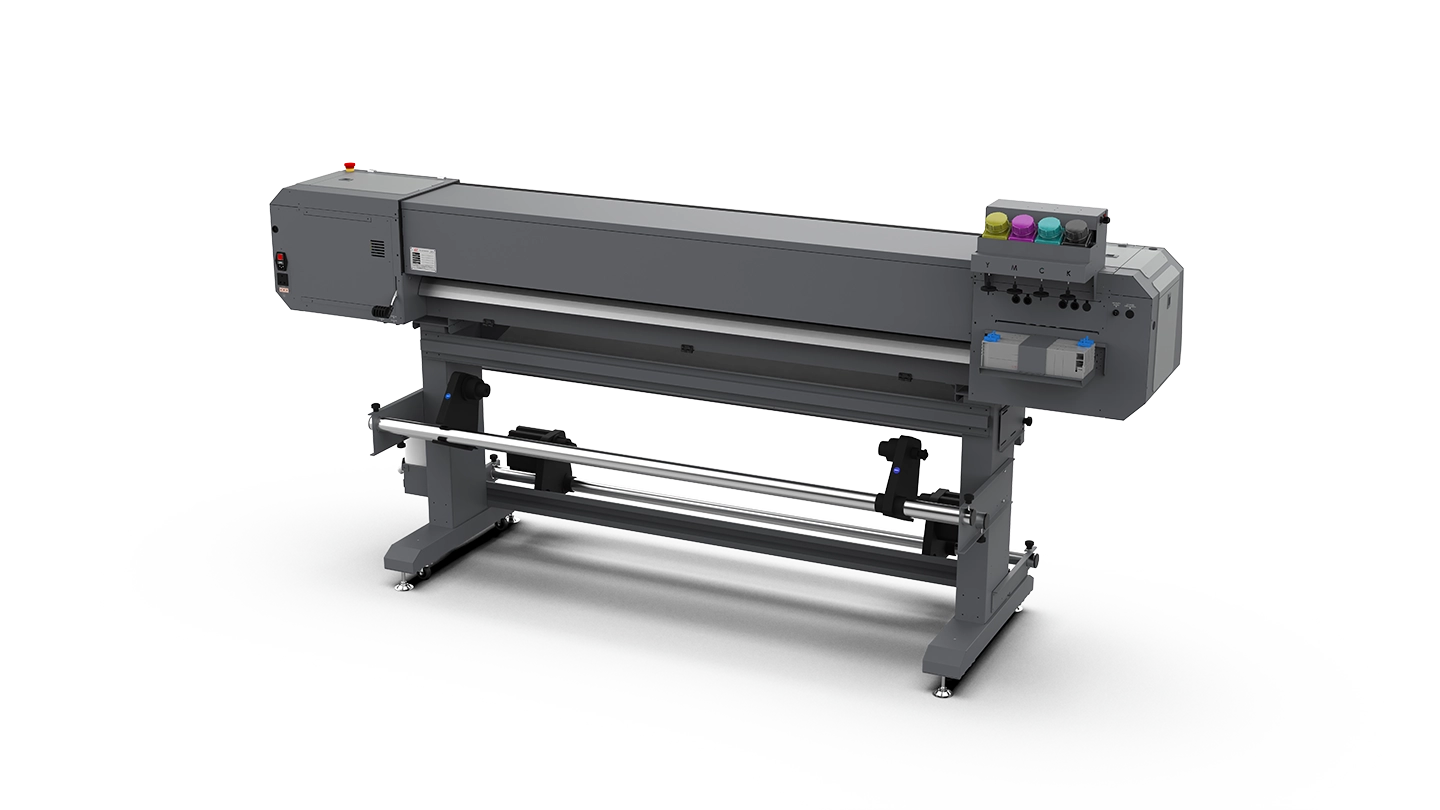

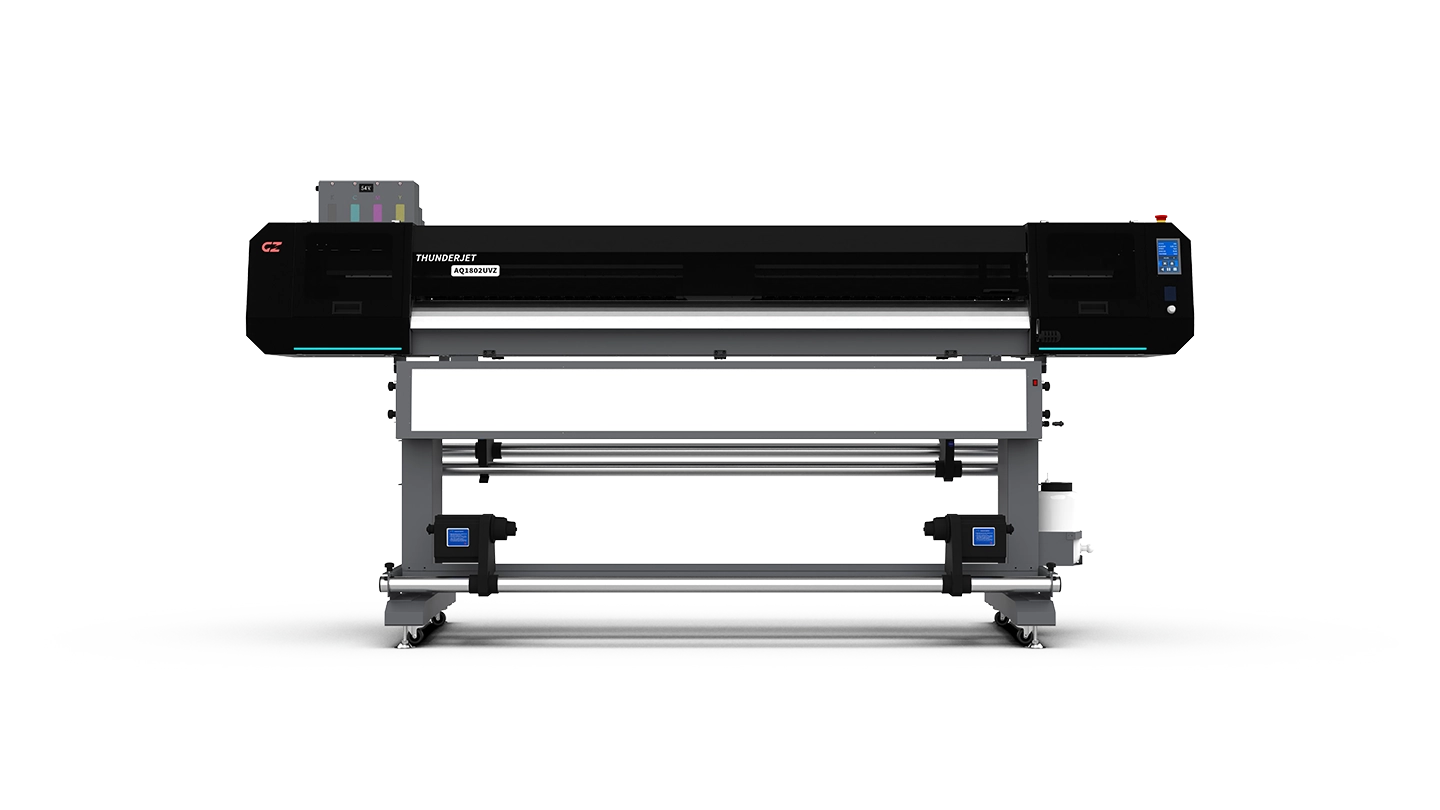

ThunderJetAQ1802UVZ—RTR UV Printer

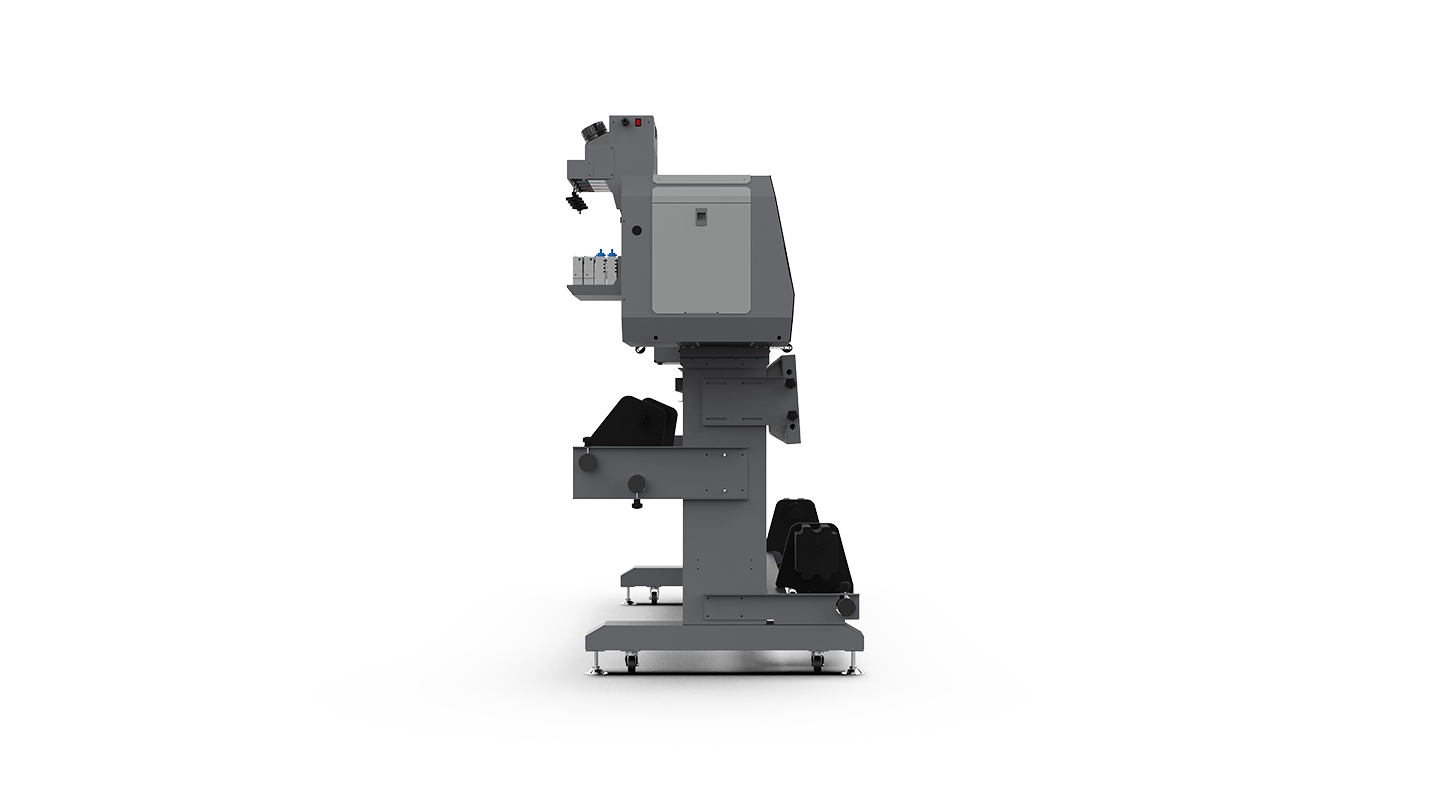

ThunderJetAQ1802UVZ—RTR UV Printer

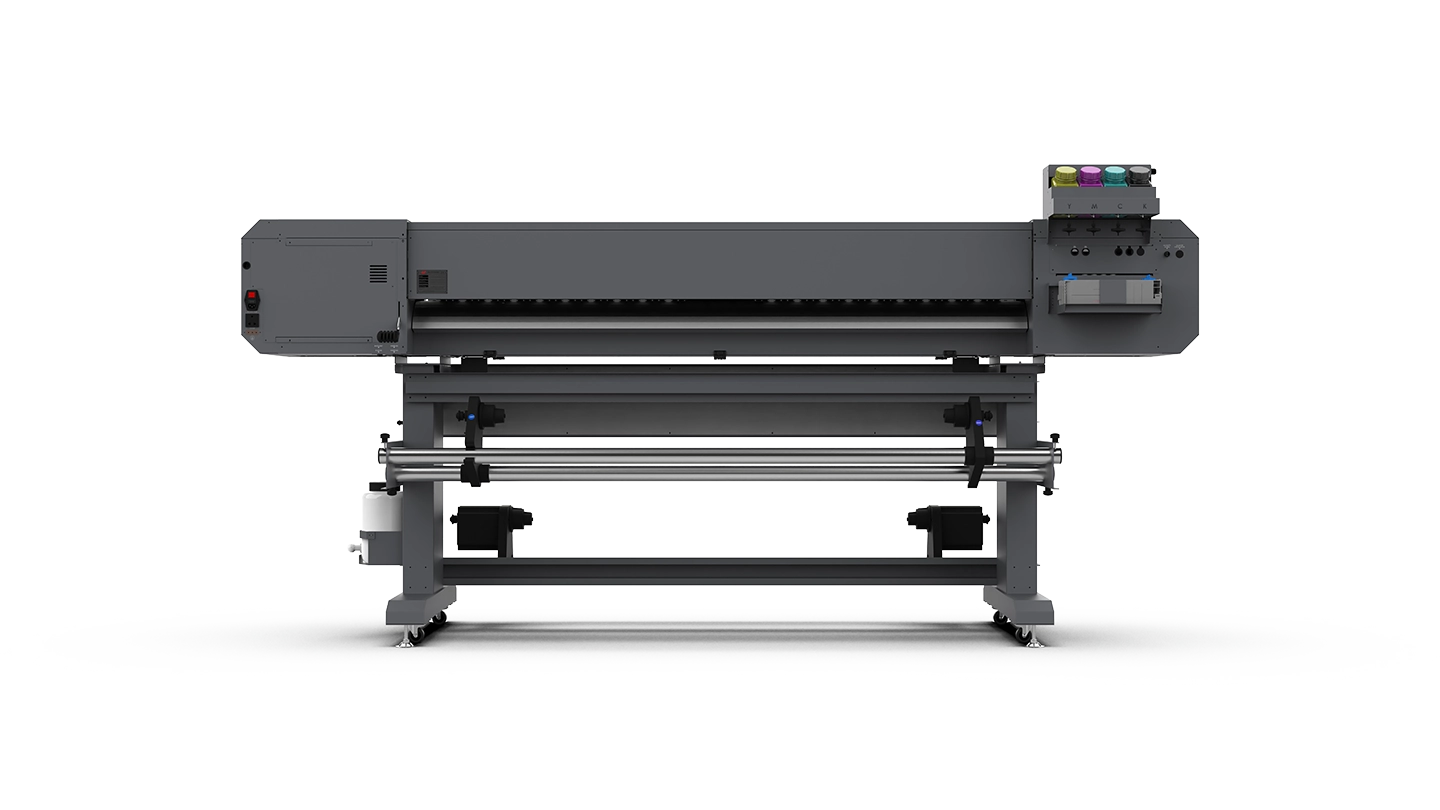

ThunderJetAQ1802UVZ—RTR UV Printer


< >
