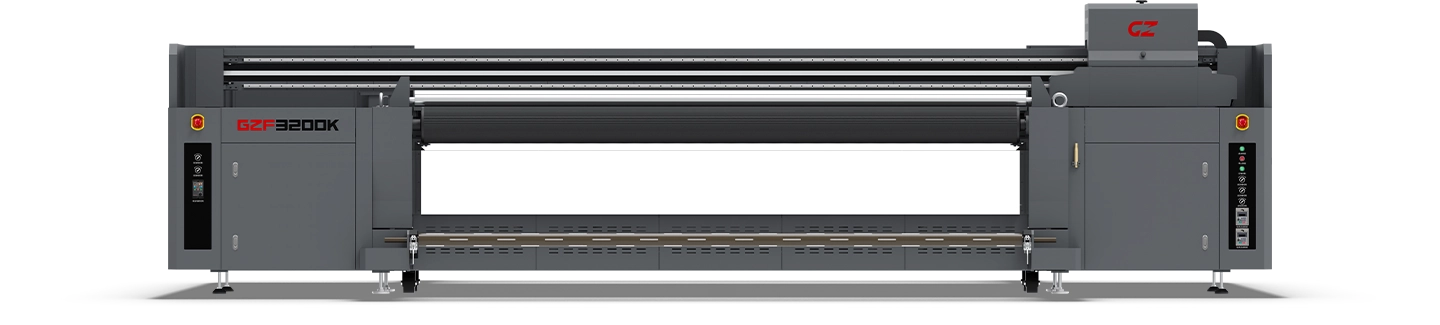

Model | GZF3200K |

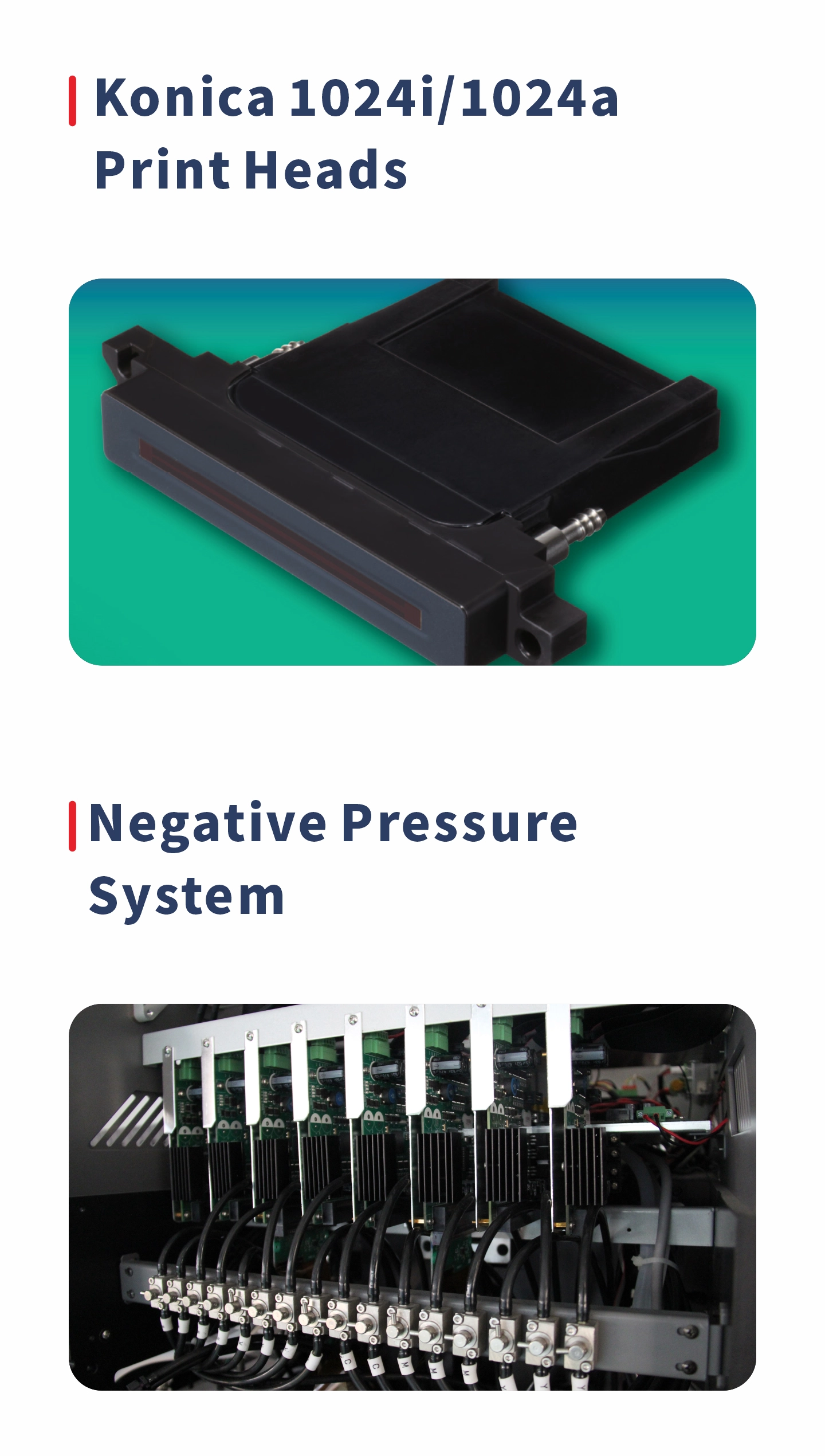

Print Head | 4~16 Konica 1024a Print Heads 4~16 Konica 1024i Print Heads |
Resolution | 480x1080dpi~480x1440dpi 540x1080dpi~540x1440dpi |

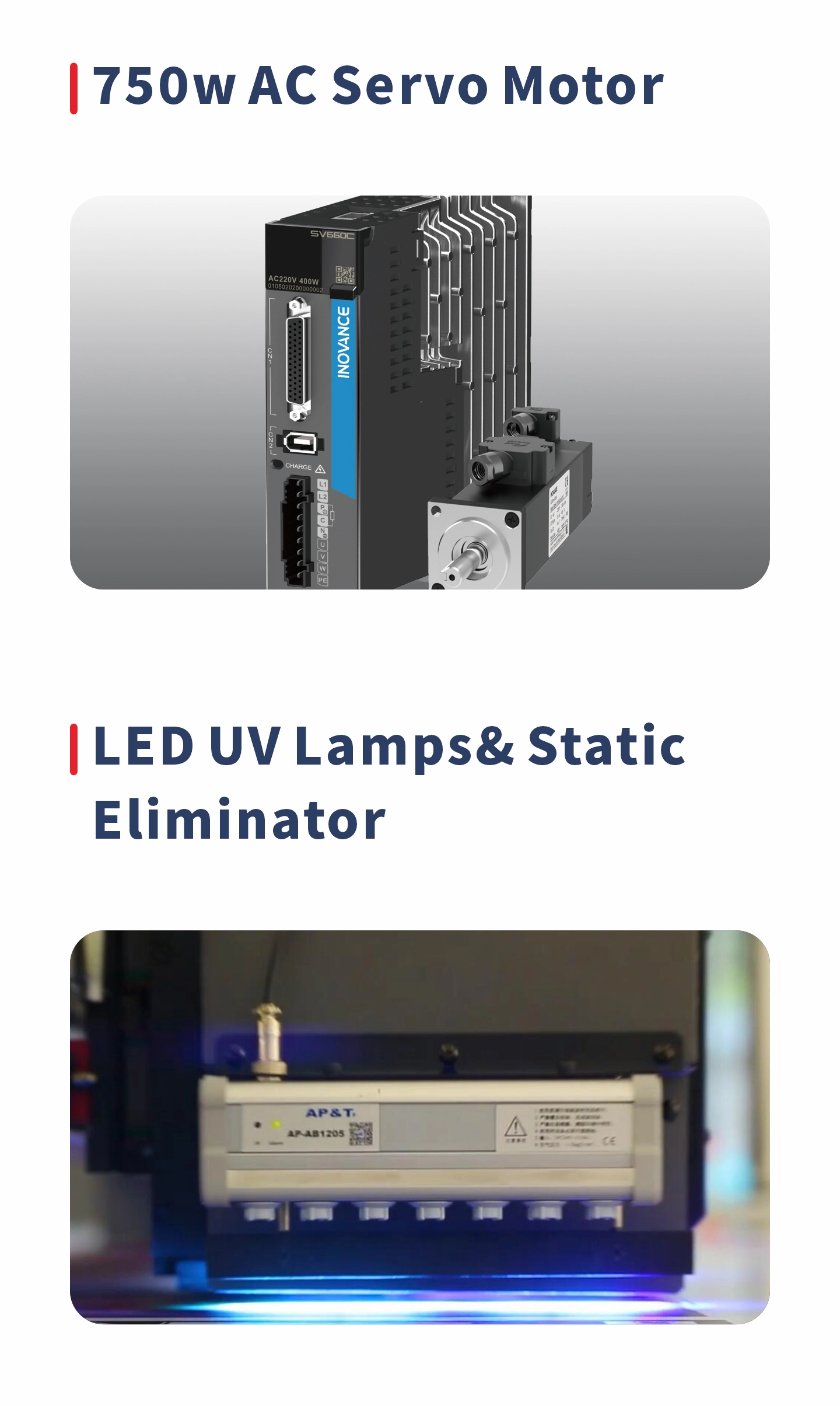

Curing System | LED UV Curing System |
Ink | UV Curable Ink |
Color Config. | 1xKCMY; 1xKCMY+1W; 2xKCMY; 2xKCMY+2W 3xKCMY; 3xKCMY+2W; 4xKCMY; 4xKCMY+2W |
Ink Supply System | Negative Pressure System + White Ink Circulation System |
Ink Tank | 4000ml
|
Media Thickness | Max. 50mm |
Media Type | Flexible Media: Ceiling Film, Vinyl, Frontlit, Backlit, Banner, Fabric, Wall Paper, Leather, etc.
Rigid Media: PVC Board, Foam Board, Corrugated Baper, Aluminum Sheet, Wood, etc. |
Printing Width | Max. 3200mm |
Printing Speed | Konica1024a Resolution 2xKCMY 4xKCMY CWC |
Draft 480X1080 dpi 63㎡/h 125㎡/h 30㎡/h Production 480X1440 dpi 51㎡/h 100㎡/h 25㎡/h
Quality 480X1080 dpi 38㎡/h 75㎡/h 18㎡/h Hi-Precision 480X1440 dpi 28㎡/h 55㎡/h 13㎡/h |
Konica1024i Resolution 2xKCMY 4xKCMY CWC |
Draft 540X1080 dpi 66㎡/h 130㎡/h 32㎡/h Production 540X1440 dpi 58㎡/h 105㎡/h 27㎡/h
Quality 540X1080 dpi 41㎡/h 80㎡/h 20㎡/h Hi-Precision 540X1440 dpi 32㎡/h 60㎡/h 15㎡/h |
Data Interface | External: USB3.0; Internal: Fiber Optical |
Working Environment | Temp. 20℃~28℃, Humidity: 40%~70% |
Software | FlexiPRINT UV Version+ GZ Control Console |
Power | Single-phase, 50/60Hz, AC220±10%; 31A (Printer+Vaccum); 13.8A (UV Controller) |
Installed / Packed Size | LxWxH(mm): 6340x2000x1760 / 6450x2100x1950 (Printer); 1230x810x720 (Vaccum Blower + UV Controller) |
N.W. / G.W. | 2100KGS / 3200KGS (Printer) |
