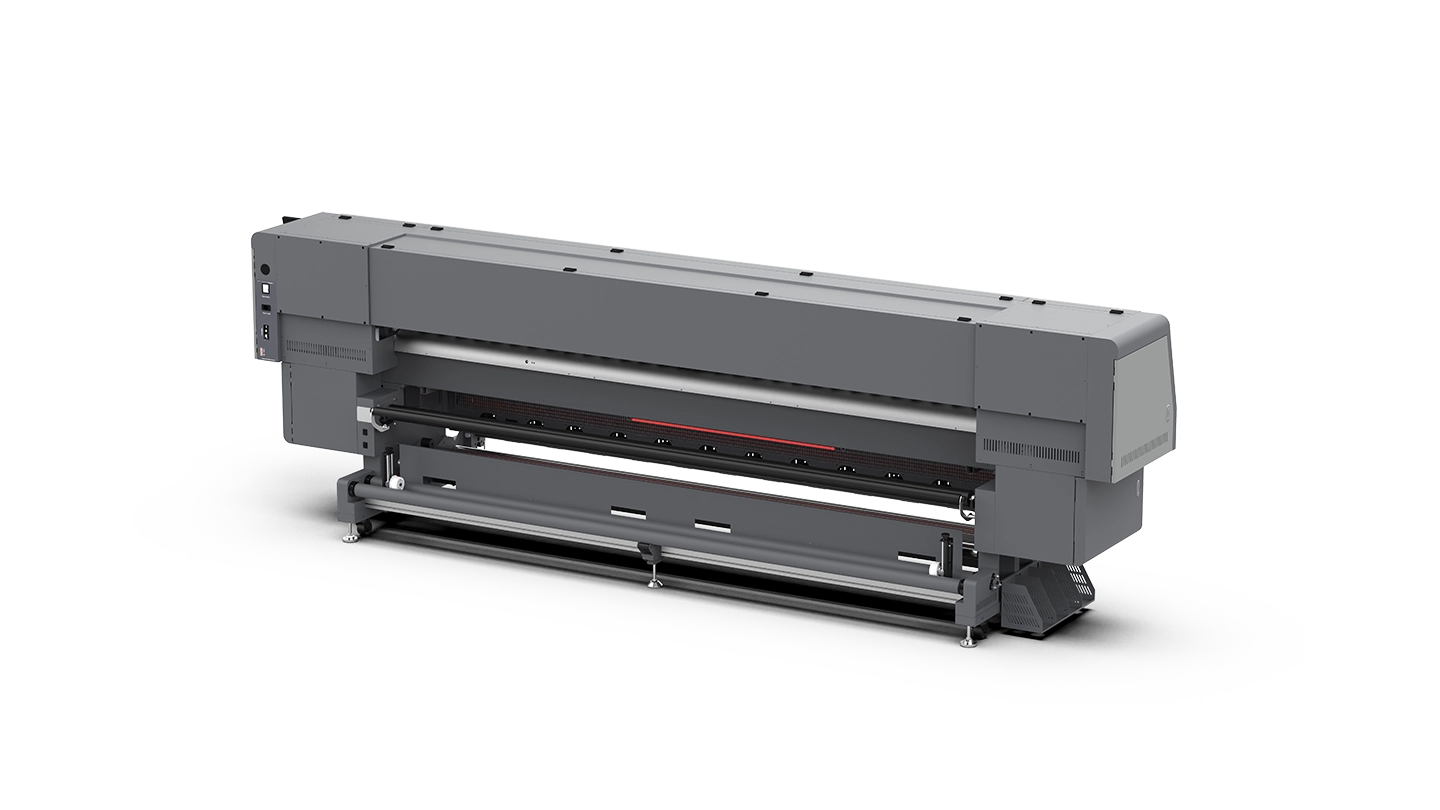

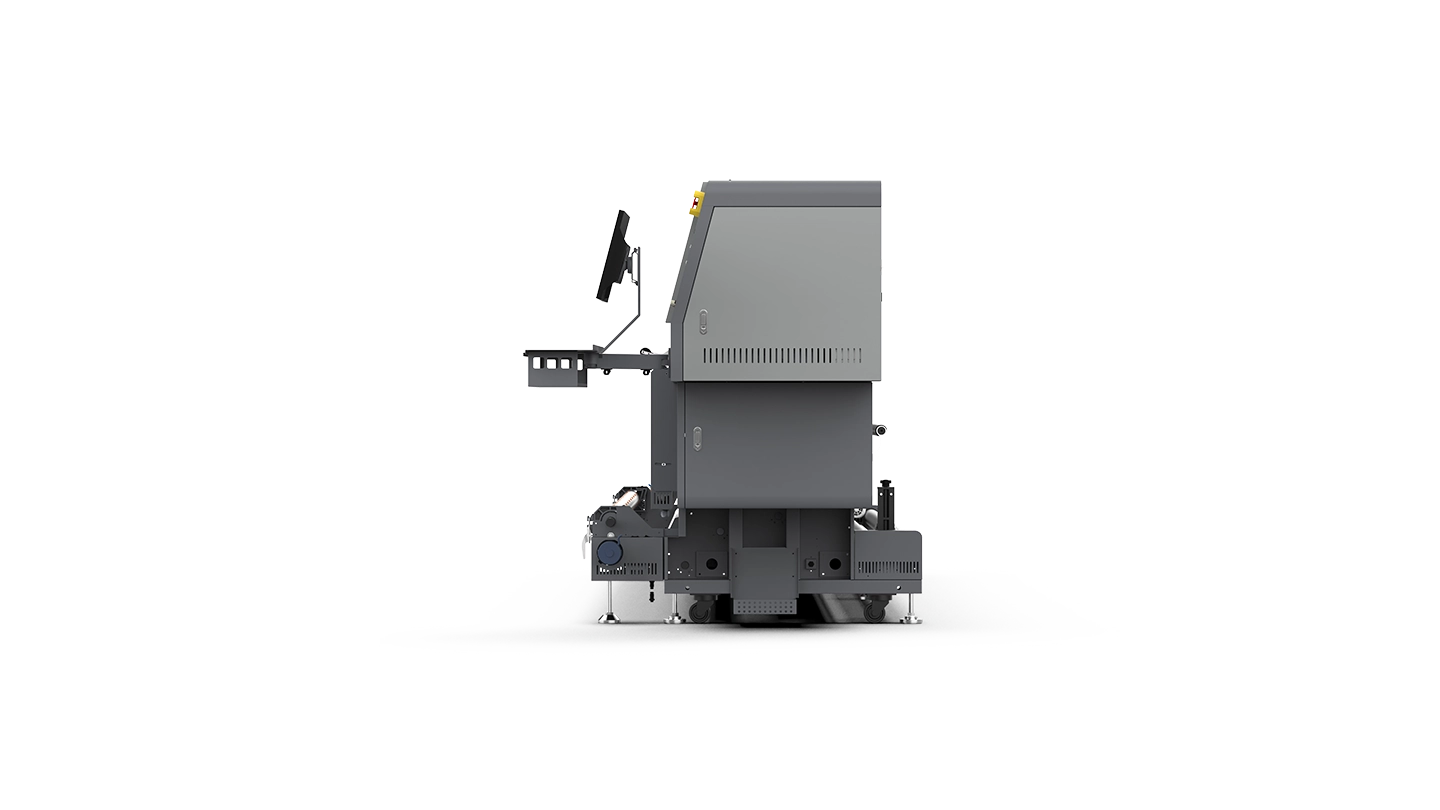

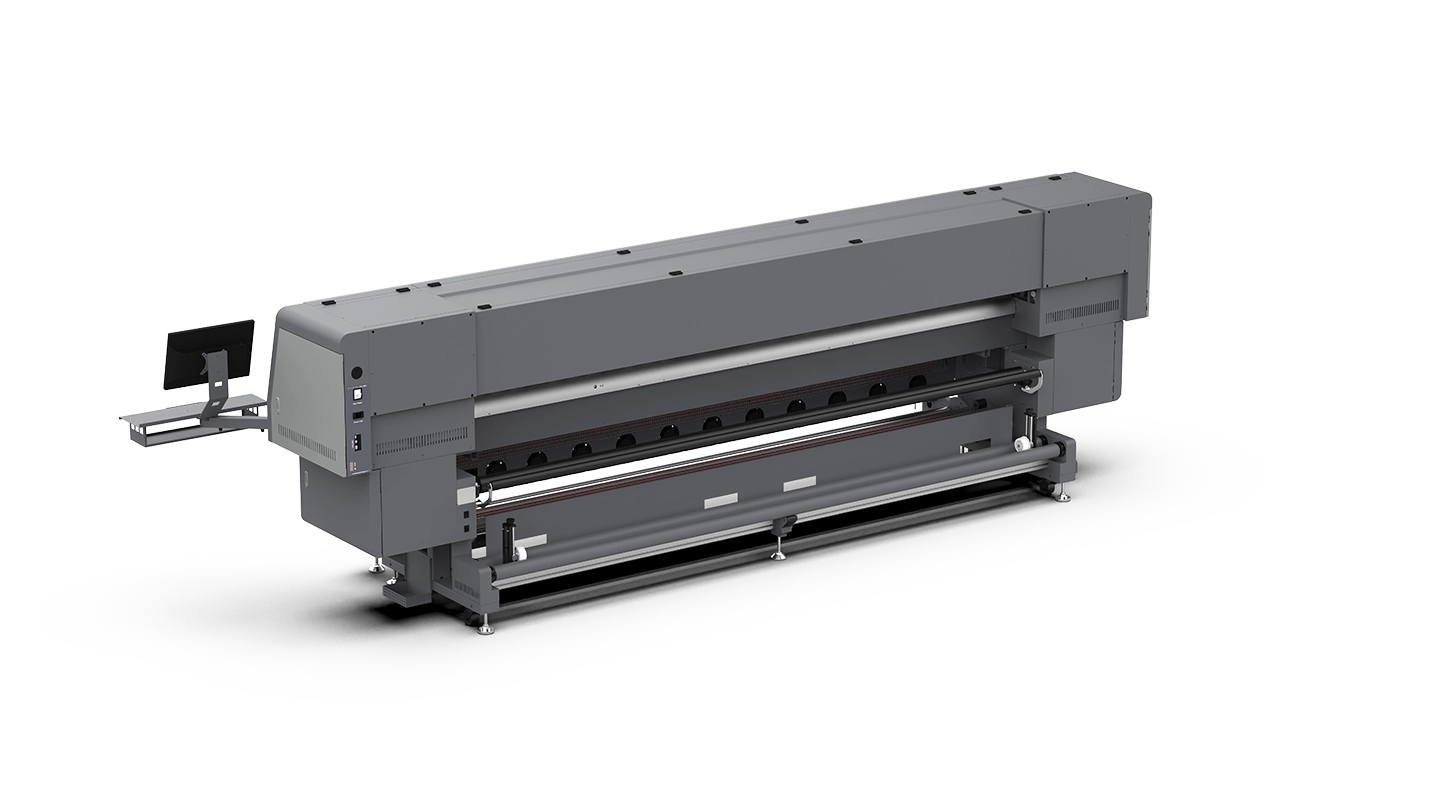

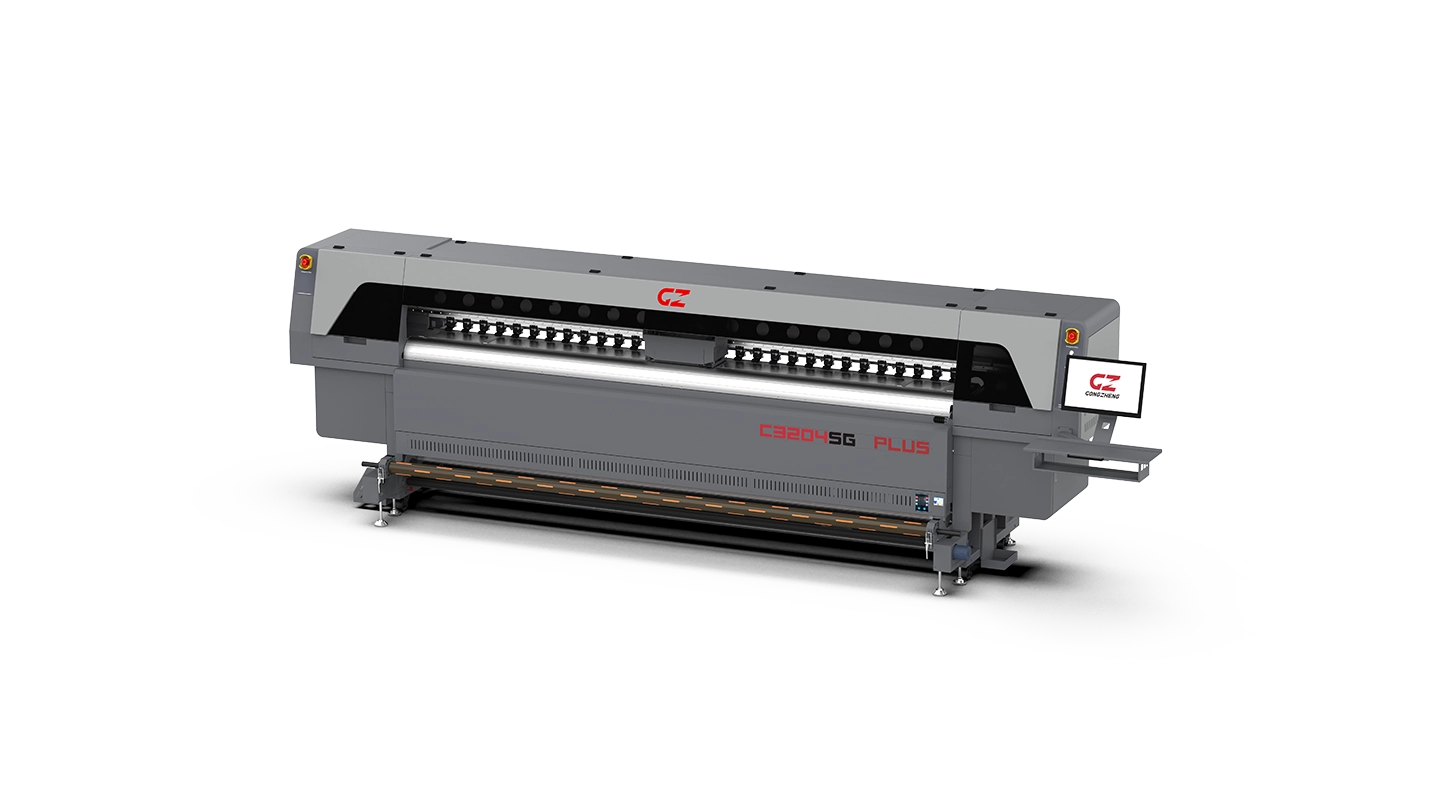

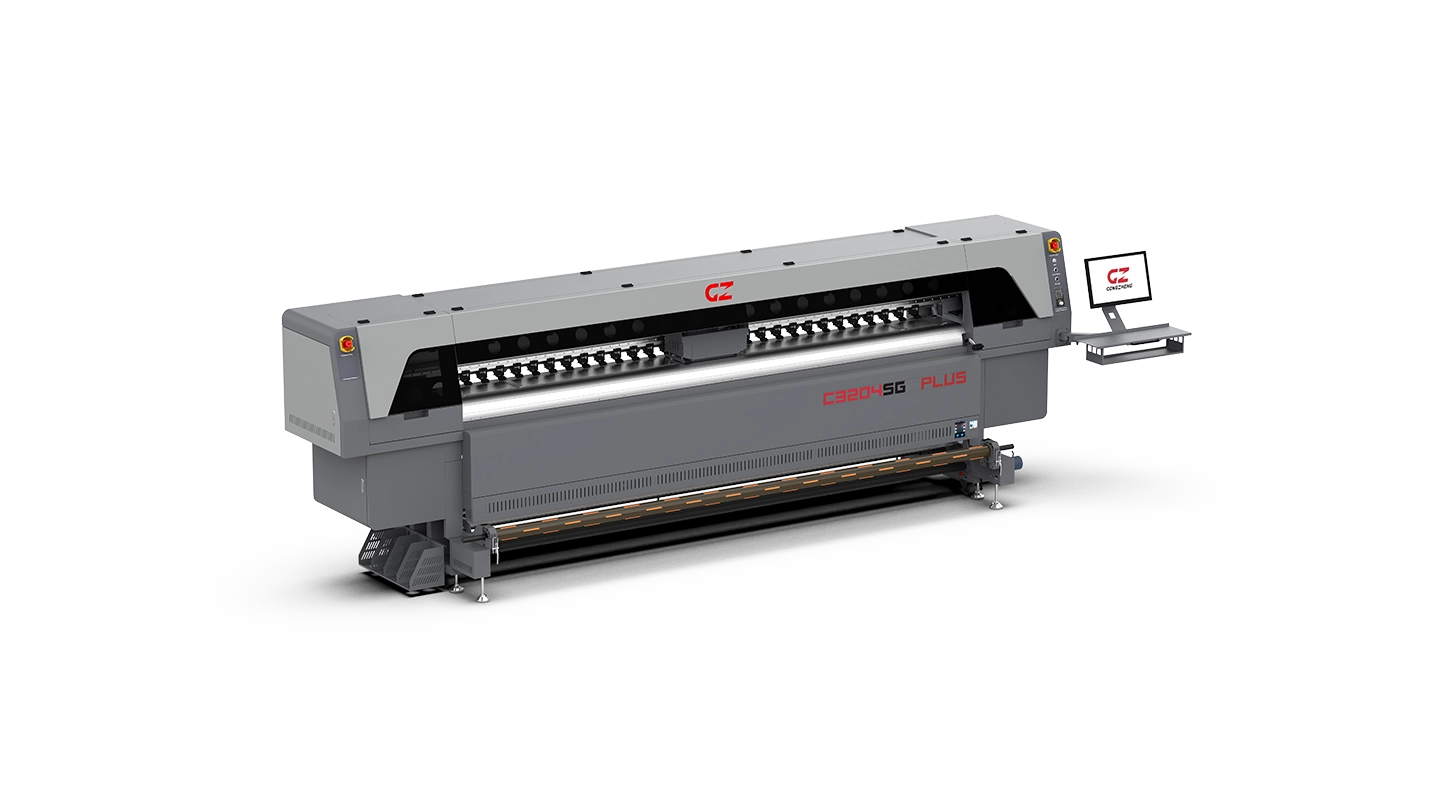

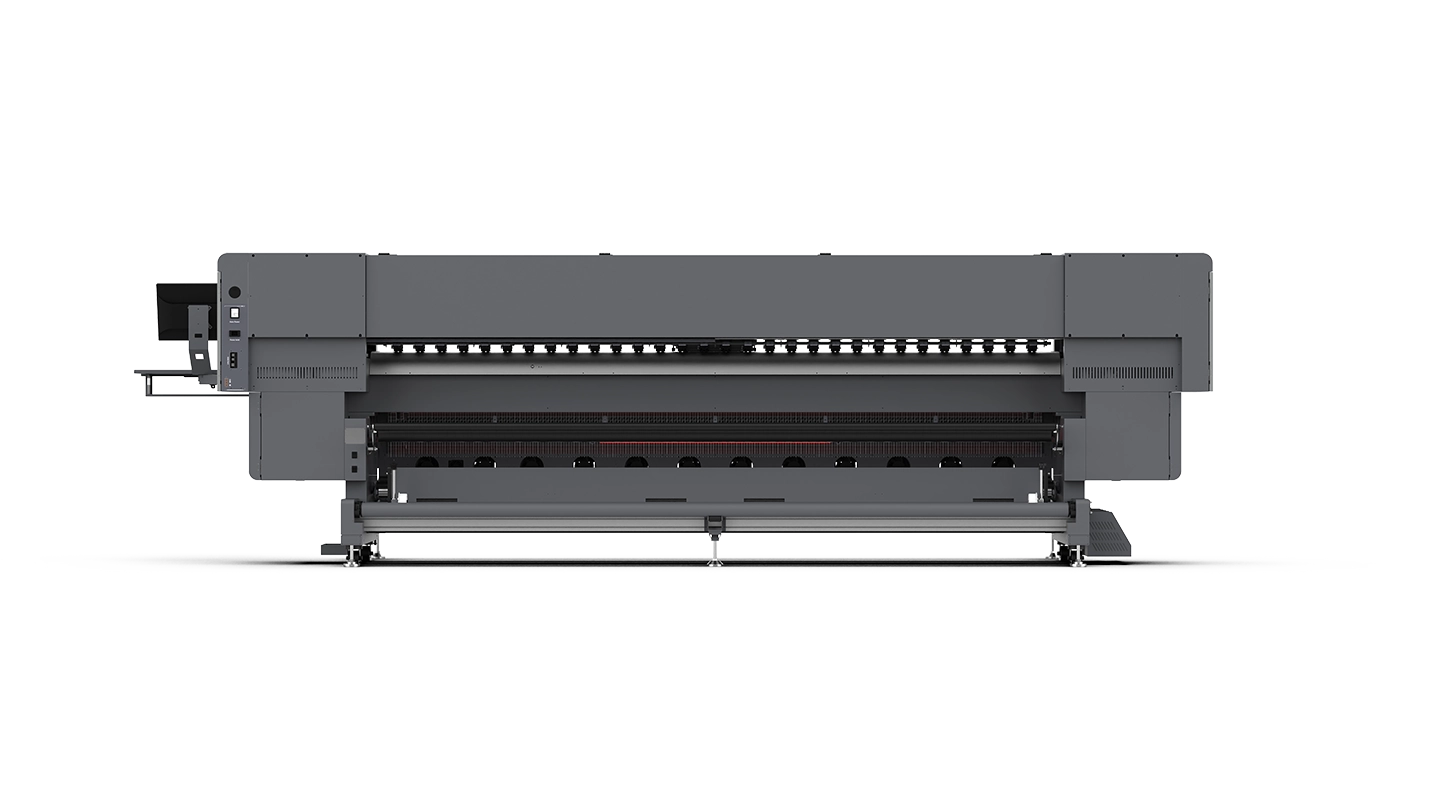

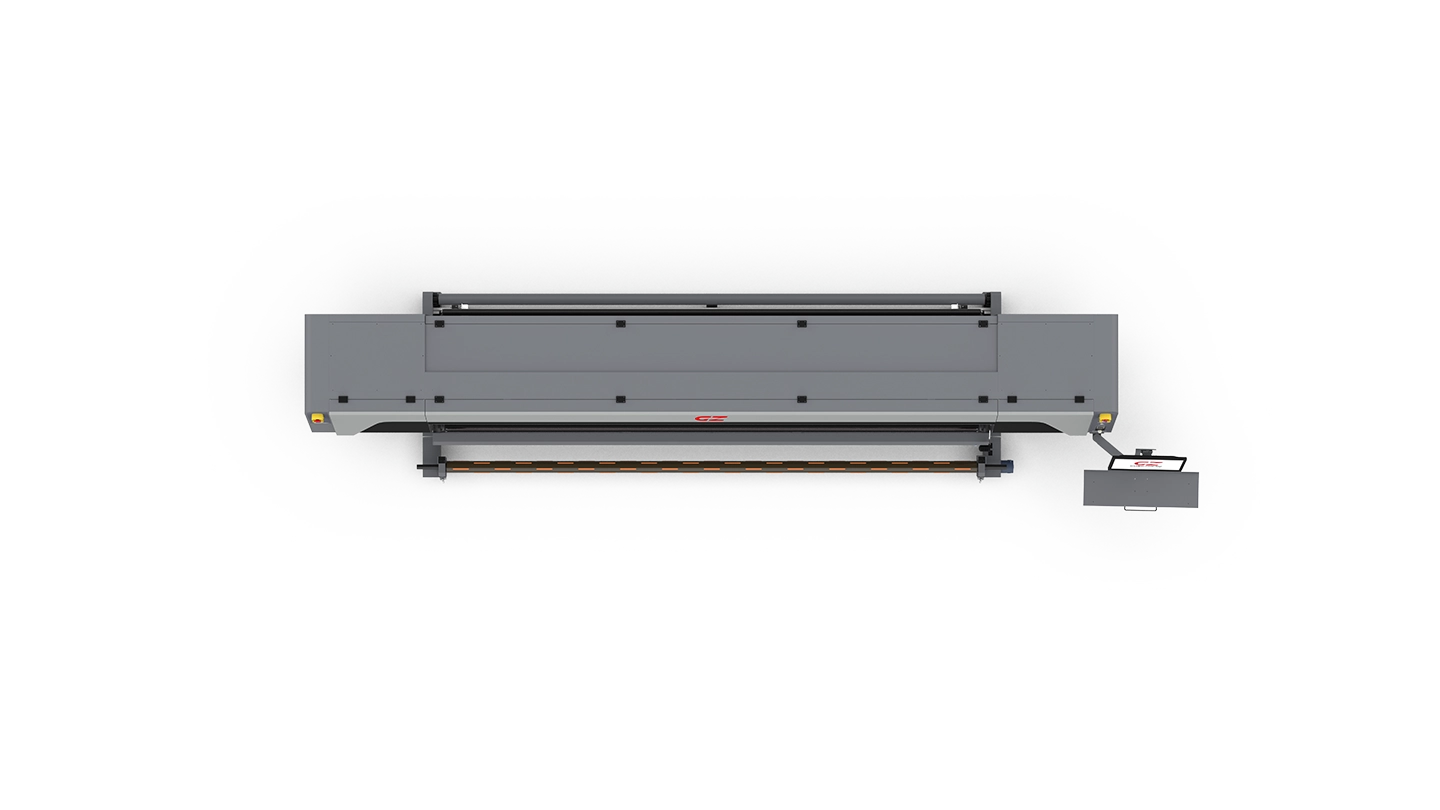

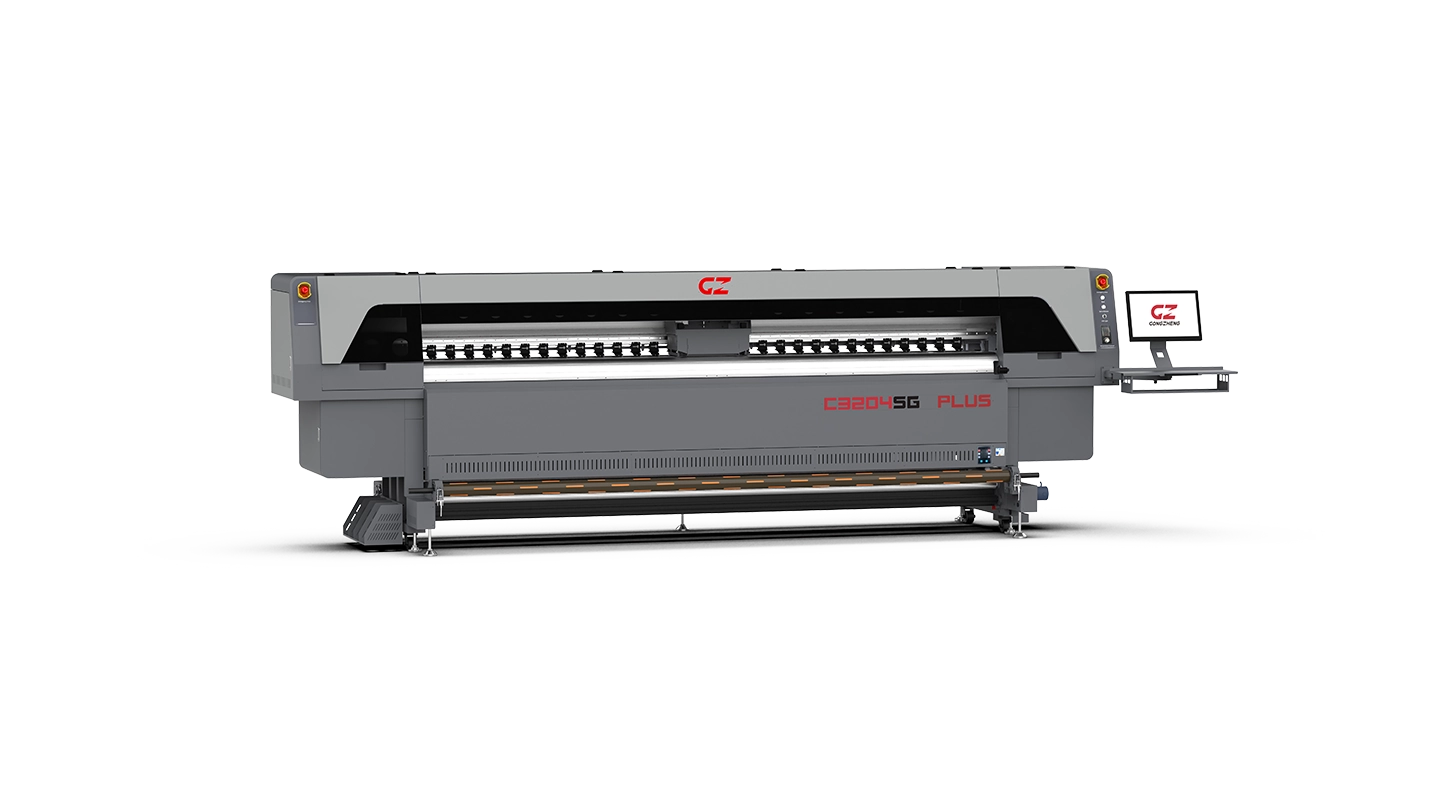

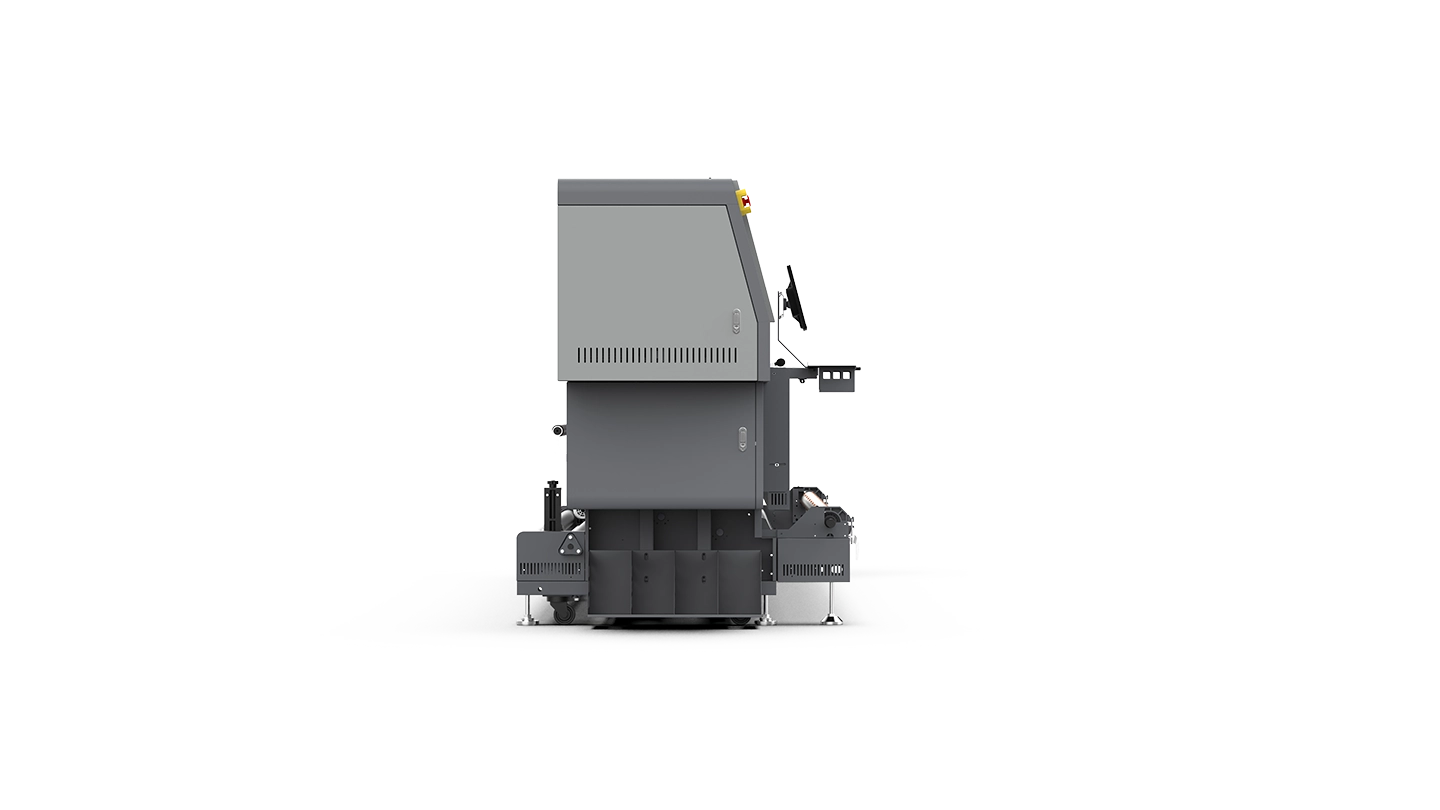

C3204SG PLUS / C3202SG PLUS

3.2m Affordable Solvent Solution

Feature Specification Details

●	Starfire 1024 Print Heads
●	GnTek Negative Recirculation
●	Intelligent IR Drying System
●	Optimized Media Handling System

Model	C3204SG PLUS & C3202SG PLUS
Print Head	4x Starfire 1024 10pl/25pl & 2x Starfire 1024 10pl/25pl
Ink	SGS2 Eco-Solvent Ink / SGS1 Solvent Ink；SGM2 Eco-Solvent Ink / SGM1 Solvent Ink
Ink Supply System	Gntek Negative Pressure Recirculation System
Printing Width	Max. 3200mm
Media Type	Banner, Frontlit, Backlit, Vinyl, Film...
Feeding System	Automatic Media Feeding and Taking up System with Air Shaft
Drying System	Pre, Mid, Post and Extended Heater Plus Intelligent IR Drying System
Printing Speed	C3204SG PLUS C3202SG PLUS 300x400dpi 234㎡/h 300x400dpi 129㎡/h 600x400dpi 209㎡/h 600x400dpi 115㎡/h 300x600dpi 163㎡/h 300x600dpi 86㎡/h 600x600dpi 146㎡/h 600x600dpi 76㎡/h 300x800dpi 127㎡/h 300x800dpi 67㎡/h 600x800dpi 112㎡/h 600x800dpi 59㎡/h
Data Interface	External: USB2.0; Internal: High-Speed SCSI
Working Environment	Temp. 23°C~29℃; Humidity: 50%~80%
Software	FlexiPRINT / Onyx (Optional)...+GZ Printer Manager
Power	Single Phase, 50Hz/AC, 220V±10%, 13A (Printer)+34A (IR Dryer)
Packed / Installed Size	LxWxH(mm): 5800x1150x1125 / 4847x1132x1532
G.W. / N.W.	1248KGS / 965KGS

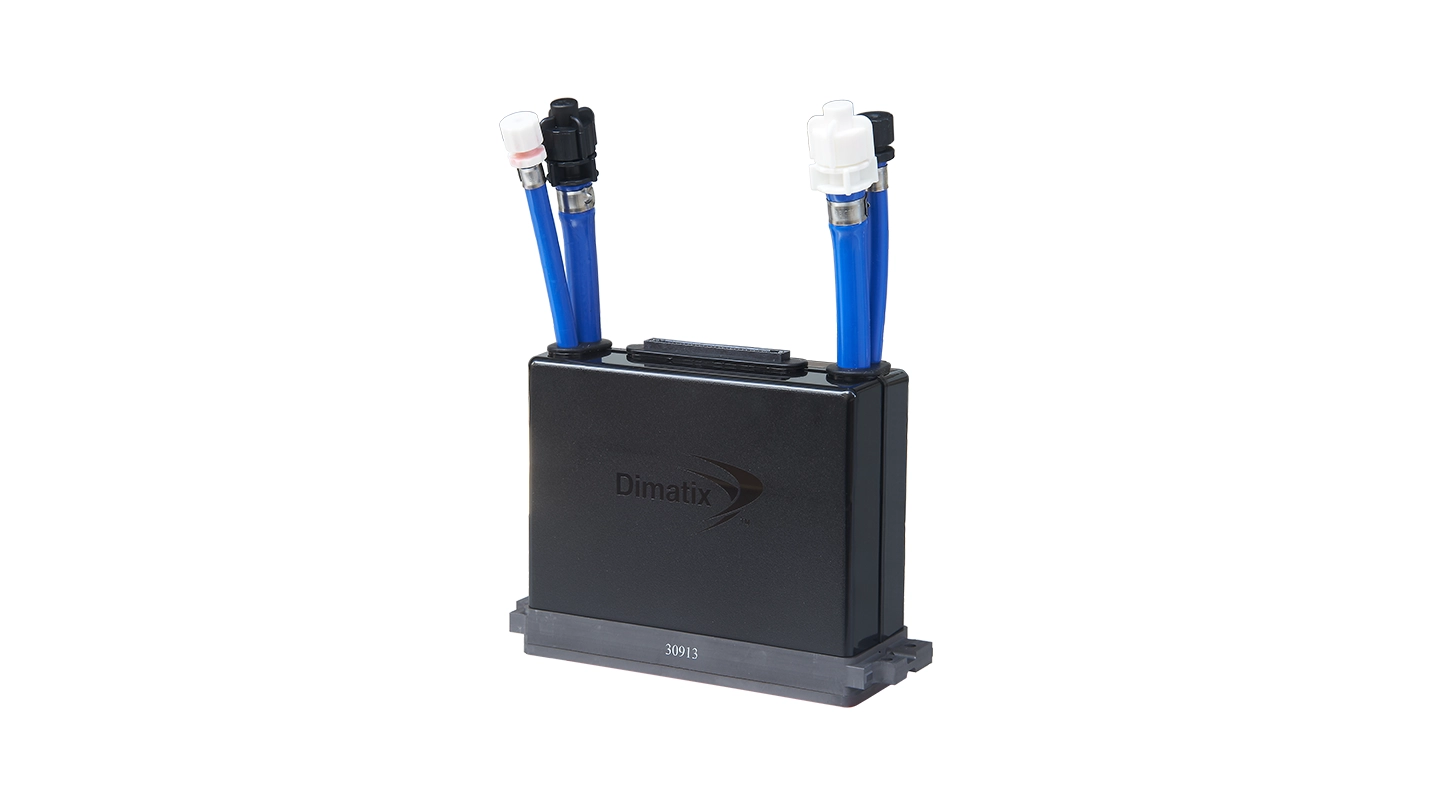

Starfire 1024 Print Heads

With continuous ink recirculation and robust repairable construction, Dimatix Starfire 1024 print heads deliver unparalleled saturation and smooth gradient.

GnTek Negative Recirculation

GZ dual negative pressure recirculation system with pressure balancing unit and pressure protection unit assures steady ink delivery and minimum maintenance.

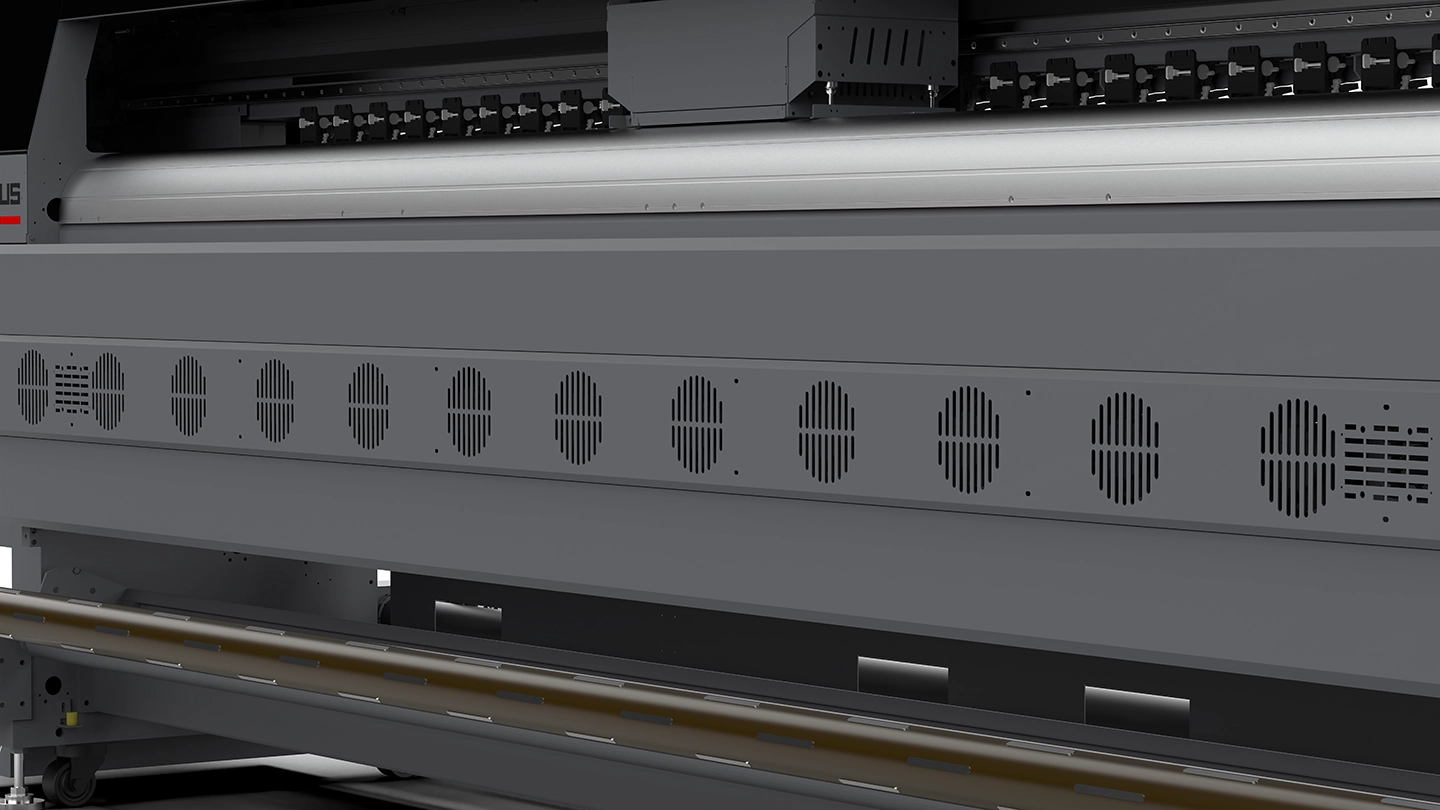

Intelligent IR Drying System

One-piece IR dryer for easy installation and smart synchronizing function could dry the printing efficiently and save the electricity.

Optimized Media Handling System

The feeding system with strong media holders is suitable for both light and heavy media.Taking up system with air shaft & tension bar enables precise and steady rewinding.

< >
