Print Head

4~18 Ricoh Gen6 Print Heads

Curing System

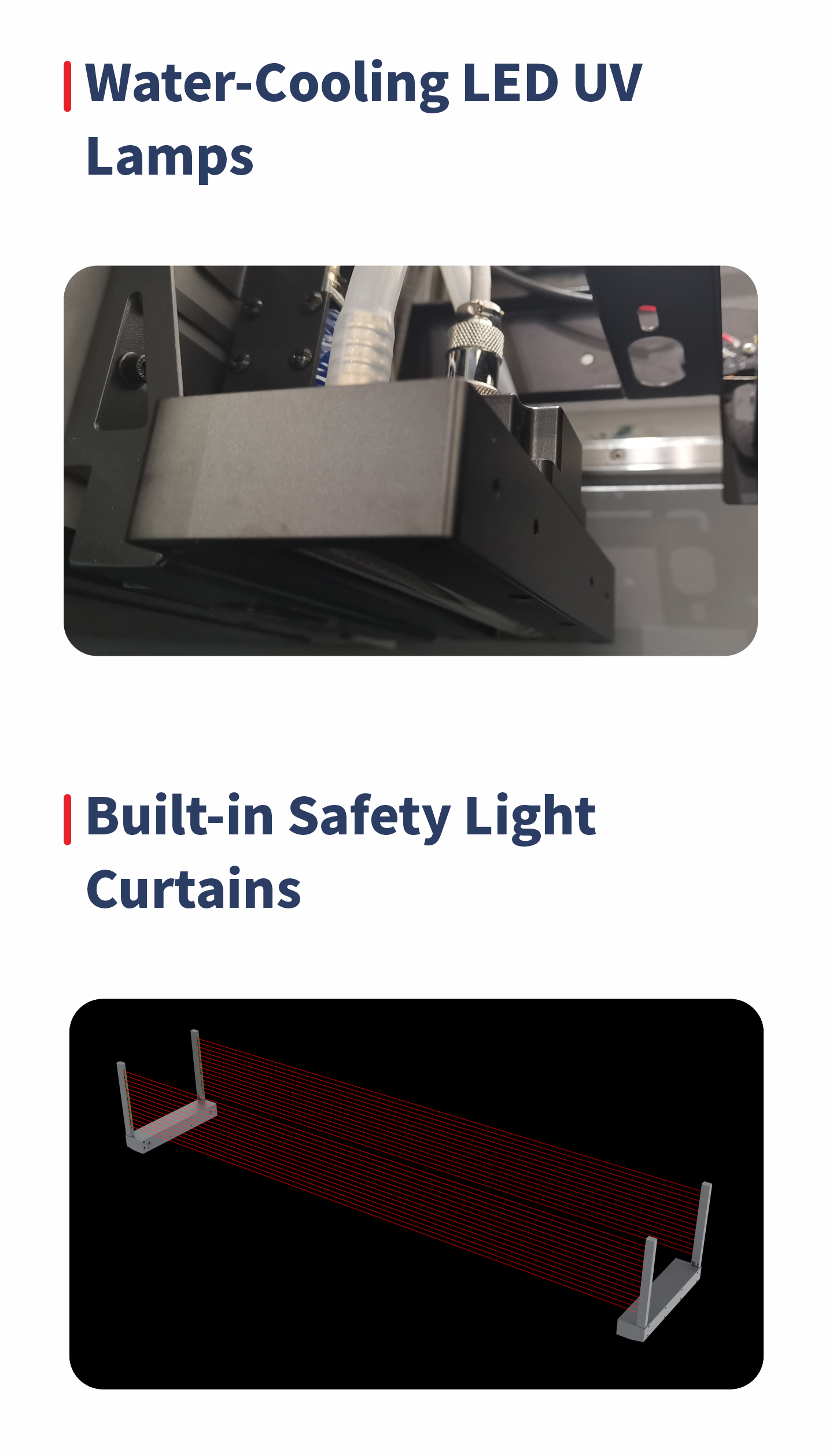

Water Cooling LED UV Curing Lamps

Ink

Gongzheng UV Ink: RKA-3

Color Config.

1×WW+2×KCMY+1×VV; 1×WW+1×KCMYLcLm+1×VV; 4×KCMYLcLm

2×WW+4×KCMY; 2×WW+6×KCMY

Ink Supply System

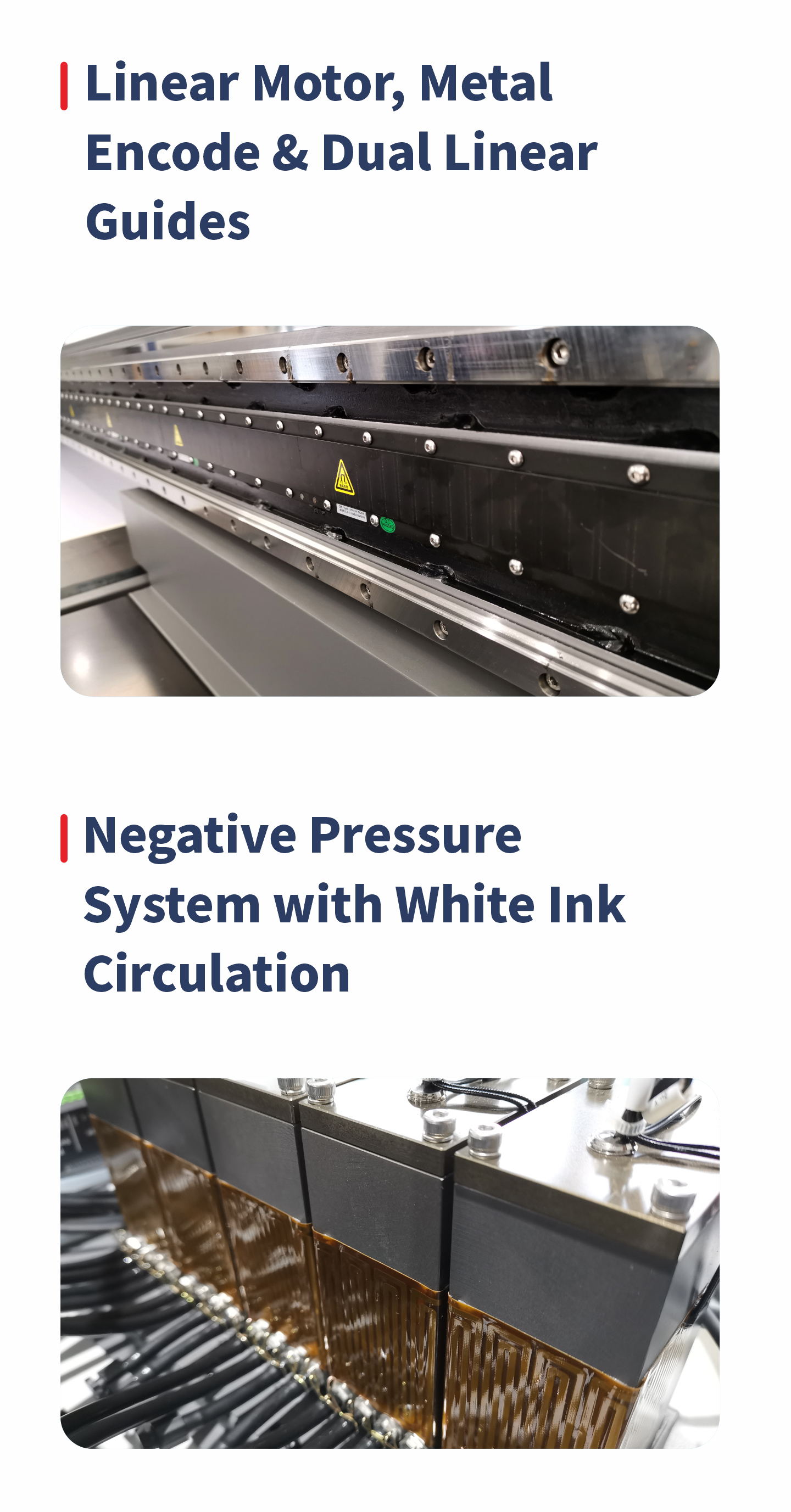

Gntek Negative Pressure System and White Ink Stirring & Circulation System

Ink Tank

2500ml

Media Thickness

Max. 100mm

Media Type

Acrylic, Aluminum Sheet, Foam Board, PVC Board, Leather, Glass, Wood, Ceramic Tile, etc.

Table Size

3260×2160mm

Printing Size

Max.3200mm×2000mm

Printing Speed

Mode                    Resolution         Feather         4×KCMY            6×CMYK

Draft                   720×900dpi        Gradient        84sqm/h             115sqm/h

Production         720×1200dpi      Gradient        67sqm/h             86sqm/h

Hi-resolution      720×900dpi        Uniform         49sqm/h             65sqm/h

Photo                 720×1200dpi      Uniform         39sqm/h             50sqm/h

Data Interface

External: USB3.0; Internal: Fiber Optical

Working Environment

Temp. 20℃~30℃, Humidity: 35%~65%

Software

PhotoPRINT 22 UV/ONXY Ripcenter+GZ Control Console

Power

Single-phase, 50/60Hz, AC220V±10%

13A(Printer & UV Controller)+21A (Vacuum System)

Packed / Installed Size

L×W×H(mm): 5850x2300x1795/ 5648x3210x1579

G.W. / N.W.

3230KGS/ 1940KGS
