Print Head

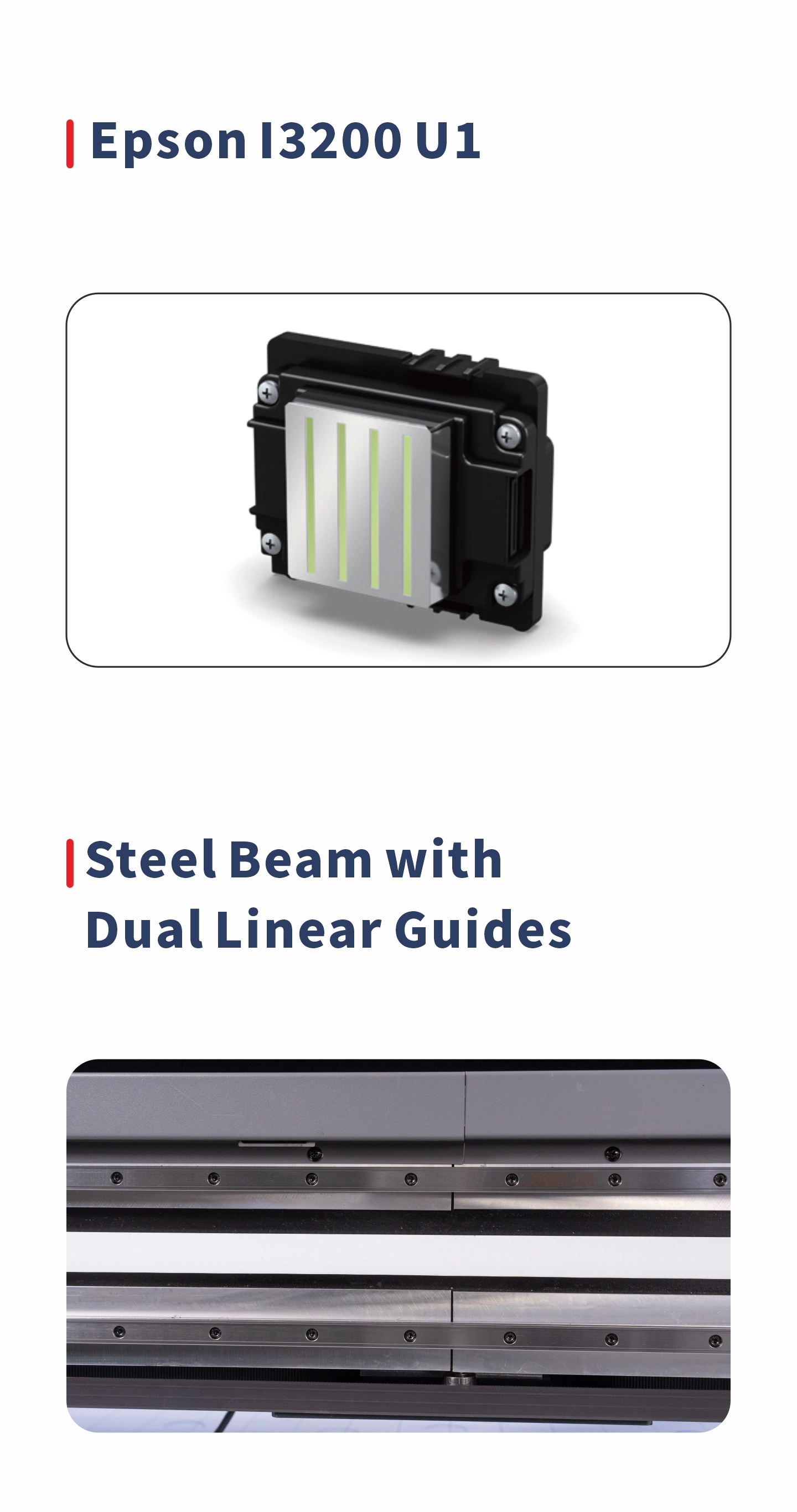

2-4 Epson I3200 U1  print heads

Curing System

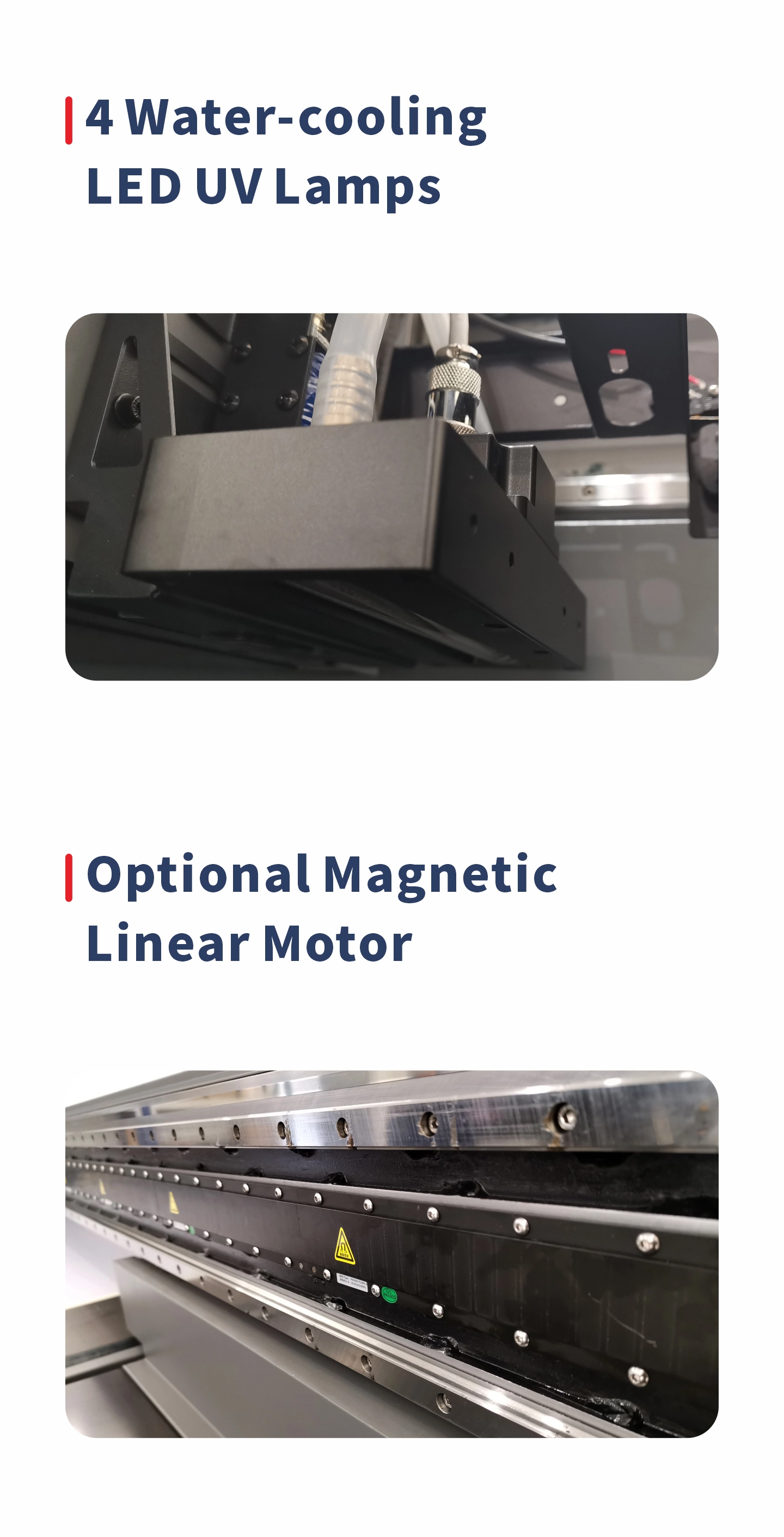

Four Water Cooling LED UV Curing Lamps

Ink

Gongzheng UV Ink: RGI-3

Color Configuration

1xW+2xKCMY; 1xW+2xKCMY+1xV; 4xKCMY

Ink Supply System

2L Bulk Ink Supply System with White Ink Recirculation System

Media Thickness

Up to 150mm

Media Type

Acrylic, Aluminum sheet, Foam board, PVC board, Leather, Glass bottle, Golf ball, Wood, Ceramic tile, Souvenir, Toys, etc.

Printing Size

Max. 1600×1200mm

Printing Speed

Printing mode       Feather        Resolution            1×W+2×KCMY+1×V            4×KCMY

Draft                       Weak         720x1200dpi                  31.48㎡/h                     59.81㎡/h

Production            Normal        720x1200dpi                  22.44㎡/h                     42.64㎡/h

High-resolution    Normal        720x1800dpi                  18.56㎡/h                     35.26㎡/h

Photo                    Normal        720x2400dpi                  11.53㎡/h                     21.91㎡/h

Data Interface

Gigabit Ethernet

Working Environment

Temp. 20℃~30℃, Humidity: 35%~65%

Software

FlexiPRINT Mini UV +GZ control console

Power Requirement

Single-phase, AC220V±10%, 50/60Hz,10A

Power Consumption

Printer: 1100W; UV controller: 800W; Vacuum blower: 2200W

Packed / Installed Size

LxWxH(mm): 3600x2300x1775 / 3290x1940x1456

G.W. / N.W.

1460KGS / 1100KGS
