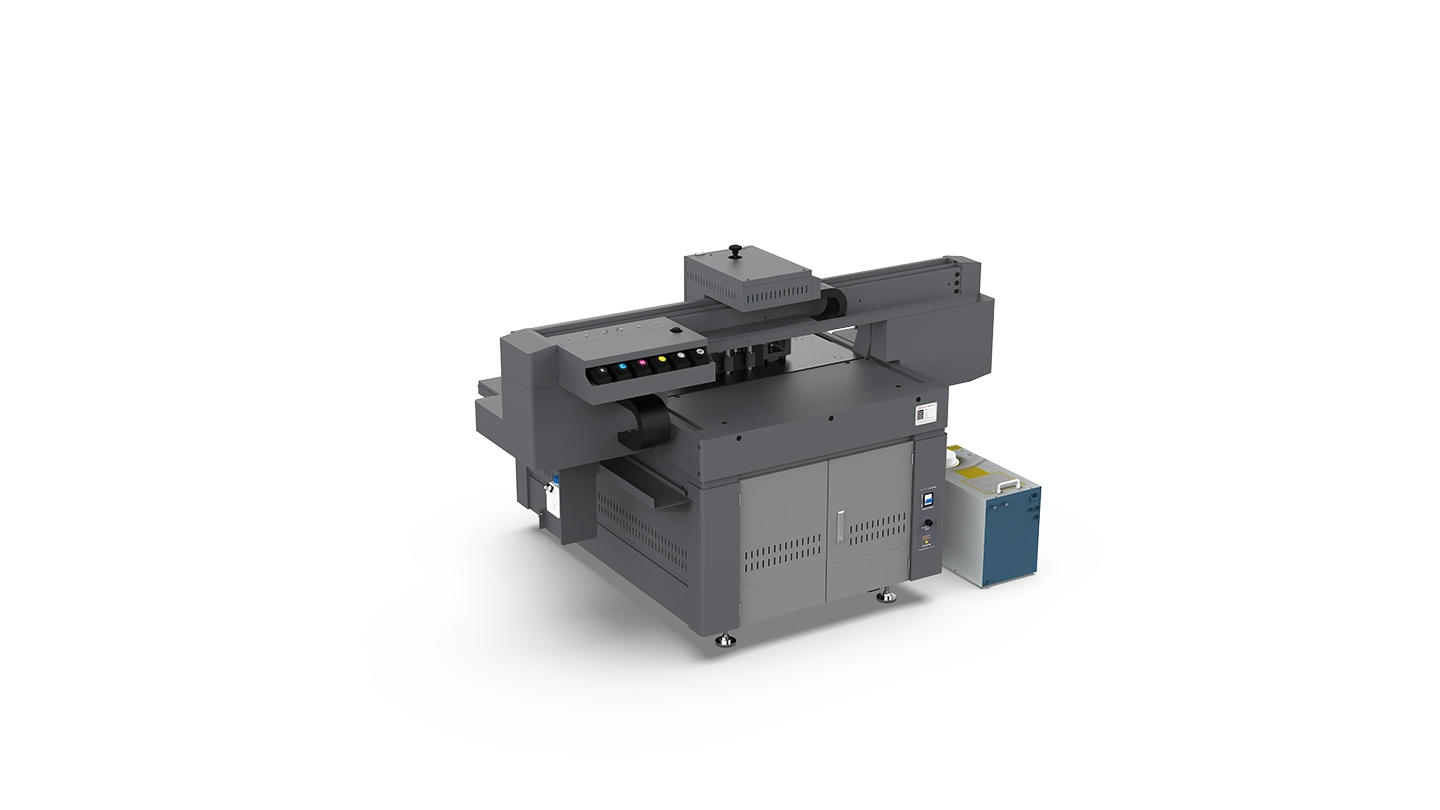

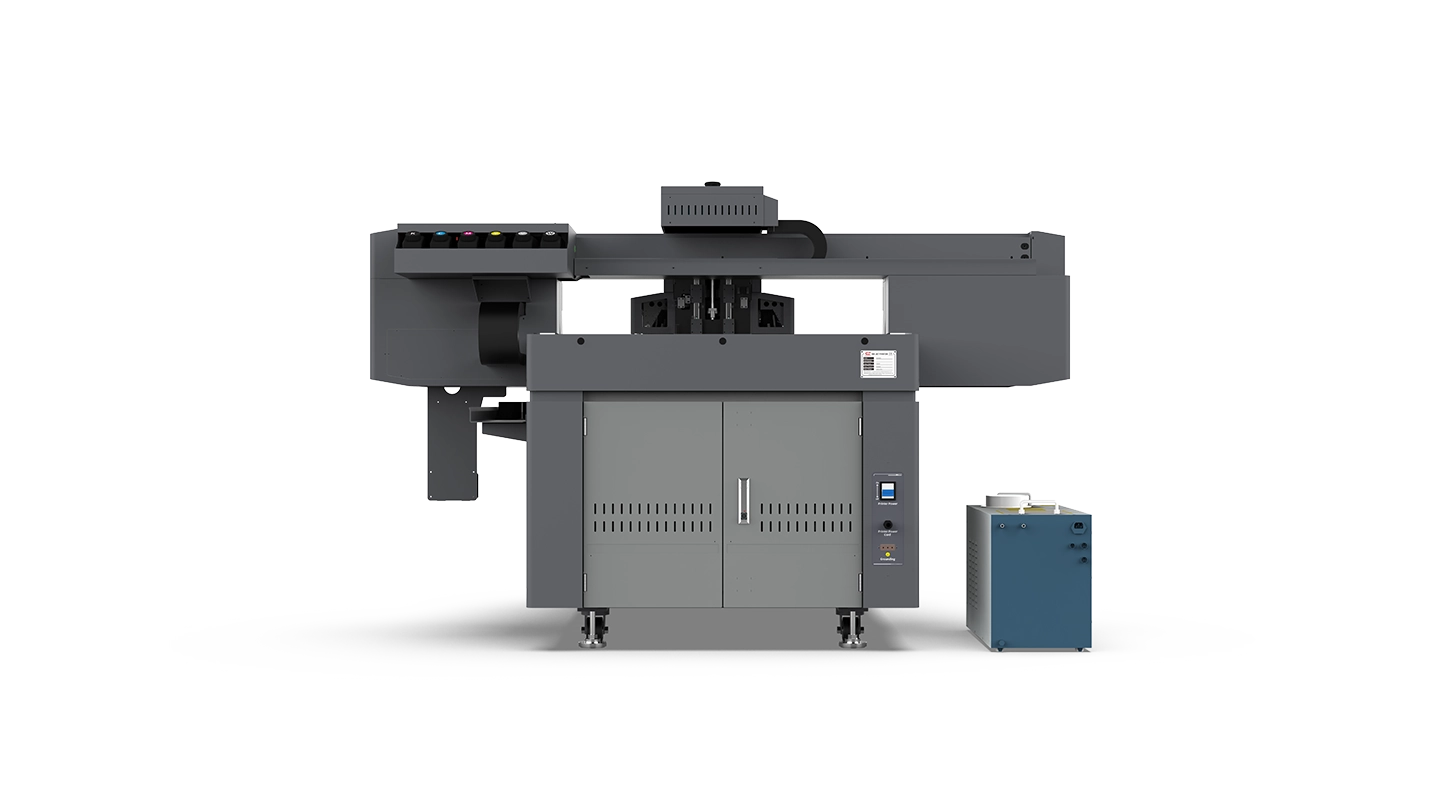

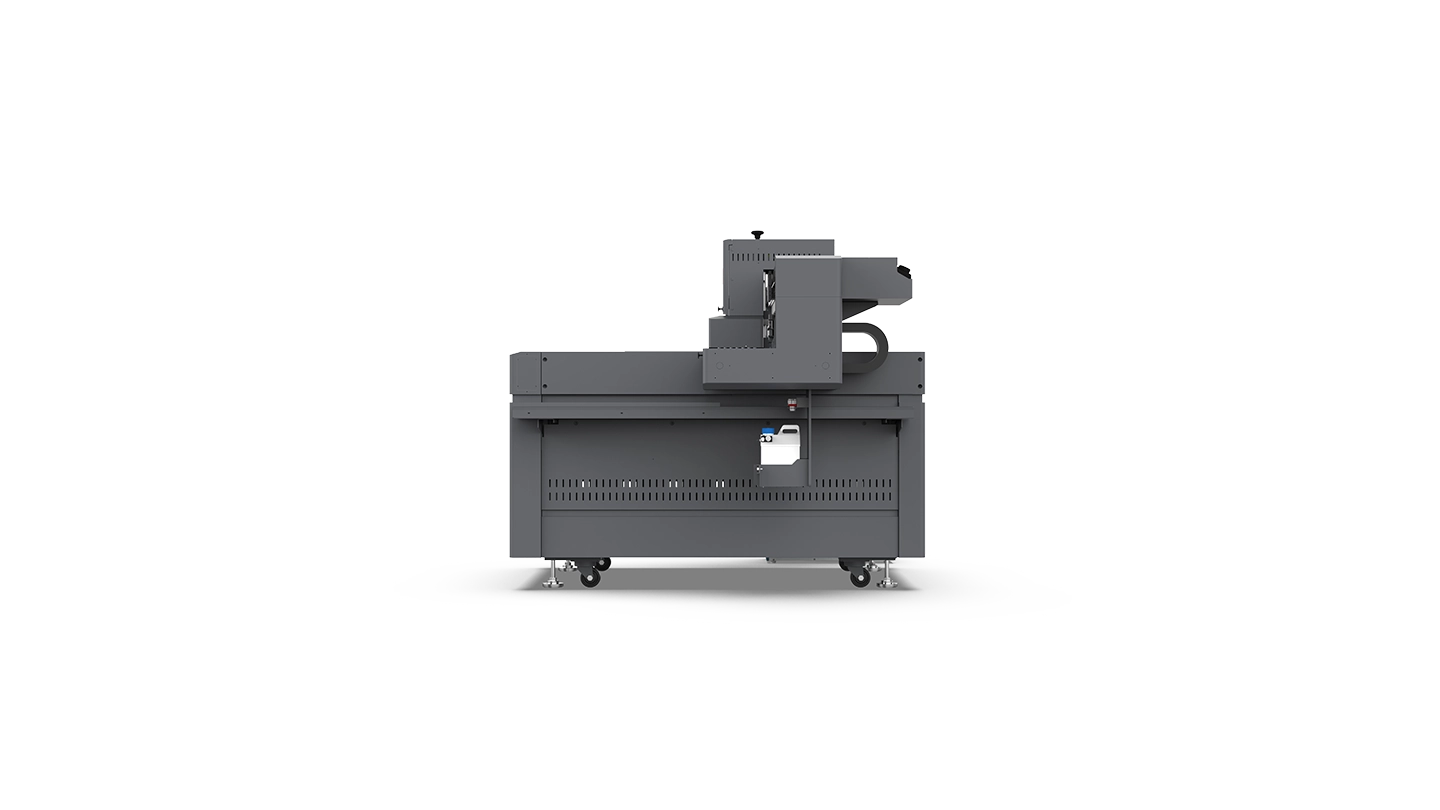

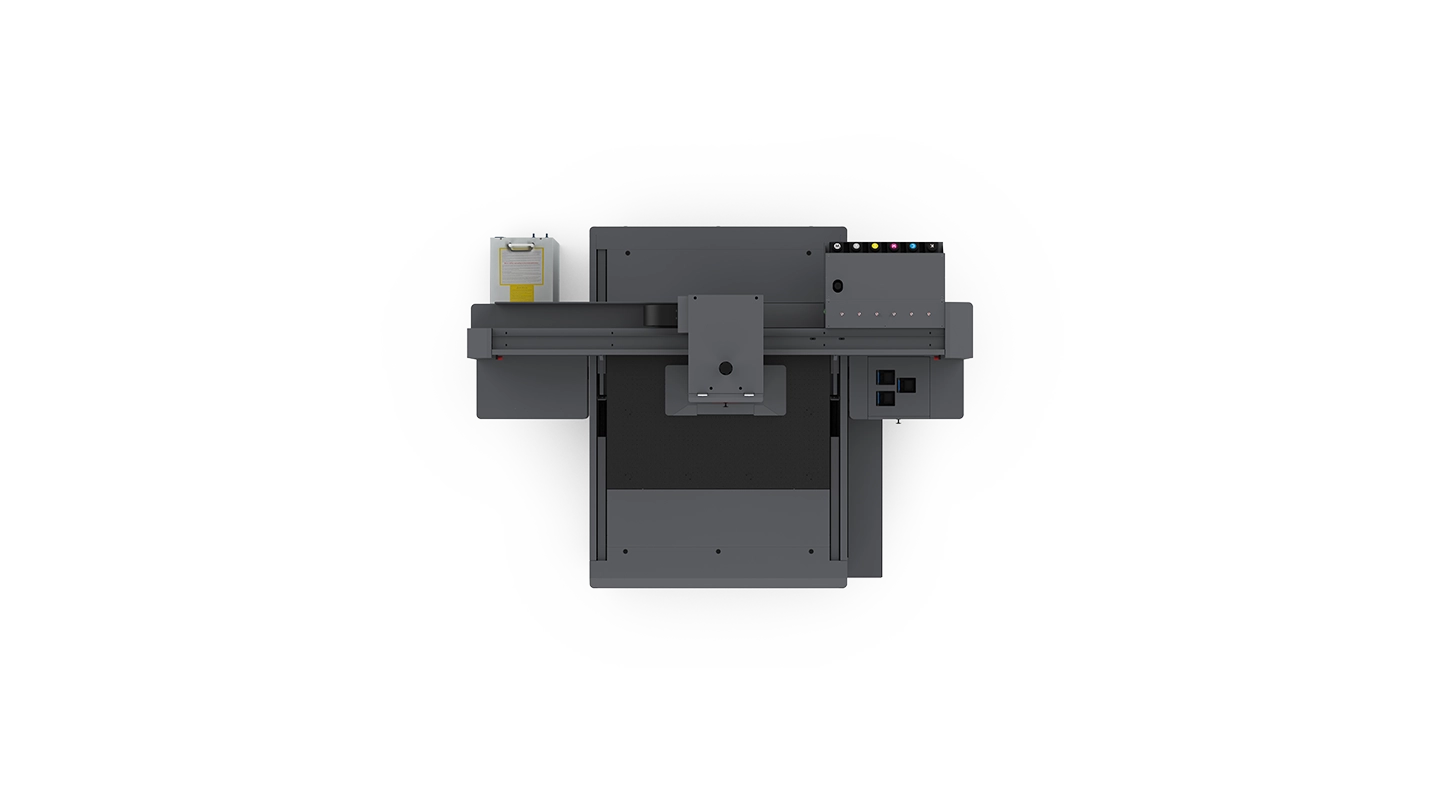

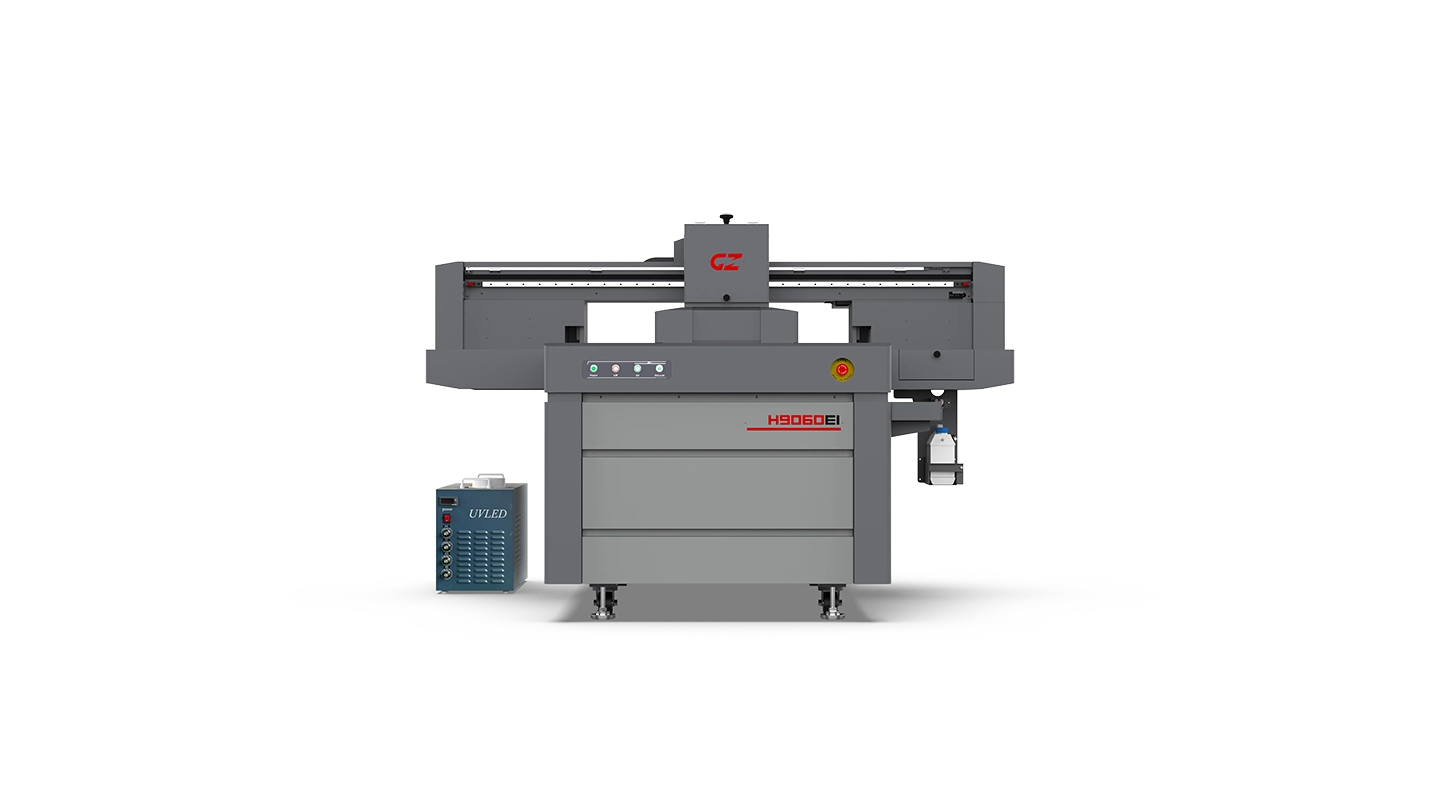

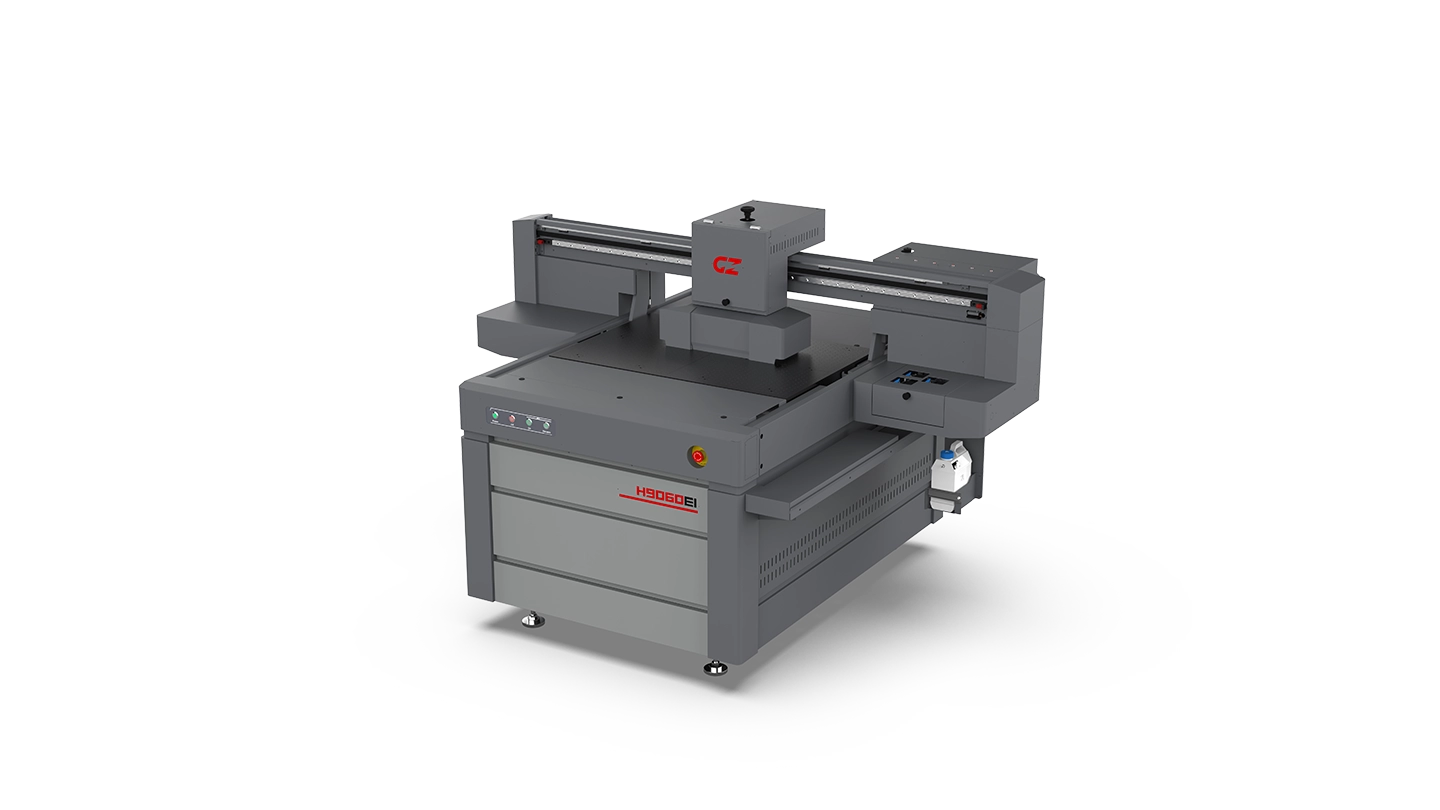

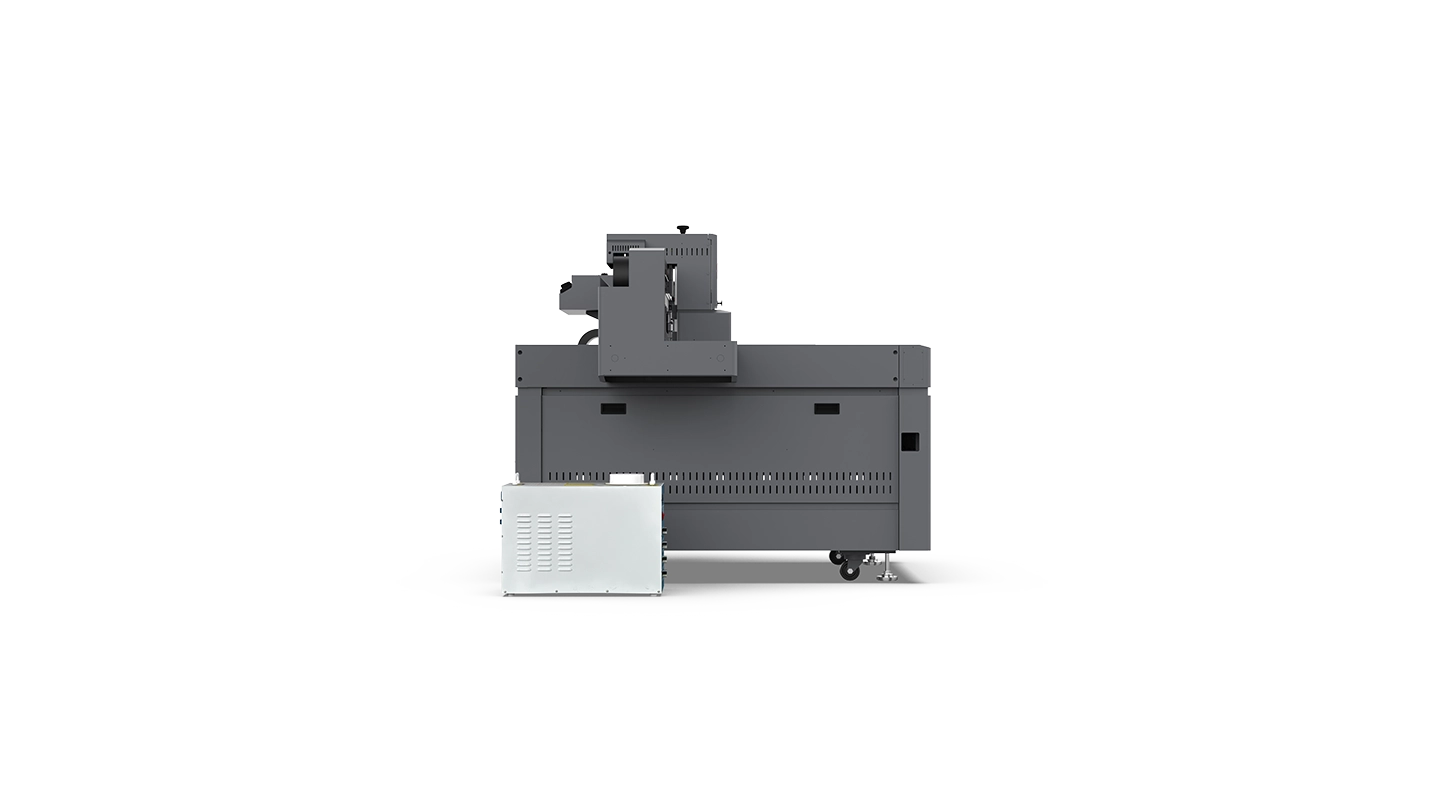

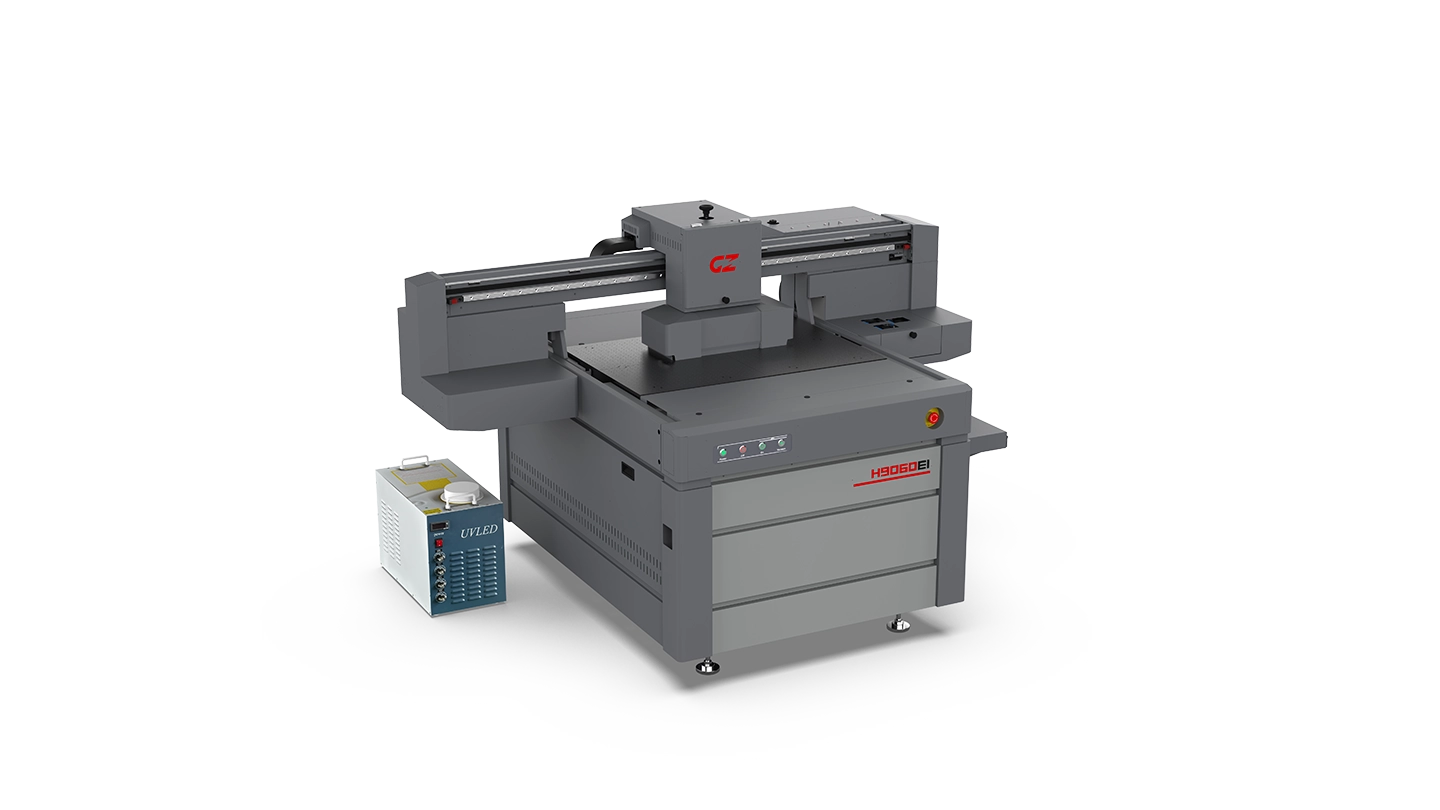

H9060EI

High-End Small Flatbed UV Printer for Customizing Graphics on Various Substrates

Feature Specification Details

●	White Ink Recirculation System
●	Auto Media Height Detector
●	Steal Beam
●	Powerful Suction Platform
●	Built-in Cylinder Printing Kit
●	Camera Positioning System

Model	H9060EI
Print Head	2~3 Epson I3200-U1 Print Heads
Technology	Drop-on-Demand Piezo with Variable Dot
Curing System	Four Water Cooling LED UV Curing Lamps
Ink	Gongzheng UV Ink: REI-3
Color Configuration	CMYK; CMYK+W; CMYK+W+V
Ink Supply System	Bulk Ink Supply System with White Ink Recirculation System
Ink Tank	1200ml
Media Thickness	Up to 150mm
Media Type	Acrylic, Aluminum Sheet, Foam Board, PVC Board, Leather, Glass Bottle, Wood, Ceramic Tile, etc.
Printing Size	Max. 900x600mm
Printing Speed	Mode Resolution Feather CMYK+W CMYK+W+V Draft 720×1200dpi Weak 4.2mins/sheet 4.5mins/sheet Production 720×1200dpi Medium 5.0mins/sheet 5.5mins/sheet Hi-Resolution 720×1800dpi Weak 6.3mins/sheet 6.8mins/sheet Photo 720×1800dpi Medium 7.5mins/sheet 8.3mins/sheet
Data lnterface	Gigabit Ethernet
Working Environment	Temp. 20℃~30℃, Humidity: 35%~65%
Software	FlexiPRINT TX22+GZ Control Console
Power	Single-Phase, 50Hz/AC, 220V±10%, 7A (Printer)+3.6A (UV Controller)
Packed / Installed Size	LxWxH(mm): 2250x1770x1622 / 2100x1583x1462
G.W. / N.W.	692KGS / 462KGS

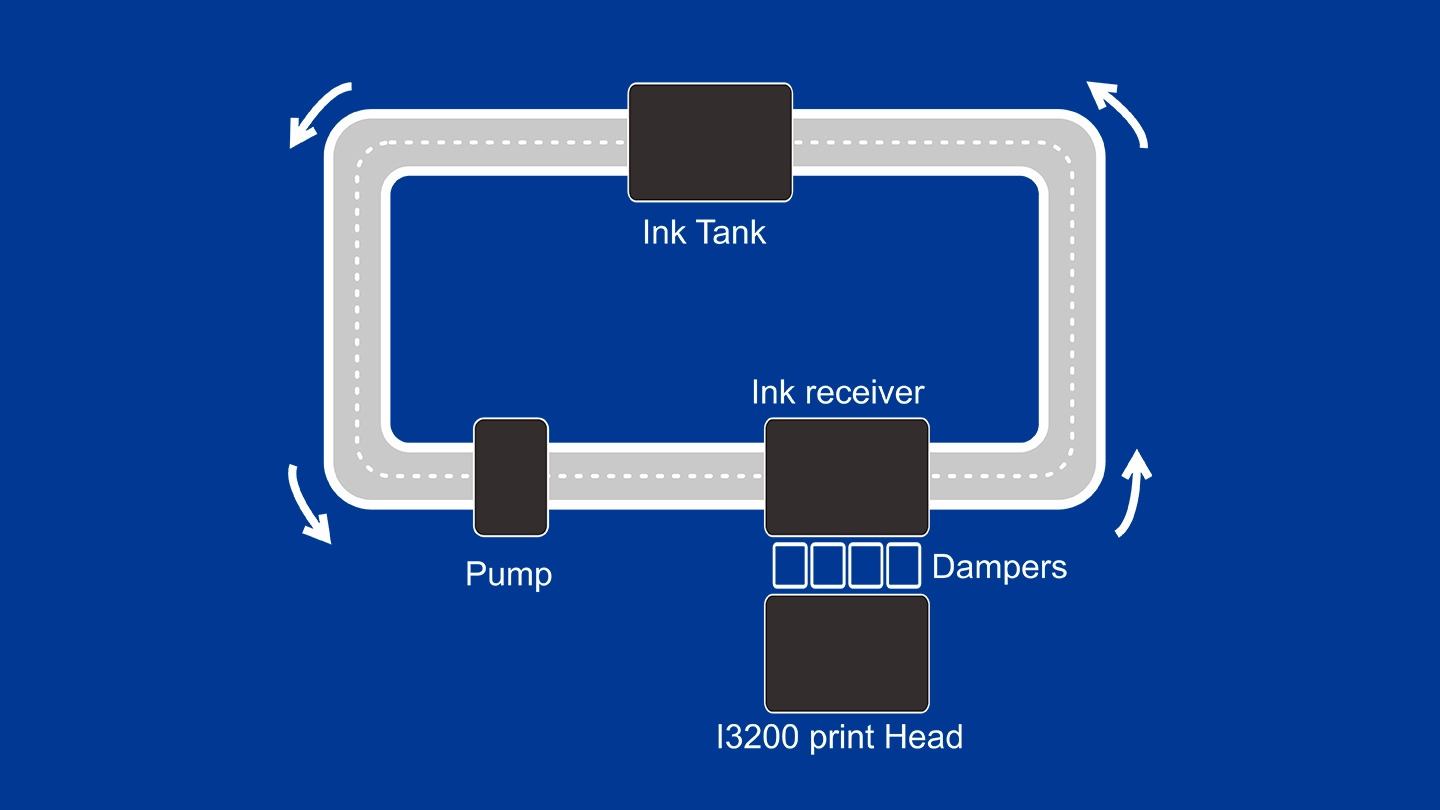

White Ink Recirculation System

The white ink circulates at regular intervals during idle mode to prevent pigment sedimentation, which can cause print head malfunctions. The white ink stirring unit ensures smooth ink flow.

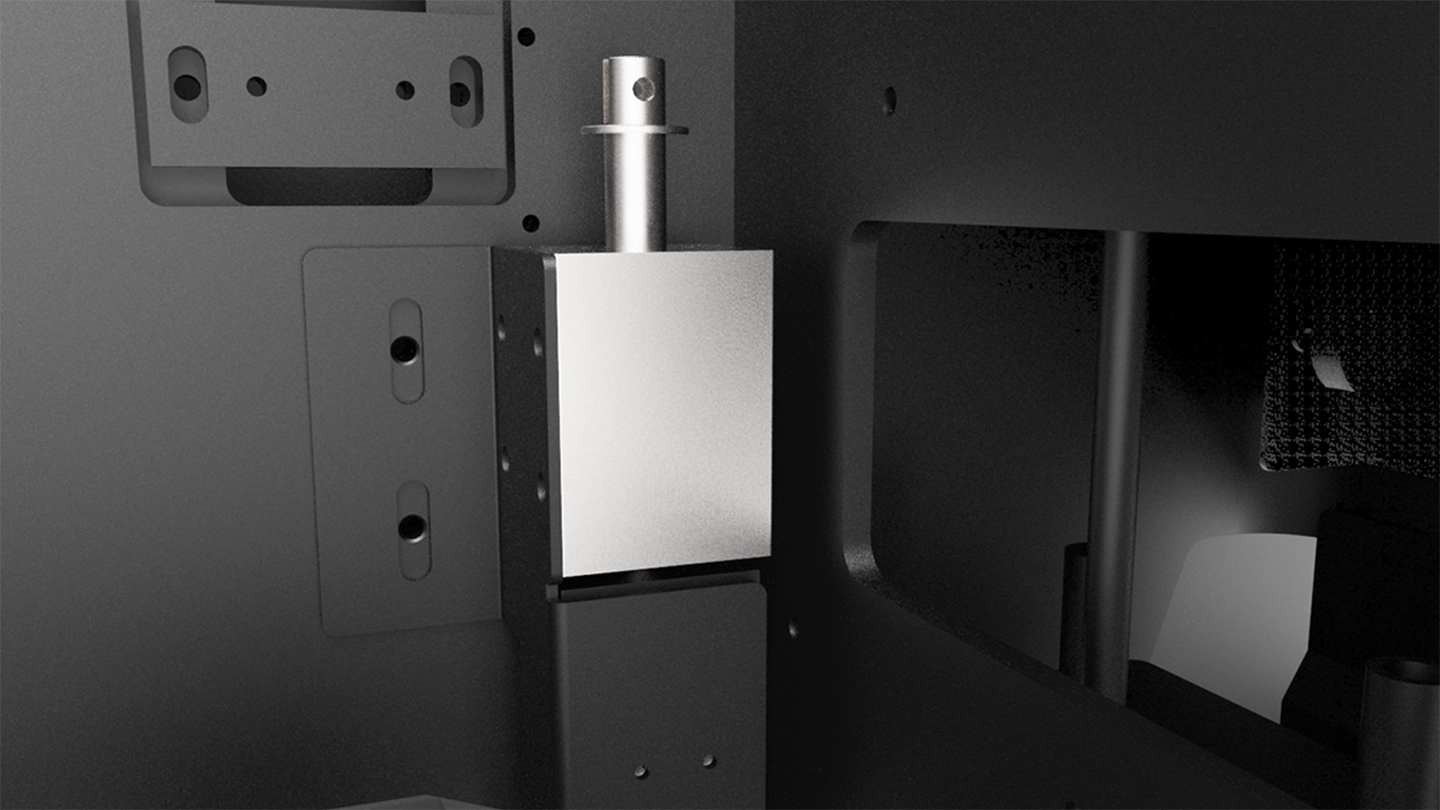

Auto Media Height Detector

Automatic laser-based height detection (up to 60mm) ensures precise and convenient setup of the ideal working height.

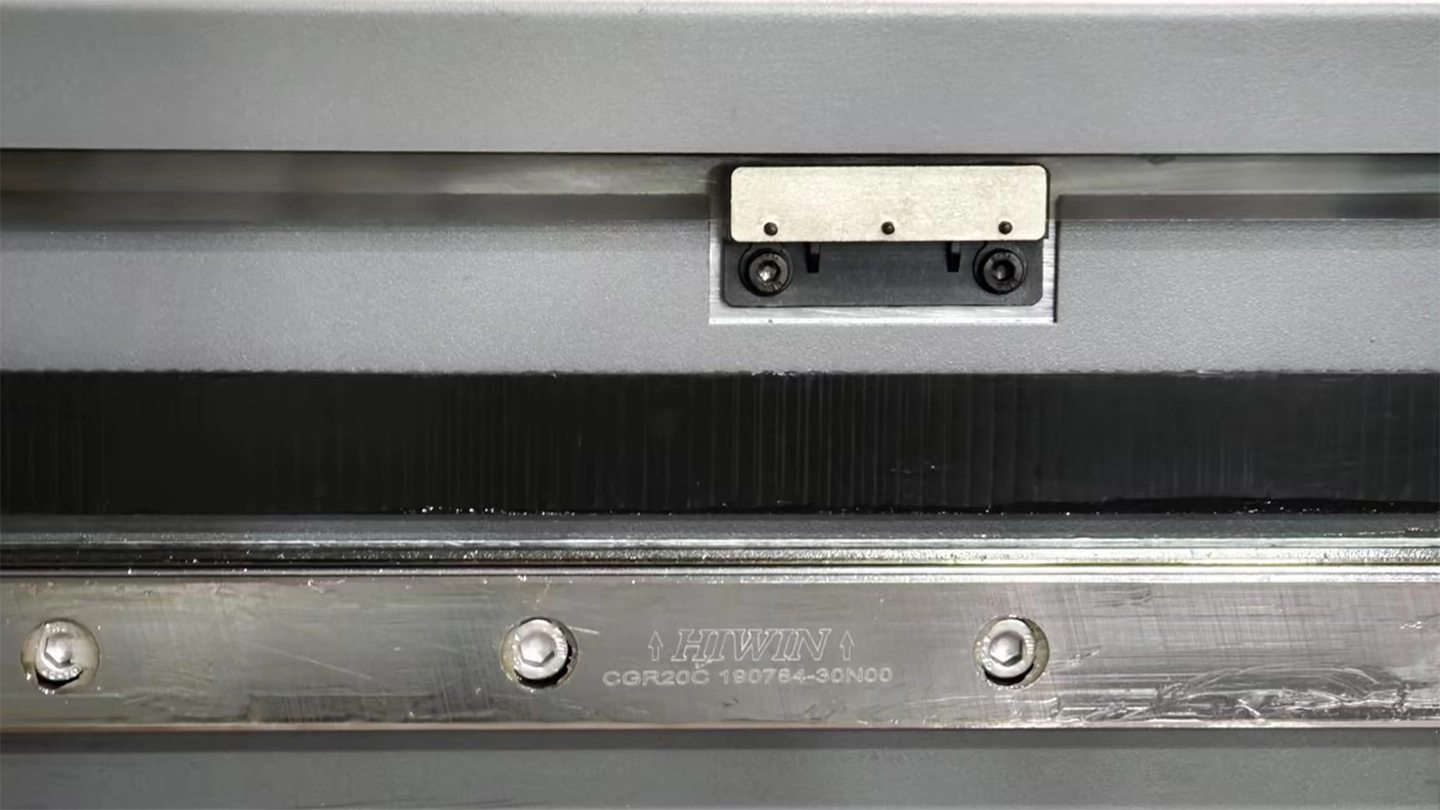

Steal Beam

The high-precision steal beam and linear guide ensure the stability of the X-axis movement, and significantly improving the printing quality.

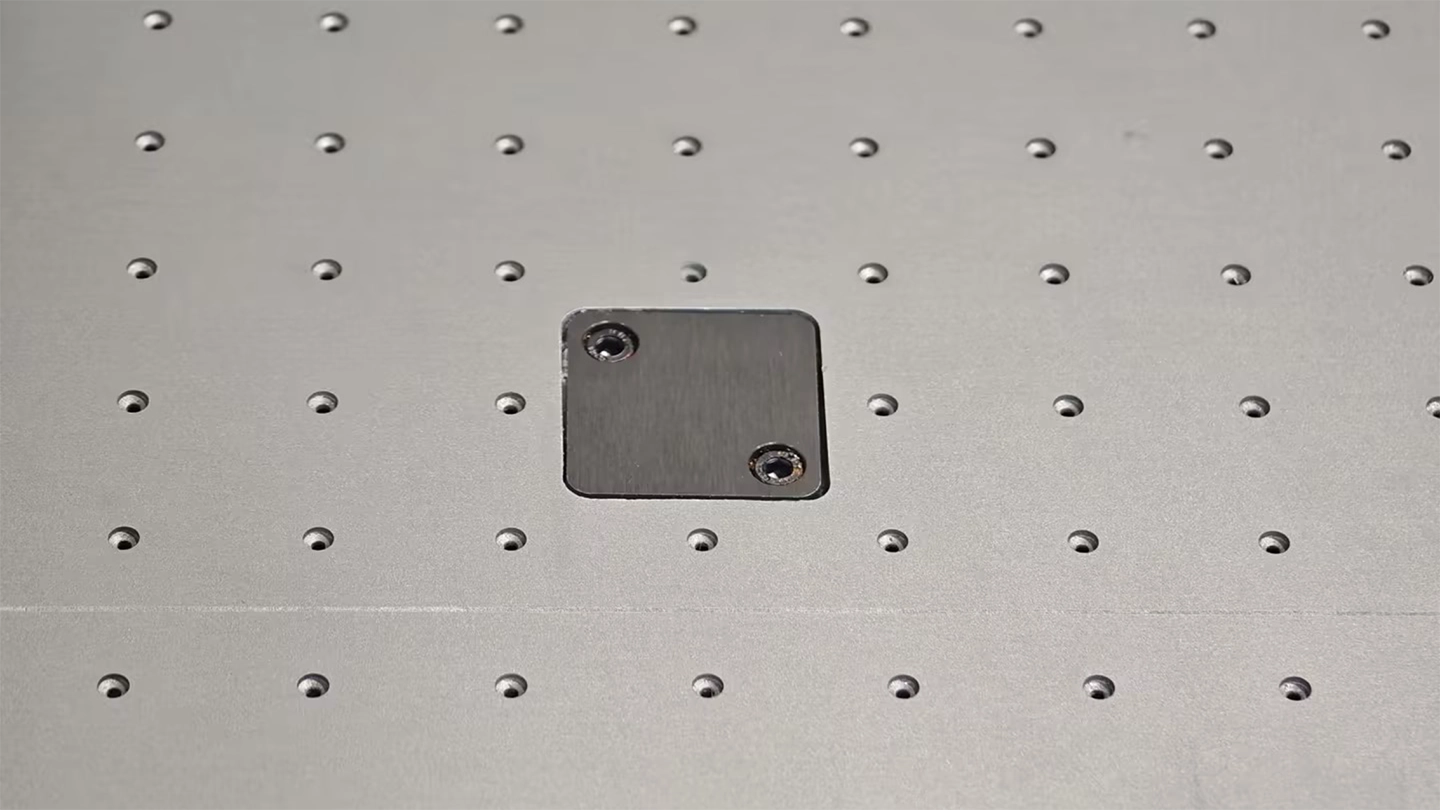

Powerful Suction Platform

One button-controlled suction platform enables easy operation, while top-down calibration modules makes adjustments easier and faster.

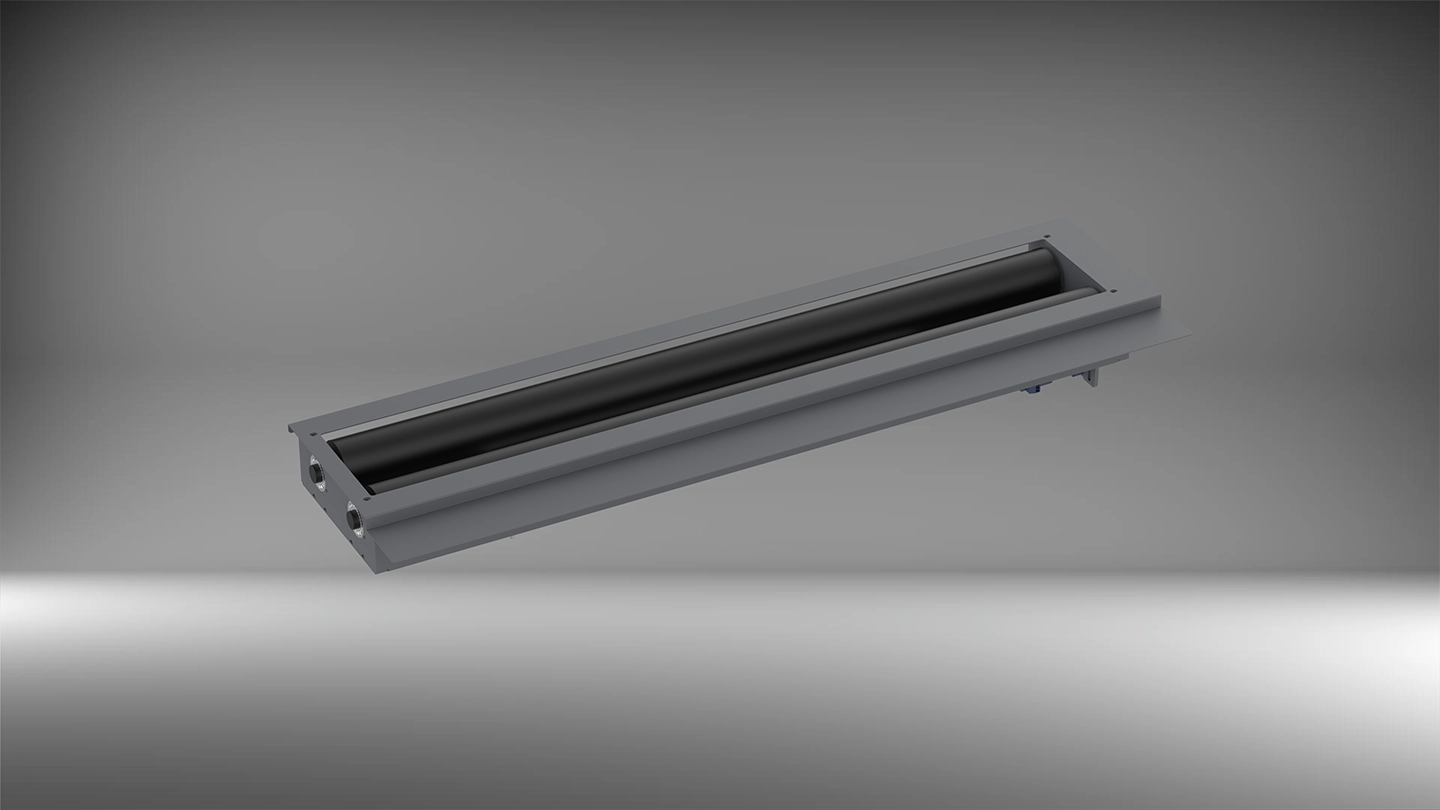

Built-in Cylinder Printing Kit

The built-in cylinder printing kit makes the printing for cylinder much effective and user-friendly.

Camera Positioning System

Available with OPTIONAL CPS system now. By scanning substrate with a high-precision camera, this system enable precise positioning and image matching, overcoming the limitation of manual layout lines.

< >
