Print Head

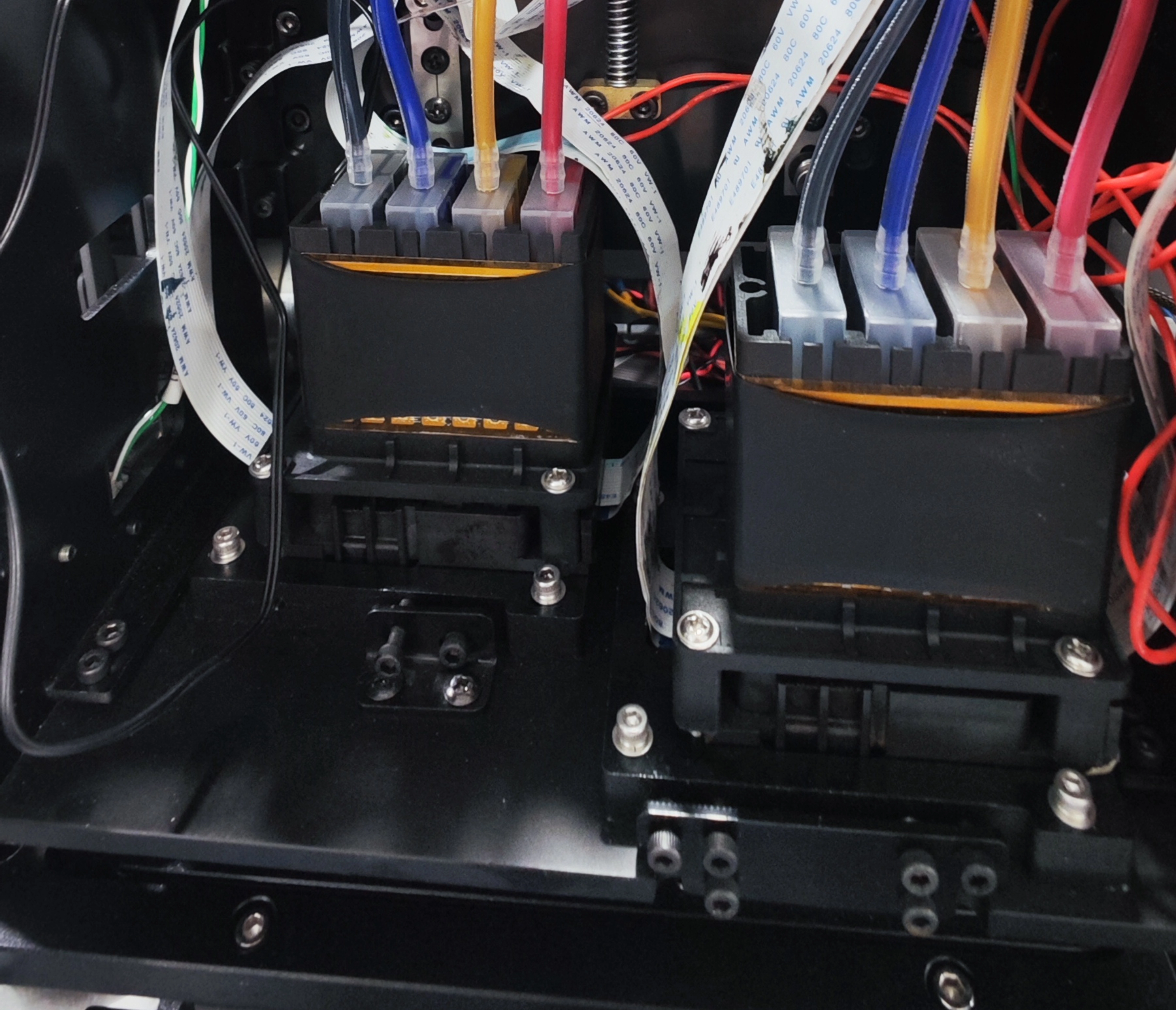

Dual Epson I3200-E1 Print Heads

Technology

Drop-on-Demand Piezo with Variable Dot

Ink

EPI2-2 Years Durability Eco Solvent Ink

Color Config.

K.C.Y.M.

Ink Supply System

Bulk Ink Supply System with Ink Cartridges

Ink Tank

1500ml

Printing Width

Max. 1950mm

Media Type

Banner, Coated PP, Vinyl, PVC Film...

Roll Diameter

Max. 300mm

Roll Weight

Max. 50kgs

Core Diameter

3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

Draft                   360x1200 dpi                  75㎡/h

Production          360x1800 dpi                55㎡/h

High-Res            720x1200 dpi                43㎡/h

Photo                  720x1800 dpi                29㎡/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp. 23℃~29℃, Humidity: 50%~80%

Software

FlexiPRINT / Onyx (Optional)...+ GZ Printer Manager

Power

Single Phase, 50Hz/AC, 220V±10%, 6.7A (Printer)+14.6A (IR Dryer)

Packed / Installed Size

LxWxH(mm)：3190x1050x750 / 3064x815x1525

G.W. / N.W.

392kgs / 300kgs
