Print Head

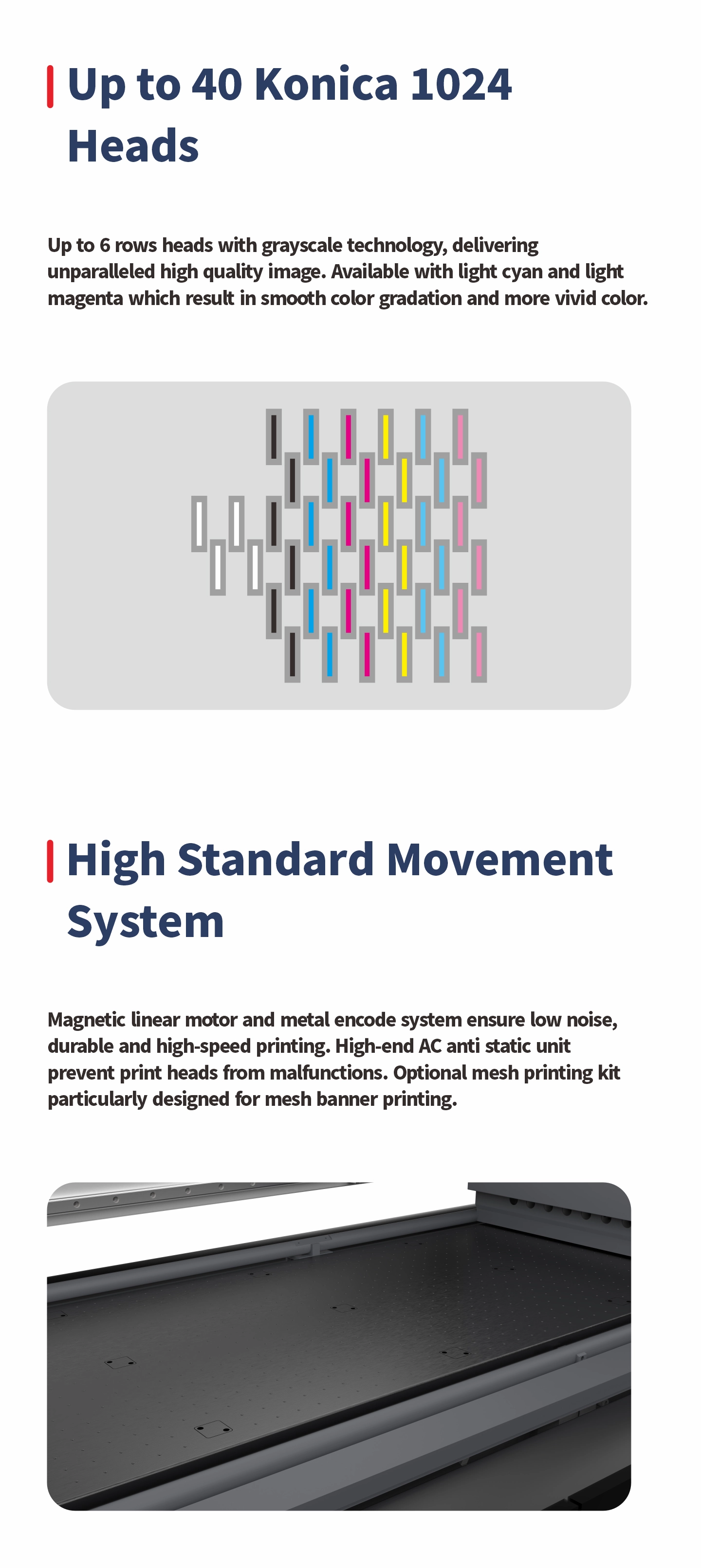

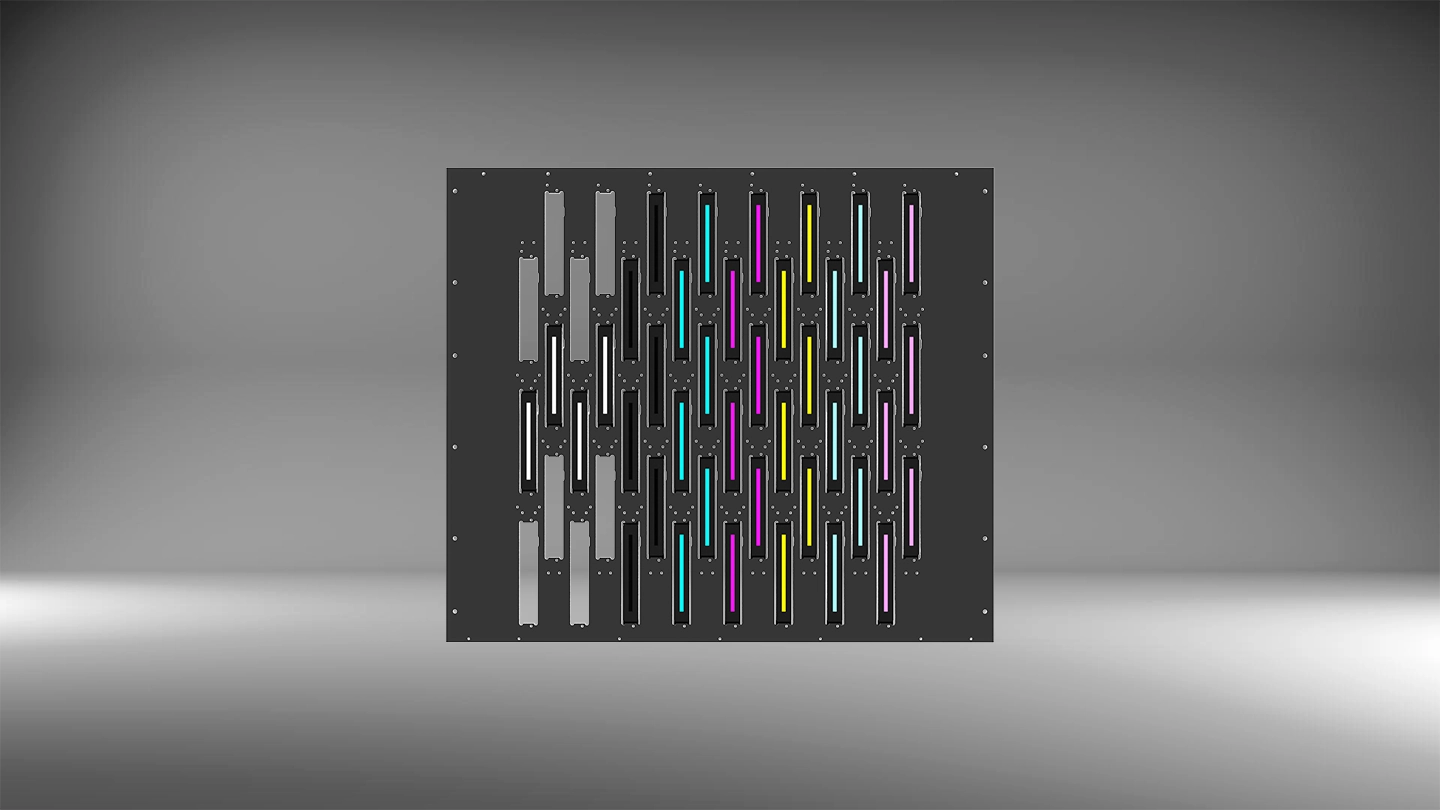

Up to 6 Rows 40×Konica 1024i 13pl/1024a 6pl Heads

Head Config.

4xKCMY                   4xKCMYLcLm              4xKCMYFmFY              2xW+4xKCMY
6xKCMY                   6xKCMYLcLm                 6xKCMY                    4xW+6xKCMY

Curing System

Dual Water Cooling LED UV Curing System

Ink Supply System

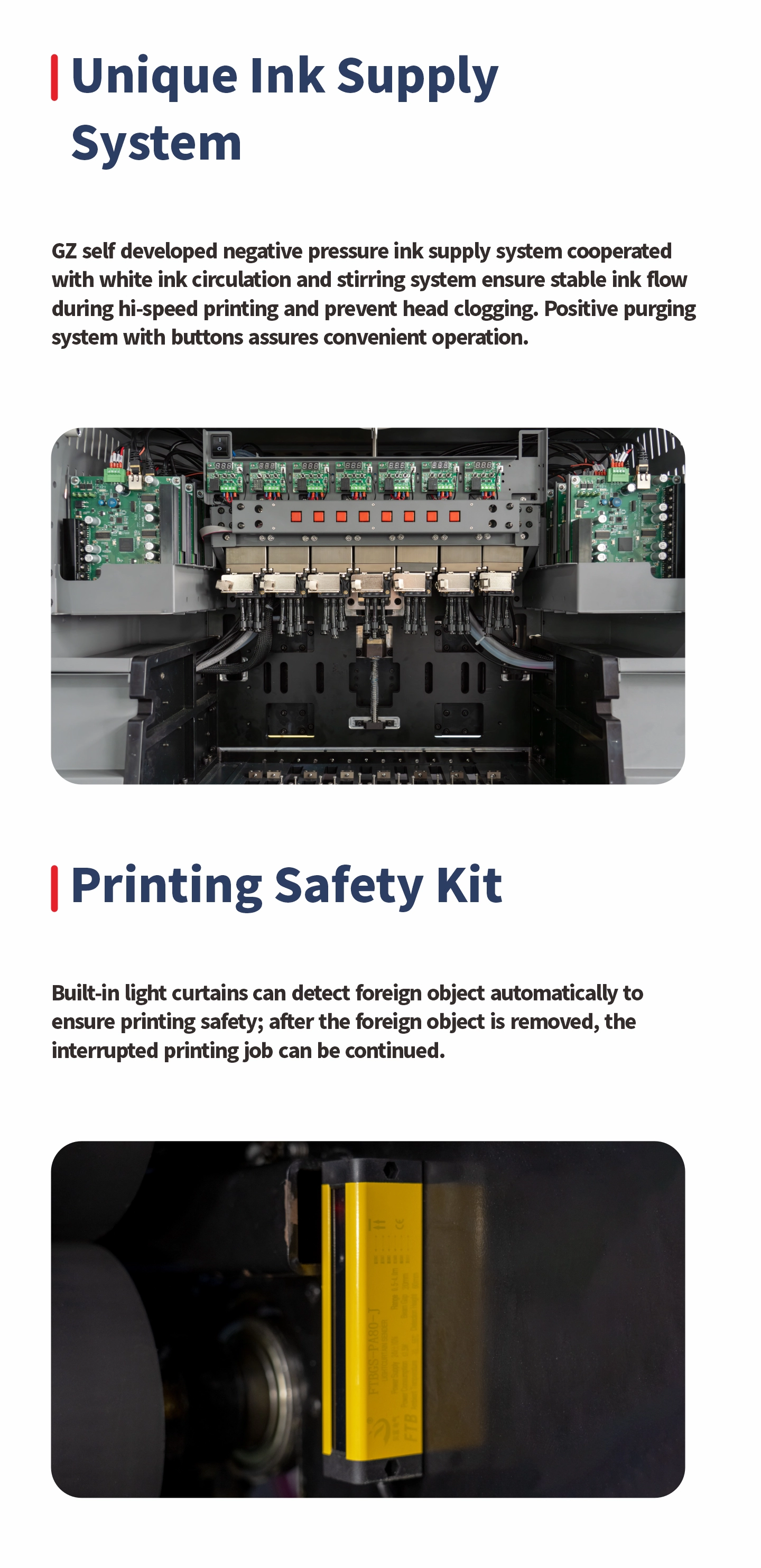

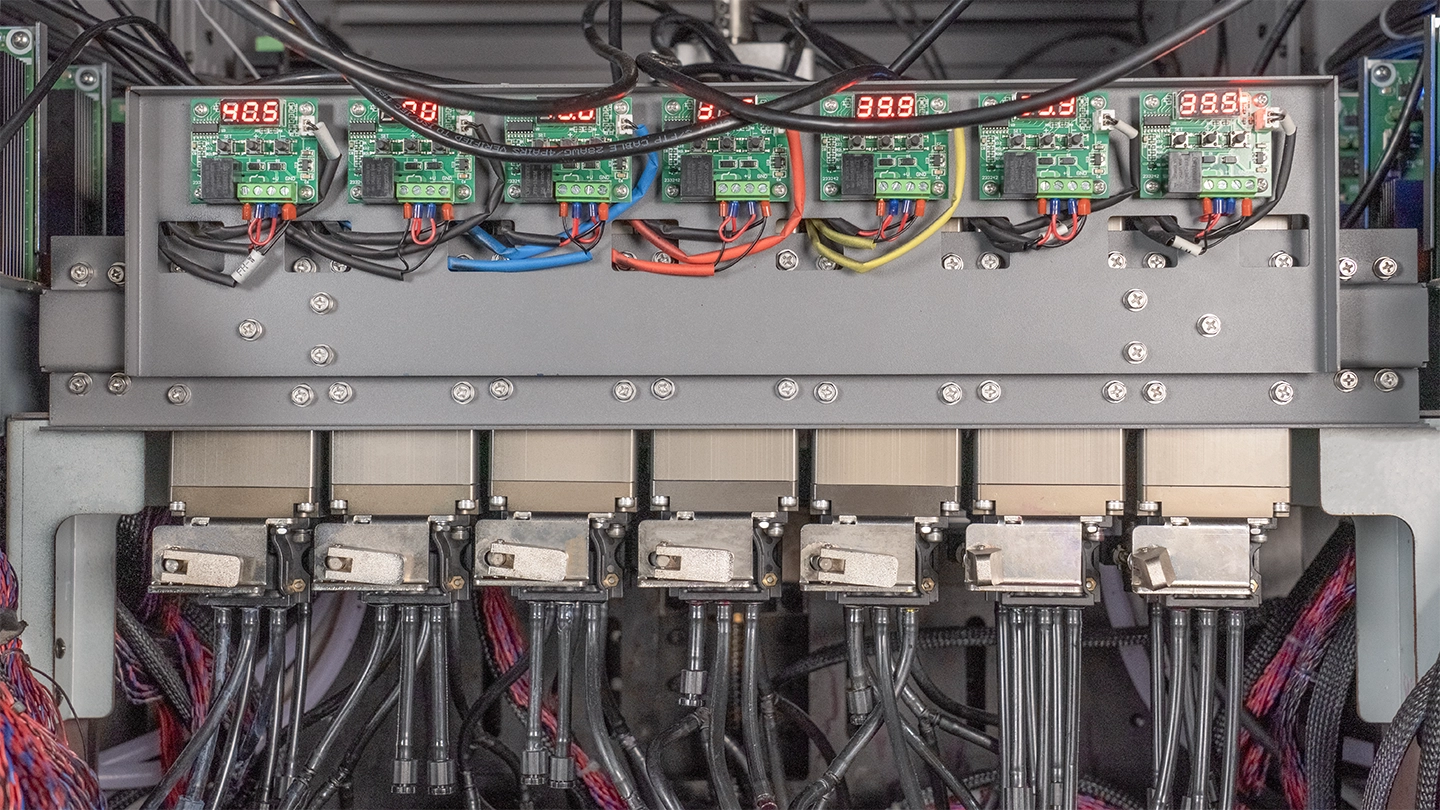

Negative Pressure System + White Ink Circulation with Stirring Unit

Ink Tank

5000ML

Cleaning System

Positive Purging System; Negative pressure system& White ink stirring and circulation

Servo System

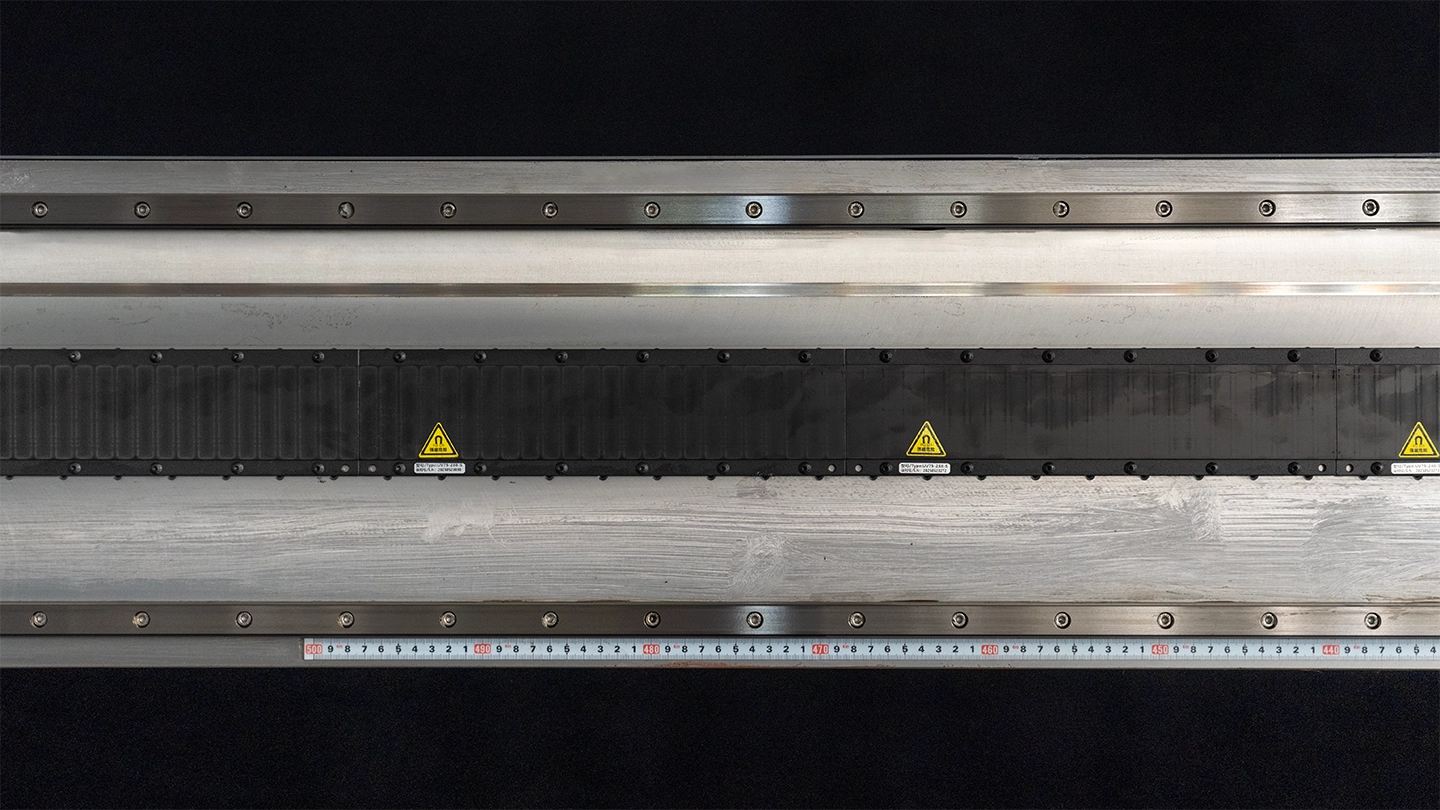

Magnetic Linear Motor and Metal Encoder

Media Handle

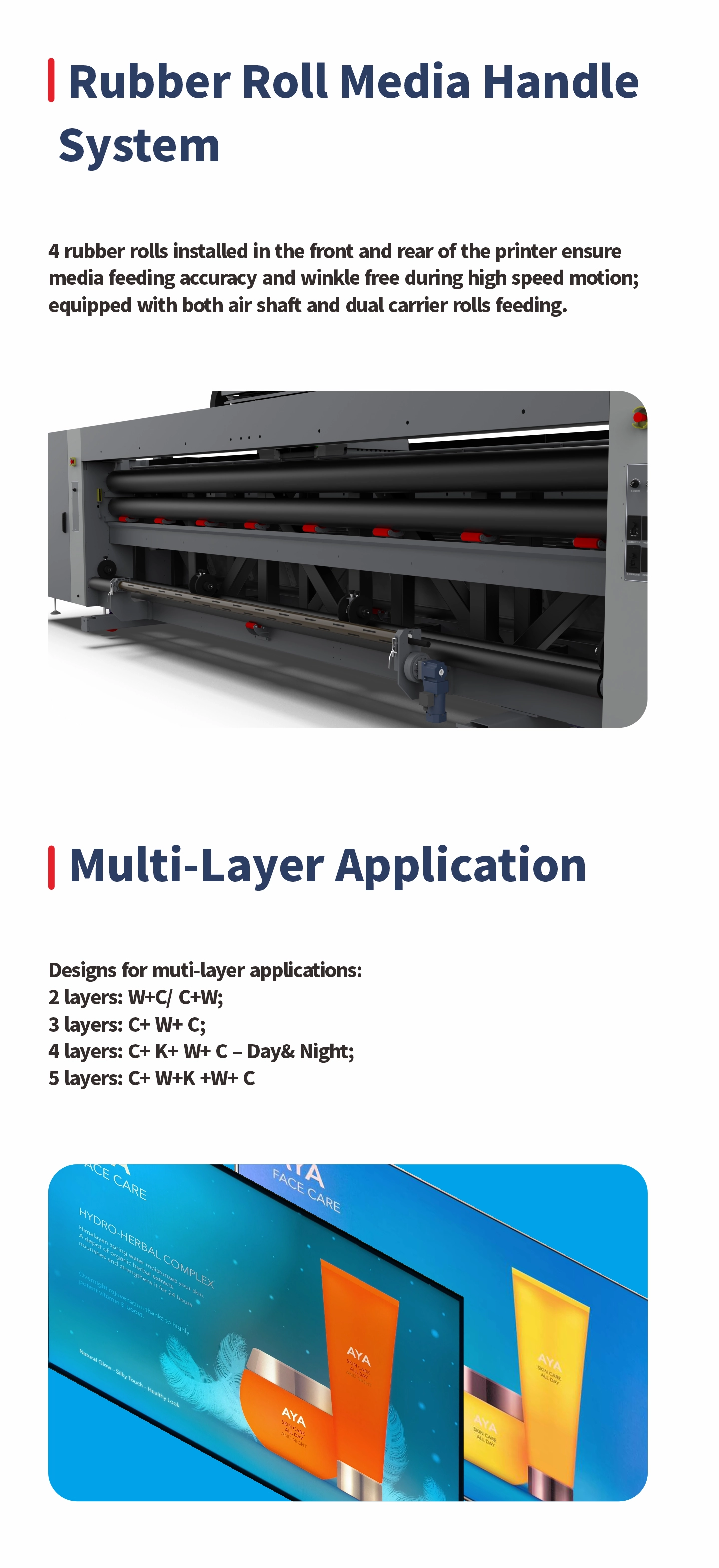

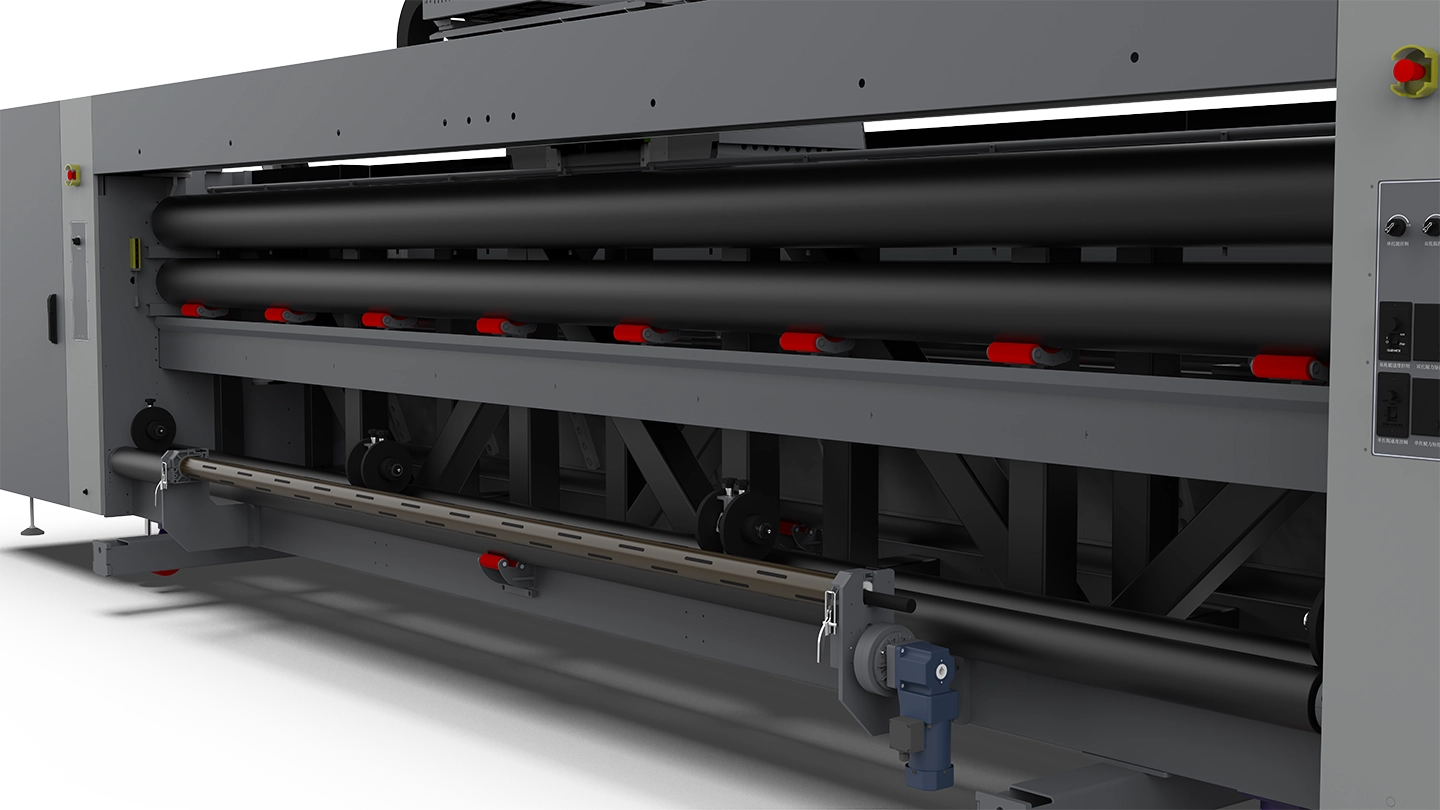

High-Precision Rubber Roll System+Air Shaft Feeding Unit

Media Type

Soft Film, Vinyl, Frontlit, Backlit, Banner, Wall Paper, etc.

Media Thickness

Up to 5mm

Printing Width

Up to 5200mm

Printing Speed

Mode                      Resolution              4Rows                    6Rows

Production            480X1080dpi            142㎡/h                 208㎡/h
Quality                  480X1080dpi            130㎡/h                 166㎡/h

Hi-Precision          480X1080dpi             81㎡/h                  119㎡/h

Data Interface

External: USB3.0; Internal: Fiber Optical

Working Environment

Temperature: 20℃-28℃, Humidity: 40%-70%

Software

Onyx Ripcenter+GZ Printer Manager

Power

Three-phase, 50/60Hz, AC380±10%,30A, Regular:16~17KVA

Installed / Packed Size

LxWxH(mm): 8340x1680x2185

N.W. / G.W.
