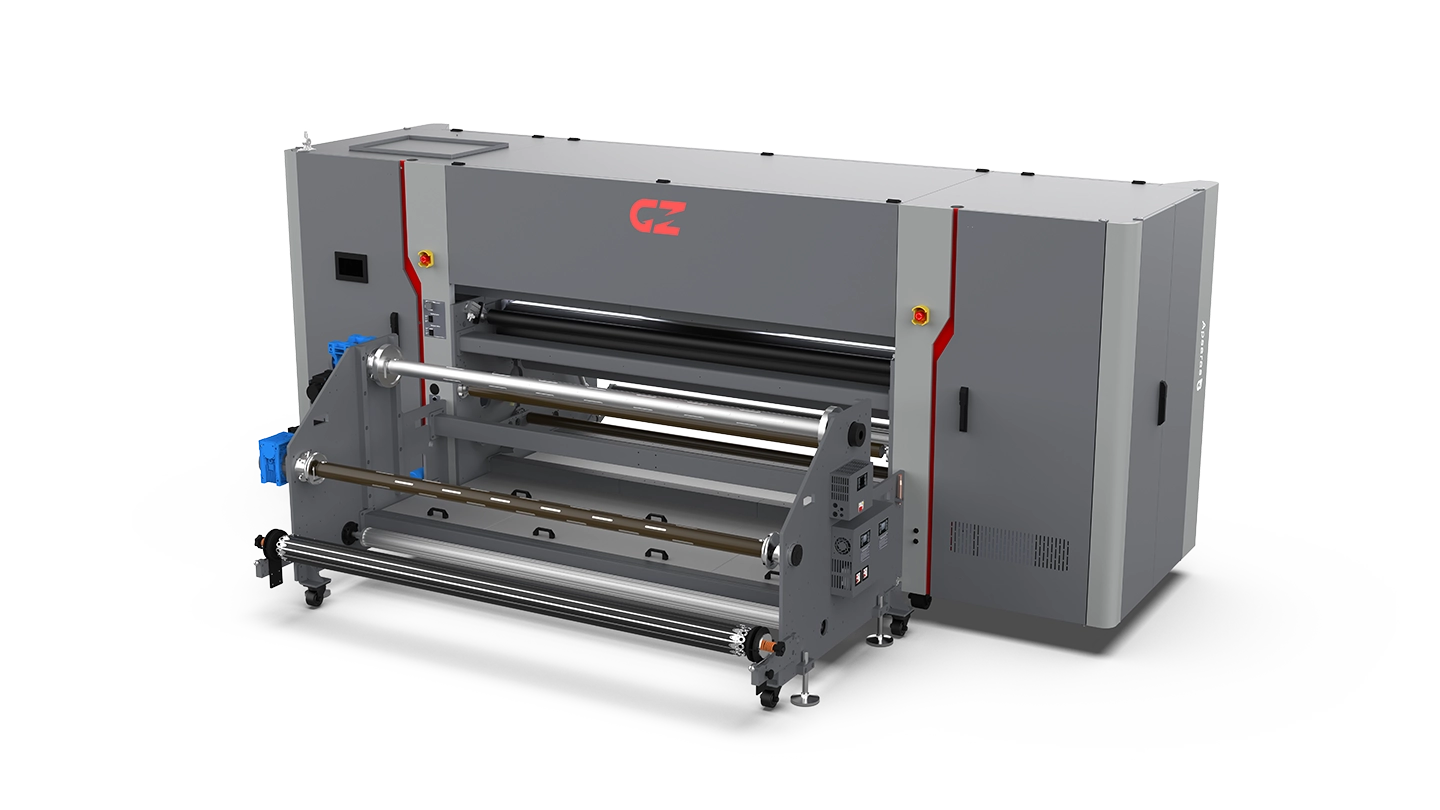

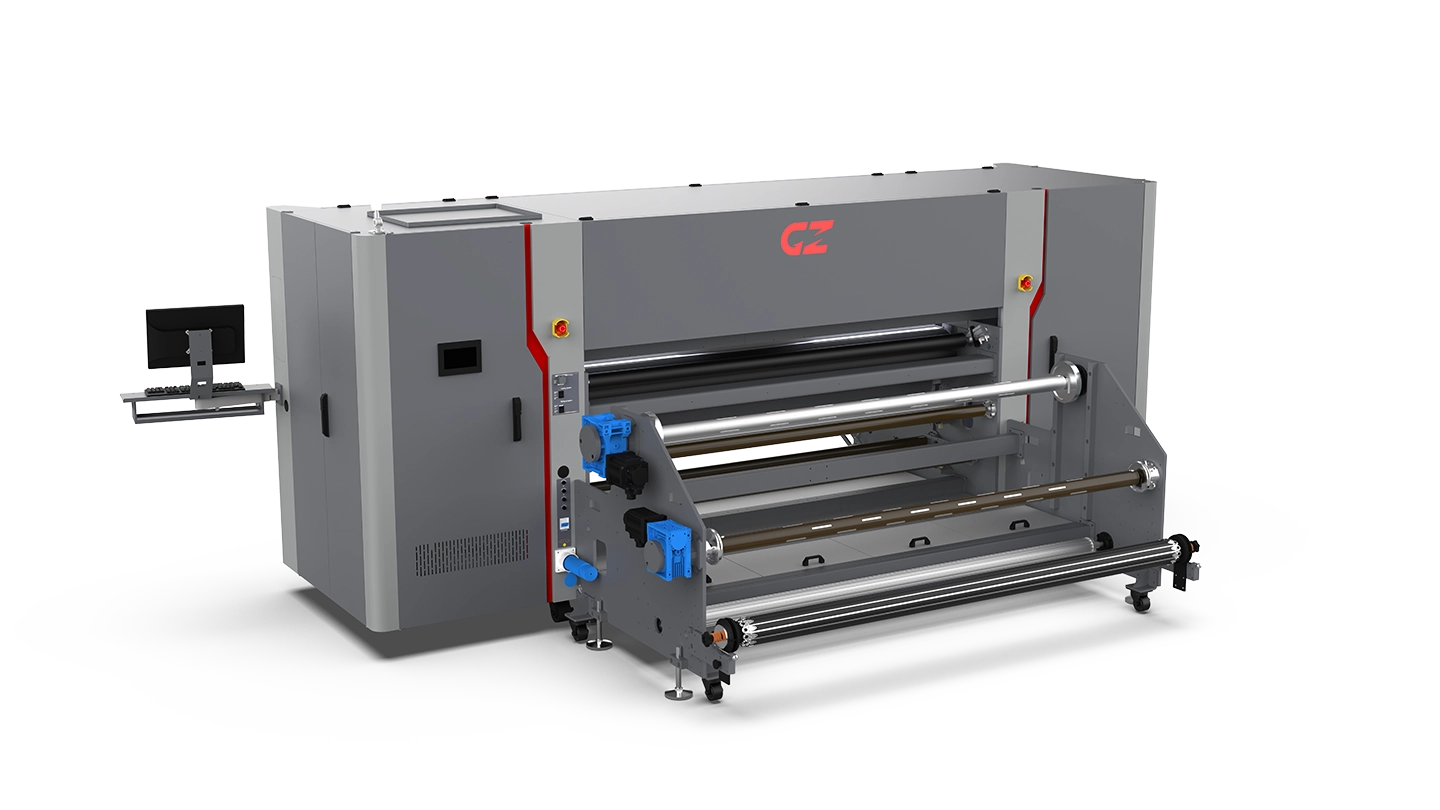

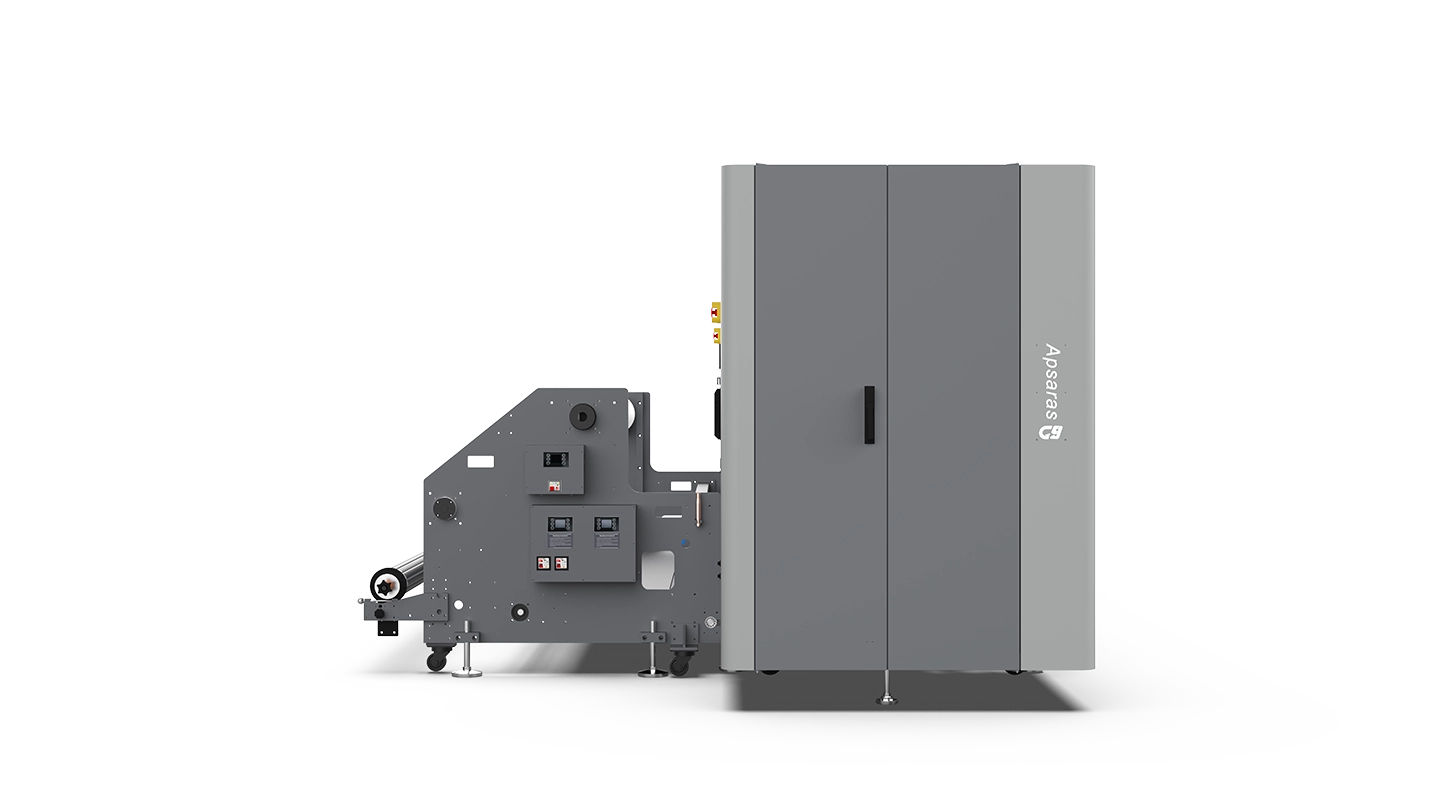

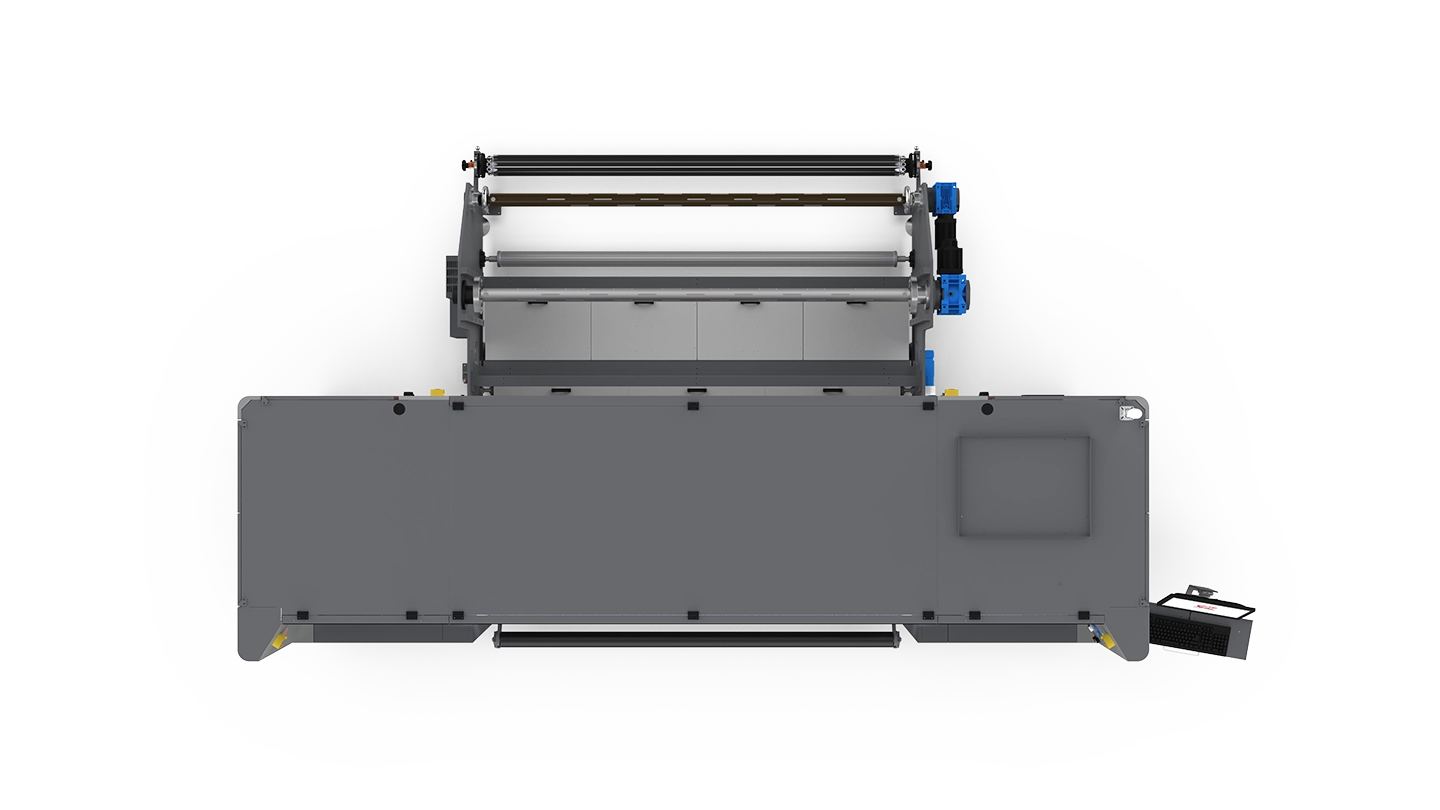

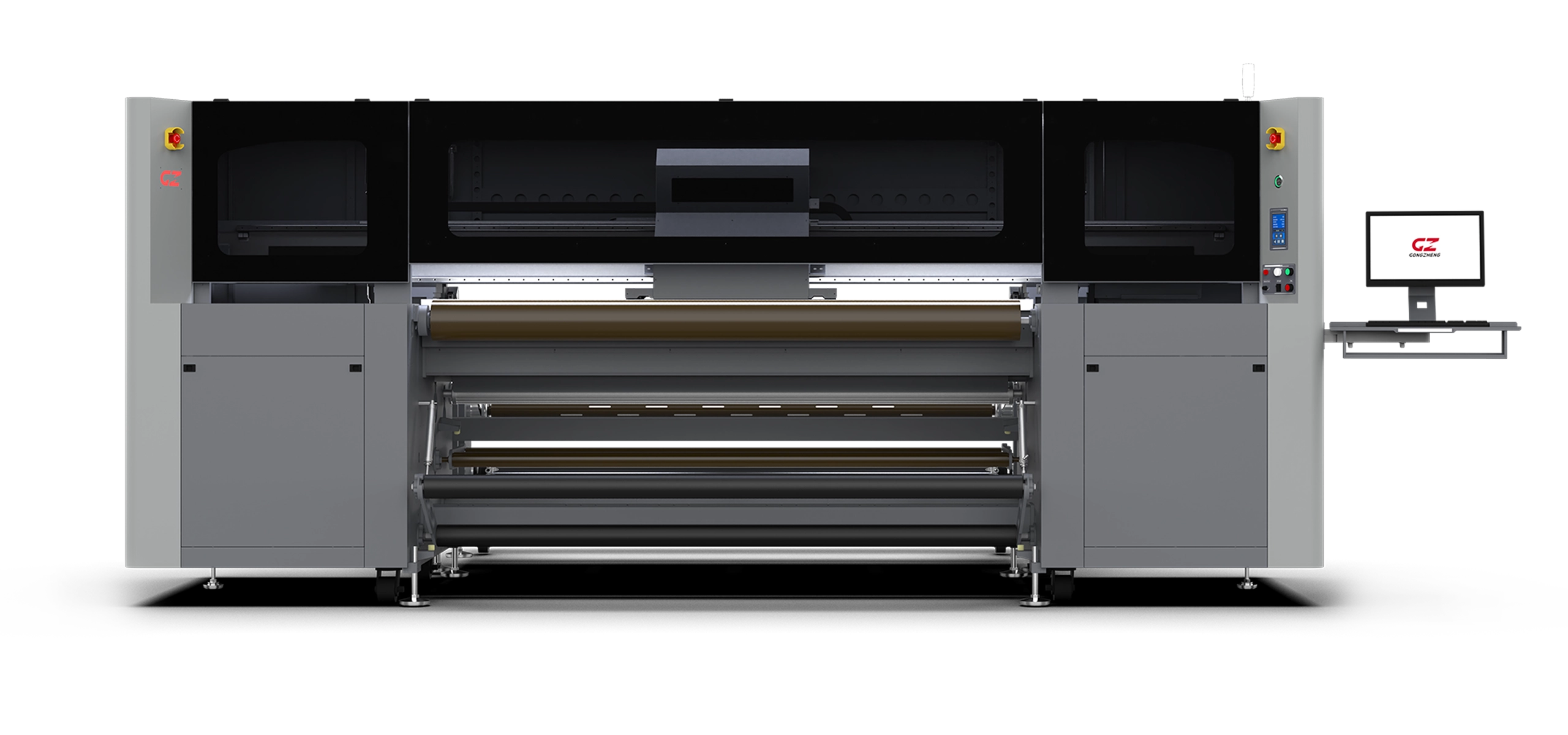

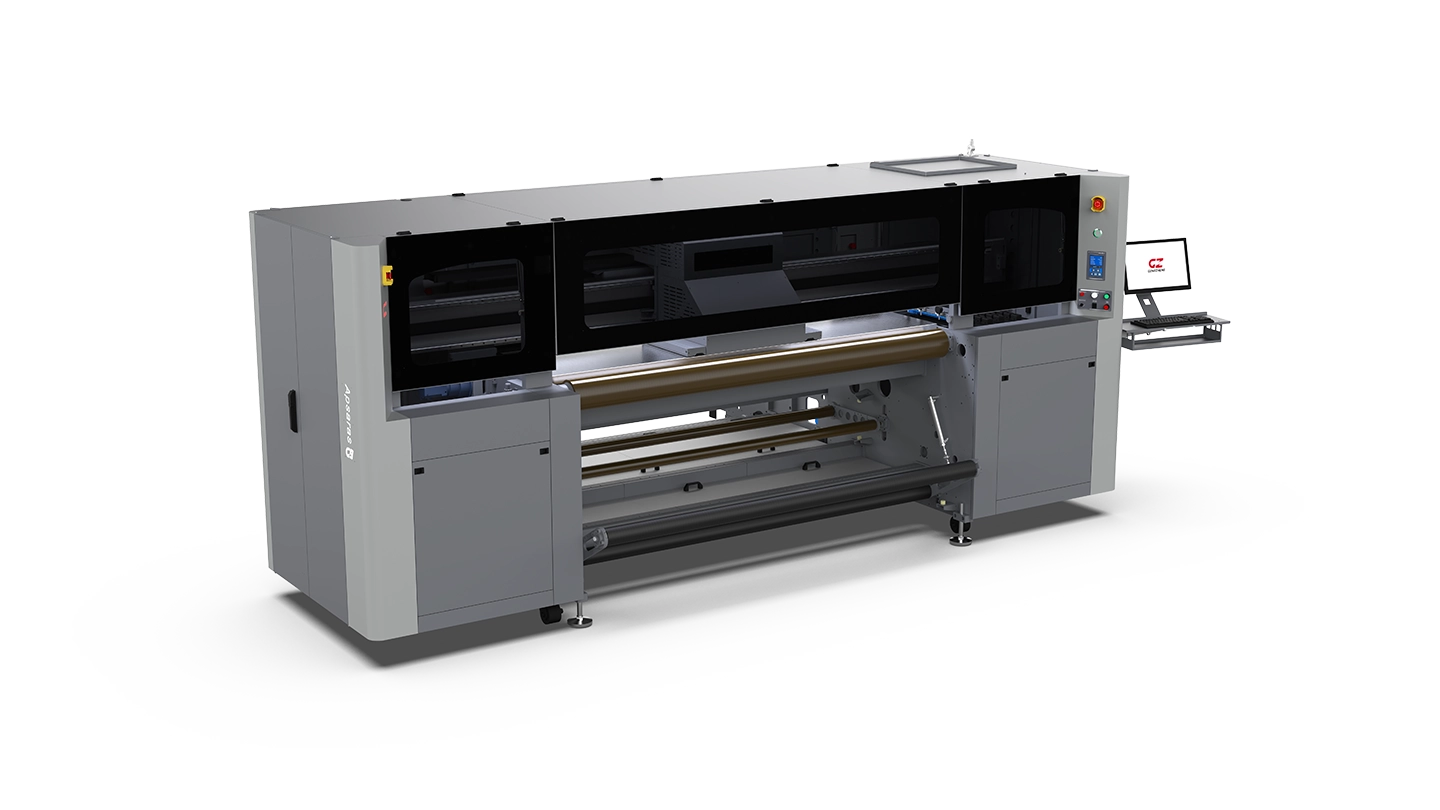

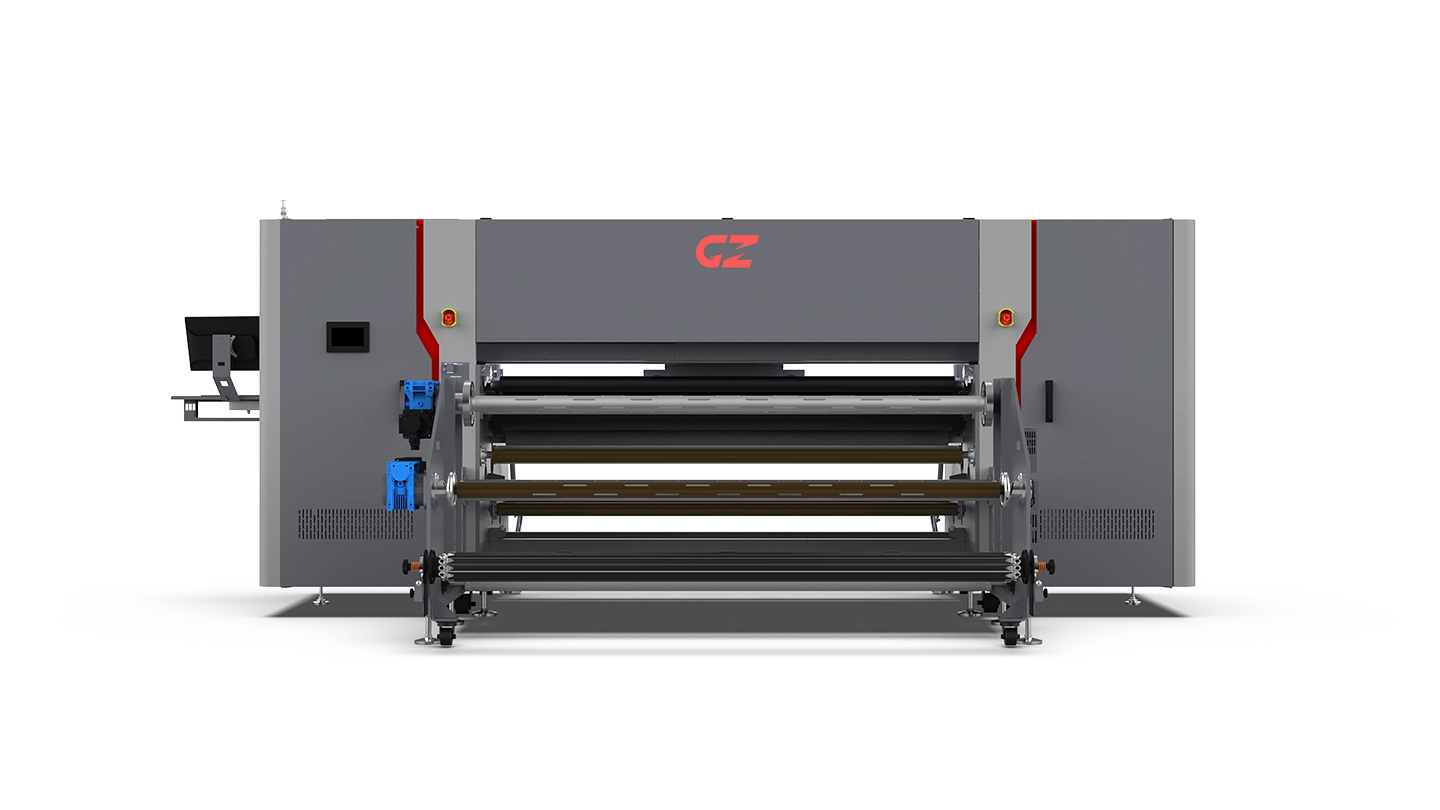

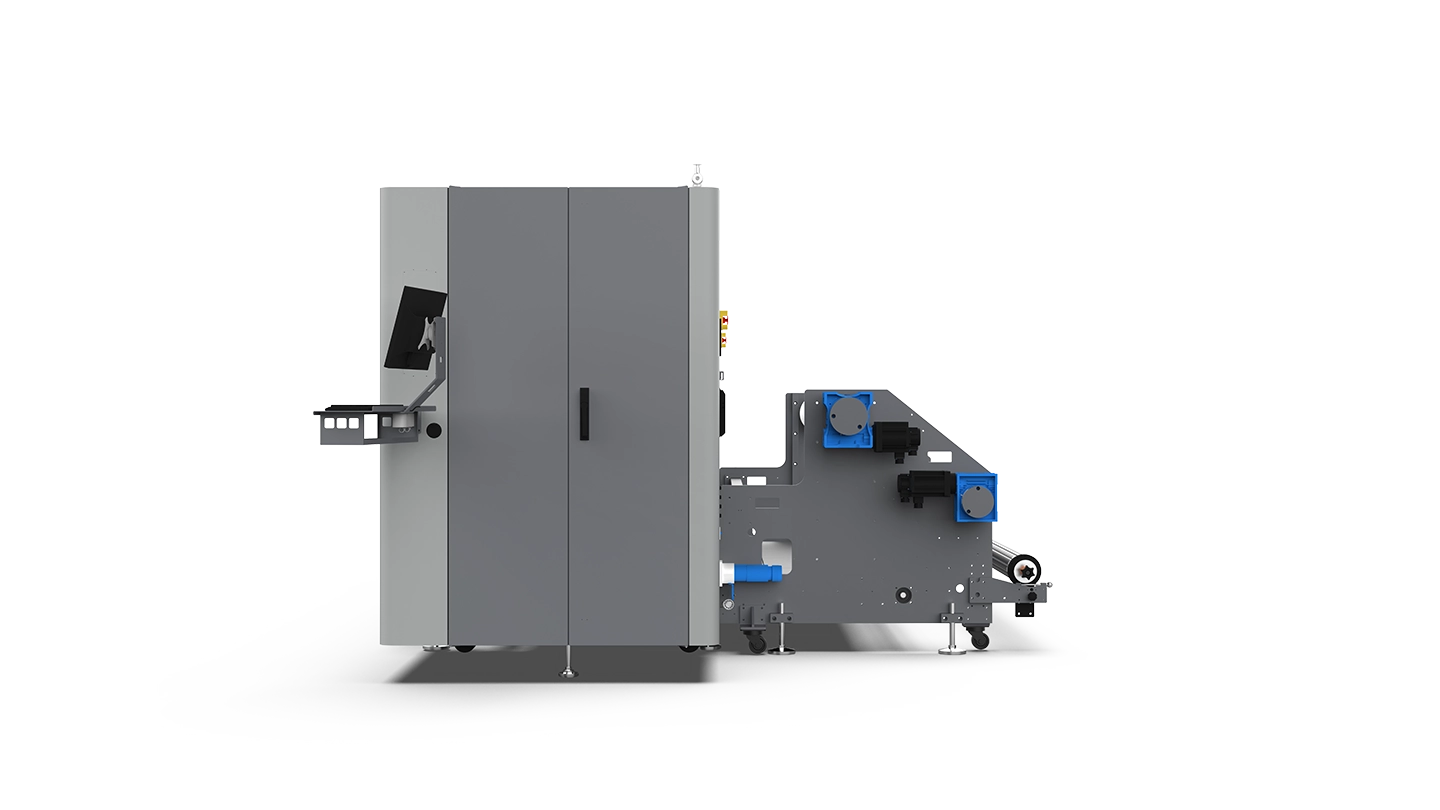

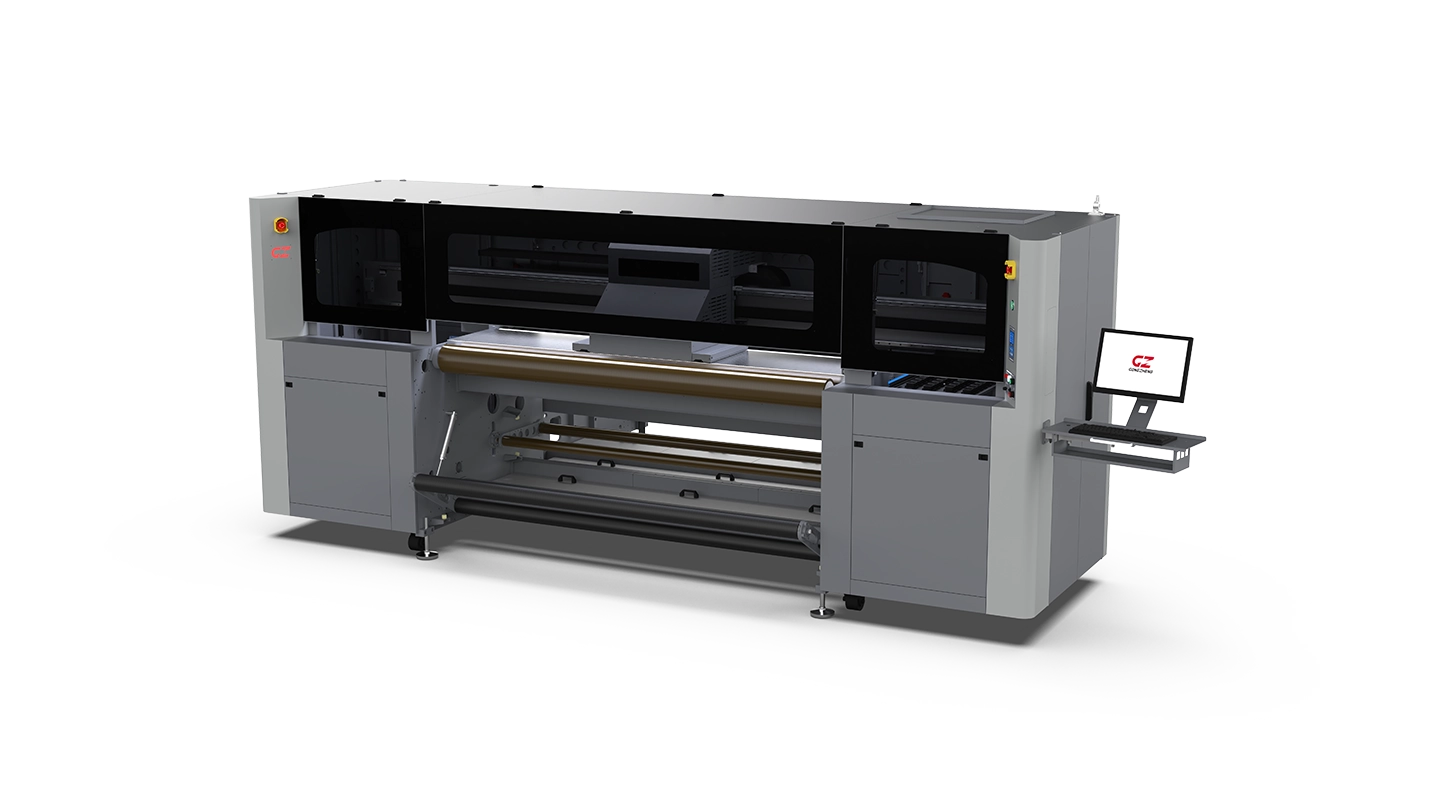

Apsaras G9

Super-Heavy Industrial Sublimation Solution

Feature Specification Details

●	24x Epson I3200-A1 Heads
●	GZ Variable Dot Technology
●	Auto Capping & Wiping System
●	Myriameter Media Handle System
●	Rubber Rollers & Magnetic Linear
●	Big Volume Ink Supply System

Model	Apsaras G9
Print Head	24x Epson I3200-A1 Print Heads
Ink	GS High Density Sublimation Transfer ink Certified by OEKO TEX with "ECO PASSPORT"
Color Config.	Y.M.K.C.
Ink Supply System	25-Liter Large Capacity Ink Supply
Printing Width	Up to 2200mm
Media Type	Transfer Paper (31 to 100gsm)
Feeder	Feeding: 10000m; Taking up: 3000m
Roll Diameter	Up to 1000mm
Drying System	2x IR Dryers
Printing Speed	Mode Resolution Output Draft 300x1200dpi 1115㎡/h Production 360x1200 dpi 967㎡/h High-Res 300x1200 dpi 573㎡/h Photo 360x1200 dpi 485㎡/h
Data Interface	External: PCIE+USB3.0; Internal: Fiber Optical
Working Environment	Temp. 18℃~30℃, Humidity: 35%~65%
Software	neoStampa Delta / Ergosoft... + GZ Printer Manager
Power	Single Phase, 50Hz/AC, 220V±10%, 37A (Printer) +2x36A+20A (IR Dryer)
Packed Size	LxWxH(mm): 4750x1590x2230 (Printer); 3020x1300x1380 (Feeding&Taking up System)
Installed Size	LxWxH(mm): 4520x1317x1921 (Printer); 2836x1420x1145 (Feeding&Taking up System)
G.W. / N.W.	2545KGS / 2055KGS (Printer); 880KGS / 677KGS (Feeding&Taking up System)

24x Epson I3200-A1 Heads

24 x staggered Epson I3200 print heads deliver unparalleled productivity and high print quality. Unique designed head mounting plate for quick setup and calibration.

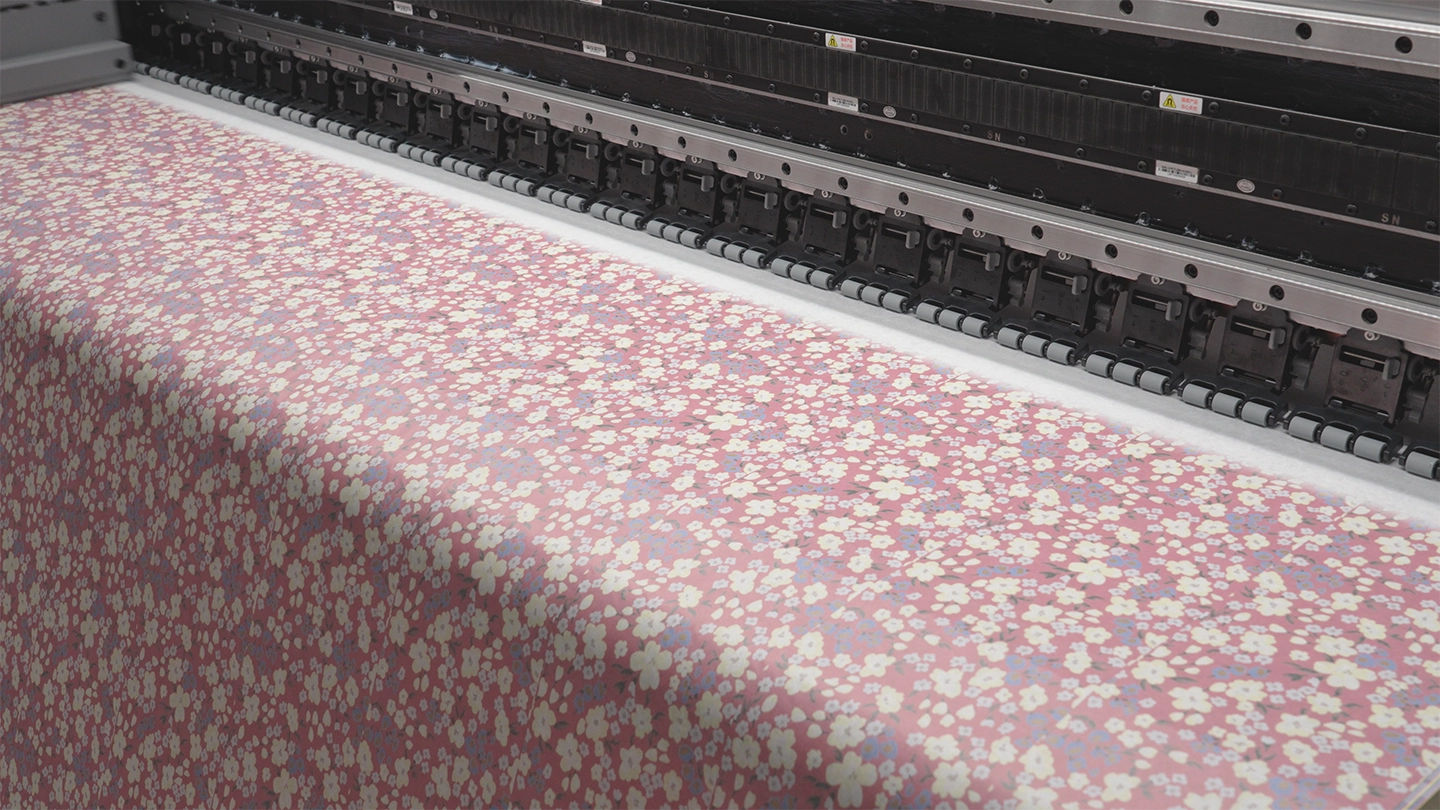

GZ Variable Dot Technology

GZ Varible Dot Technology delivers flawless skin tone,smoother gradient , crisp text and intricate detail without compromising speed.

Auto Capping & Wiping System

Self-developed auto capping station with particular Slant-Wiper save head maintenance time and max extends head life.

Myriameter Media Handle System

Industrial heavy-duty media handling system with unique stretchable rubber roll assures precise unwinding and rewinding for up to φ1000mm roll diameter.

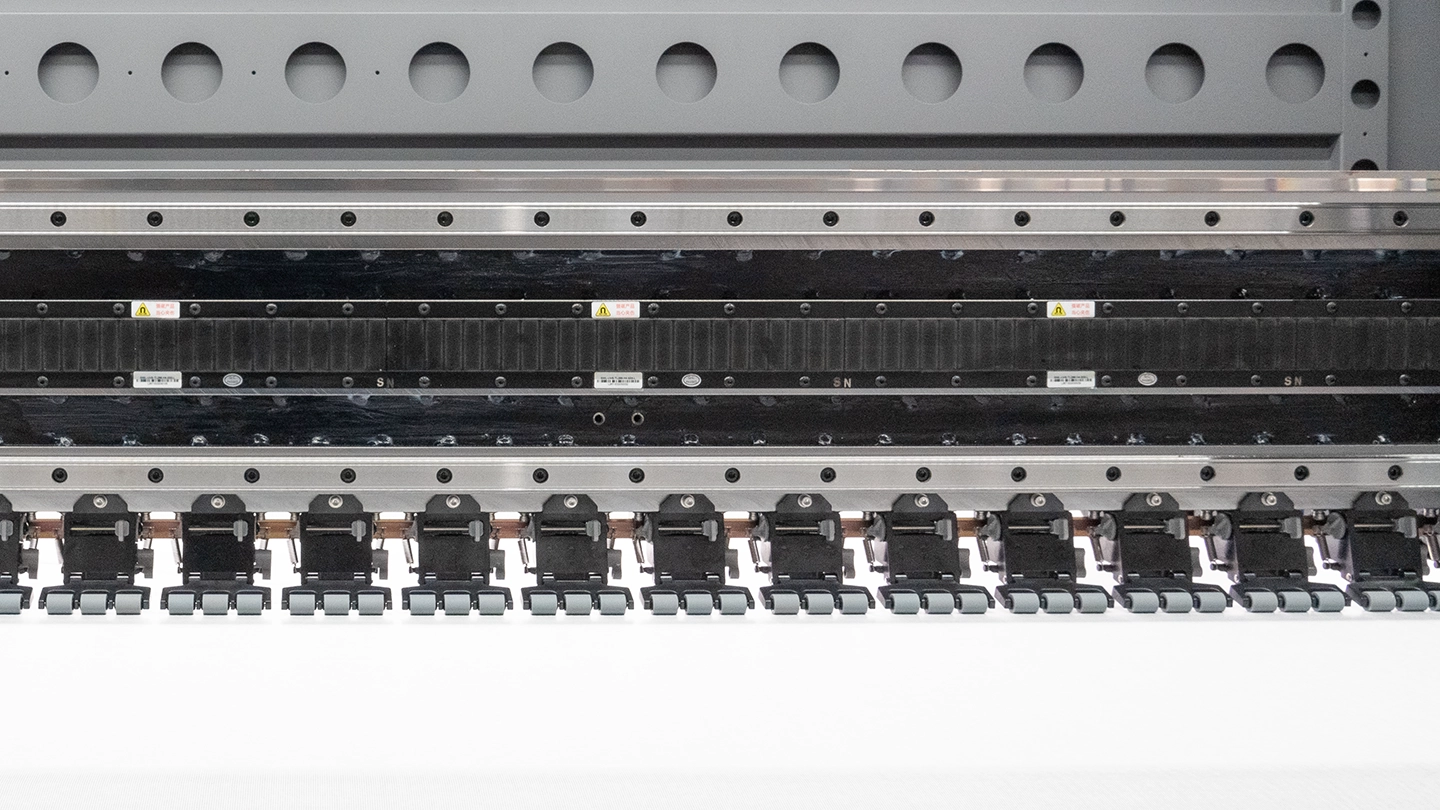

Rubber Rollers & Magnetic Linear

Rubber rollers ensure wrinkle-free and accurate media delivery. Magnetic Linear Motor System& metal grating for low noise and precise printing.

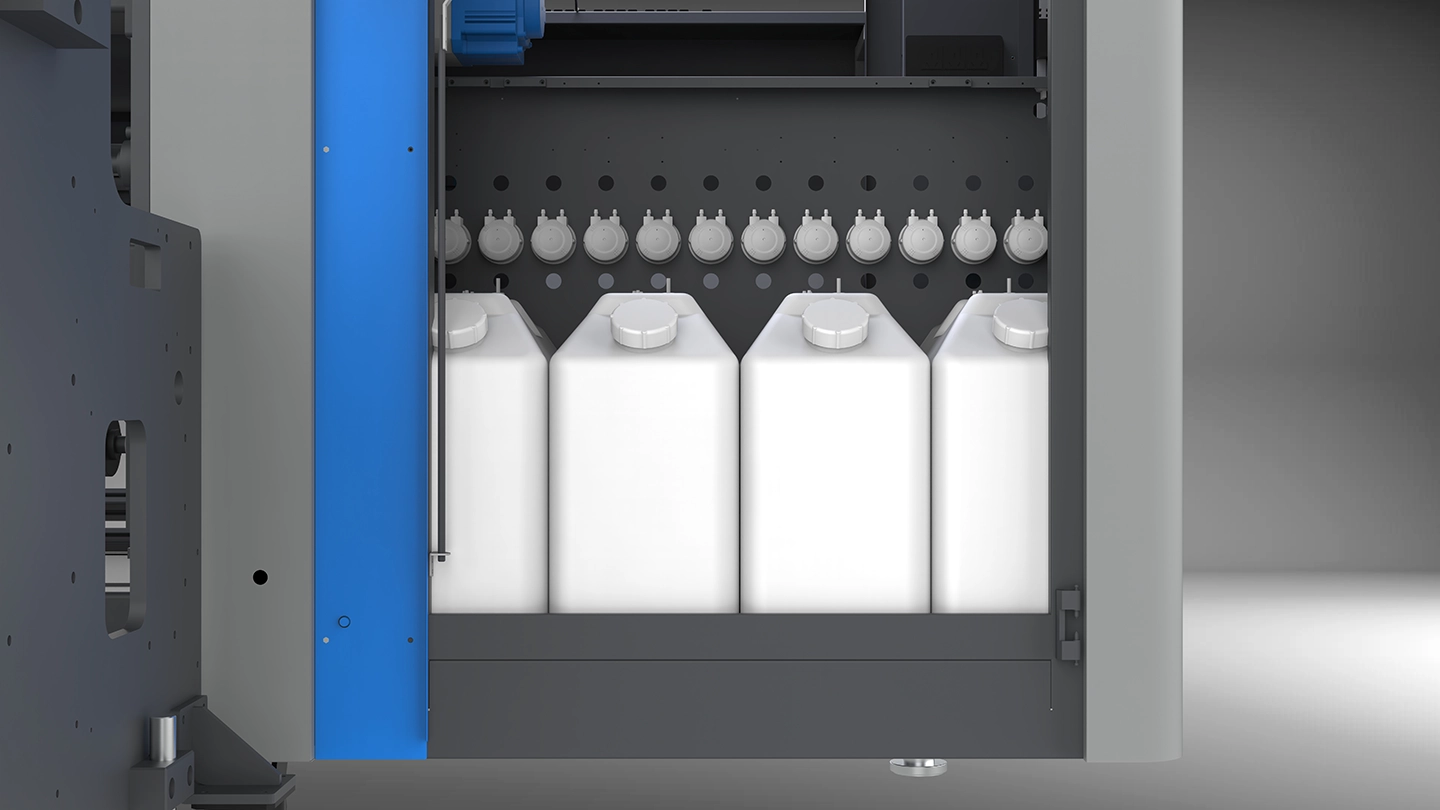

Big Volume Ink Supply System

25-Liter large capacity ink tanks enables big volume&high speed output, reducing ink replenish time and long-time unattended operation.

< >
