Print Head

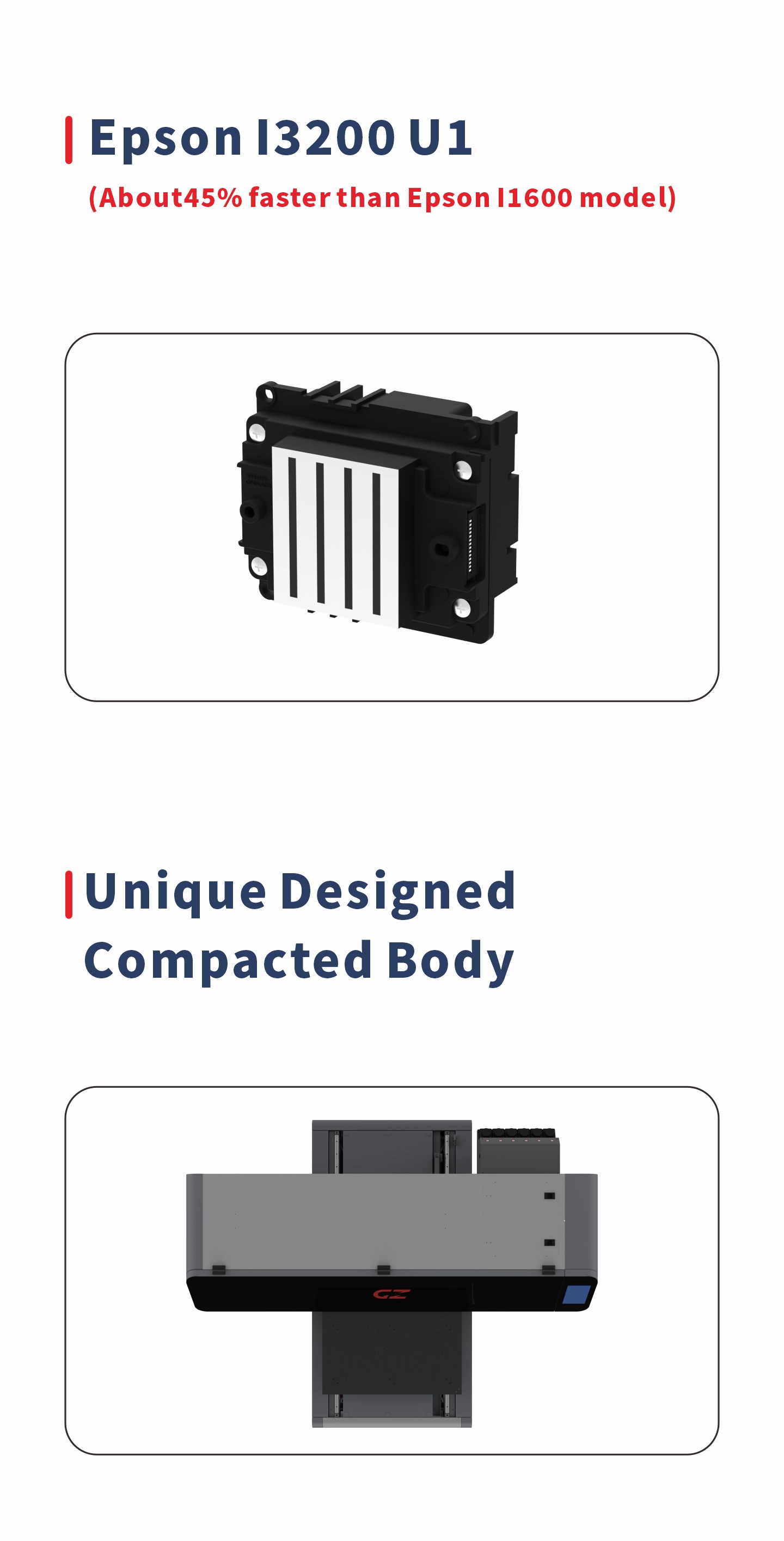

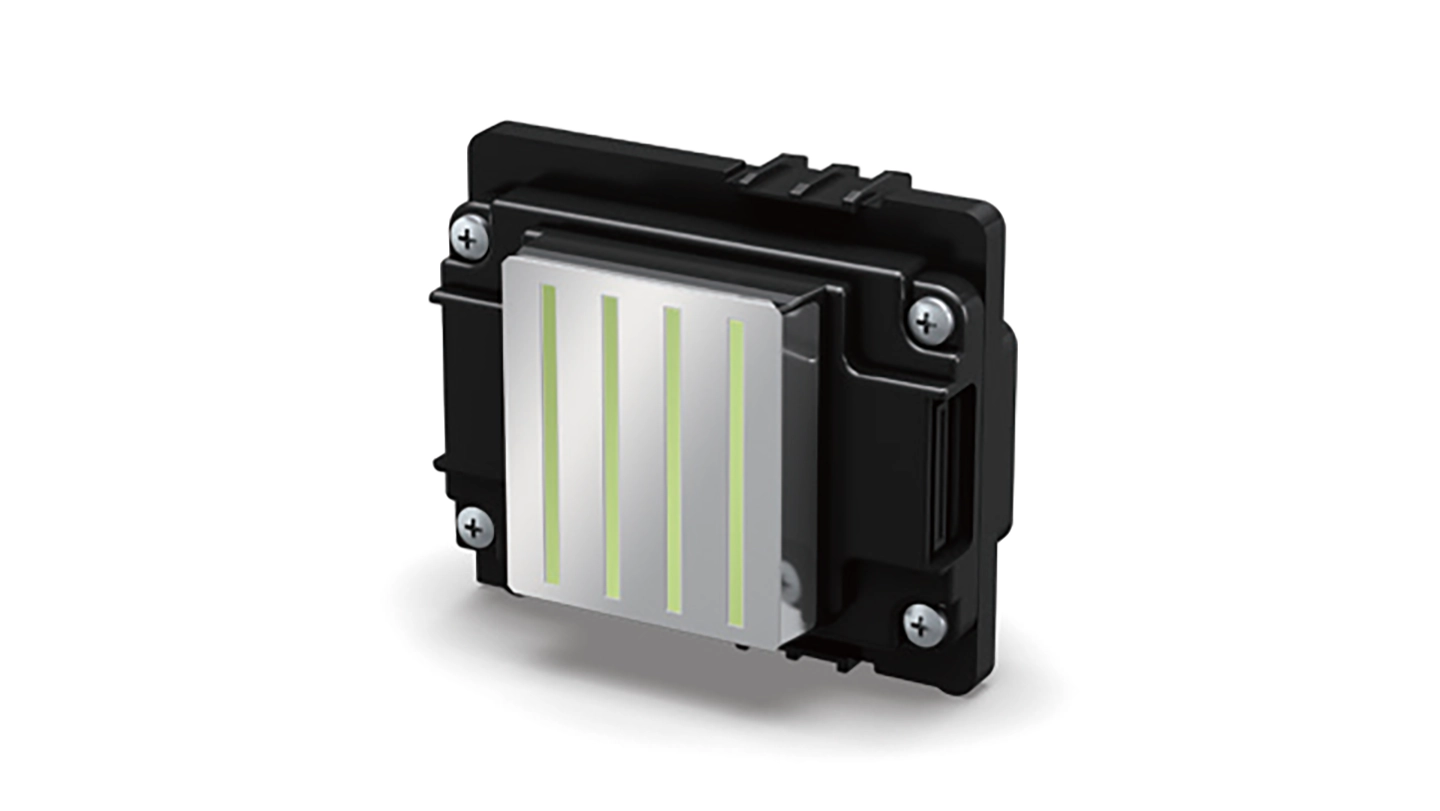

3 Epson I3200 U1 Print Heads

Curing System

3x Air Cooling LED UV Lamps

Ink

Gongzheng UV Ink: REI-3

Color configuration

KCMY; W+KCMY; W+KCMY+V

Ink Supply System

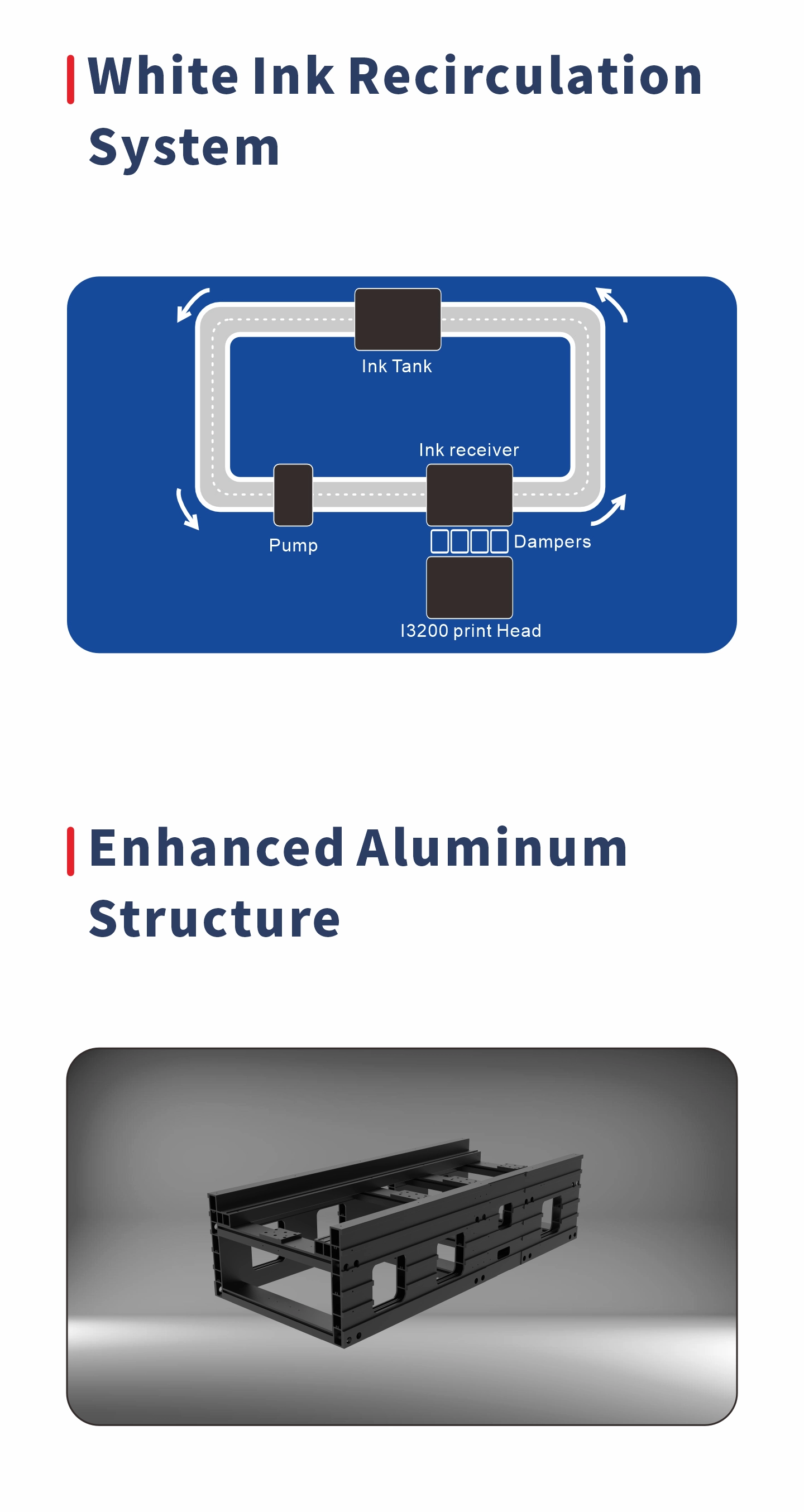

1.2L Bulk Supply System with White Ink Recirculation System

Media Thickness

Up to 180mm

Media Type

Acrylic, Aluminum Sheet, Foam Board, PVC Board, Leather, Glass Bottle, Wood, Ceramic, etc

Printing Size

Max.600x900mm

Printing Speed

Printing mode        Resolution          Feather             CMYK+W+V

Draft                       720x1200dpi        Weak              2.9mins/sheet

Production             720x1200dpi       Normal             3.7mins/sheet

Hi-resolution          720x1800dpi       Normal             4.4mins/sheet

Photo                     720x1800dpi        Strong             5.6mins/sheet

Data lnterface

Gigabit Ethernet

Working Environment

Temp. 20℃~30℃, Humidity: 35%~65%

Software

FlexiPRINT Mini UV+GZ Control Console

Power Requirements

Single-phase, AC220V±10%, 50/60Hz, 10A

Power Consumption

1050W

Installed / Packed Size

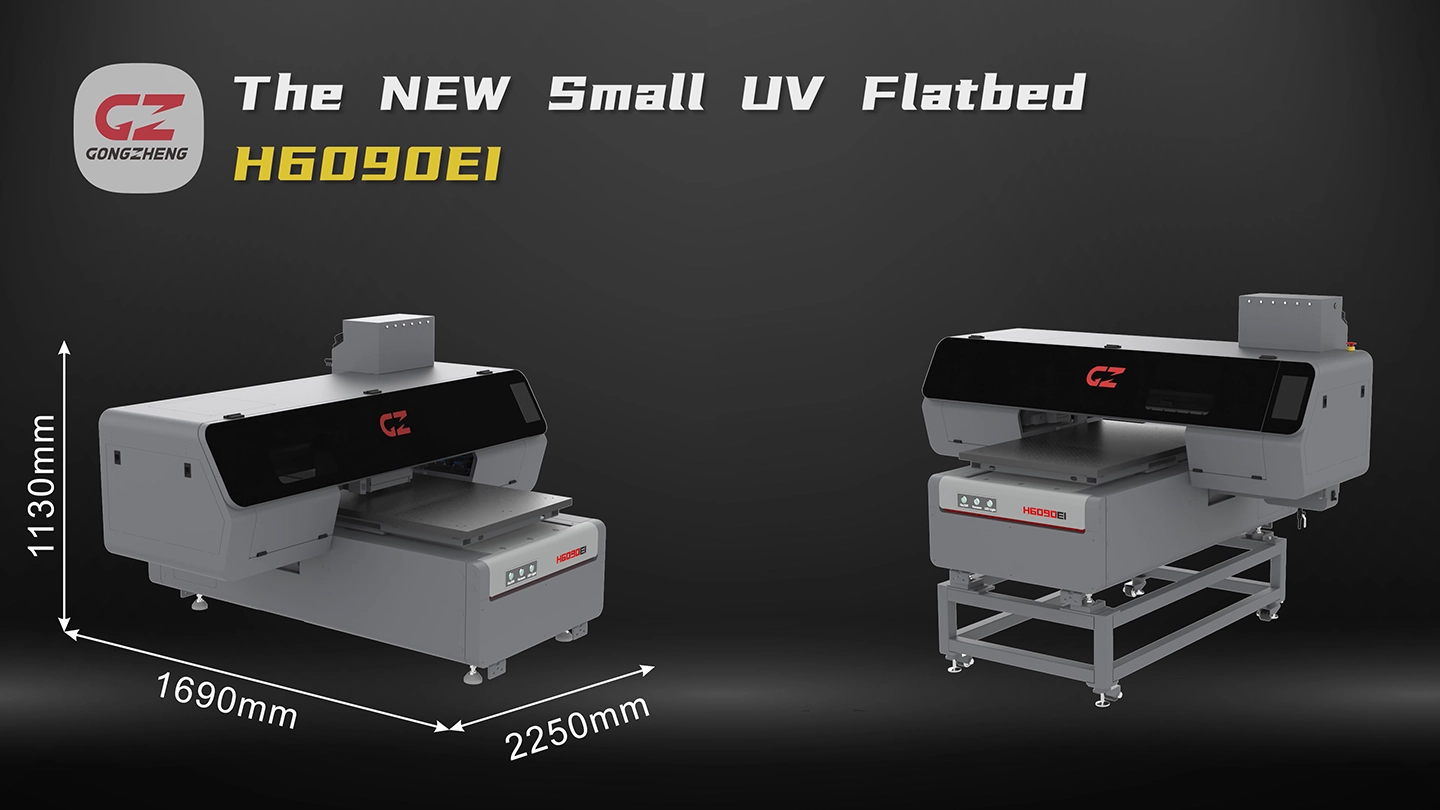

LxWxH(mm): 1528x1634x1368(Frame Included)/2250x1690x1130

G.W. / N.W.

544kgs/374kgs
