Textile Solutions

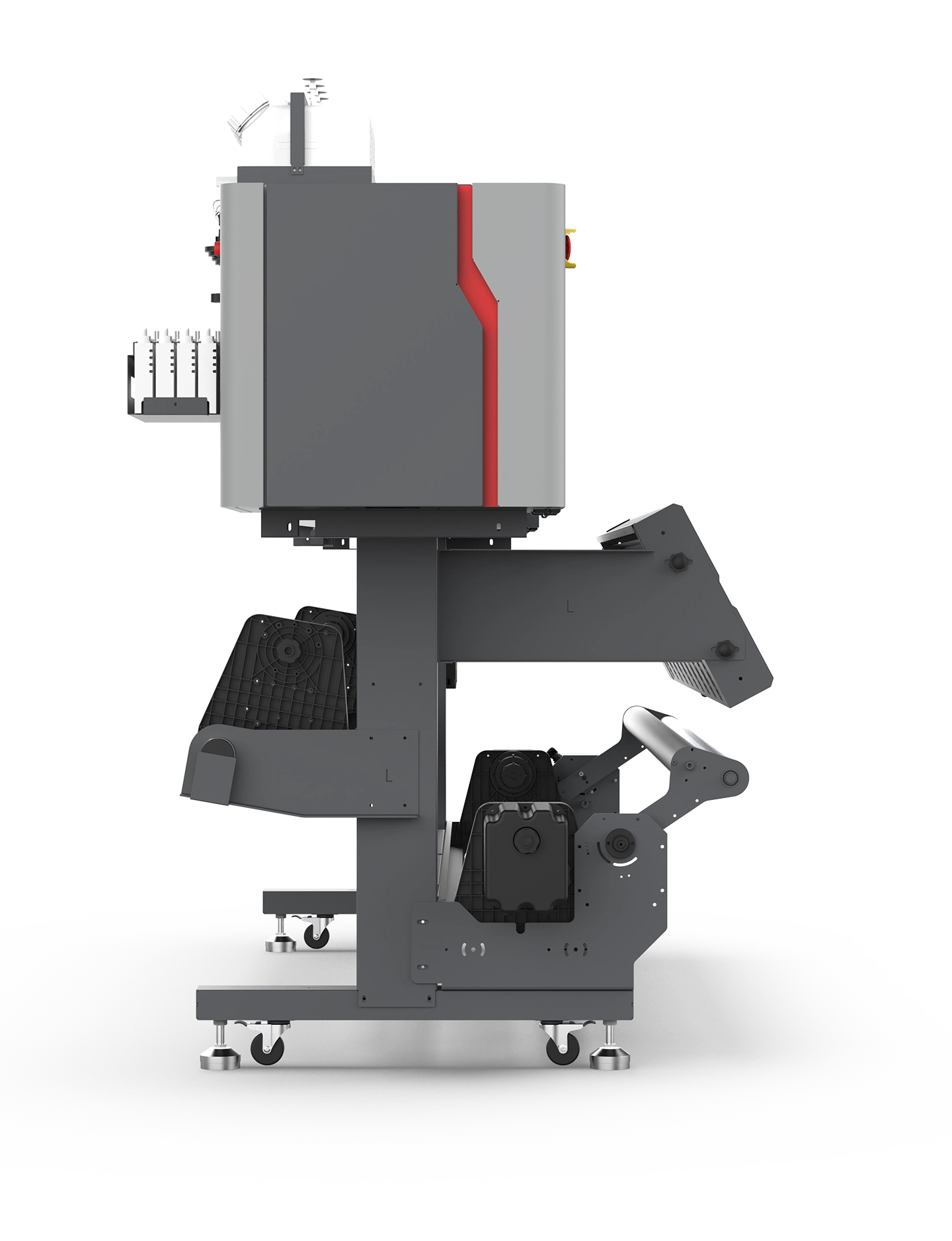

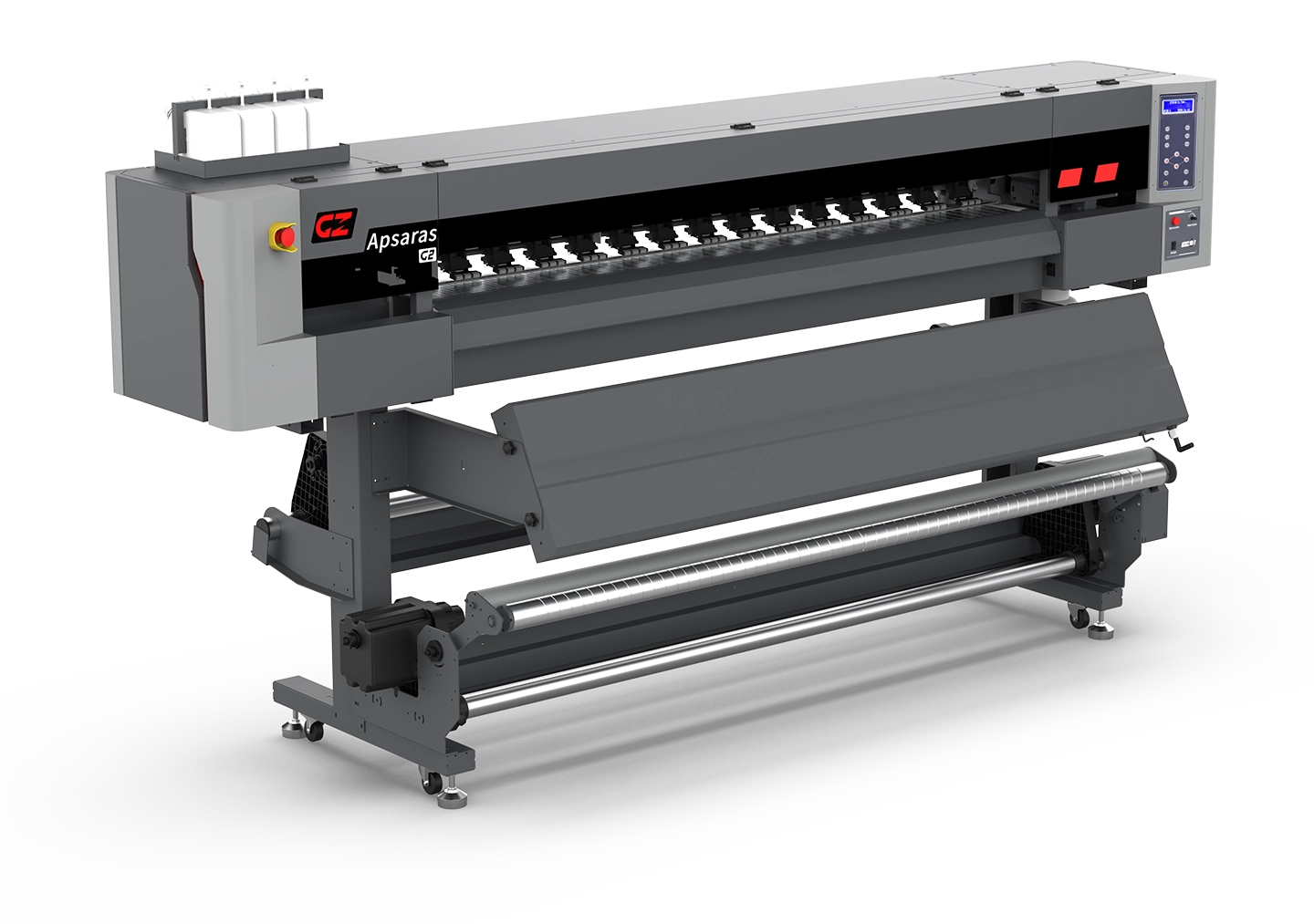

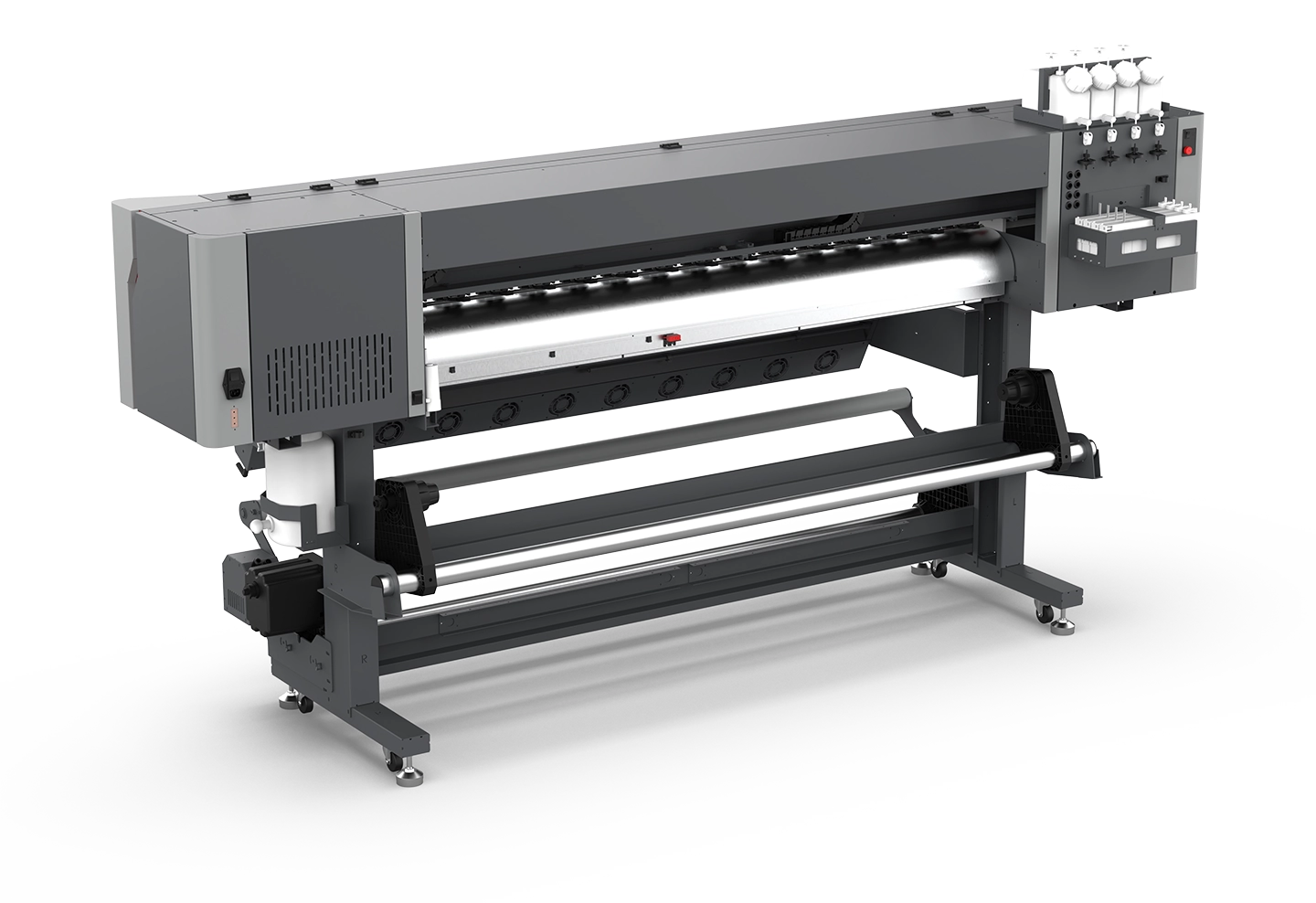

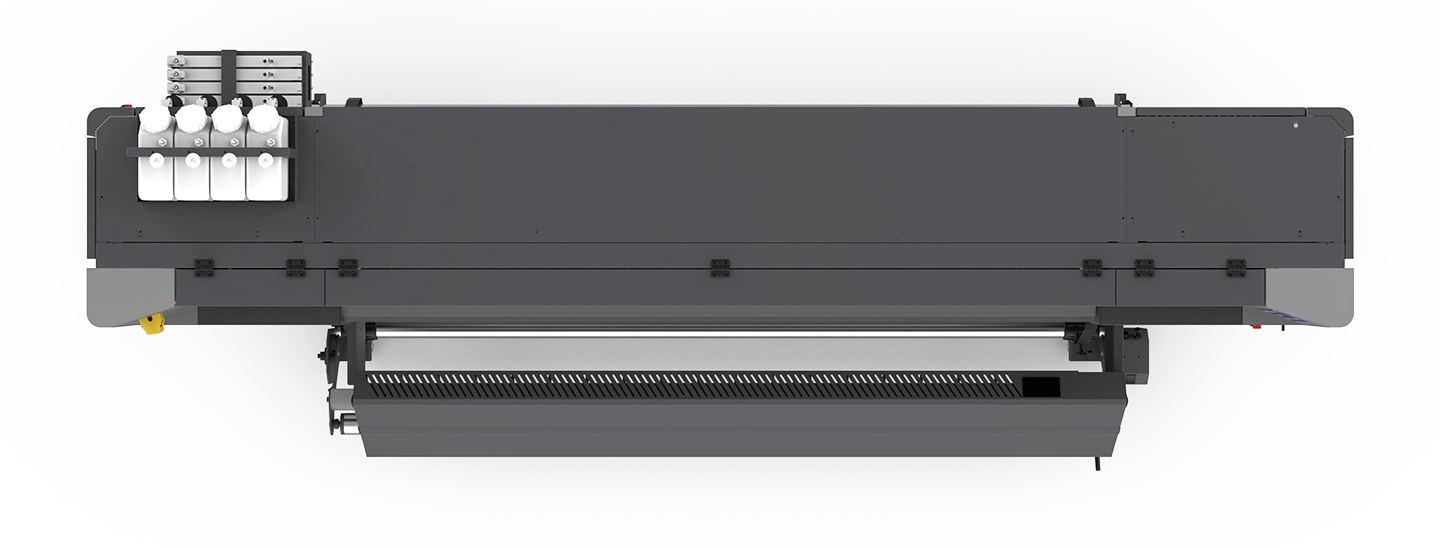

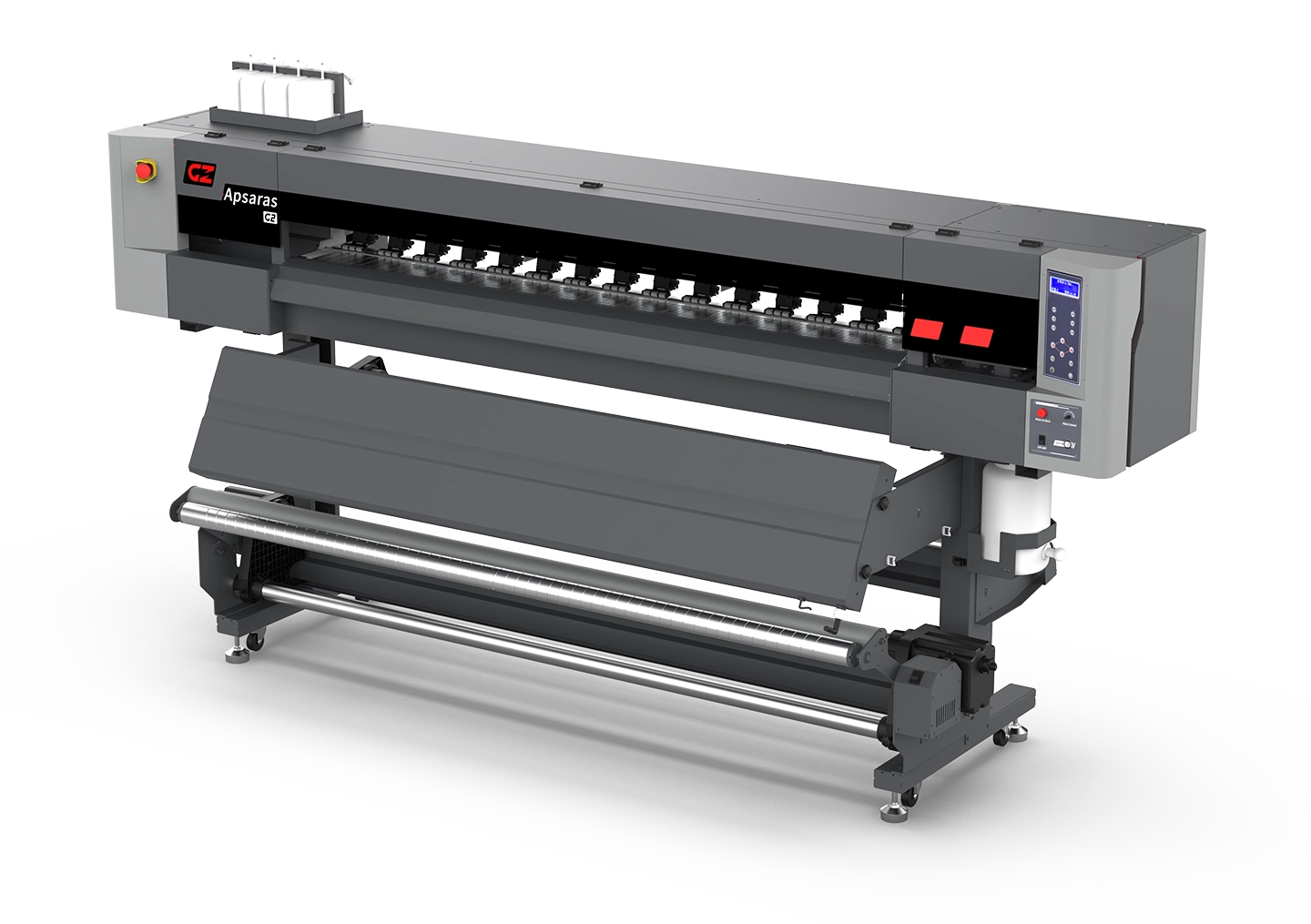

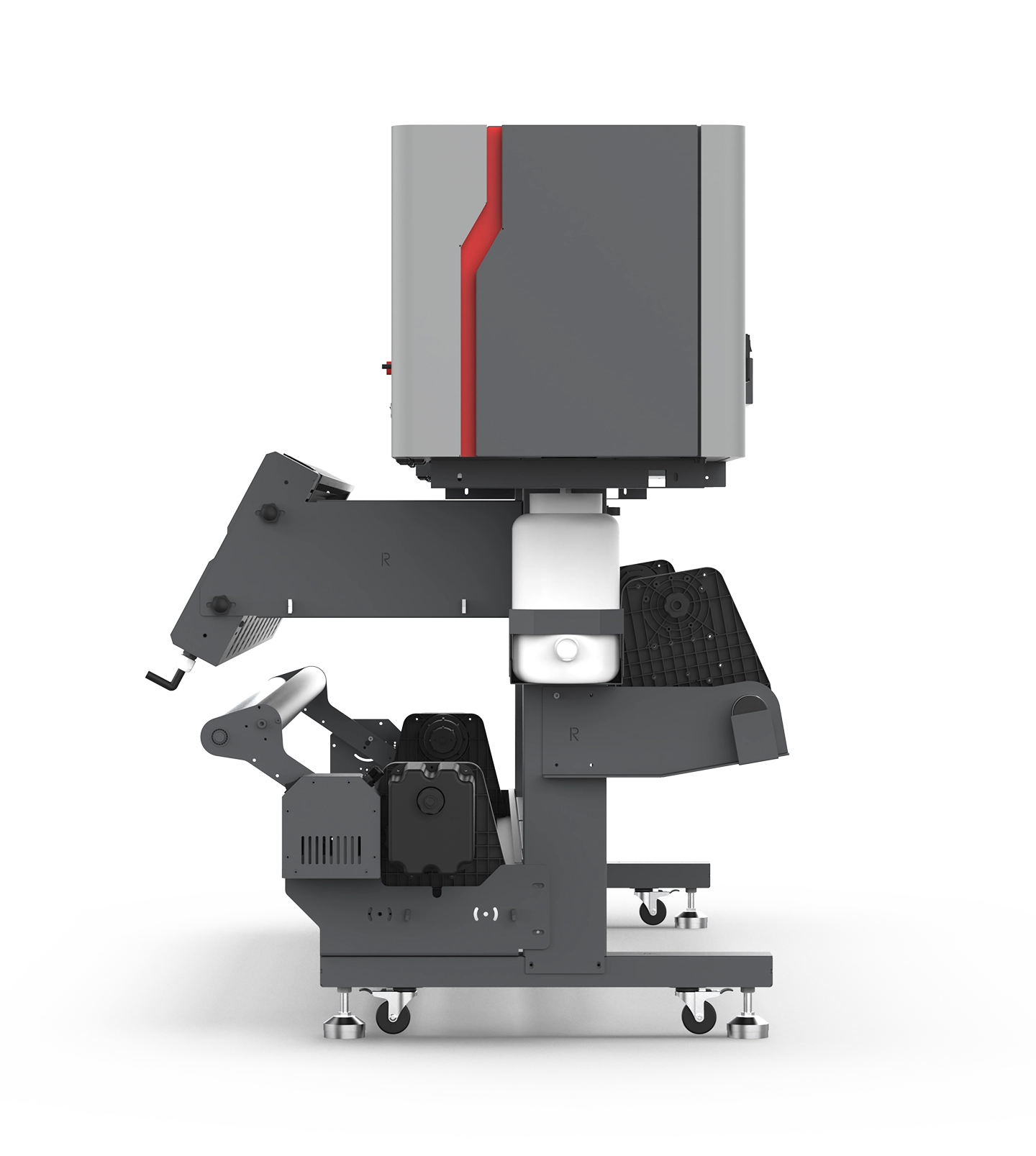

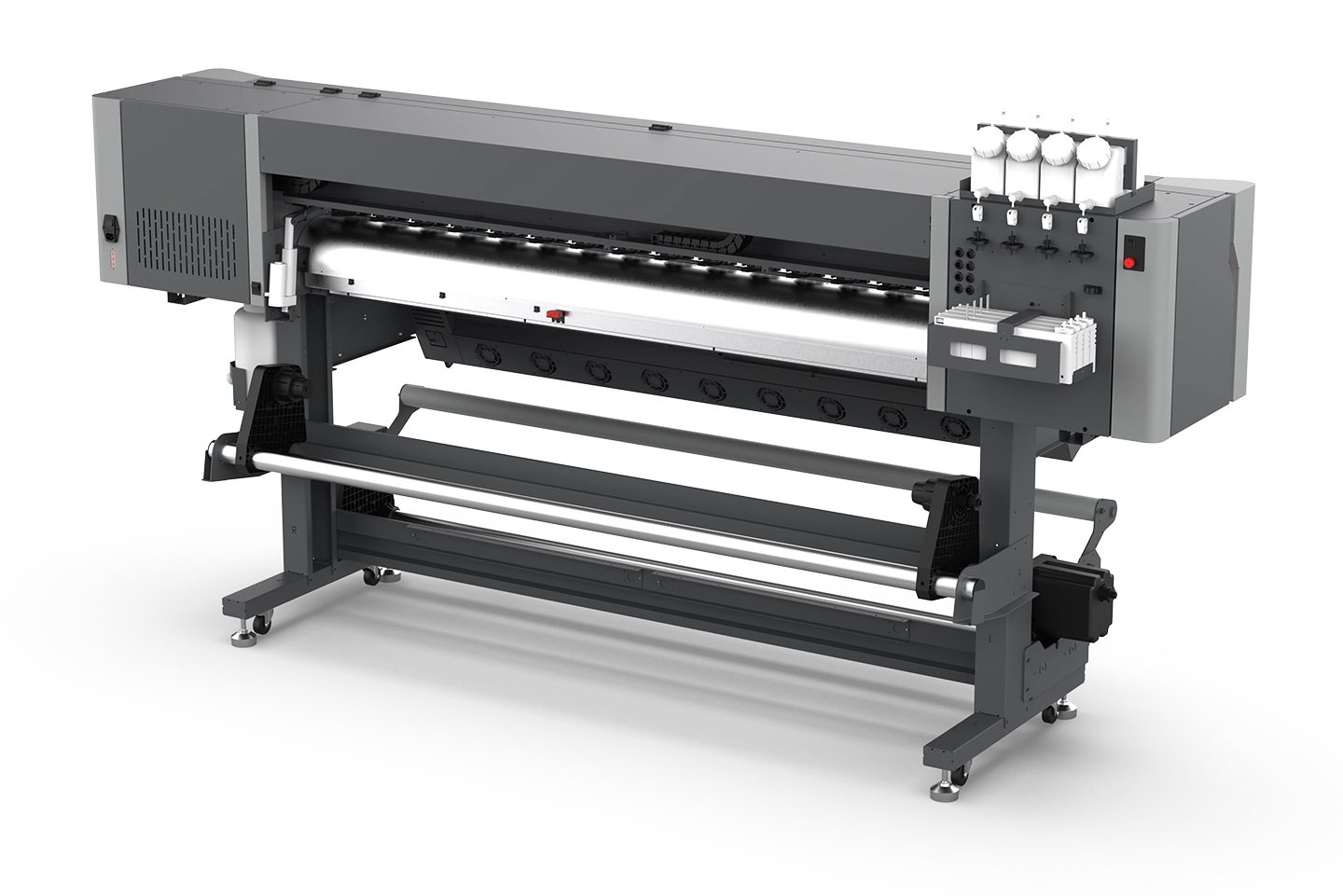

Apsaras G2

Entry-level Sublimation Printer, up to 95 sqm/h


2 x Genuine Epson I3200 A1 Heads


Auto Capping & Wipping System


Unique Media Handle System


GZ Variable Dot Technology

Grooving Anti-Wrinkle Platen

Unique Designed Pinch Roller System

Model

Apsaras G2

Print Head

2 x Epson I3200-A1 Print Heads

Ink

GS High Density Sublimation Transfer ink Certified by OEKO TEX with"ECO PASSPORT"

Color Config.

K.C.Y.M

Ink Supply System

Bulk Ink Supply System With Ink Cartridge

Printing Width

Up to 1600mm

Media Type

Transfer Paper

Feeder

Feeding: 200m; Taking up: 200m

Roll Diameter

Up to 150 mm

Drying System

Intelligent Sectionable Control IR Dryer

Printing Speed

Draft             720×600 dpi      95㎡/h

Production   720×600 dpi      85㎡/h

High-res       720×1200 dpi    47㎡/h

Photo           720×1200 dpi    37㎡/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp. 18℃~30℃, Humidity: 35%-65%

Software

FlexiPRINT….+GZ Printer Manager

Power

Single Phase, 50Hz/AC, 220V±10%, Printer: 5.5A+IR Dryer: 18A +28A

Packed / Installed Size

LxWxH(mm): 2880×1090×750 / 2760×650×1280

G.W. / N.W.

360KGS / 240KGS



< >
