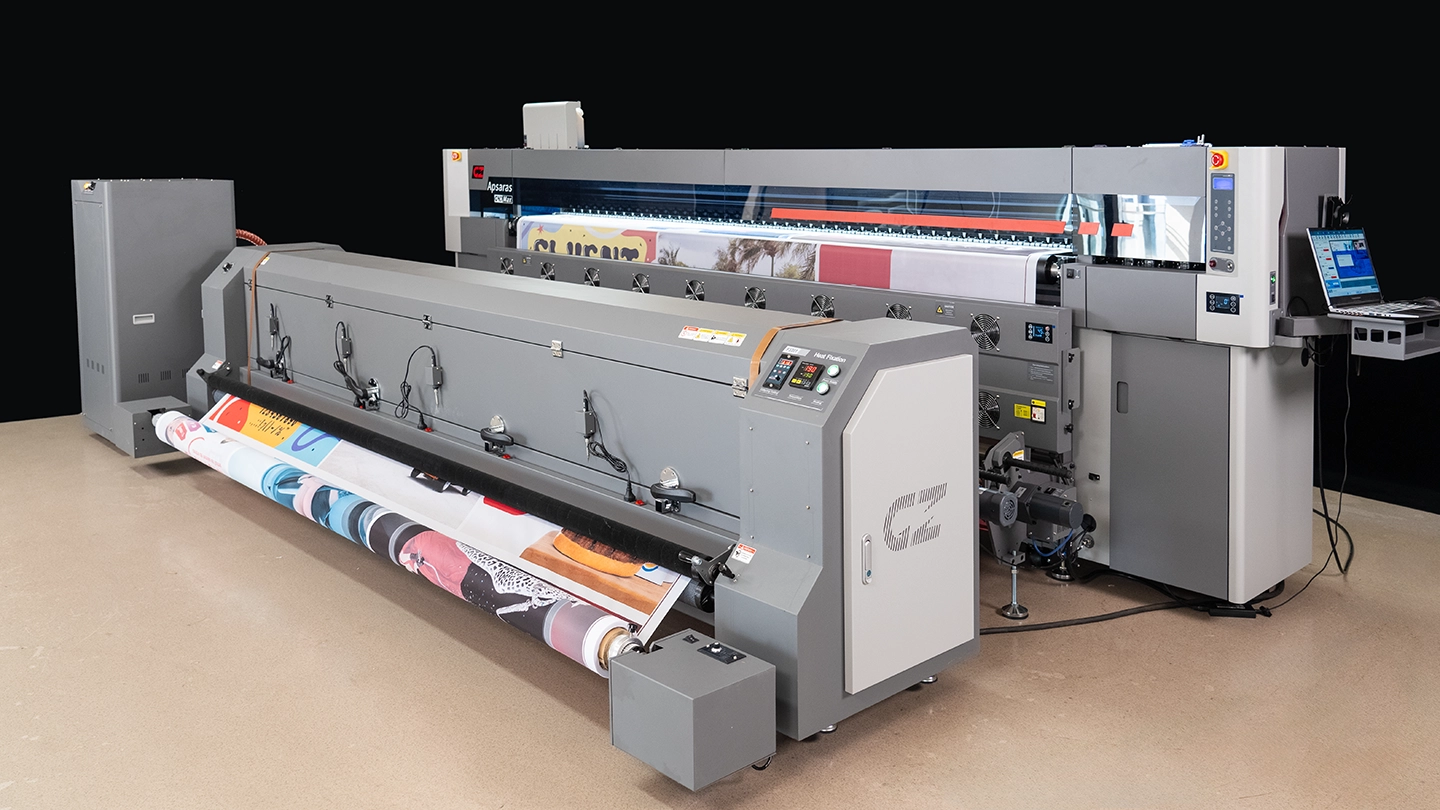

Apsaras G4D Max

3.2m Super-Wide Hybrid Textile Solution

Feature Specification Details

●	Dual Printing Capability
	Paper Transfer Printing: Removable Anti-Wrinkle Platen & Continuous Pinch Rollers
	Direct Sublimation Printing: Specific Platform with Ink Tray
●	Two Color Fixing Modes

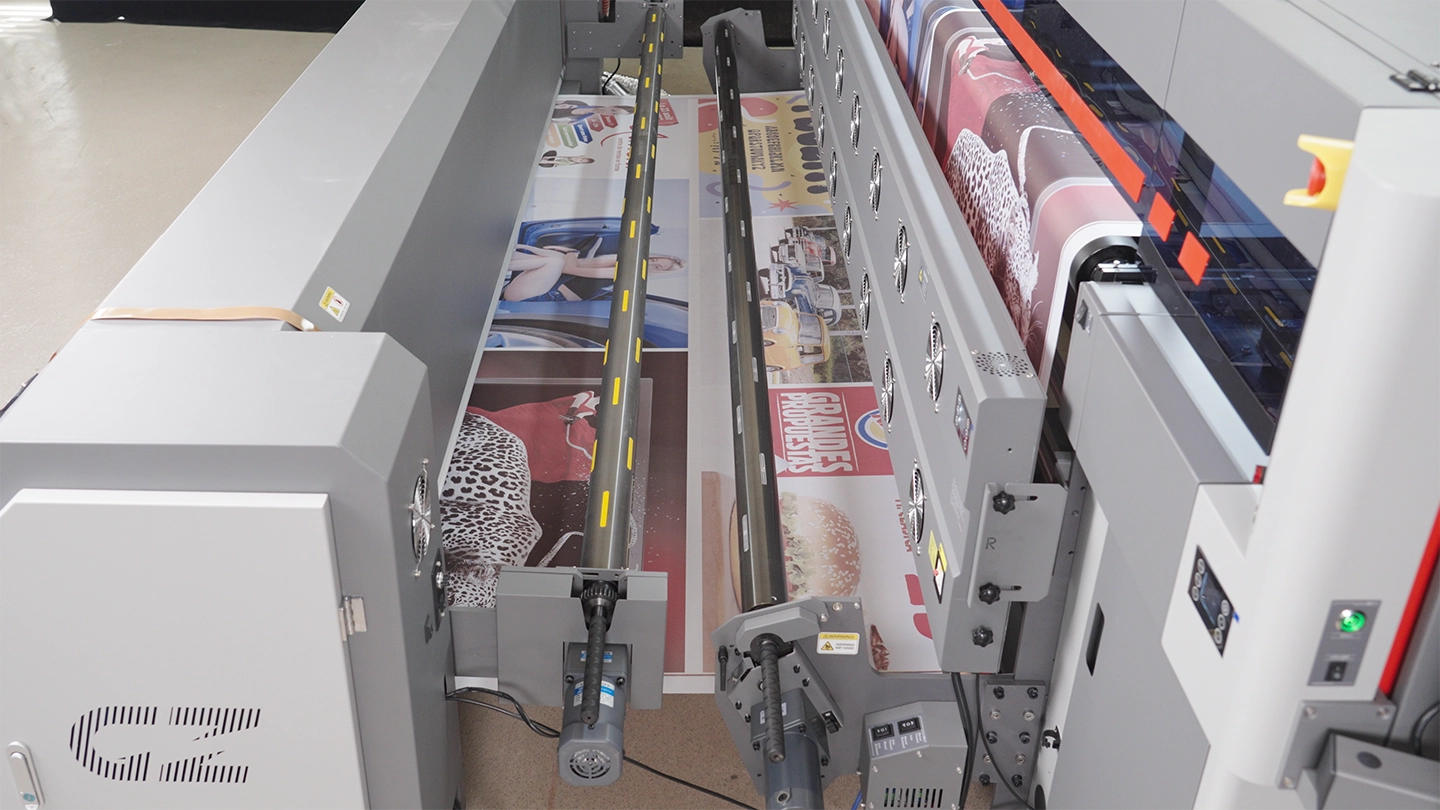

	Inline Mode: Customized Order Solution
	Offline Mode: Large-Batch Order Solution

PRINTER
Model	Apsaras G4D Max
Print Head	4 x Epson I3200-A1 Print Heads
Ink	High Density Sublimation Ink Certified by OEKO TEX with "ECO PASSPORT"
Media Type	Wall Fabric, Flag, Transfer Paper (45gsm+)...
Ink Supply System	3L Bulk Ink Supply System with Ink Cartridge
Media Delivery System	Air Shafts for Feeding and Taking up with Adjustable Dancing Systems
Drying System	7.5KW Intelligent Dryer
Printing Speed	Draft 360×1800 dpi 110㎡/h Production 720×1200 dpi 82㎡/h High-Res 360×1800 dpi 64㎡/h Photo 720×1200 dpi 55㎡/h
Software	NeoStampa Delta
Data Interface	External: Ethernet; Internal: Fiber Optical
Working Environment	Temp.18℃~30℃, Humidity: 35%~65%
Power	Single Phase, 50Hz/AC, 220V±10%, 18A (Printer)+44A (IR Dryer)
Packed / Installed Size	LxWxH(mm): 4900x1080x1870 / 4728x1280x1720
G.W. / N.W.	1368KGS / 1008KGS
HEAT FIXATION
Model	F3201
Sublimate Speed	150m/h
Feeding System	Adjustable Guide Shaft to Ensure Same Tightness for Both Ends
Taking up System	Intelligent Frequency Conversion System with Air Shaft
Working Temperature	180℃-280℃ with Ai Intelligent Temperature Control
Power	Single Phase, 50Hz/AC, 220V±10%, 2x28A
Package Dimension	LxWxH(mm): Fixation: 4250x800x1200; Filter: 730x700x1570
Installation Dimension	LxWxH(mm): Fixation: 4100x1350x1000; Filter: 605x660x1300
G.W. / N.W.	Fixation: 710kgs / 538kgs; Filter: 158kgs / 108kgs

Dual Printing Capability

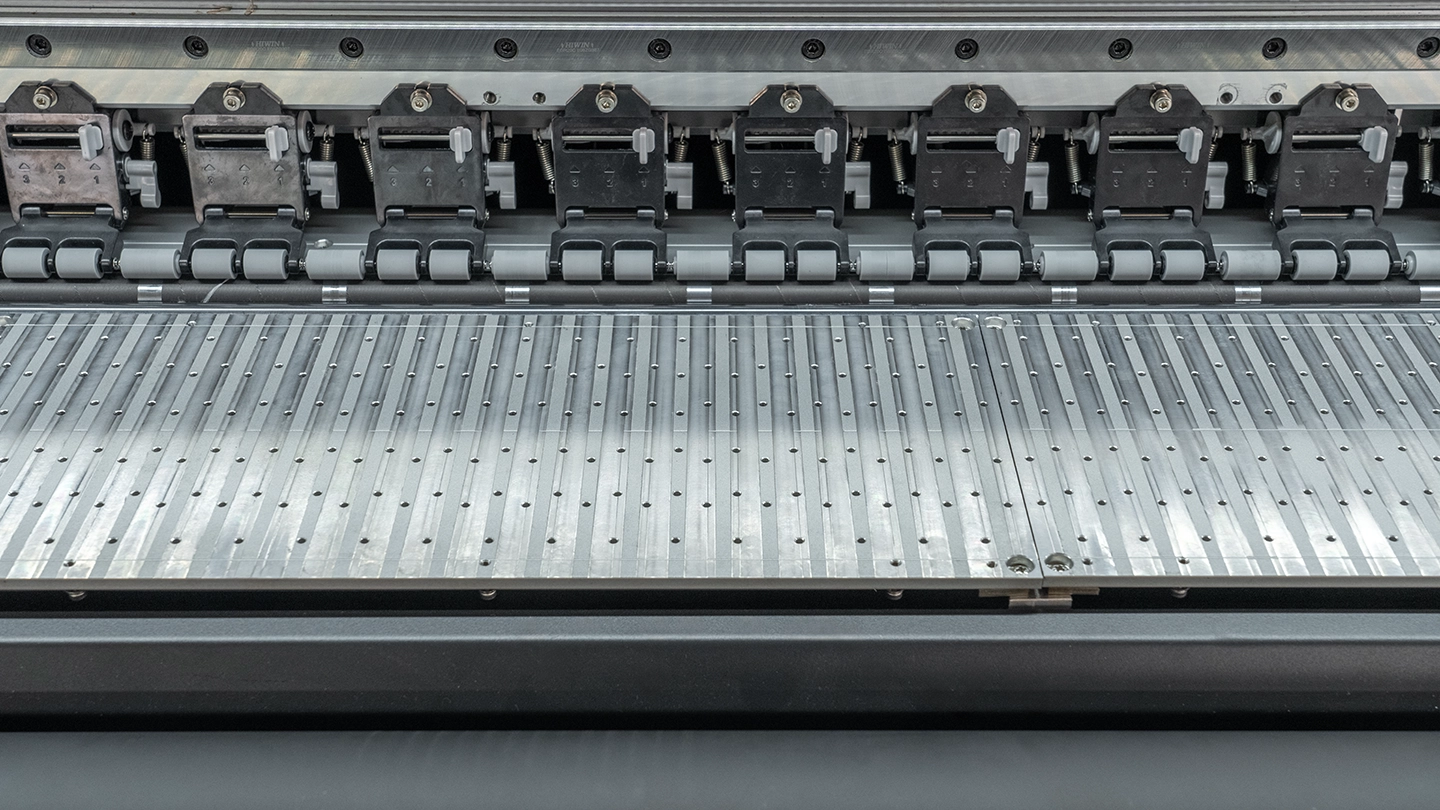

Paper Transfer Printing

Removable Anti-Wrinkle Platen & Continuous Pinch Rollers

Interlinked rollers and a grooving platen, supported by a strong blower, ensure wrinkle-free paper transportation.

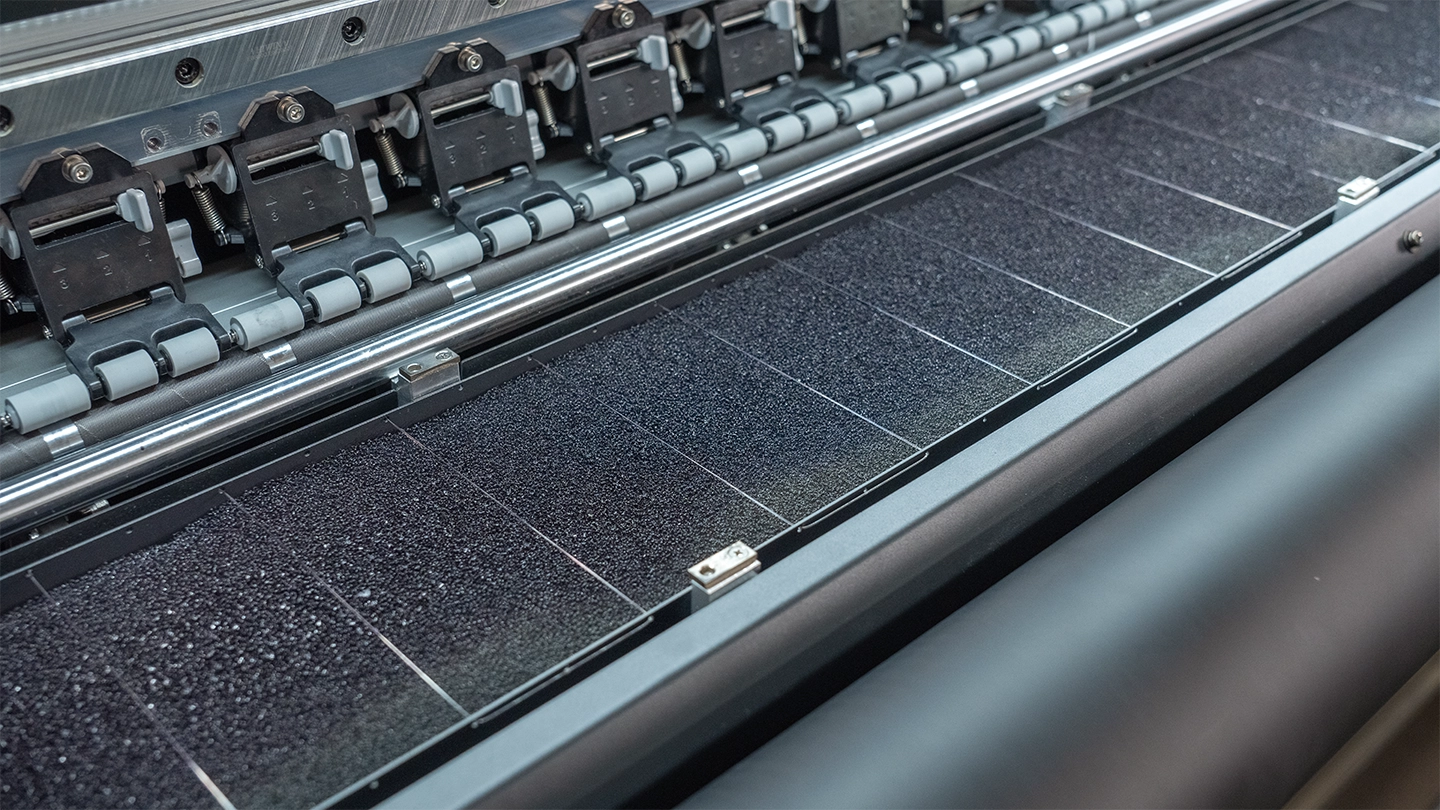

Specific Platform with Ink Tray

The specialized platen offers stable fabric support and prevents contamination. The ink tray effective captures bleed-through.

Customized Order Solution

Heat the material while printing, making it more suitable for flexible and custom production requirements.

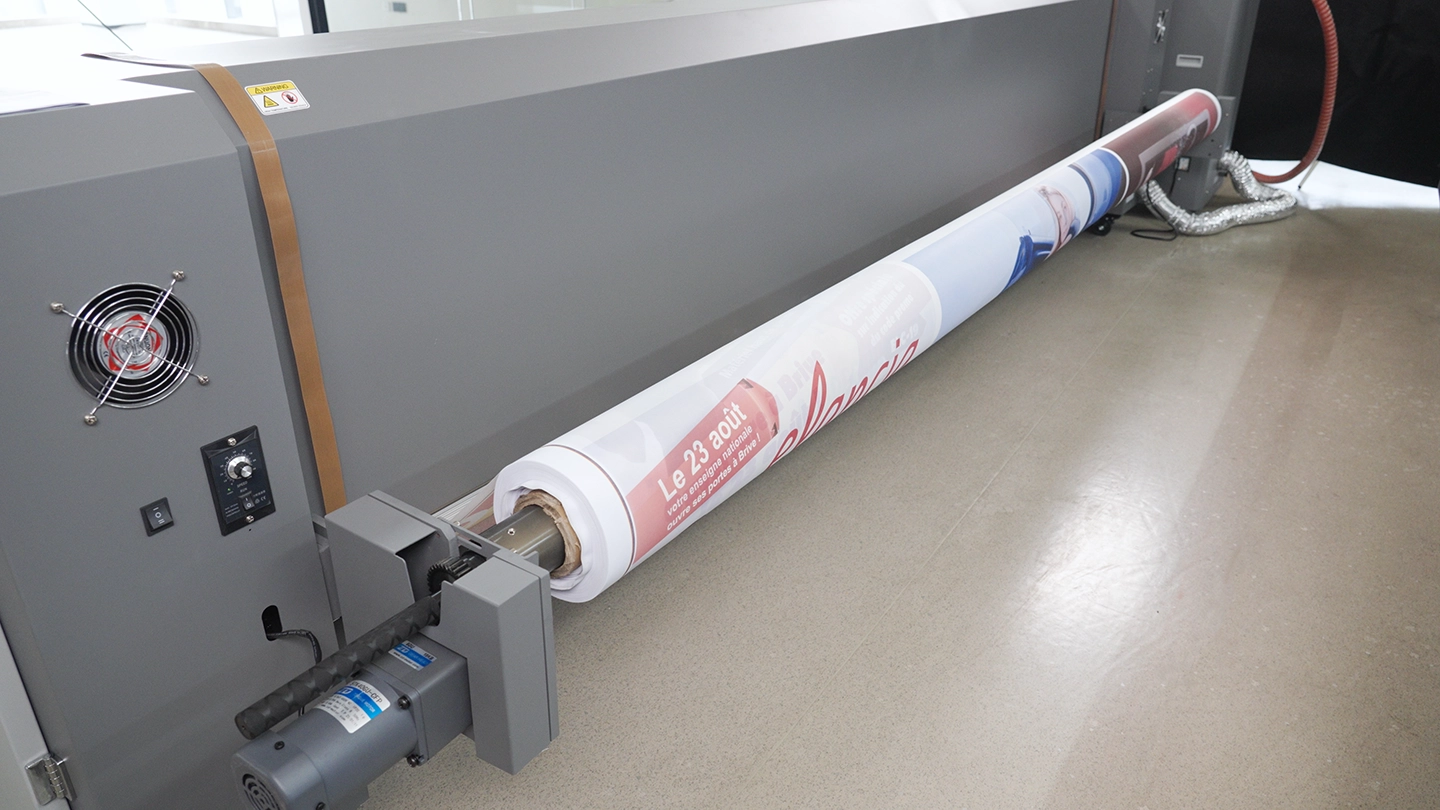

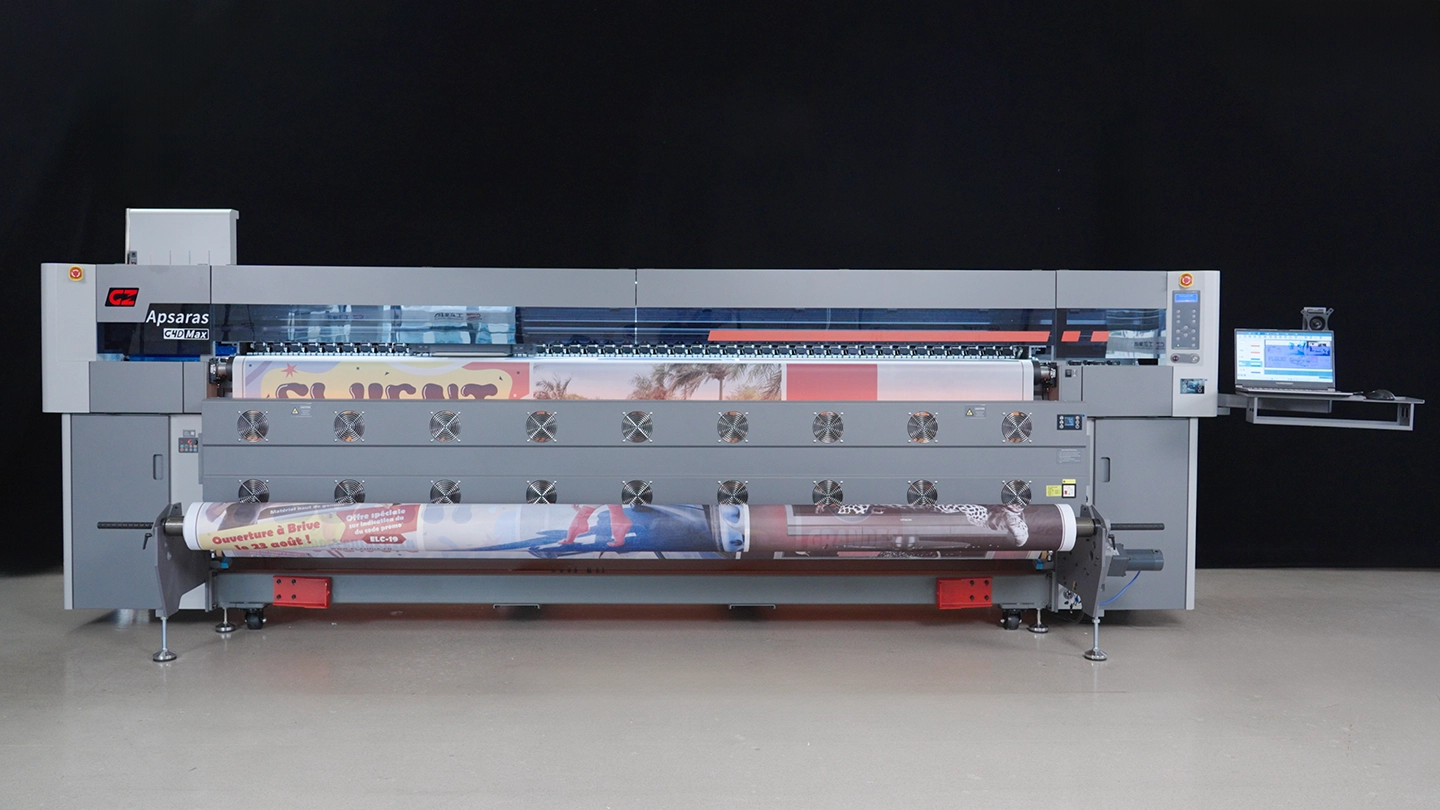

Large-Batch Order Solution

The entire roll is heated after printing is completed, which supports continuous production. Ideal for large-batch orders.

< >
