Print Head

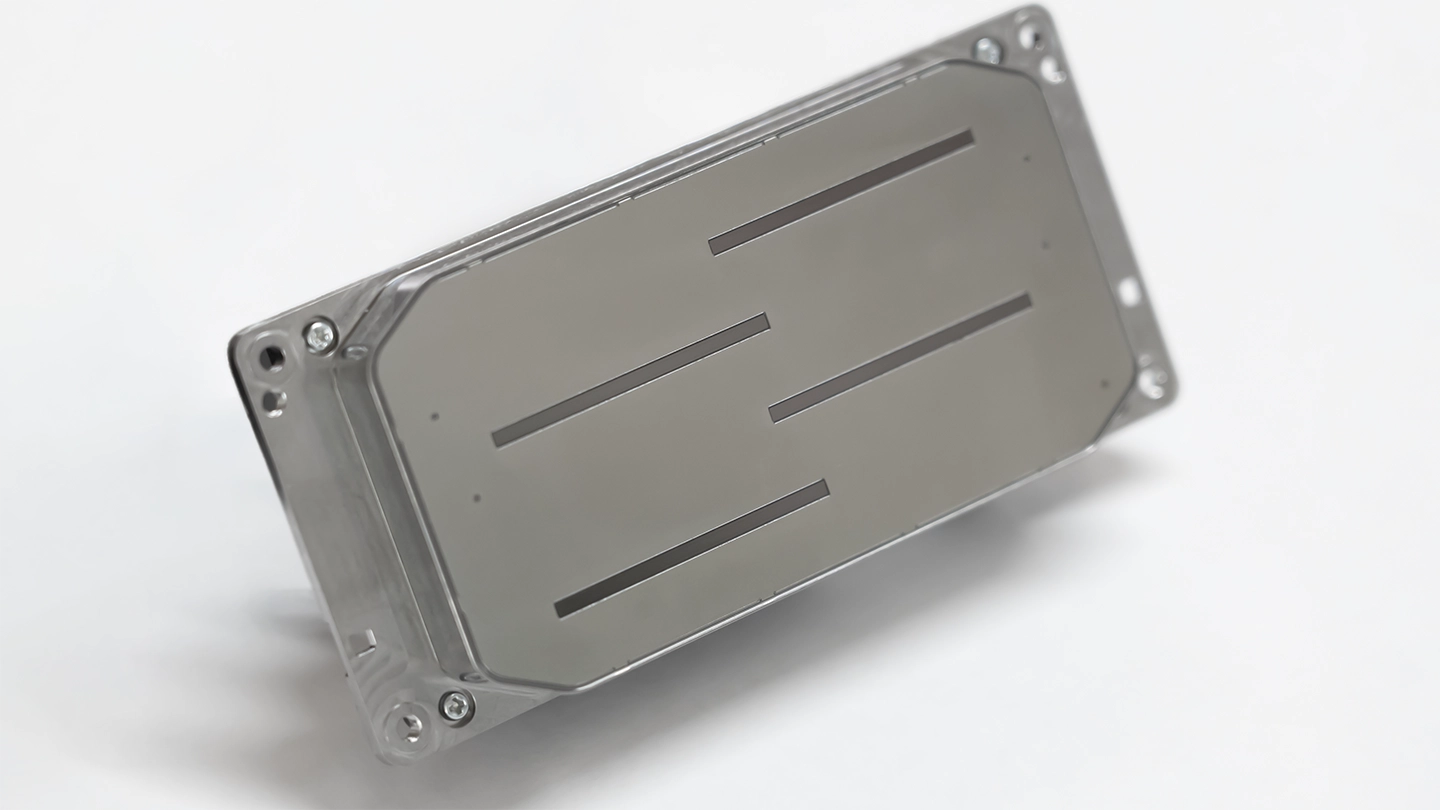

4x Epson T3200-U3-S 7pl / 2x Epson T3200-U3-S 7pl

Ink

SET1/SET2 Eco-Solvent Ink

Ink Supply System

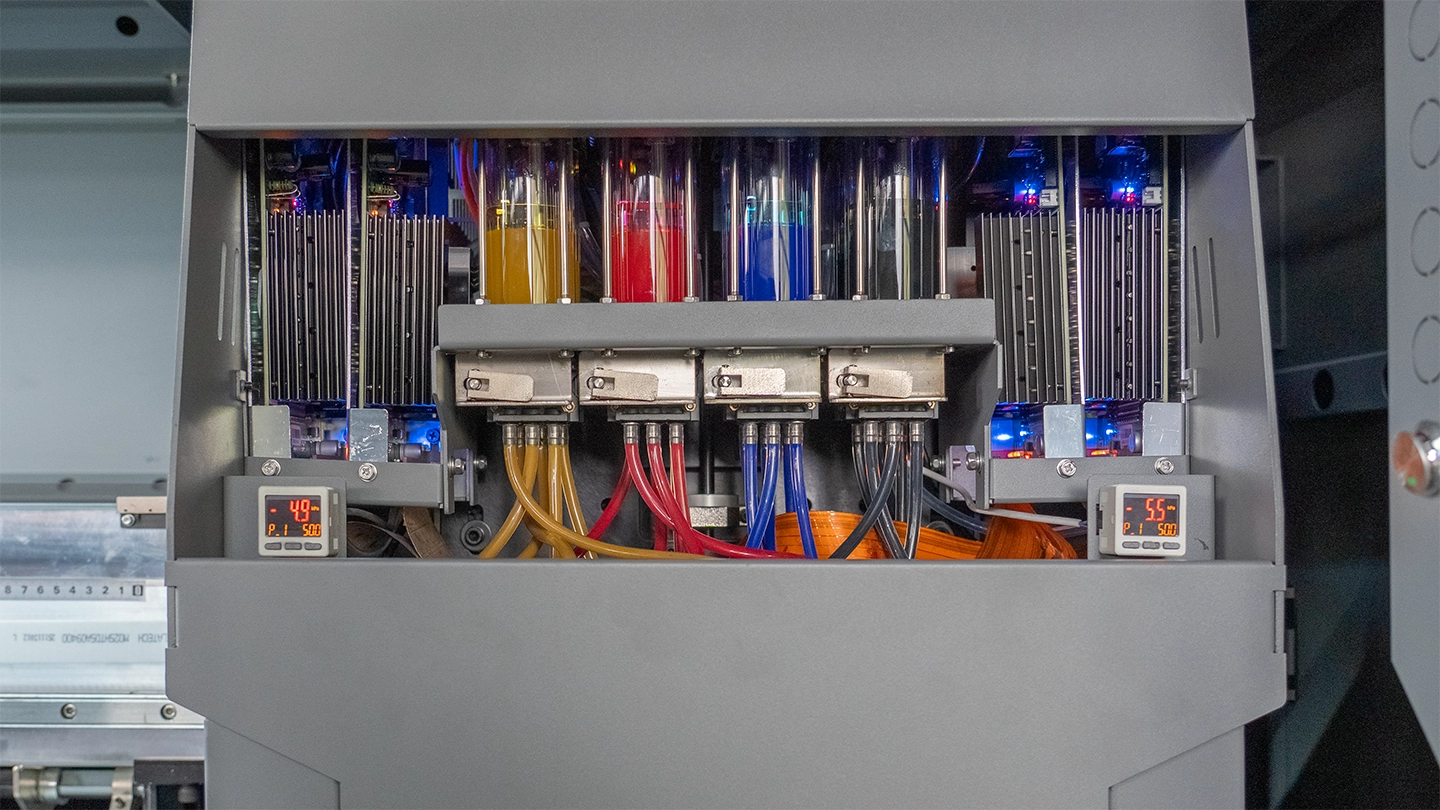

Gntek Negative Pressure Recirculation System

Printing Width

Max. 3200mm

Media Type

Banner, Frontlit, Backlit, Vinyl, Film...

Media Delivery System

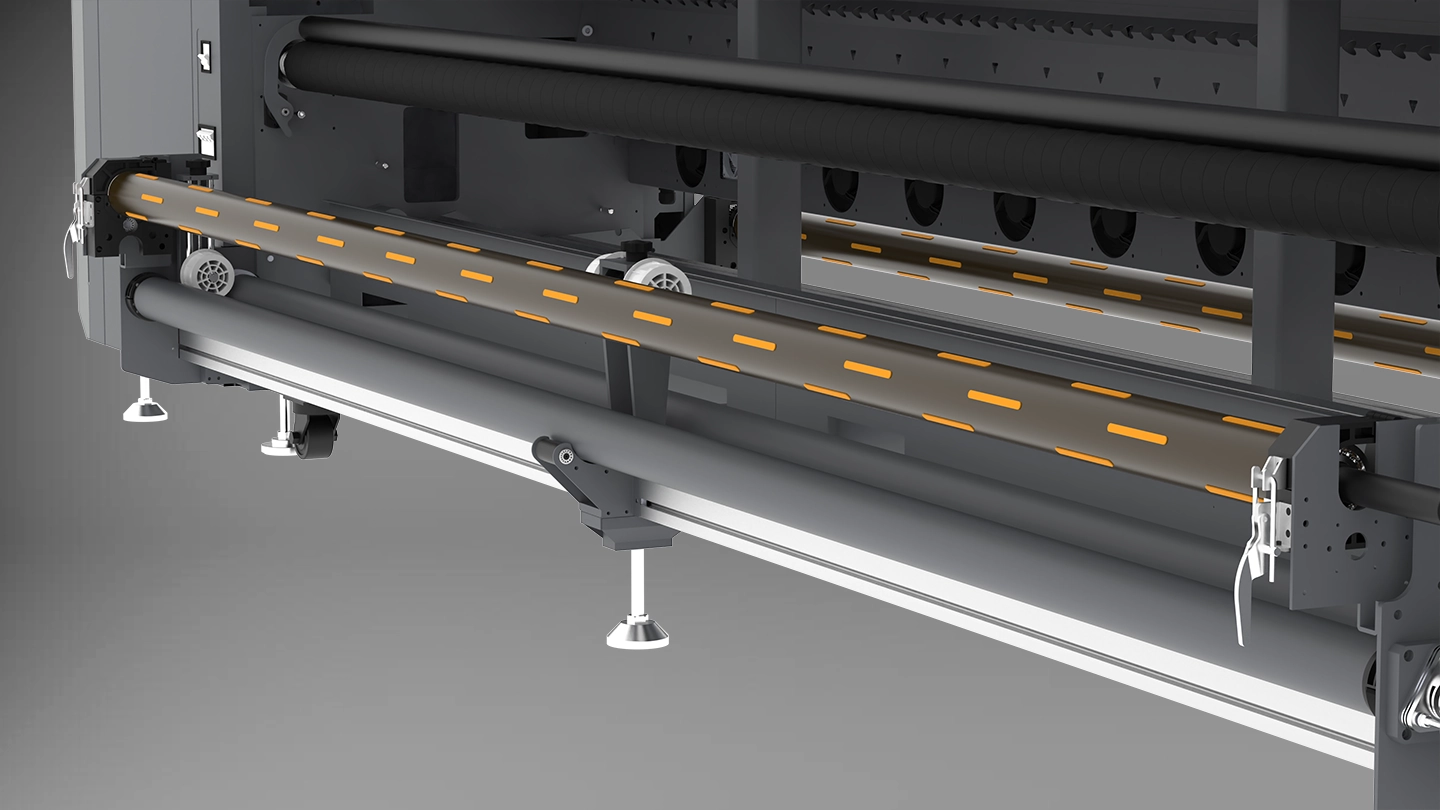

Air Shaft & Tension Bar Media Handle System

Drying System

Pre, Mid, Post and Extended Heater Plus Intelligent IR Drying System

Printing Speed

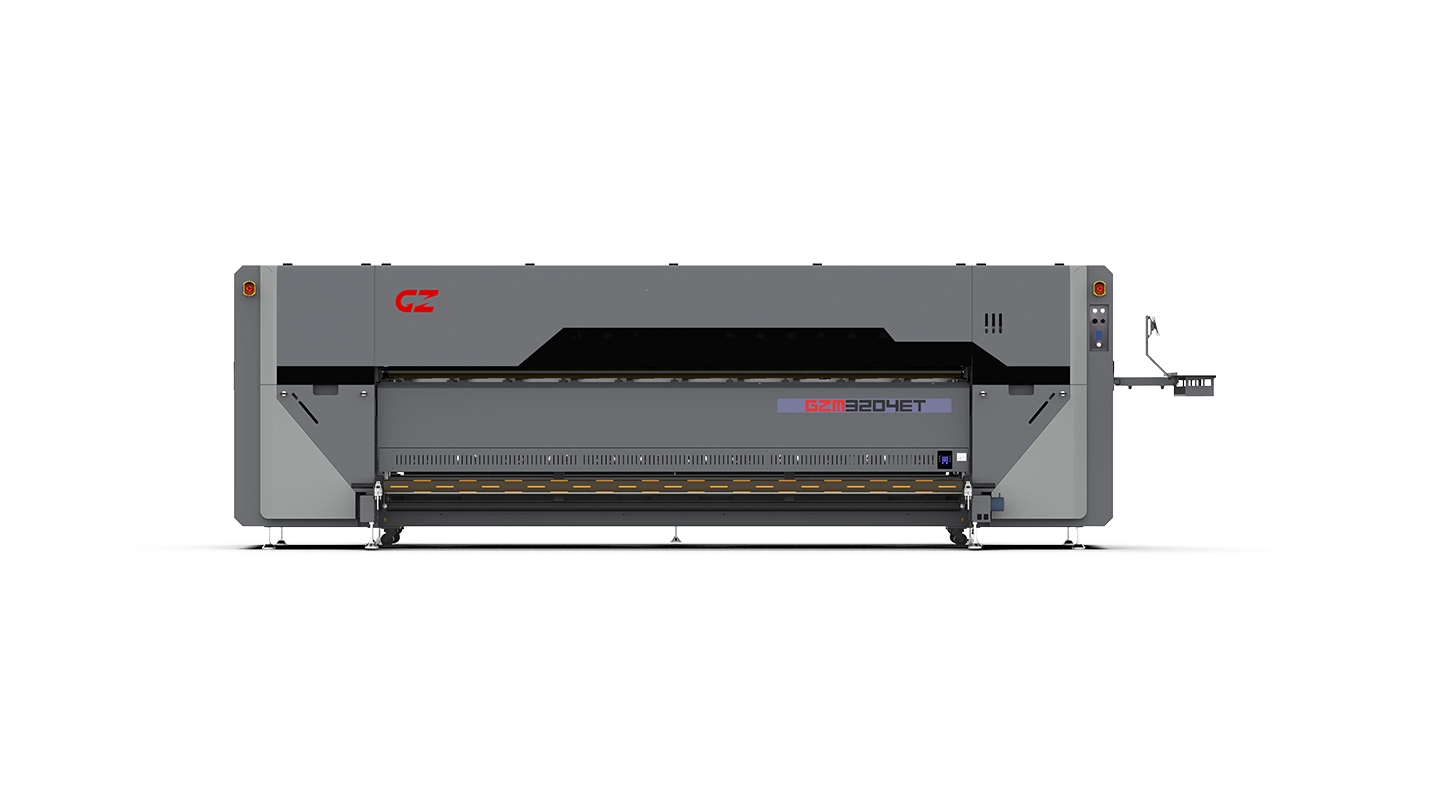

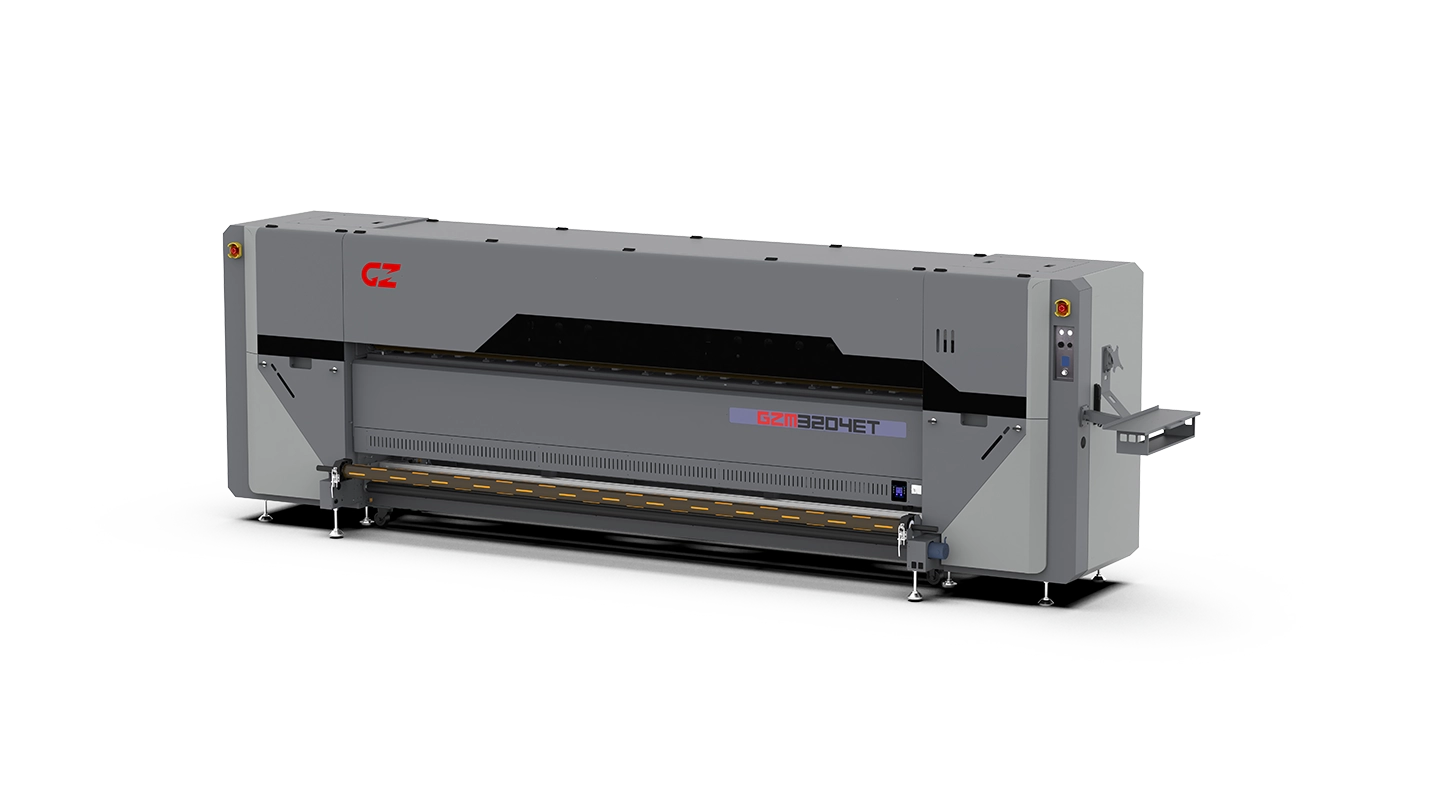

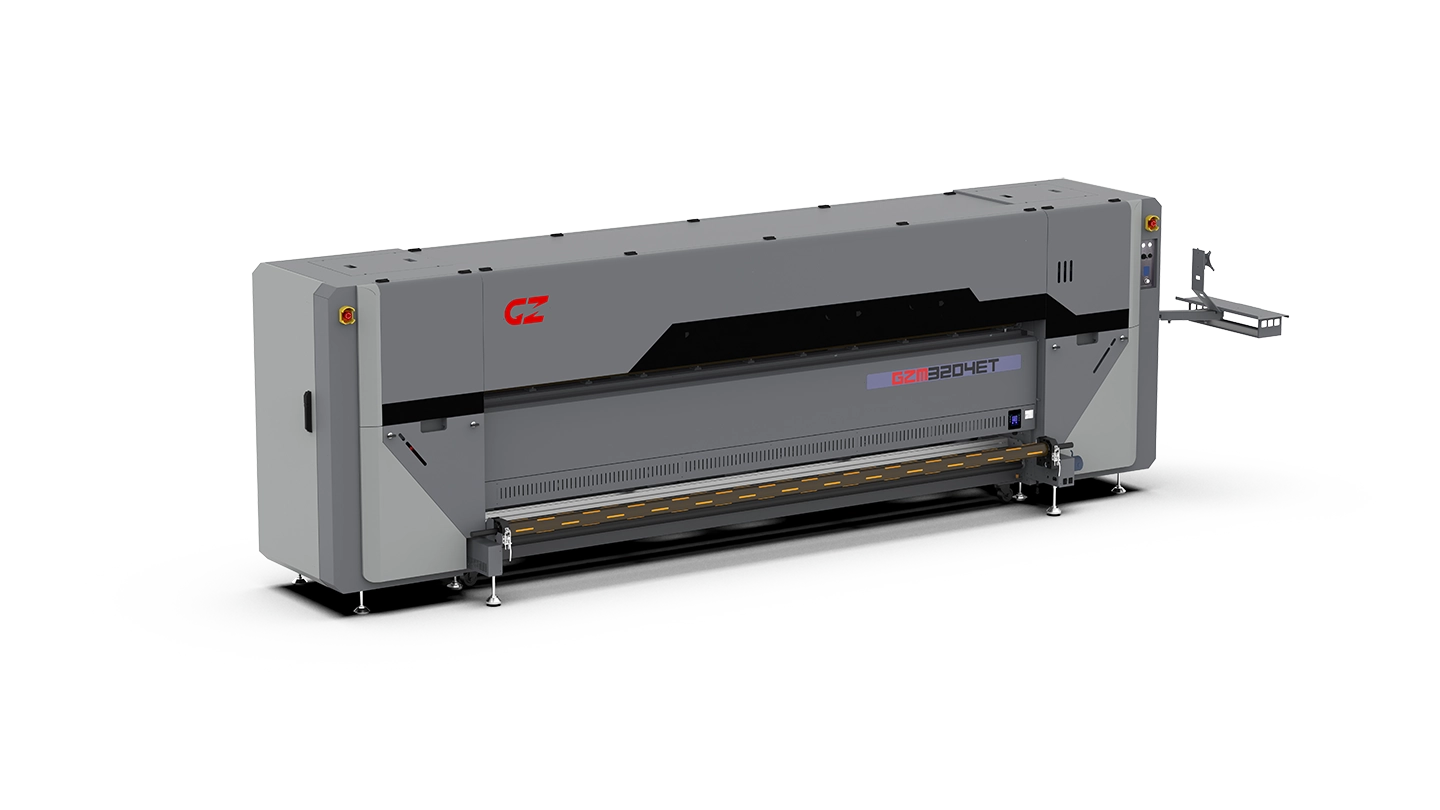

GZM3204ET                       GZM3202ET

300x1200dpi  201㎡/h       300x1200dpi 100㎡/h

300x1200dpi 168㎡/h        300x1200dpi 84㎡/h

300x1800dpi 120㎡/h        300x1800dpi 60㎡/h

300x2400dpi  96㎡/h         300x2400dpi 48㎡/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp. 23℃~29℃, Humidity: 50%~80%

Software

FlexiPrint / Onyx (Optional)...+GZ Printer Manager

Power

Single Phase, 50Hz/AC, 220V±10%, 10A(Printer)+31A(IR Dryer)

Packed / Installed Size

LxWxH(mm): 5230x1150x1860 / 4910x1330x1607

G.W. / N.W.

1865KGS / 1490KGS
