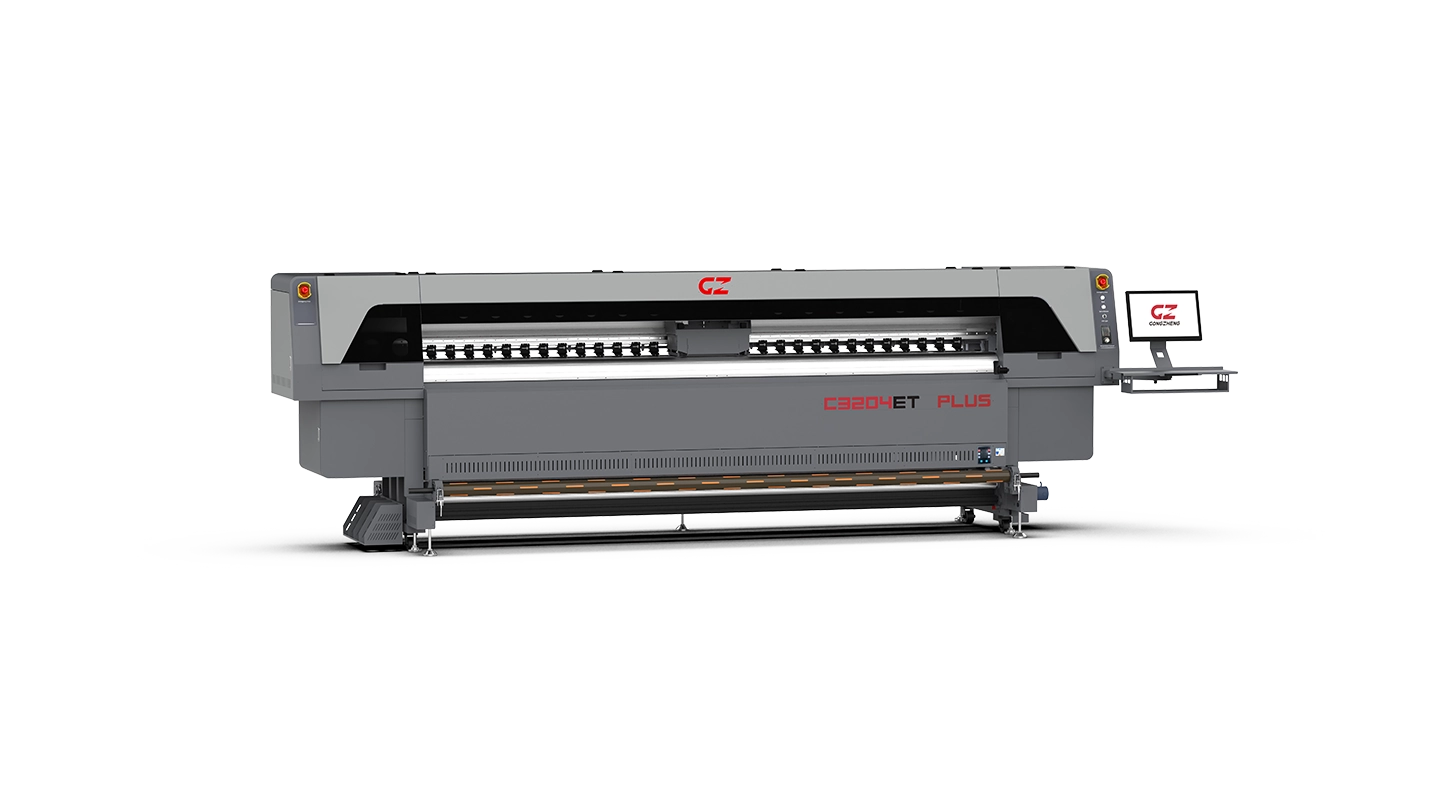

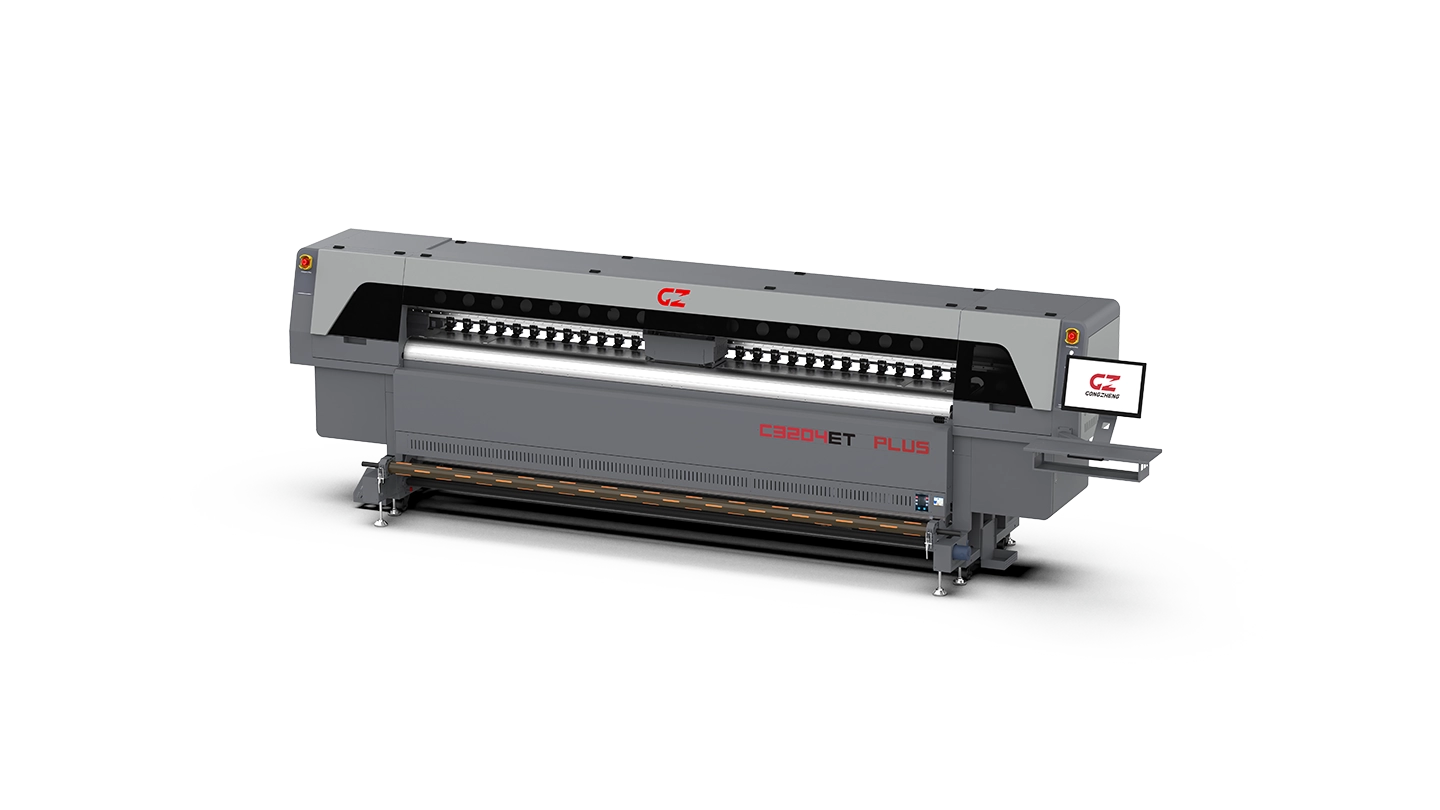

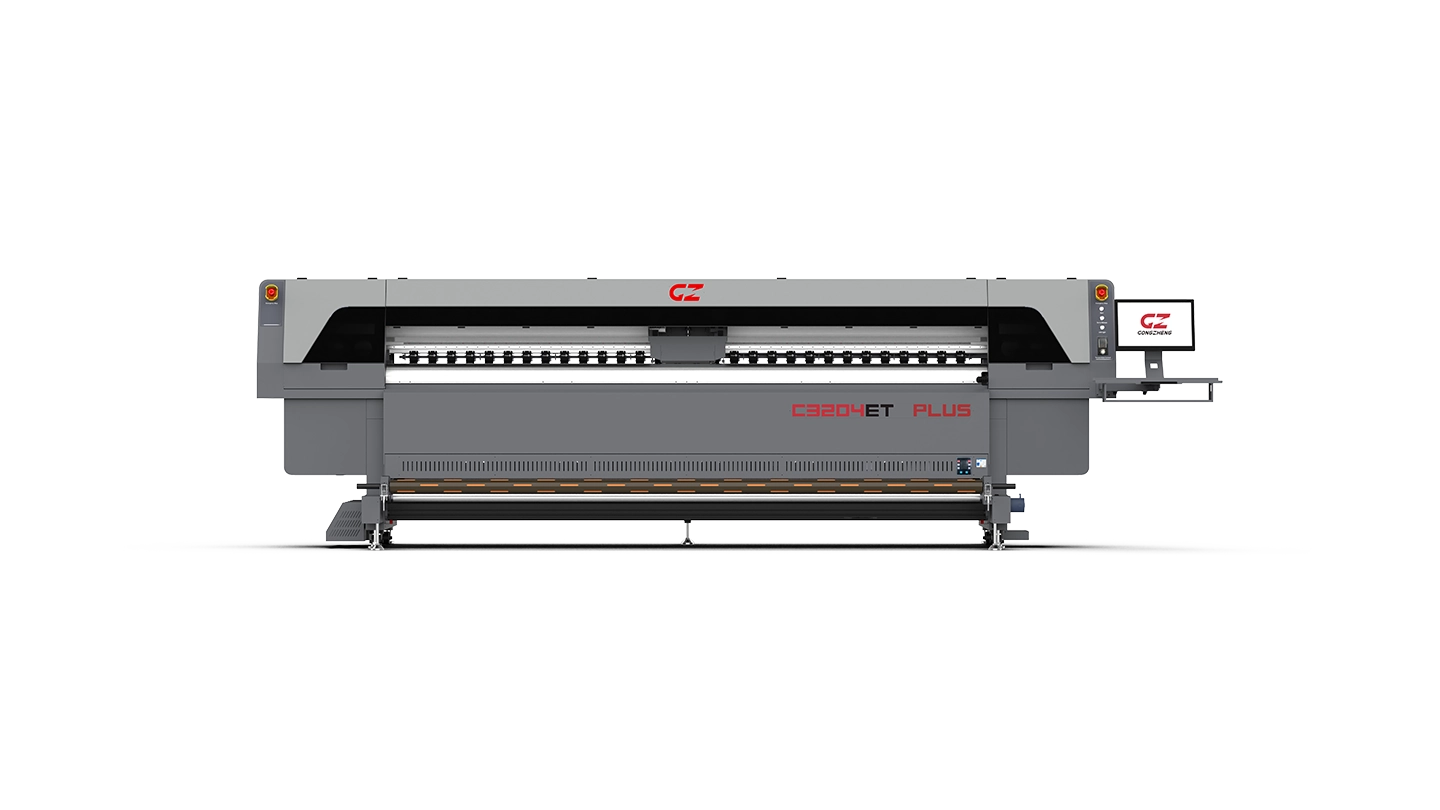

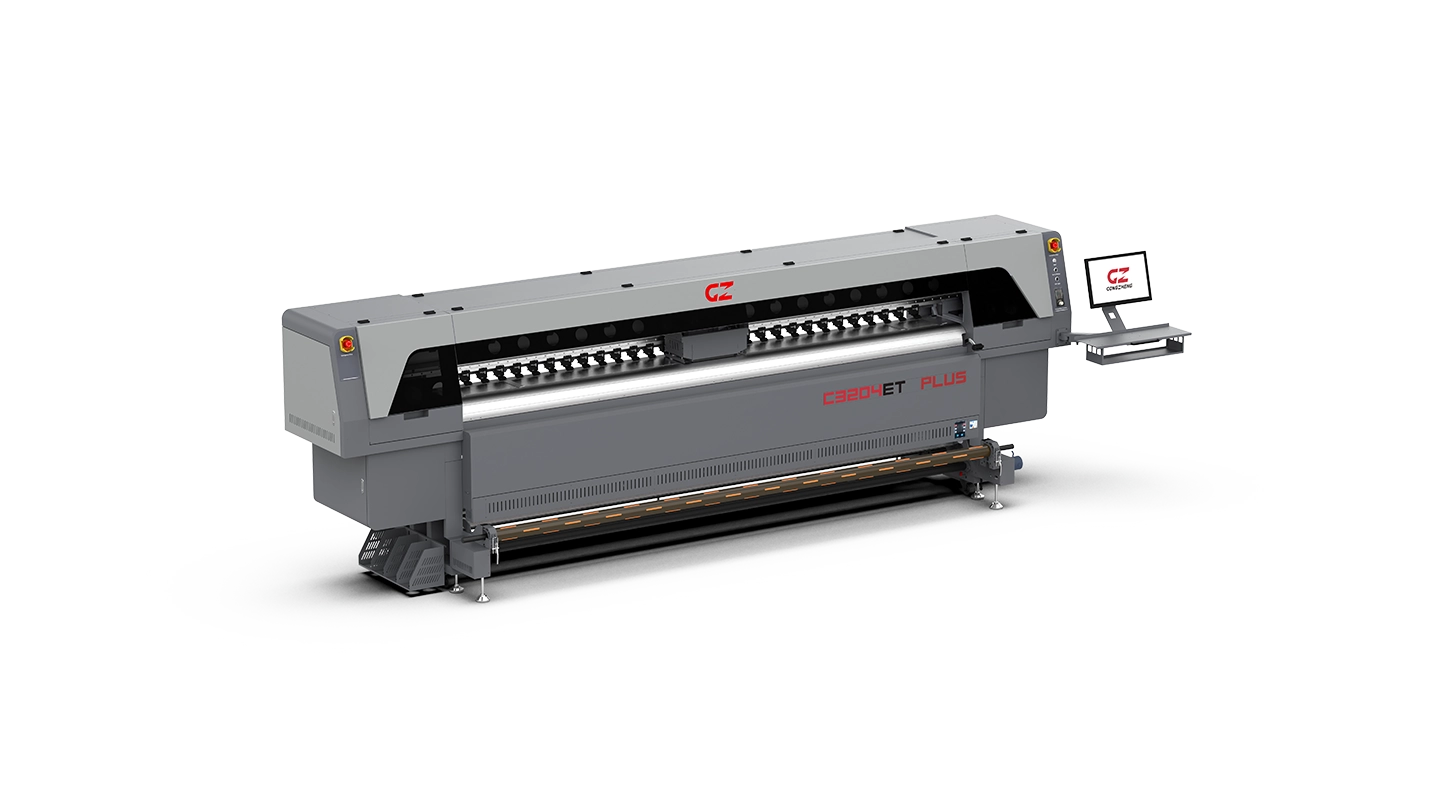

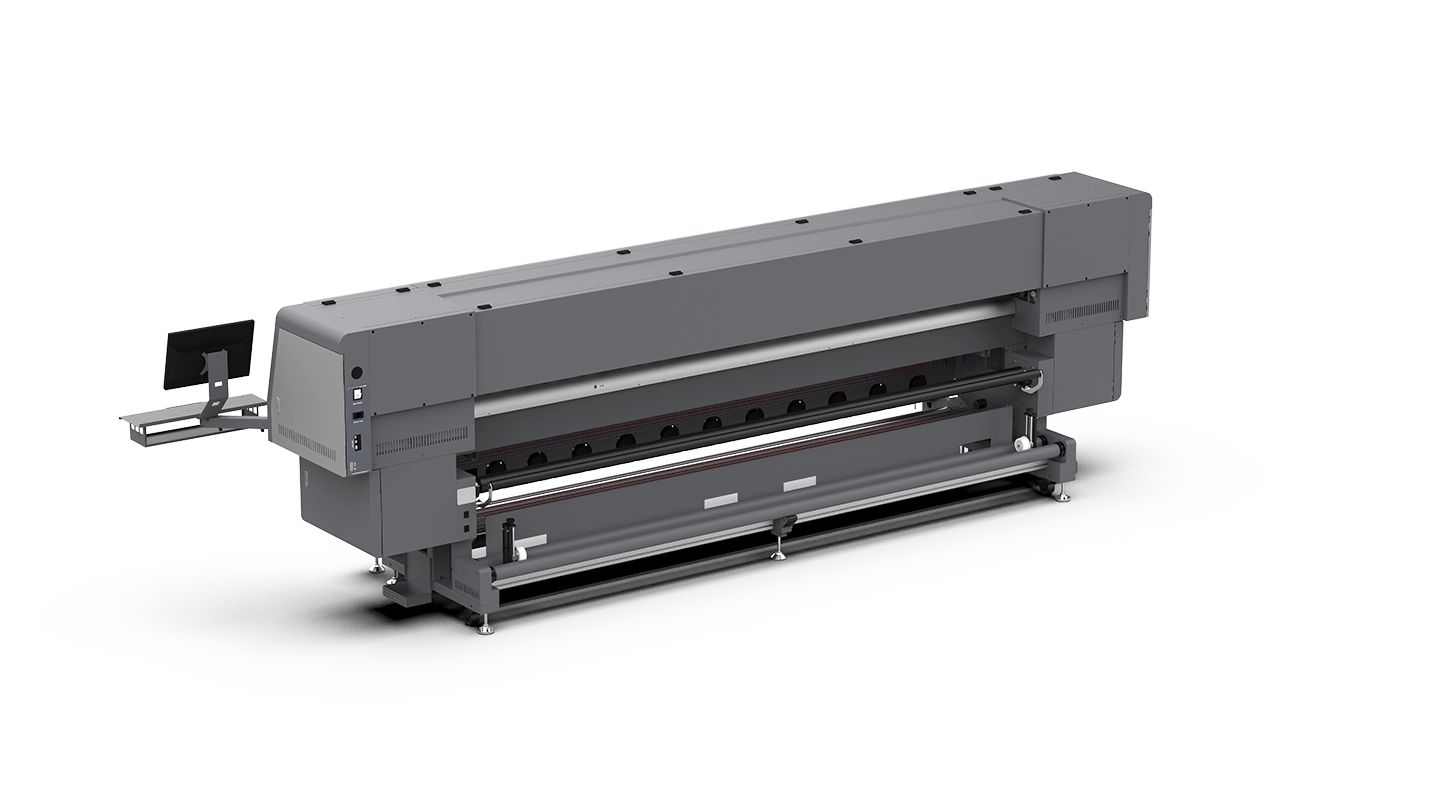

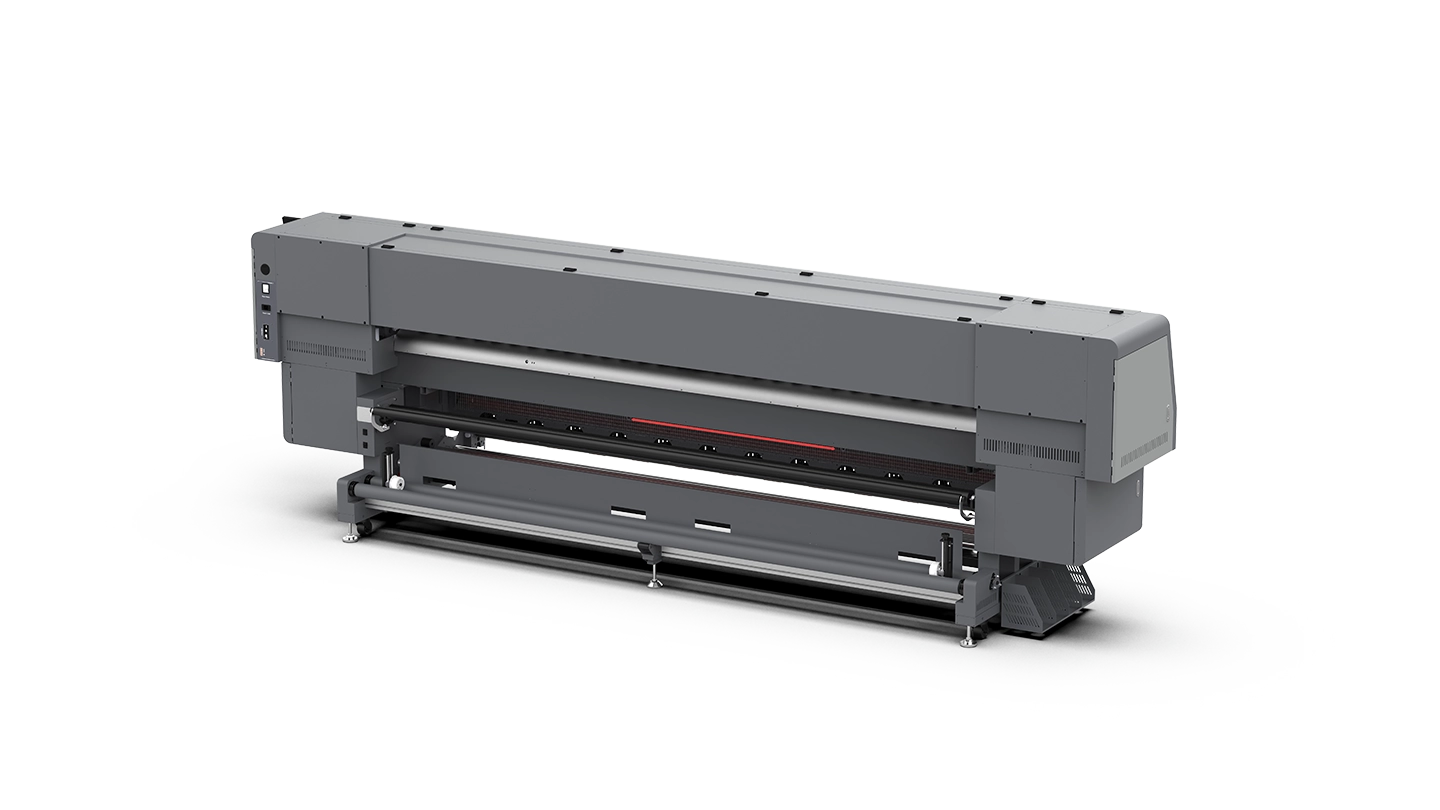

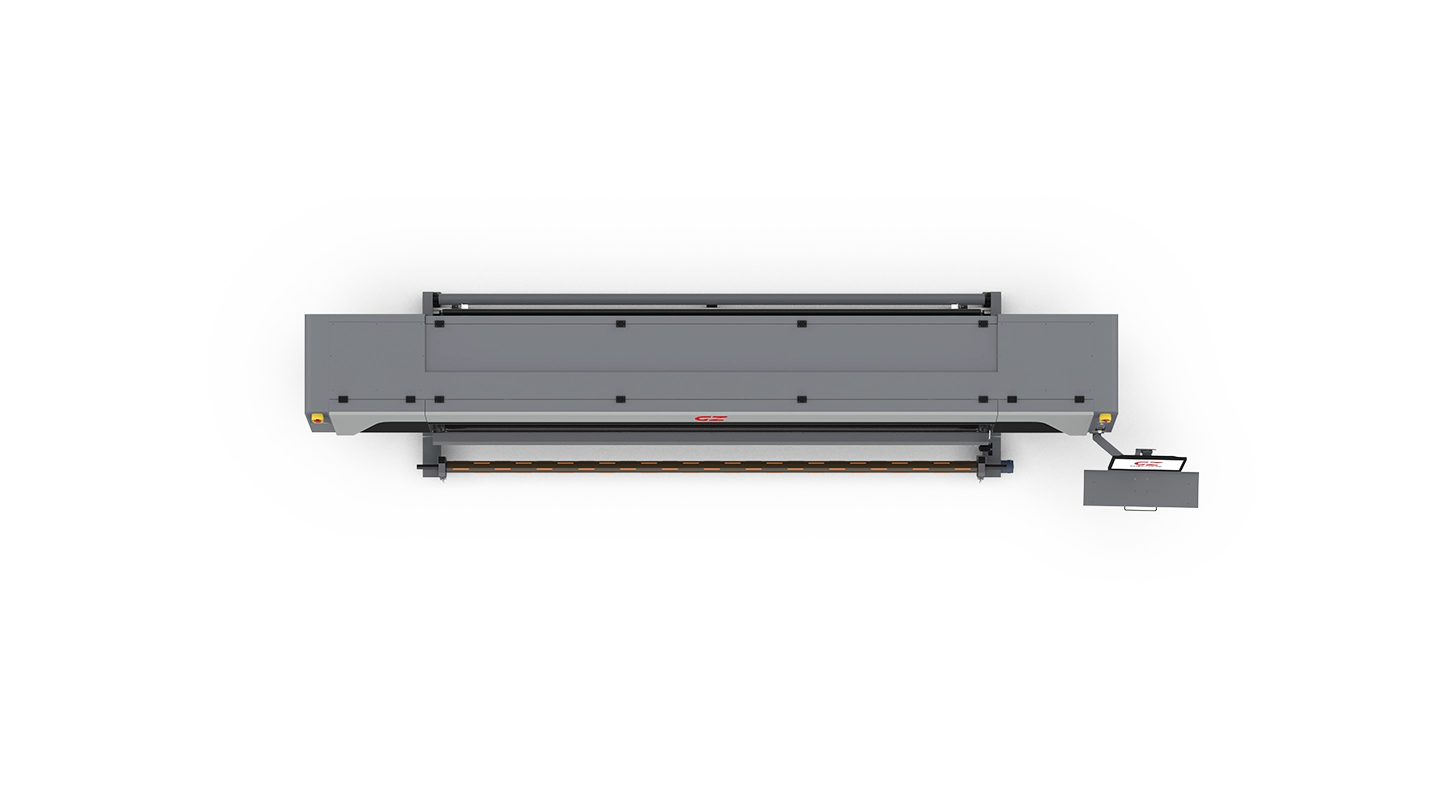

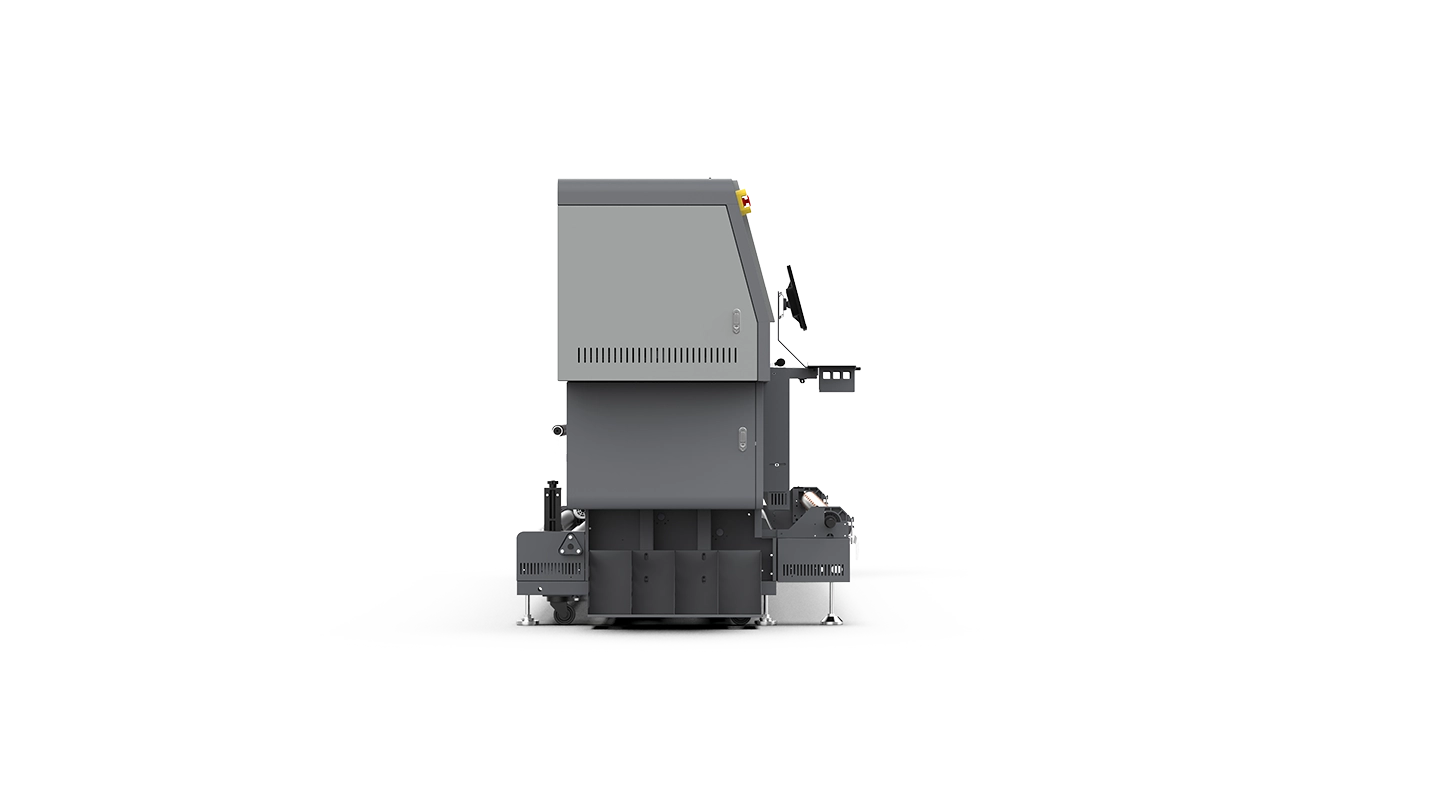

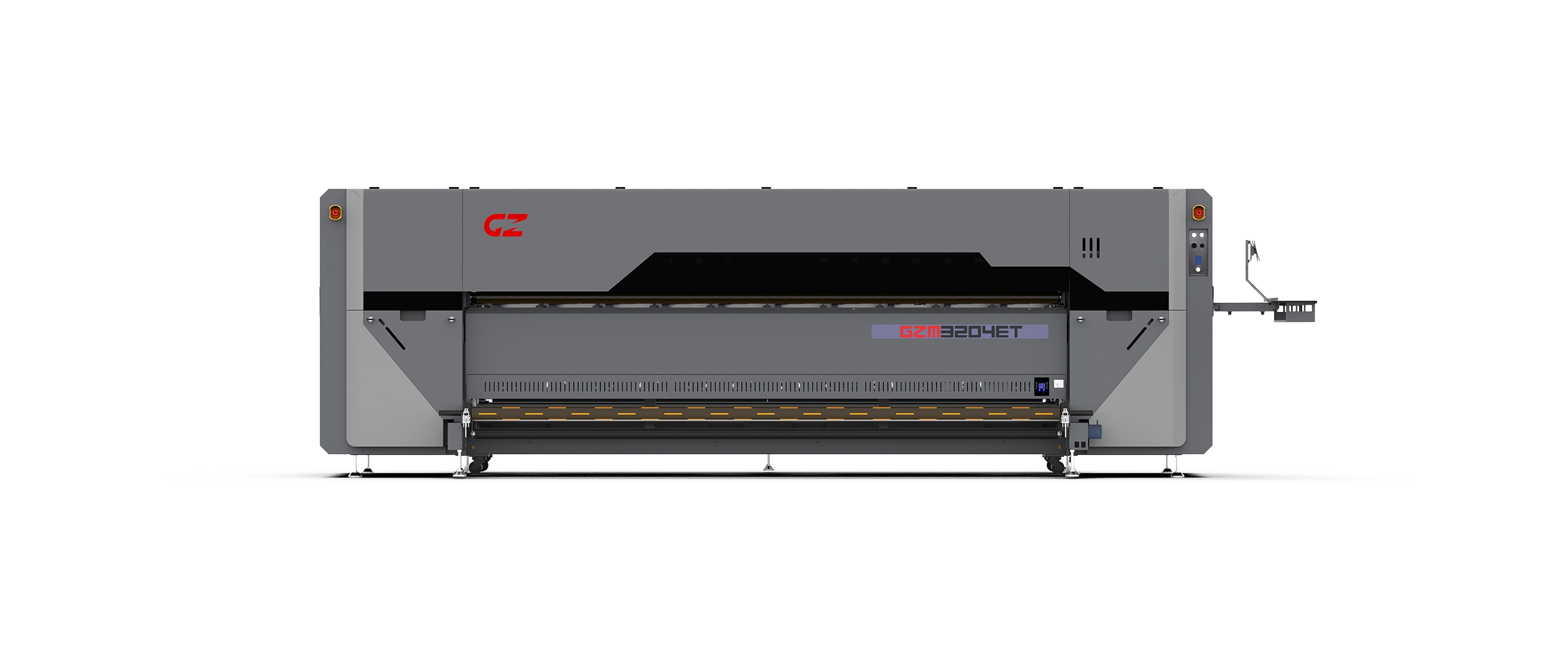

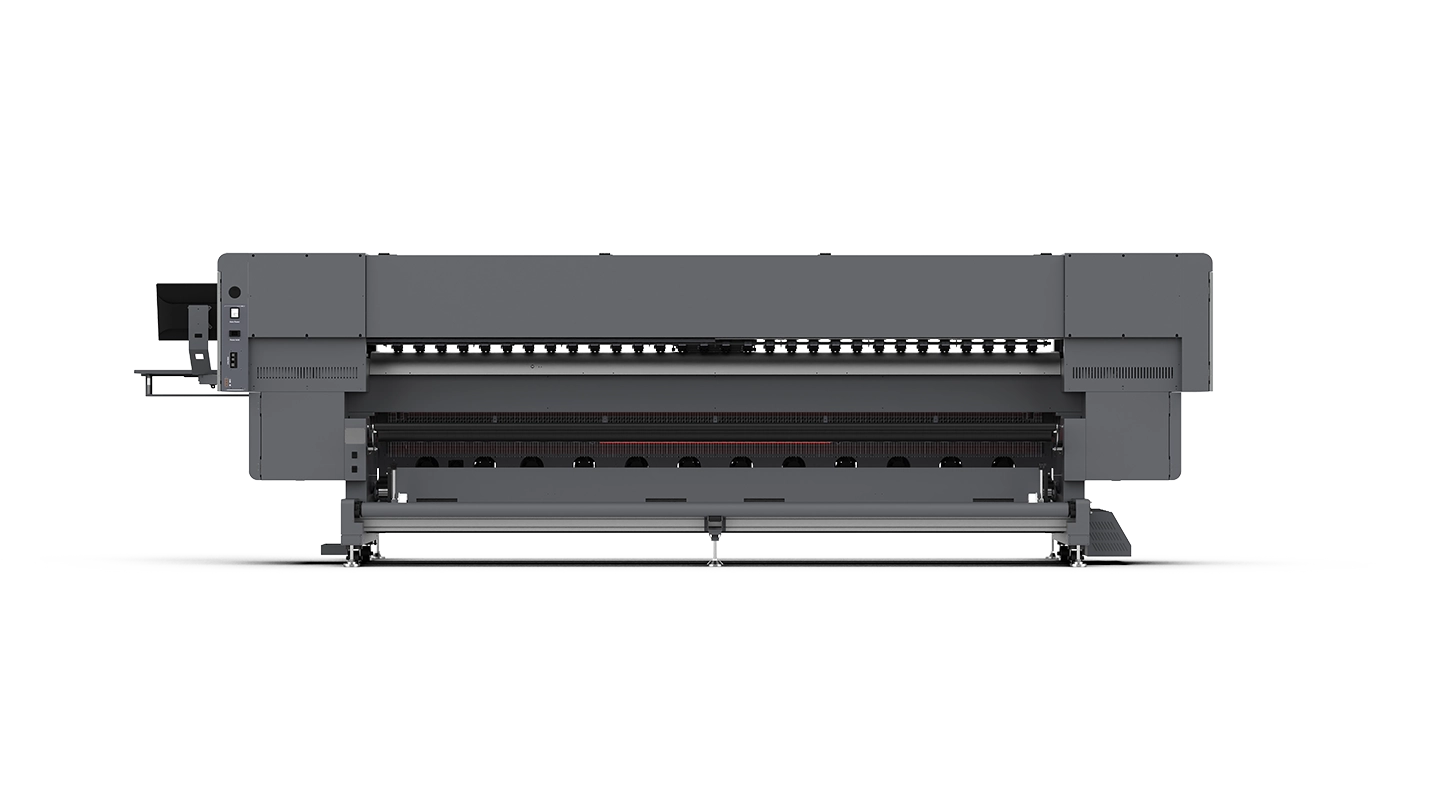

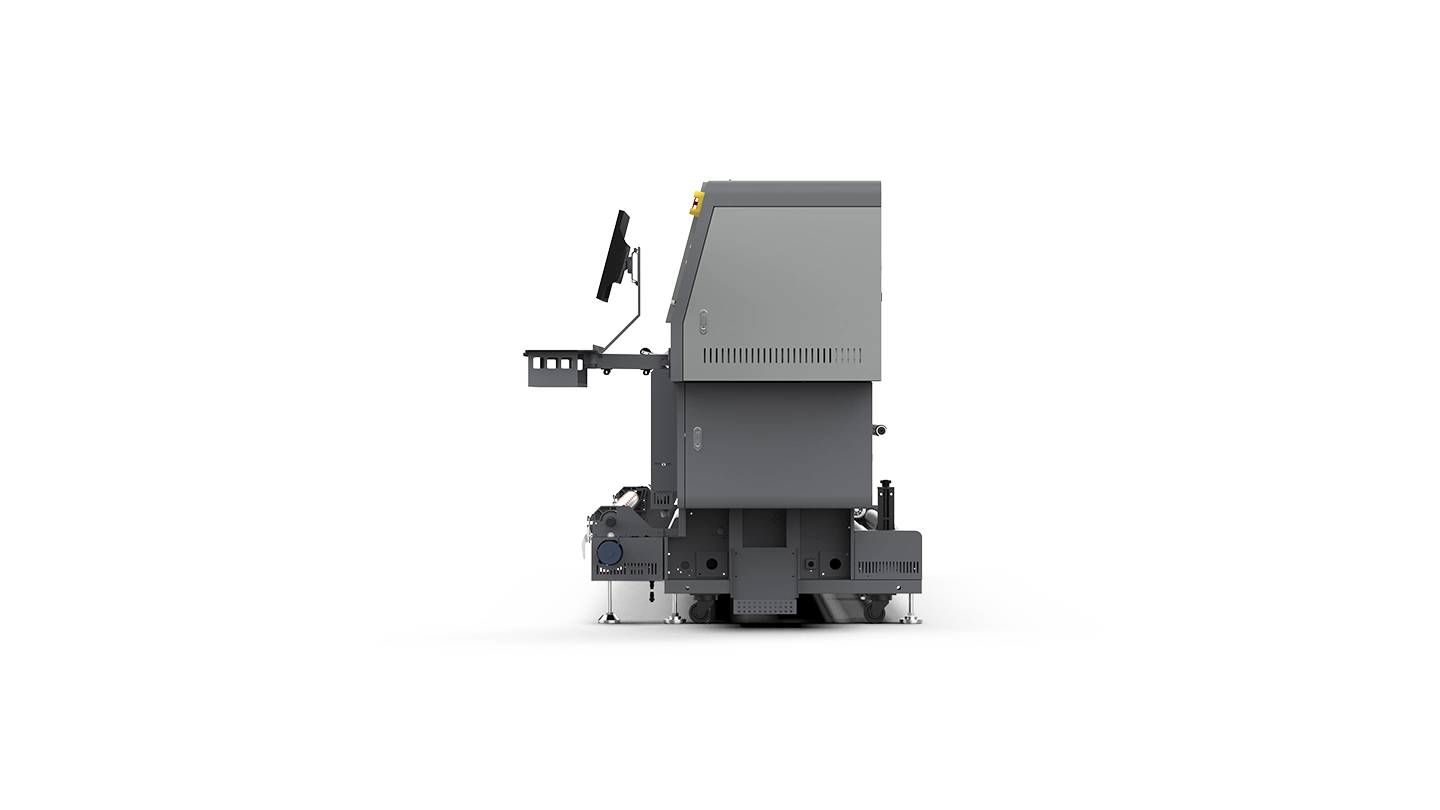

C3204ET PLUS / C3202ET PLUS

3.2m Affordable Solvent Solution

Feature Specification Details

●	Epson T3200-U3-S Print Heads
●	GnTek Negative Recirculation
●	Suction Nozzle for Head Cleaning
●	Optimized Media Handling System

Model	C3204ET PLUS & C3202ET PLUS
Print Head	4x Epson T3200-U3-S 7pl & 2x Epson T3200-U3-S 7pl
Ink	SET1 / SET2 Eco-Solvent Ink
Ink Supply System	Gntek Negative Pressure Recirculation System
Printing Width	Max. 3200mm
Media Type	Banner, Frontlit, Backlit, Vinyl, Film...
Feeding System	Automatic Media Feeding and Taking up System with Air Shaft
Drying System	Pre, Mid, Post and Extended Heater Plus Intelligent IR Drying System
Printing Speed	C3204ET PLUS C3202ET PLUS 300x1200dpi 234㎡/h 300x1200dpi 129㎡/h 300x1200dpi 209㎡/h 300x1200dpi 115㎡/h 300x1800dpi 163㎡/h 300x1800dpi 86㎡/h 300x2400dpi 146㎡/h 300x2400dpi 76㎡/h
Data Interface	External: USB3.0; Internal: Fiber Optical
Working Environment	Temp. 23°C~29℃; Humidity: 50%~80%
Software	FlexiPRINT / Onyx (Optional)...+GZ Printer Manager
Power	Single Phase, 50Hz/AC, 220V±10%, 13A (Printer)+34A (IR Dryer)
Packed / Installed Size	LxWxH(mm): 5800x1150x1125 / 4847x1132x1532
G.W. / N.W.	1248KGS / 965KGS

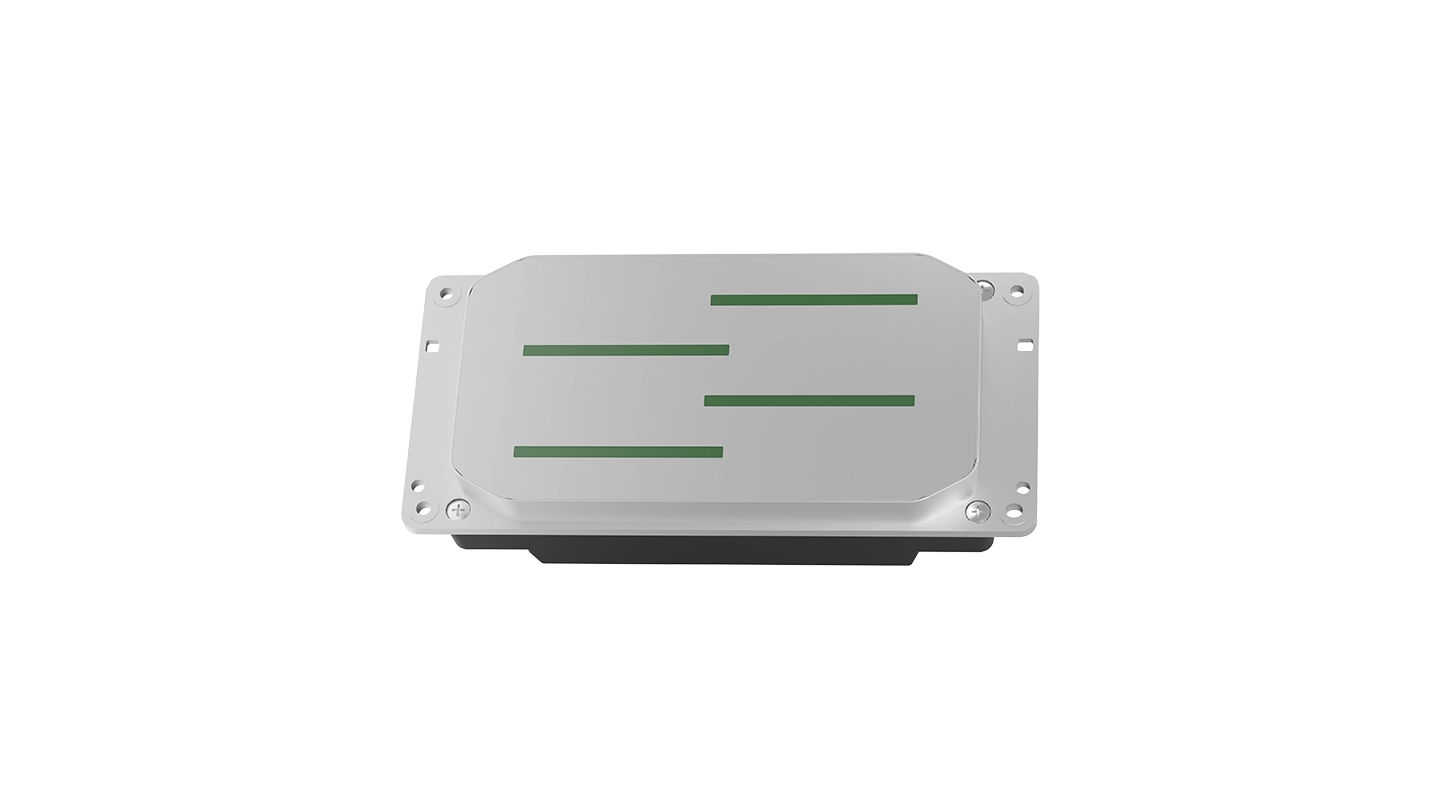

Epson T3200 U3-S Print Heads

Equipped with Epson innovative T3200 U3-S head, with 3200 nozzles, built-in heater for unparalleled color performance and smooth ink flow.

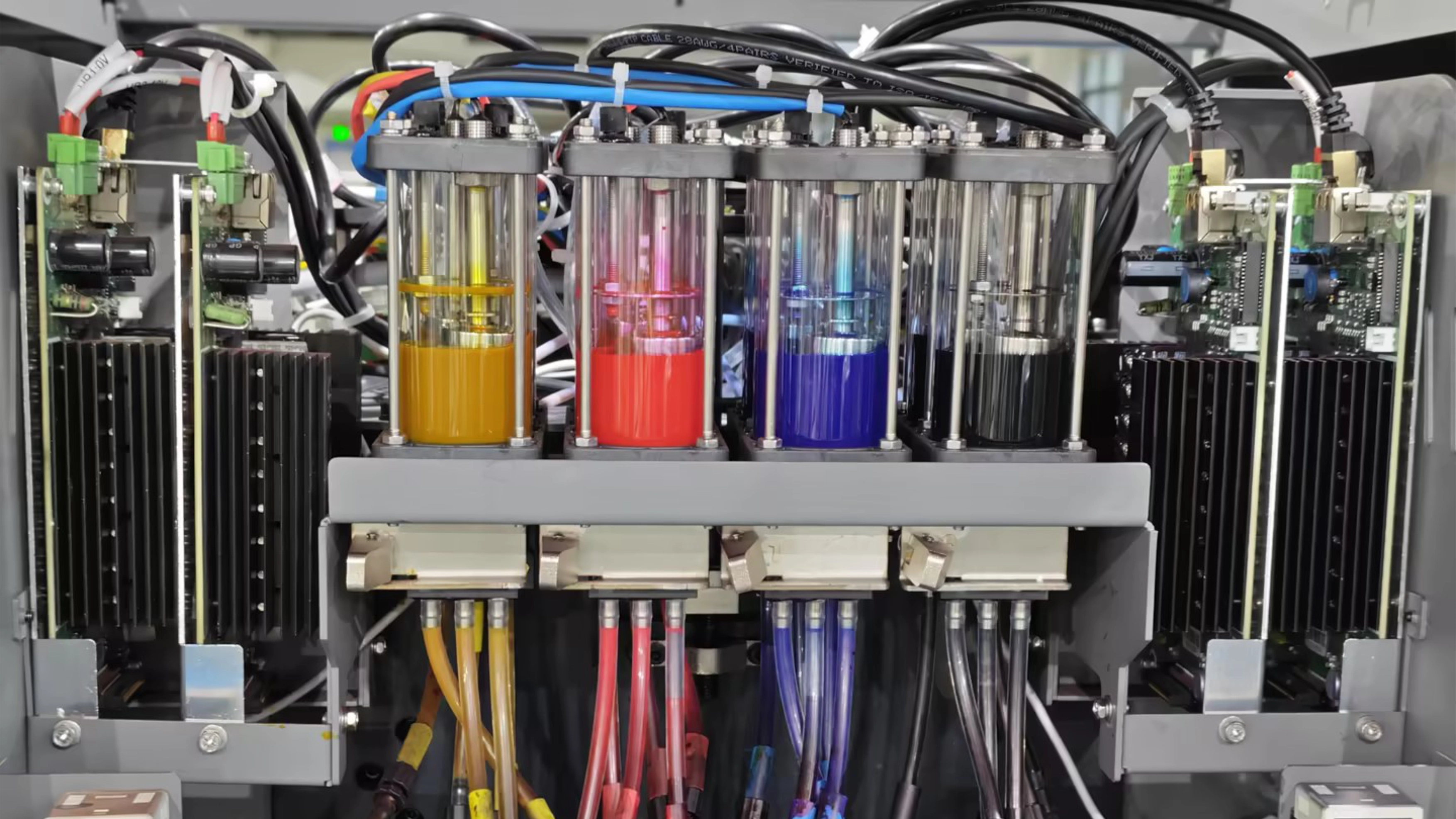

GnTek Negative Recirculation

GZ dual negative pressure recirculation system with pressure balancing unit and pressure protection unit assures steady ink delivery and minimum maintenance.

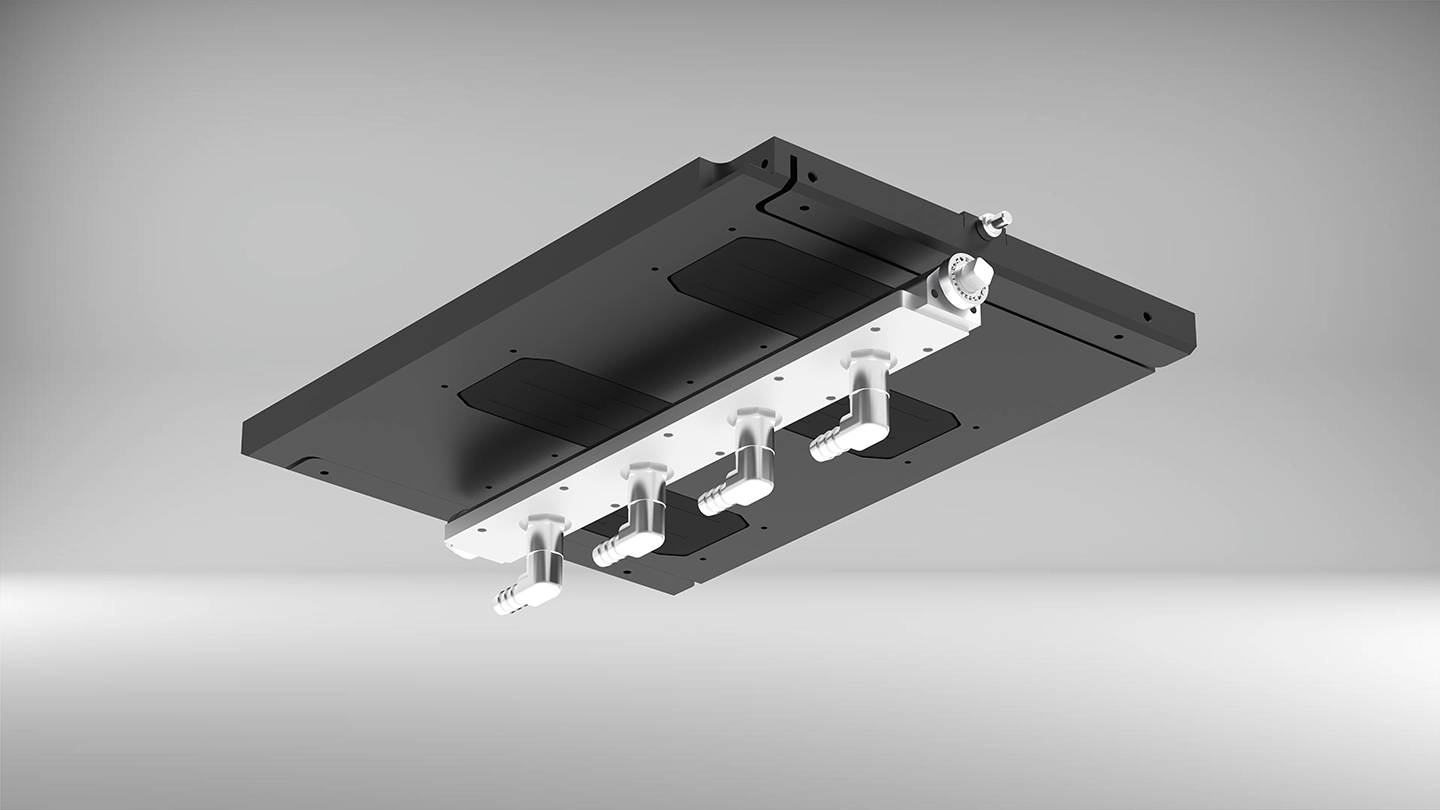

Suction Nozzle for Head Cleaning

Featuring a narrow slit, suction nozzle with a vacuum fan moves back and forth beneath the print heads to effectively remove all residual ink.

Optimized Media Handling System

The feeding system with strong media holders is suitable for both light and heavy media.Taking up system with air shaft & tension bar enables precise and steady rewinding.

< >
