Print Head

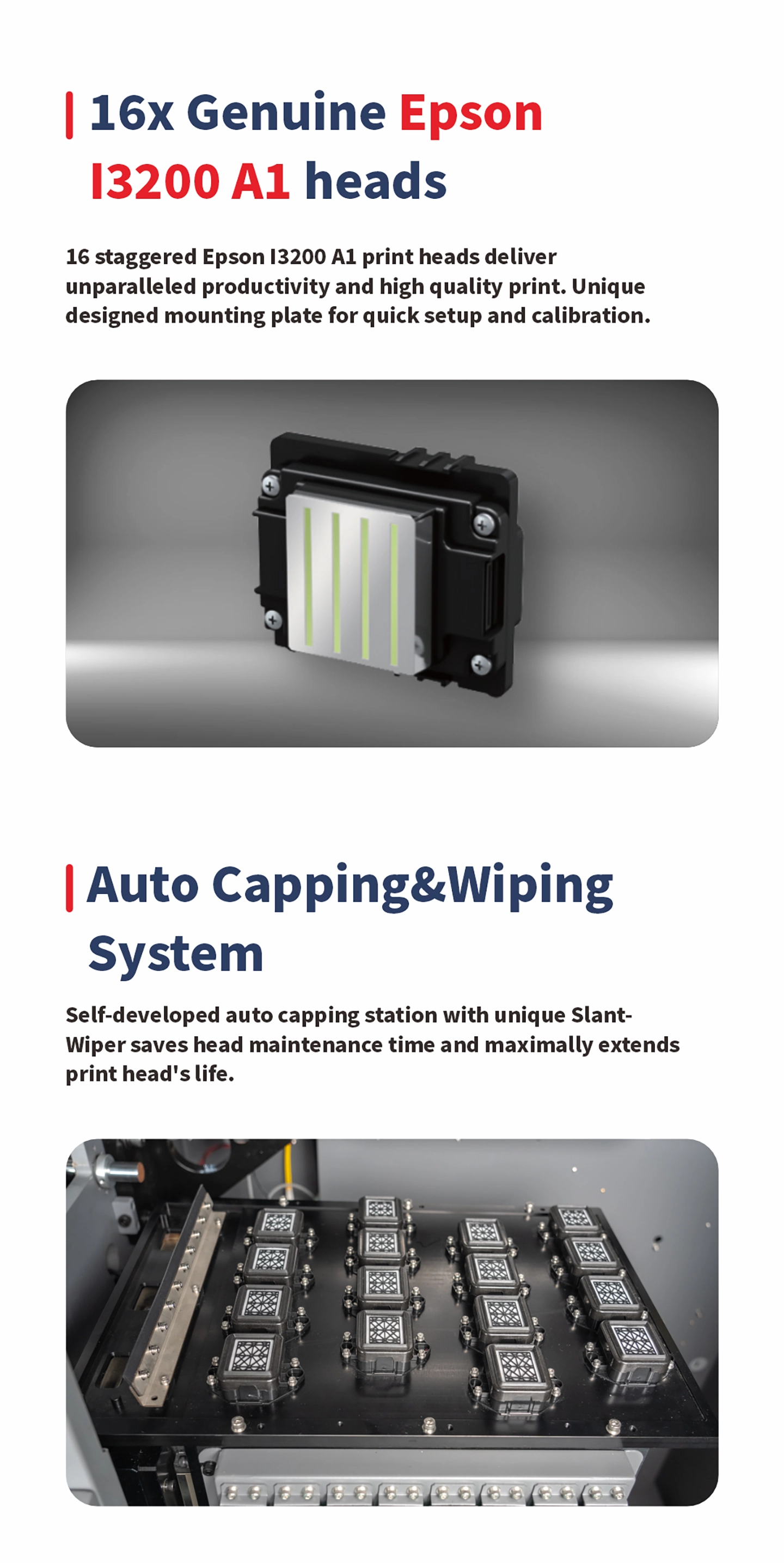

16 x Epson I3200-A1 Print Heads

Ink

GS High Density Sublimation Transfer ink Certified by OEKO TEX with "ECO PASSPORT"

Color Config.

K.C.Y.M

Ink Supply System

15-Liter Large Capacity Ink Tanks

Printing Width

Up to 1950mm

Media Type

Transfer Paper (31 to 100gsm)

Feeder

Feeding: 13000m or 3000m; Taking up: 3000m or 1500m

Roll Diameter

Feeding: up to 1000mm; Taking-up: up to 400mm

Drying System

3x IR Dryers

Printing Speed

Mode                 Resolution           Output

Draft                  720x600dpi          663㎡/h

Production        720x600 dpi          520㎡/h

High-res            720x1200 dpi       359㎡/h

High-res            720x1200 dpi       265㎡/h

Data Interface

External: USB:3.2; Internal: Fiber Optical

Working Environment

Temp. 18℃~30℃, Humidity: 35%~65%

Software

Ergosoft / NeoStampa Delta+GZ Printer Manager

Power

Single Phase, 50Hz/ AC220V±10%, 25A (Printer)+48A (IR Dryer)

Packed Size(LxWxH)

4330x1150x2063 (Printer); 2780x1400x1343 (Myriameter Feeder); 2800x900x1300 (Kilometer Feeder)

Installed Size(LxWxH)

4786x1076x1722 (Printer); 2520x1510x1050 (Myriameter Feeder); 2442x960x940 (Kilometer Feeder)

N.W. / G.W.

1282KGS / 1748KGS (Printer); 630KGS / 794KGS (Myriameter Feeder); 374KGS / 540KGS (Kilometer Feeder)
