Textile Solutions

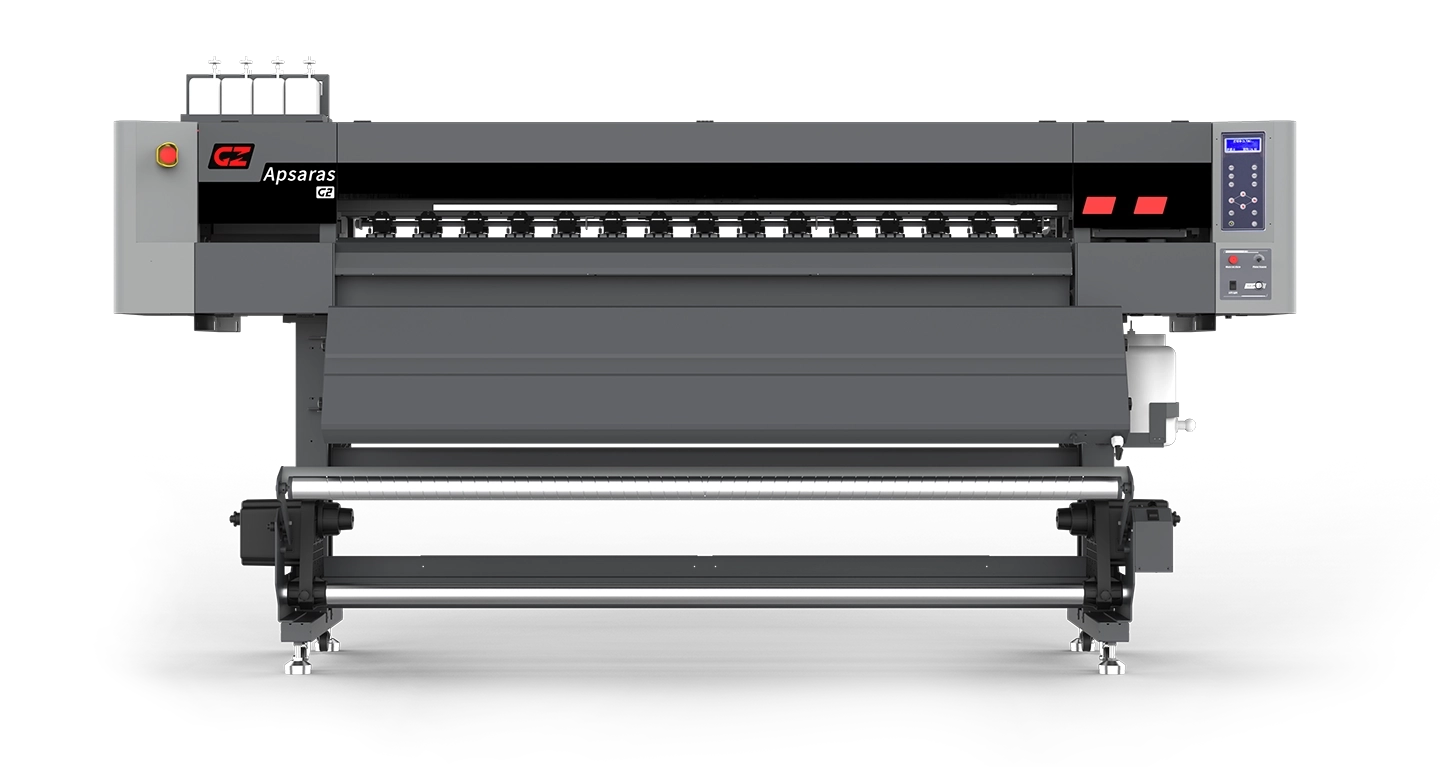

Apsaras G4

4 Heads Sublimation Printer, up to 185 sqm/h


4 x Genuine Epson I3200-A1 Heads


Auto Capping & Wipping System


High Precision Media System


GZ Variable Dot Technology

Grooving Anti-Wrinkle Platen

Big Volume Ink Supply System

Model

Apsaras G4

Print Head

4 x Epson I3200-A1 Print Heads

Ink

GS High Density Sublimation Transfer ink Certified by OEKO TEX with "ECO PASSPORT"

Color Config.

K.C.YM; Optional 8 colors: KCYM+S1.S2.S3.S4

Ink Supply System

Bulk Ink Supply System With Ink Cartridge

Printing Width

Up to 1950mm

Media Type

Transfer Paper (35 to 100gsm)

Feeder

Feeding: 1000m; Taking up: 500m

Roll Diameter

Up to 300 mm

Drying System

Intelligent Sectionable Control IR Dryer

Printing Speed

Draft                             360×1200 dpi                 185㎡/h

Production                   360×1200 dpi                  165㎡/h

High-res                       720×1200 dpi                  102㎡/h

Photo                           720×1200 dpi                   88㎡/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp.18℃~30℃, Humidity: 35%~65%

Software

NeoStampa Delta + GZ Printer Manager

Power

Single Phase, 50Hz/AC, 220V±10%, 5.5A (Printer)+28A (IR Dryer)

Packed / Installed Size

LxWxH(mm): 3720x1110x1840 / 3500x1100x1715

G.W. / N.W.

750KGS / 525KGS

ApsarasG4 01.png


< >
