●	Design for flexible material
●	Multi-Layer Printing Application
●	White Ink Recirculation System
●	Print Head Heating System

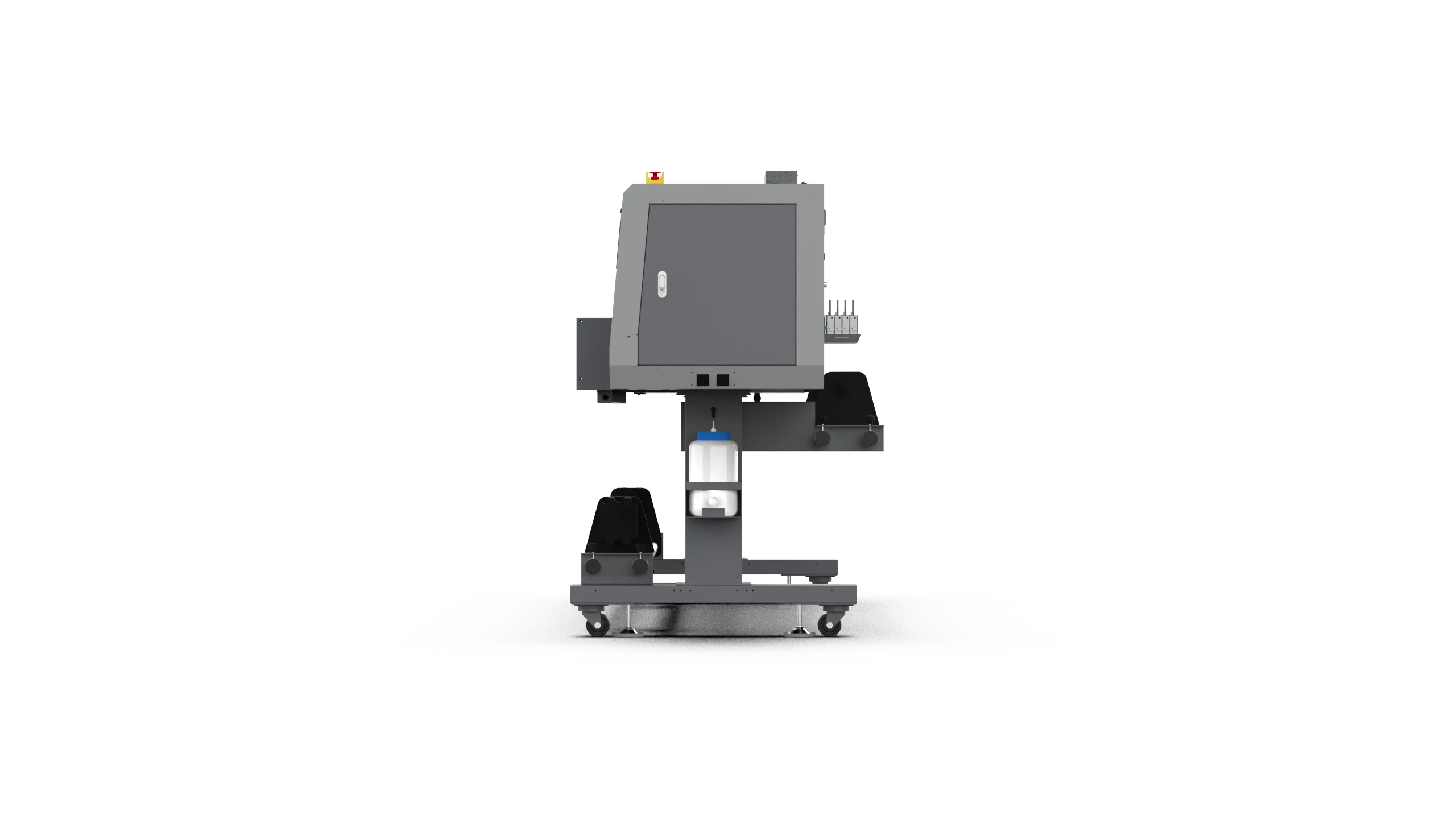

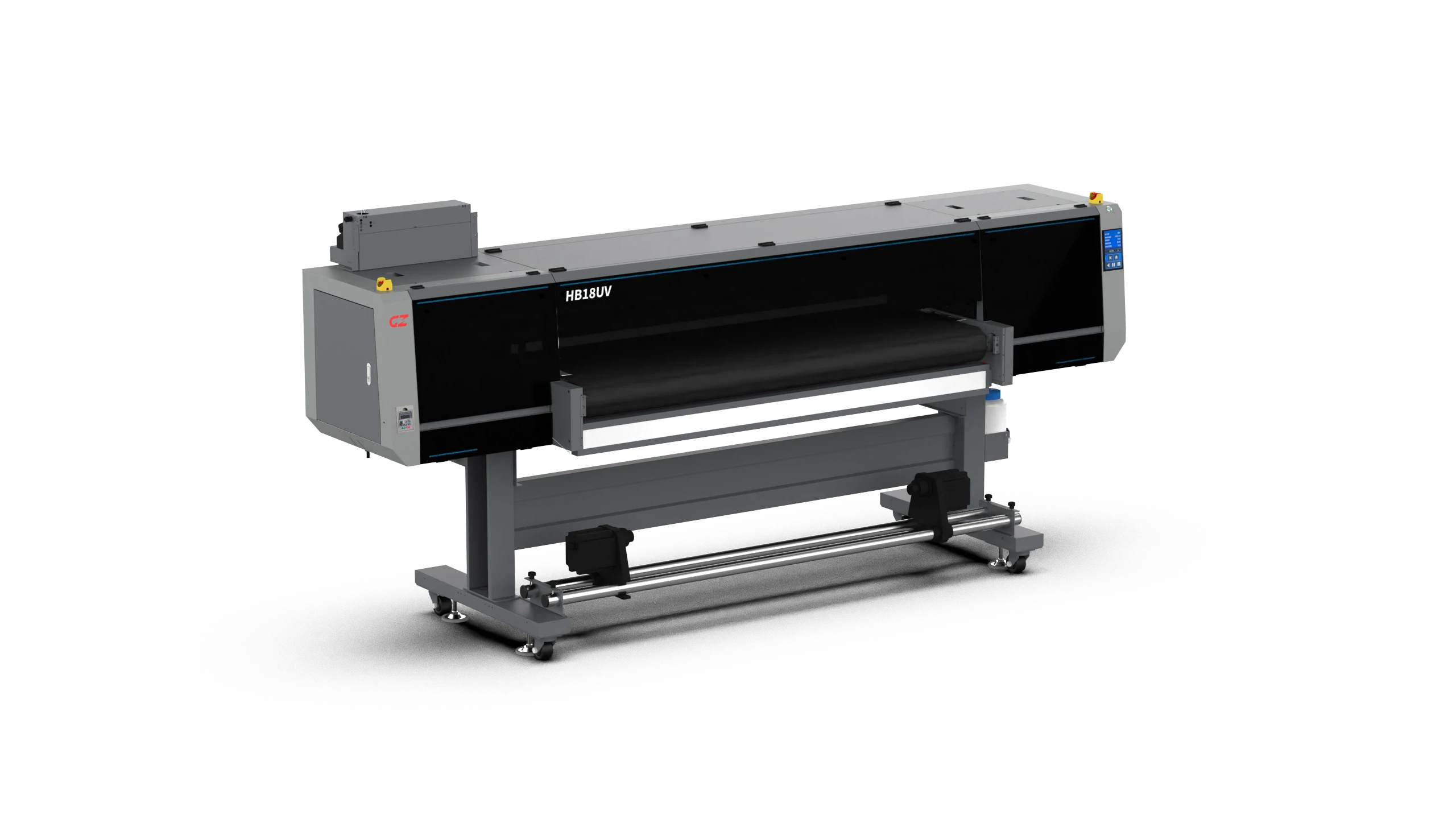

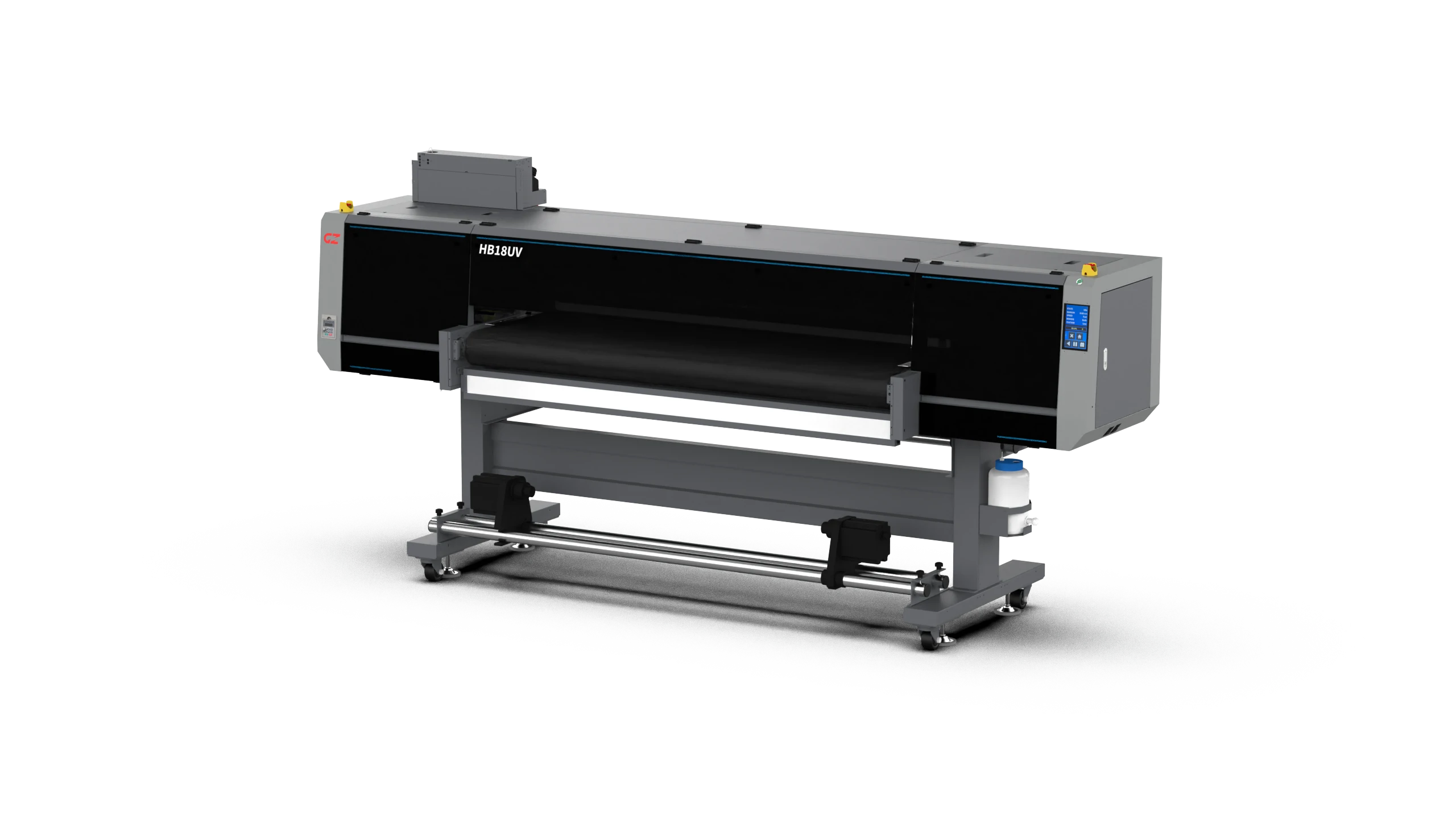

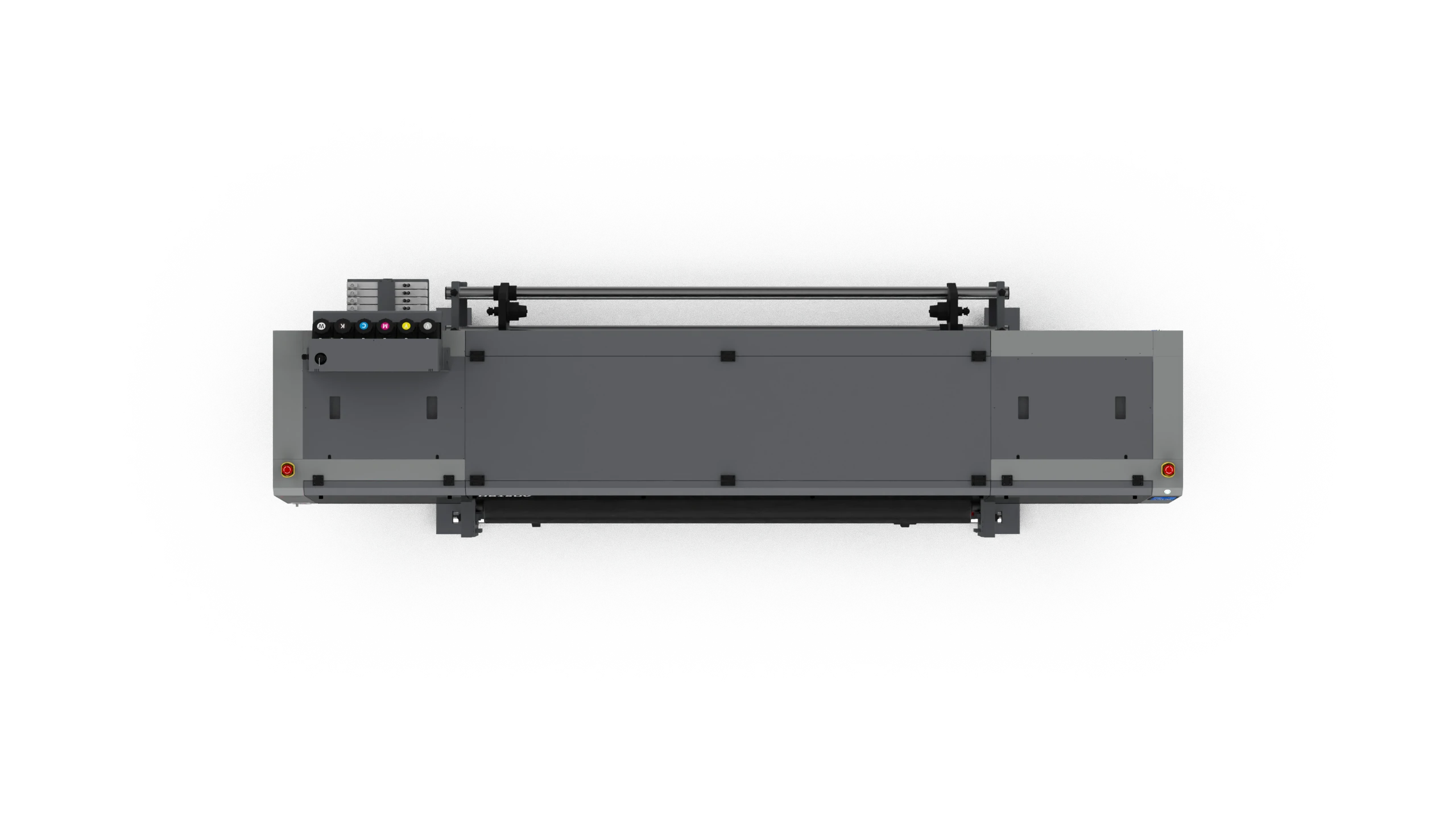

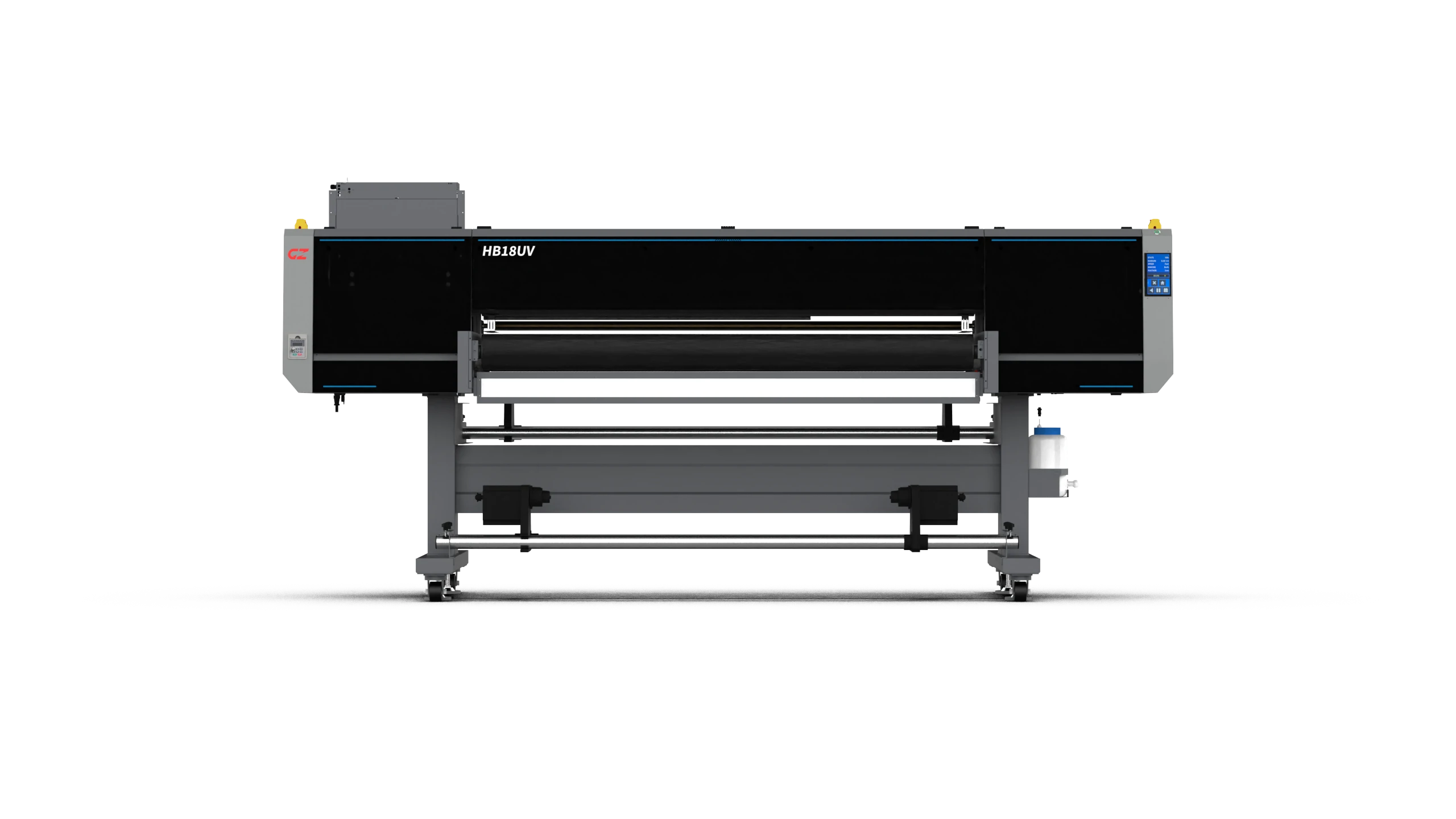

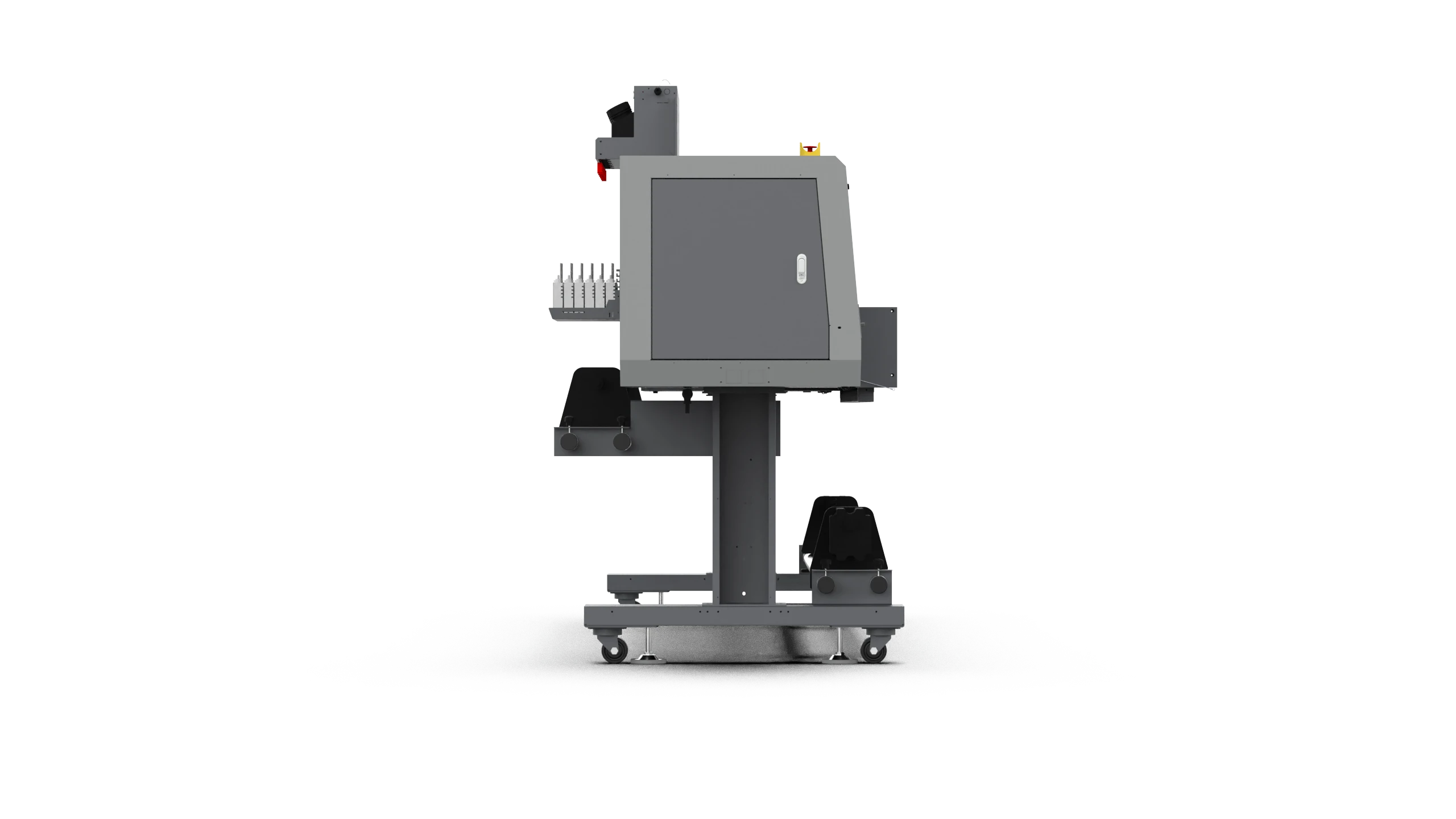

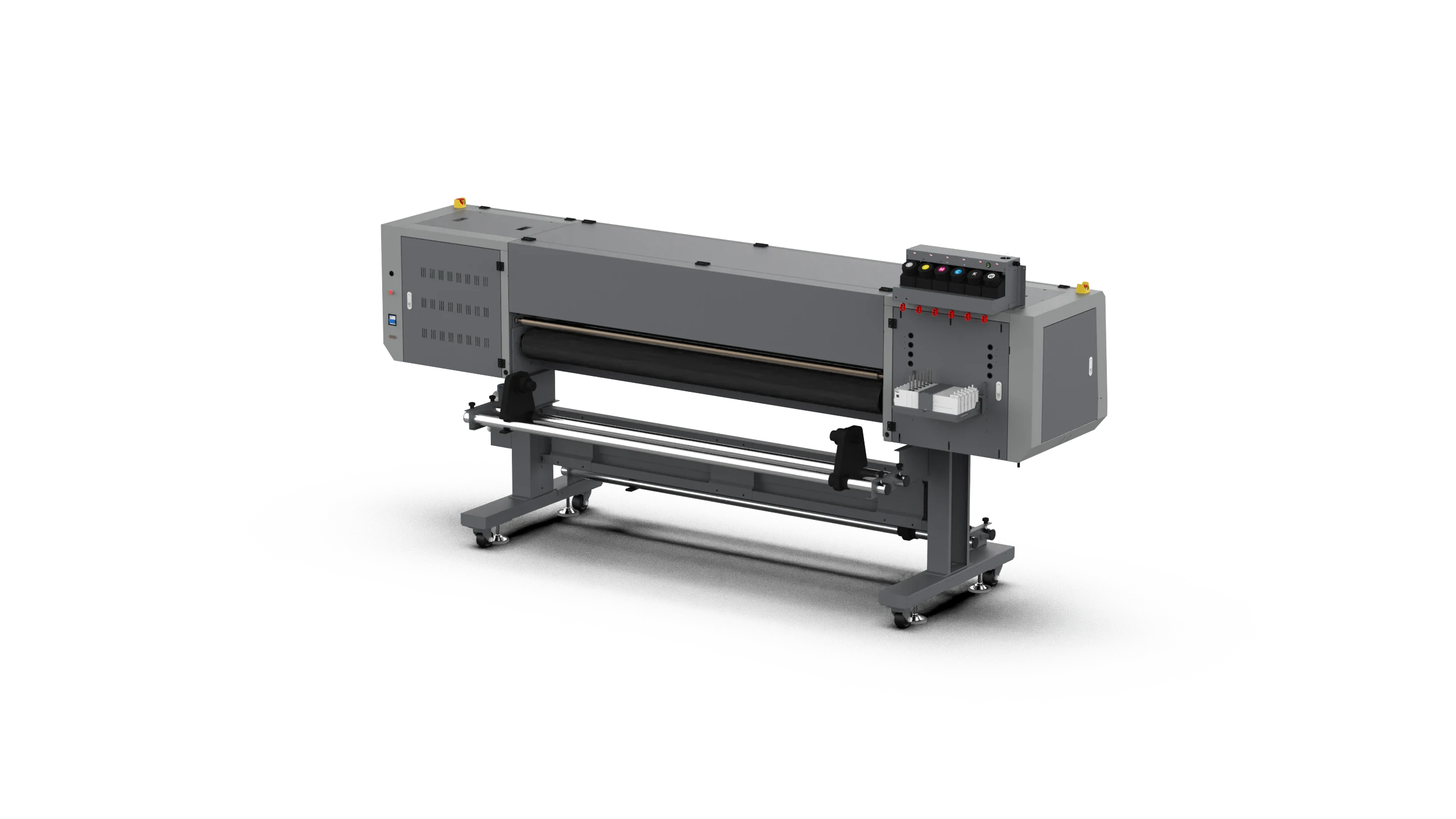

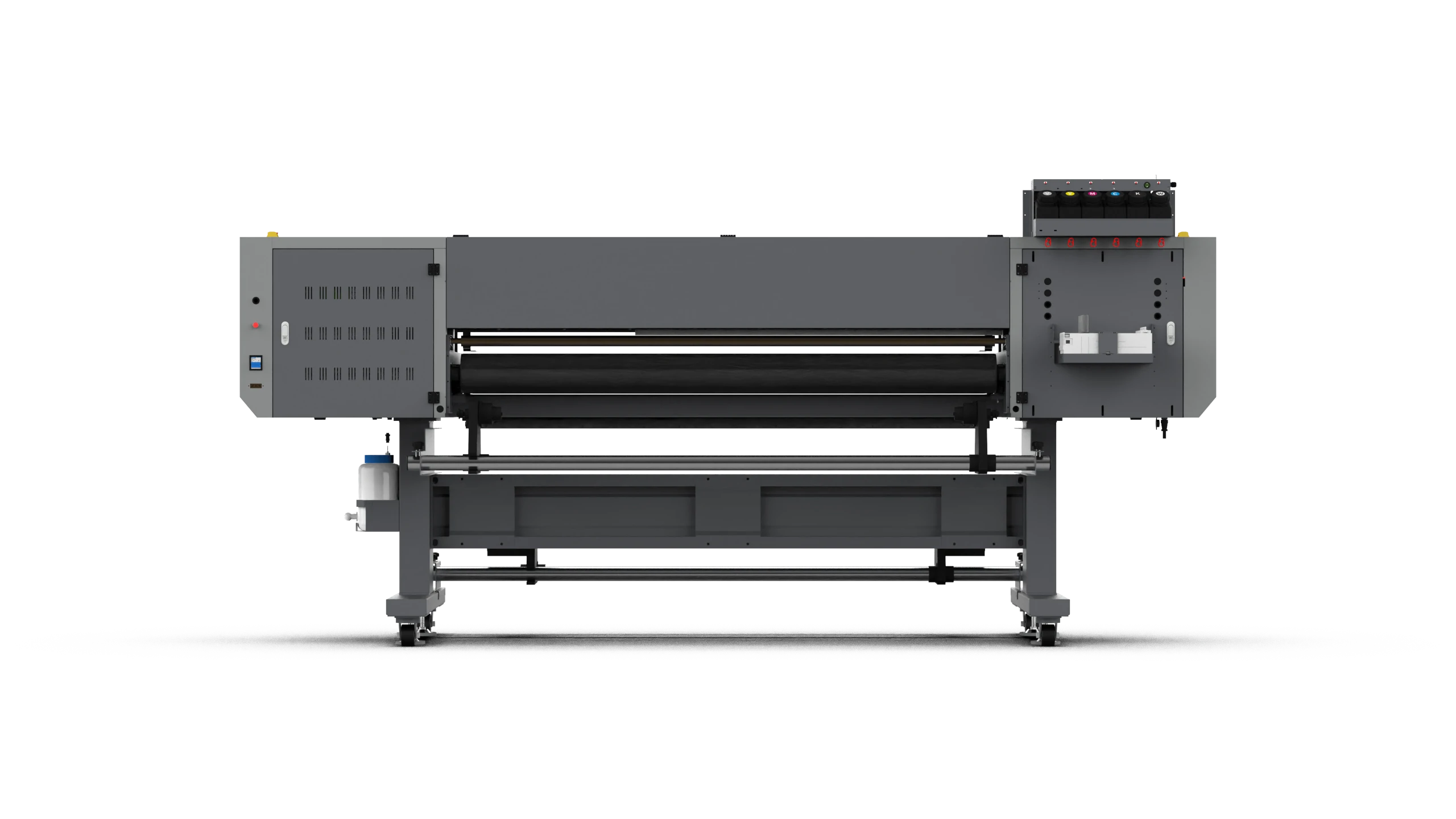

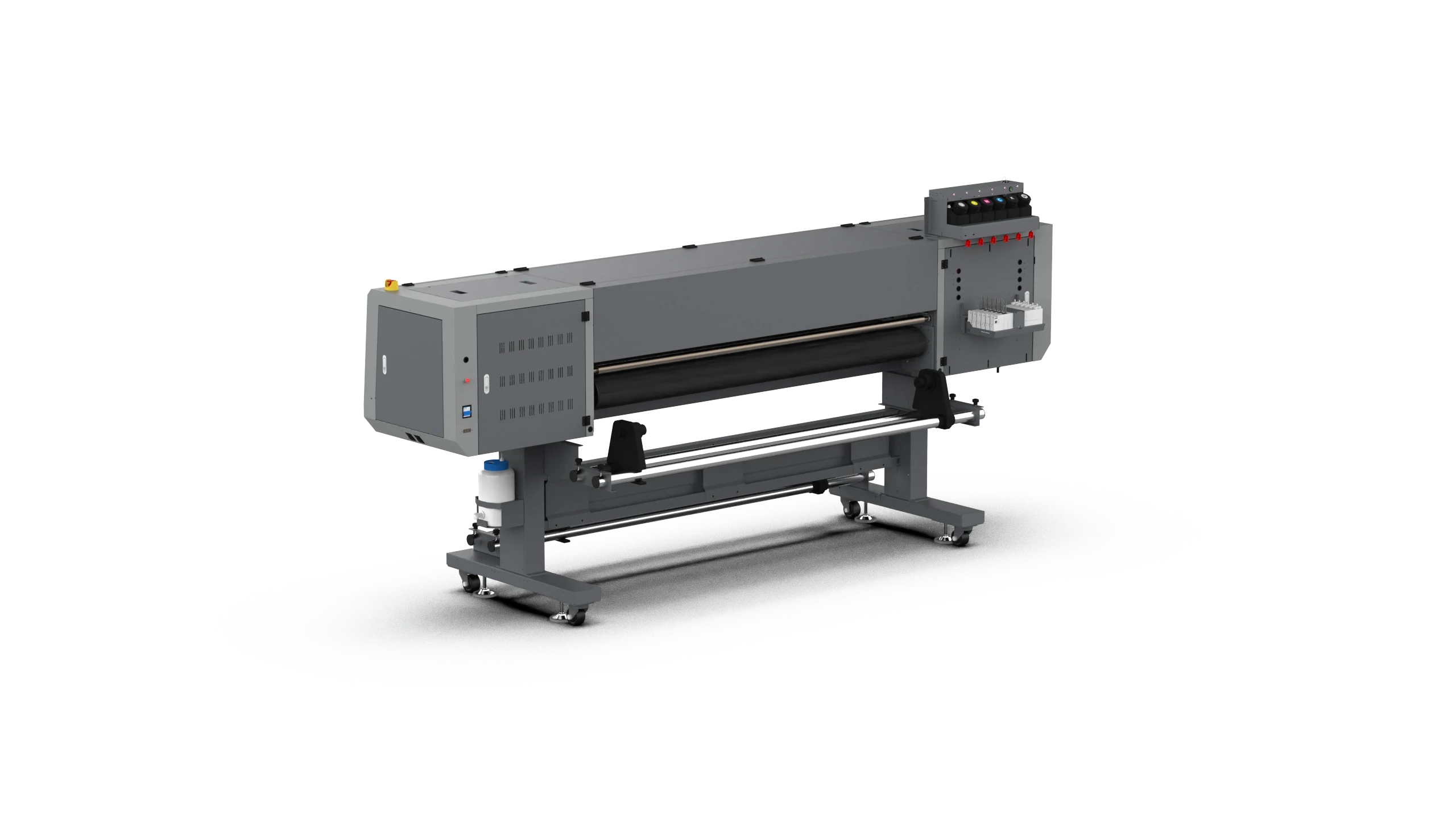

Model	HB18UV
Print Head	3~4 x Epson I3200 U1 Print Heads
Curing System	Dual Water Cooling LED UV Curing System
Ink	Gongzheng Specific UV Ink: REI-3 Certified by Greenguard Gold
Color Config.	4xKCMY; 3xKCMY+1xW; W+KCMY+V

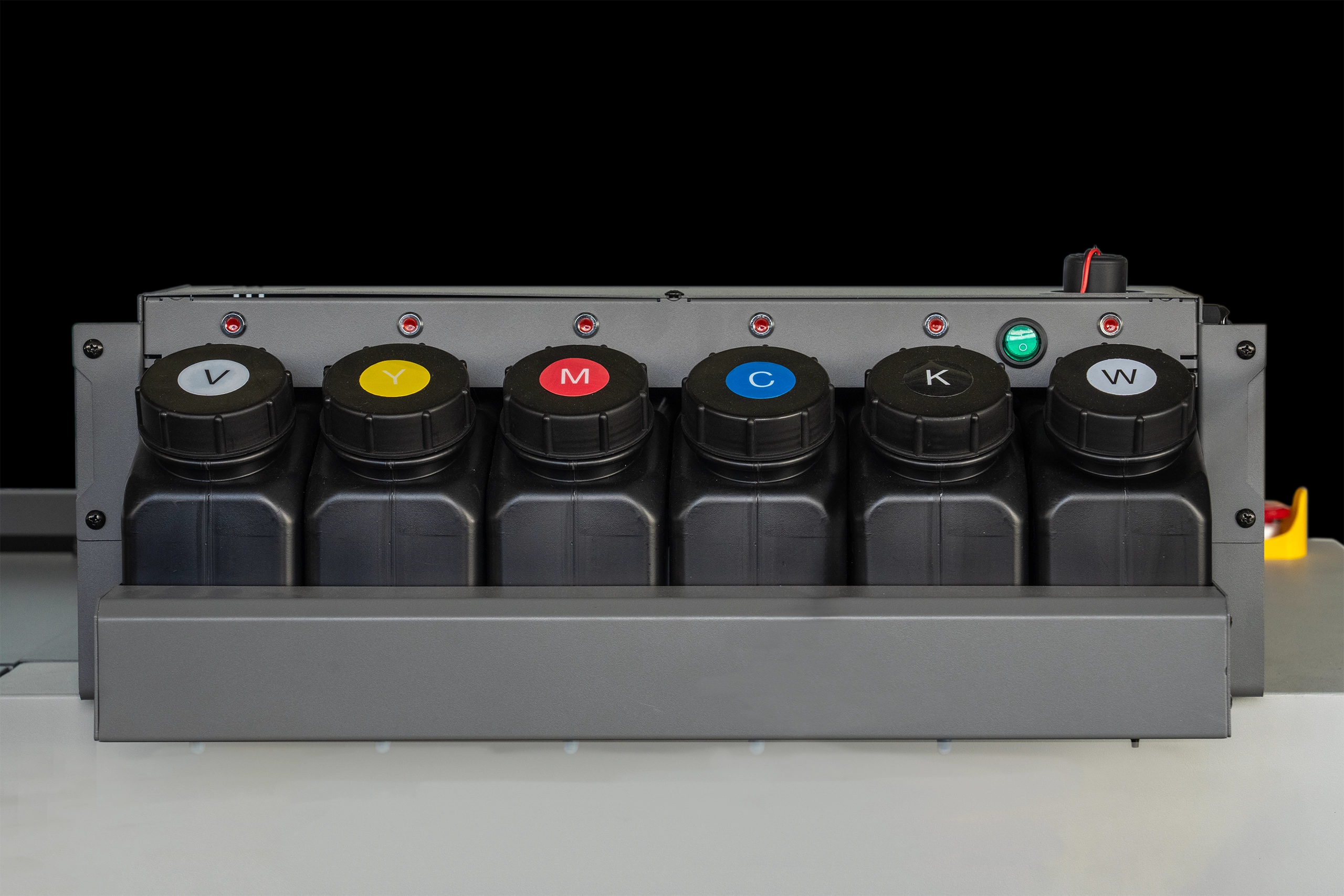

Ink Supply System	1.5-Liter Bulk Ink Supply System + White Ink Recirculation & Stirring System
Printing Width	Max. 1850mm
Media Thickness	Up to 10mm
Media Type	Ceiling Film, Vinyl, Backlit, Fabric, Wall Paper, Leather......
Roll Specification	Diameter: Max. 300mm; Weight: 30kgs; Core Diameter: 3 inch
Printing Speed	Mode Resolution Color(4H) CWC CWV
Printing Speed	Draft 720X1200 dpi 46m2/h 11.8m2/h 11.8m2/h Production 720X1200 dpi 37.6m2/h 9.7m2/h 9.7m2/h High-Res 720X1800 dpi 27.6m2/h 7.1m2/h 7.1m2/h Photo 720X1800 dpi 21.7m2/h 5.4m2/h 5.4m2/h
Data Interface	External: USB3.0; Internal: Fiber Optical
Working Environment	Temp. 23℃~29℃, Humidity: 50%~80%
Software	FlexiPRINT TX25 / ONYX Ripcenter (Optional) + GZ Printer Manager
Power	Single-Phase, 50Hz/AC, 220V±10%, 10.2A (Printer) + 6.2A (UV Controller)
Packed / Installed Size	LxWxH(mm): 4500×1150×990 / 3399×995×1612
G.W. / N.W.	750kgs / 536kgs

Design for flexible material

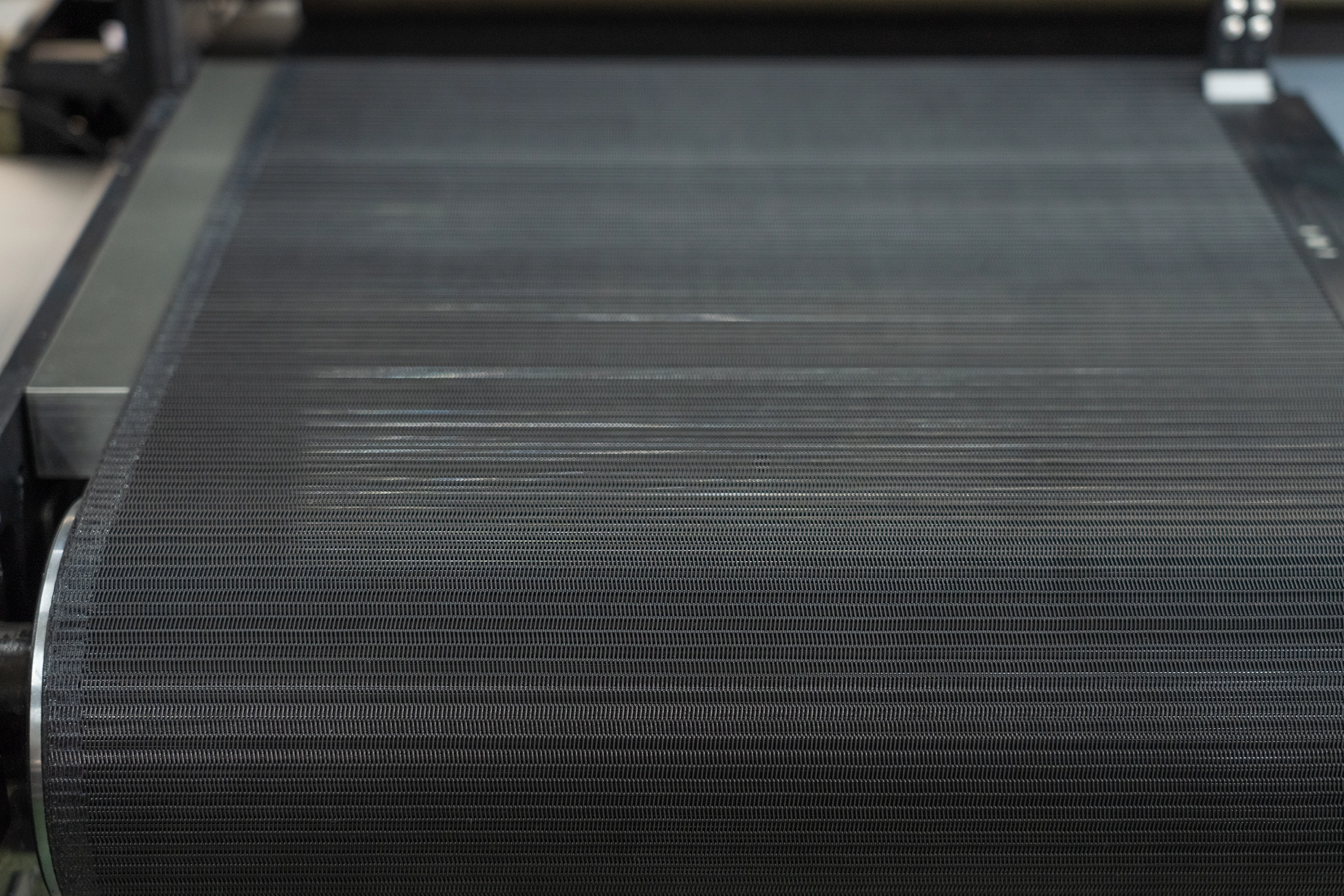

Mesh belt type suits a wider range of materials, especially for those materials with tension. It ensures precise guide and good printing performance.

Multi-Layer Printing Application

Particularly designed for multi-layer applications: colorful; 2layers:W+C/C+W;3layers:CWC; 4layers:CKWC-Day and Night;5layers:CWKWC on demand with fine details.

White Ink Recirculation System

The white ink is circulated at regular intervals during idle time to prevent pigment sedimentation that leads to malfunctions of the print head.

Print Head Heating System

Unique built-in heater for print head ensures smooth ink flow and superior print quality.
