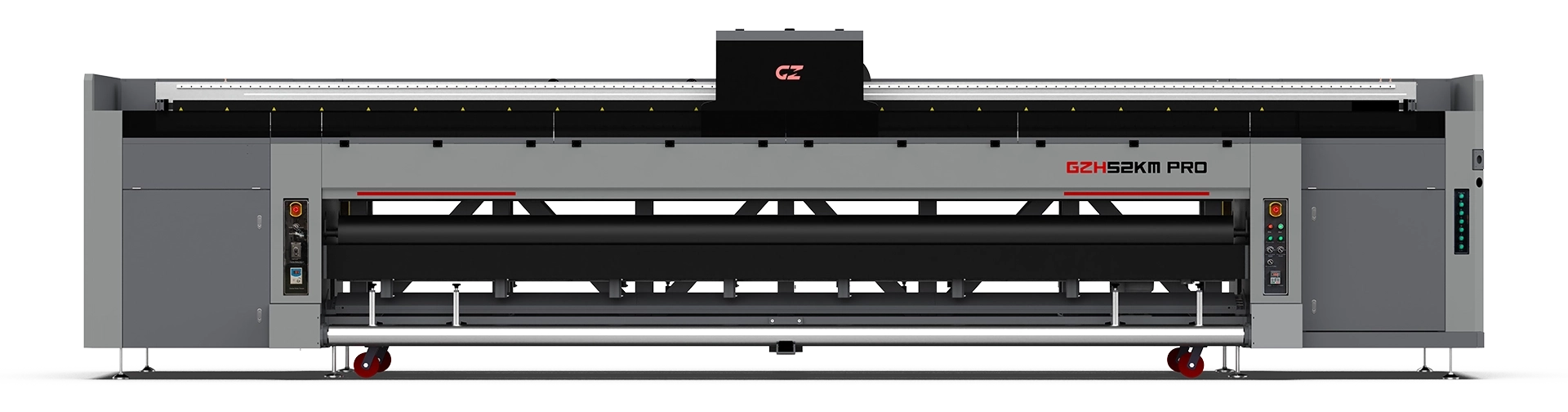

Model | GZH32KM |

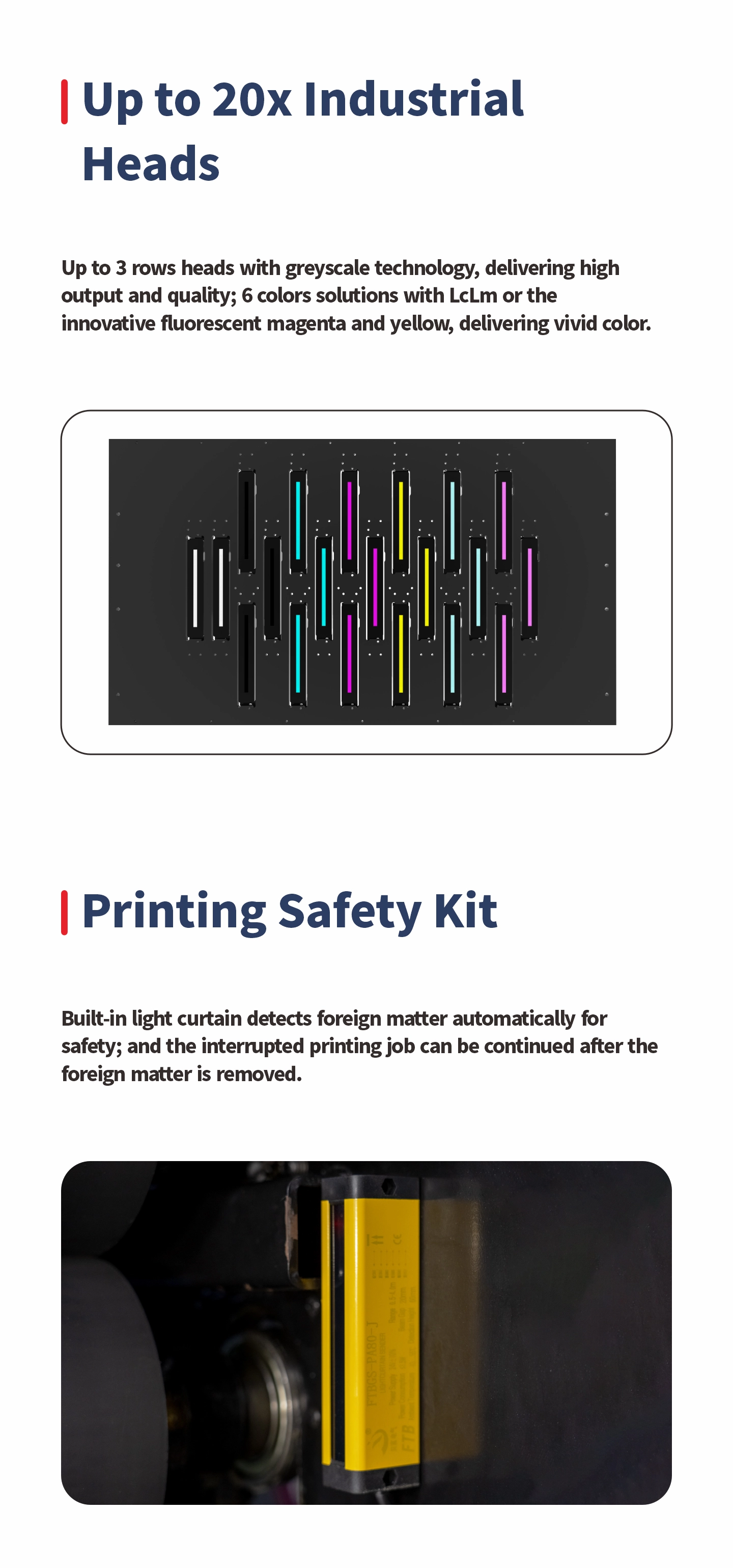

Print Head | Up to 3 ROws 20x Konica 1024i 13pl / Konica 1024a 6pl Heads |
Head Config. | 3xKCMY 3xKCMYLcLm 3xKCMYFmFY 2xW+3xKCMY 2xW+3xKCMYLcLm 2xW+3xKCMYFmFY |
Curing System | Dual Water Cooling LED UV Curing System |

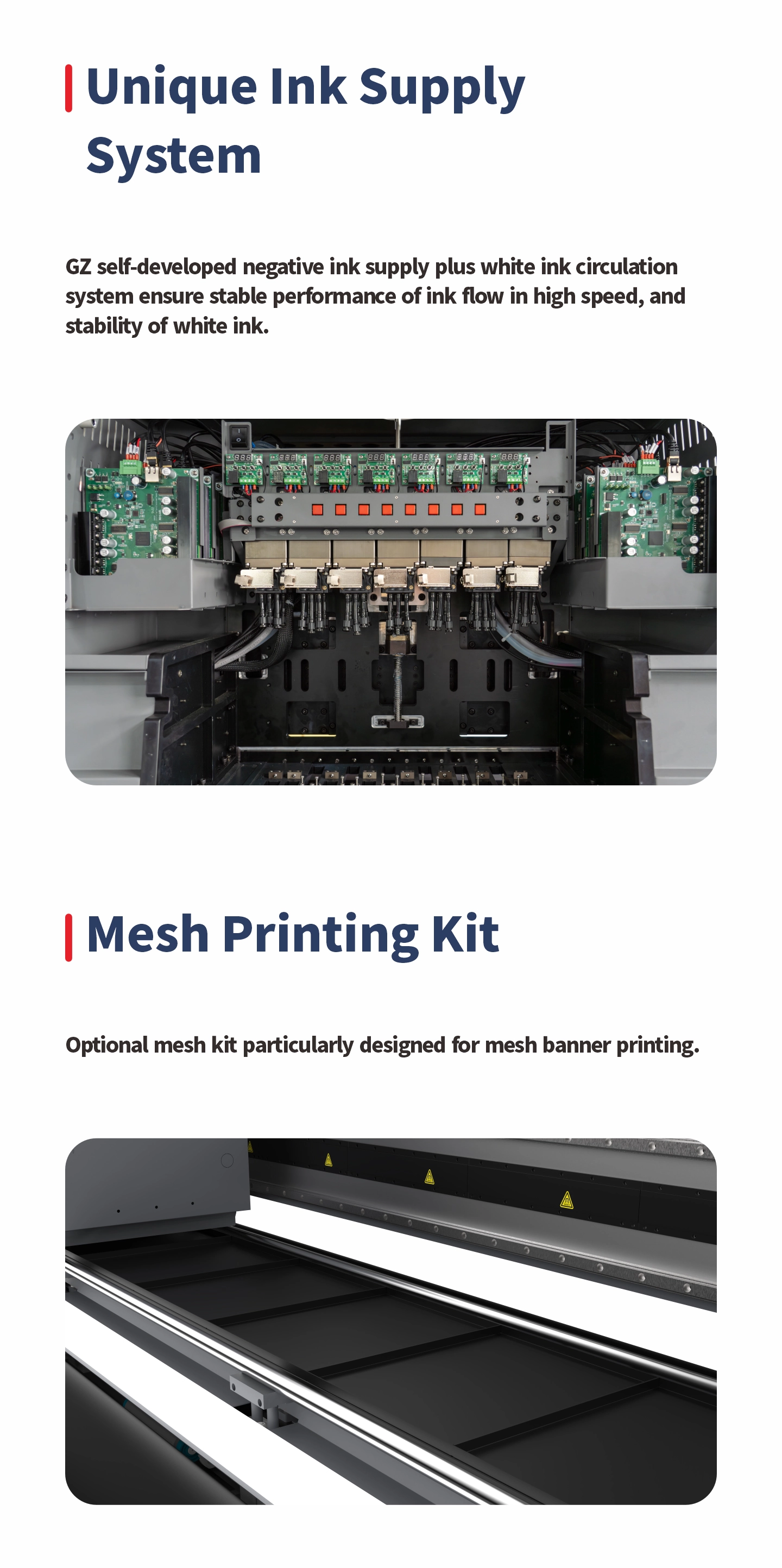

Ink Supply System | Negative Pressure System + White Ink Circulation System |
Ink tank | 4000ML |
Cleaning System | Posive Puring System |
Servo System | Magnetic Linear Motor and Metal Encoder |

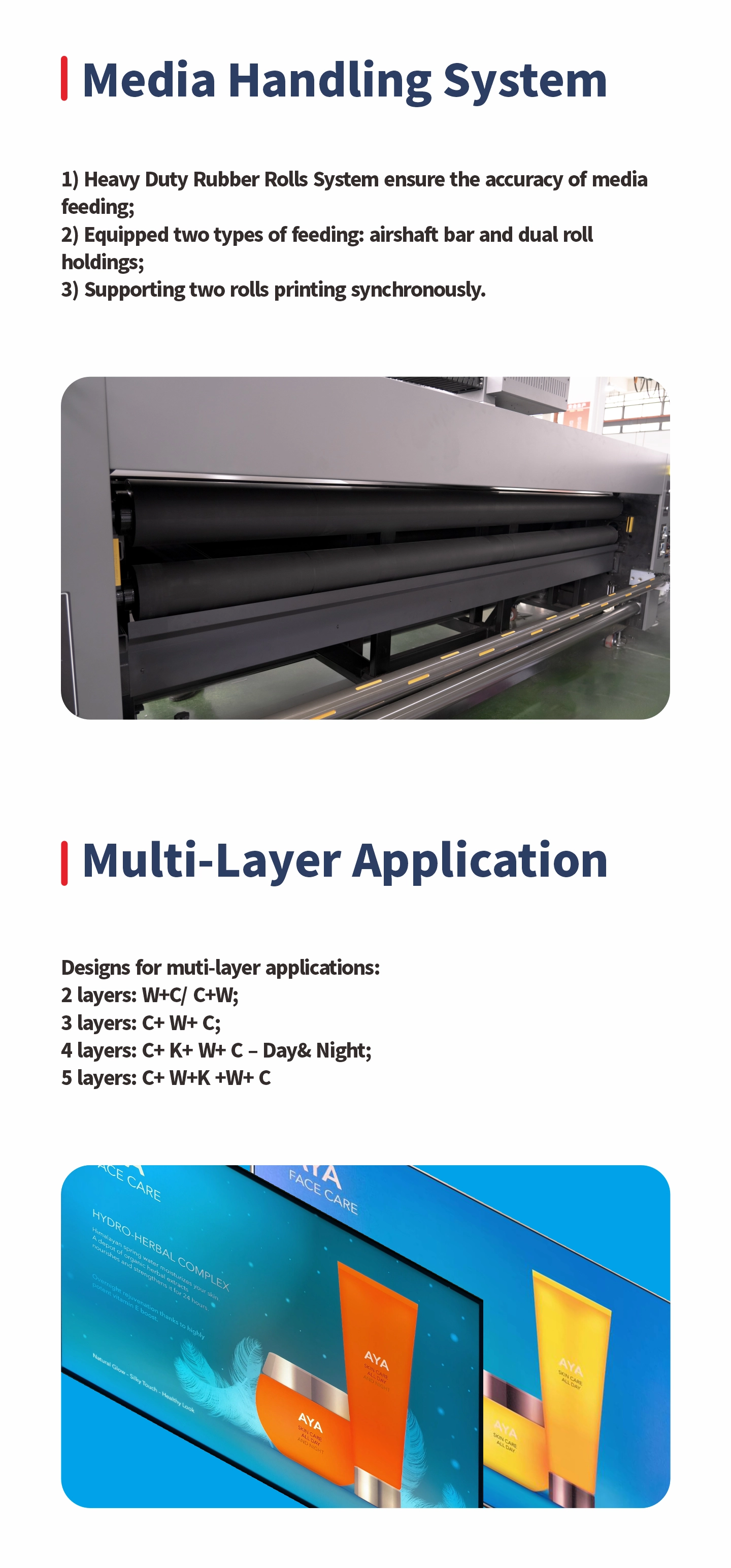

Media Handle | High-Precision Rubber Roll System+Air Shaft Feeding Unit |
Media Type | Soft Film, Vinyl, Frontlit, Backlit, Banner, Wall Paper, etc. |
Media Thickness
| Up to 50mm |
Printing Width
| Up to 3200mm |
Printing Width
| Up to 3200mm |
Printing Speed | Mode Resolution 3Rows(C) 3Rows(CWC) |
Draft 480X1080dpi 126㎡/h / Production 480X1080dpi 108㎡/h 28㎡/h Quality 480X1080dpi 84㎡/h / Hi-Precision 480X1080dpi 58㎡/h 20㎡/h |
Data Interface | External: USB3.0; Internal: Fiber Optical |
Working Environment | Temp. 20℃~28℃, Humidity: 40%~70% |
Software | Onyx Ripcenter+GZ Printer Manager |
Power | Single-phase, 50/60Hz, AC220V±10%, 10A; Regulator: 10kVA |
Installed / Packed Size | Printer: 6050x1410x1850mm/8570x2120x1740mm UV Controller: 1380x850x760mm |
N.W. / G.W. | 2690KGS / 3350KGS |
