RTR UV Solutions

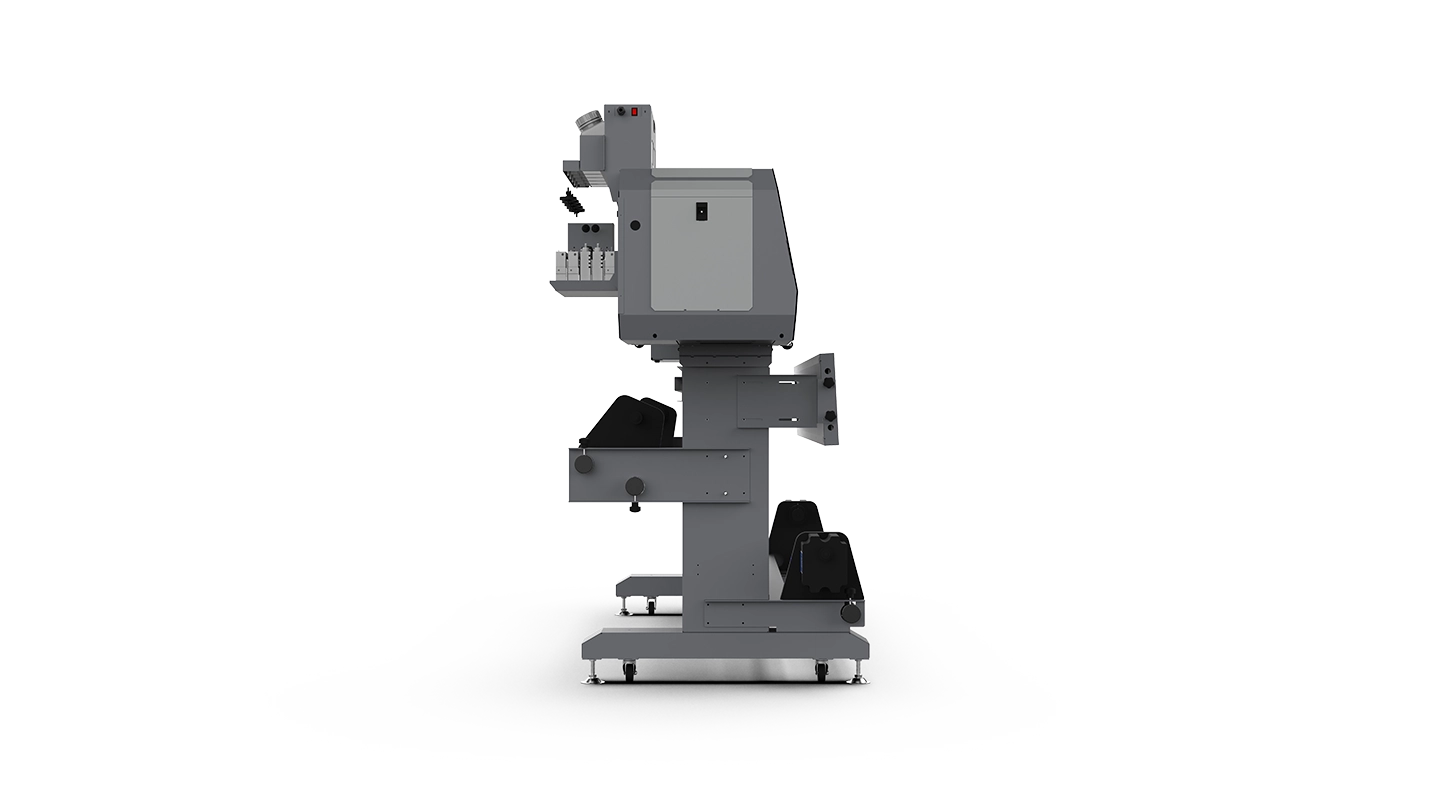

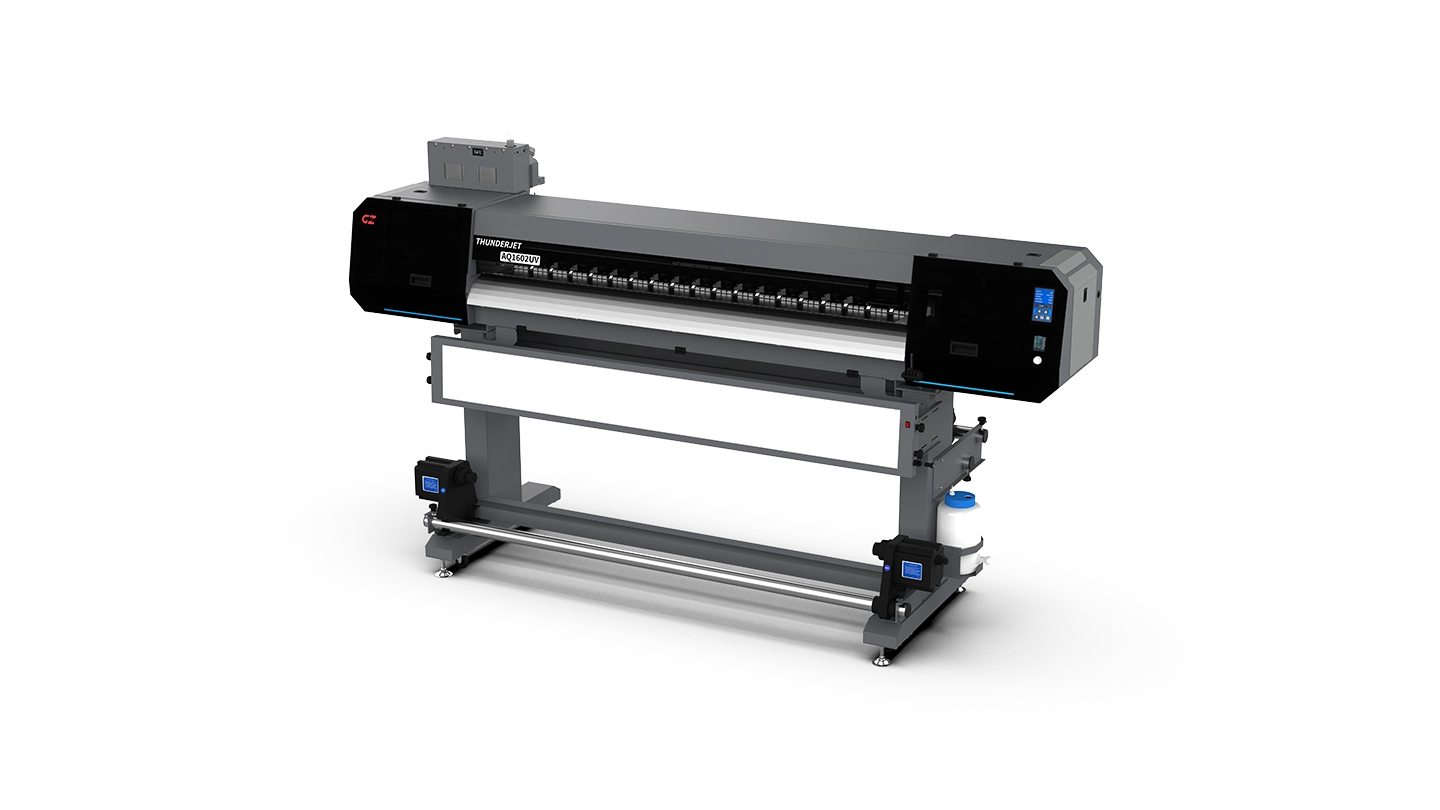

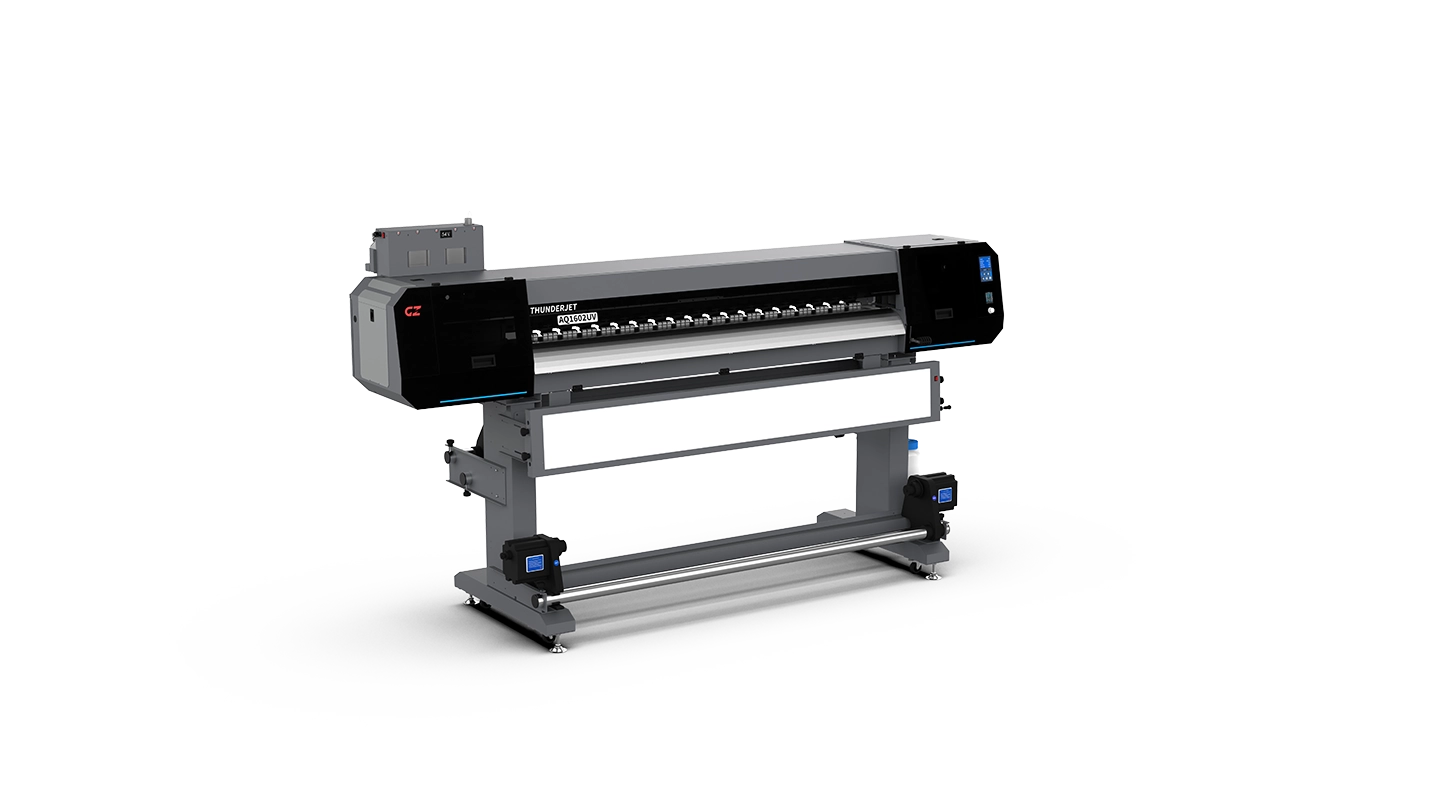

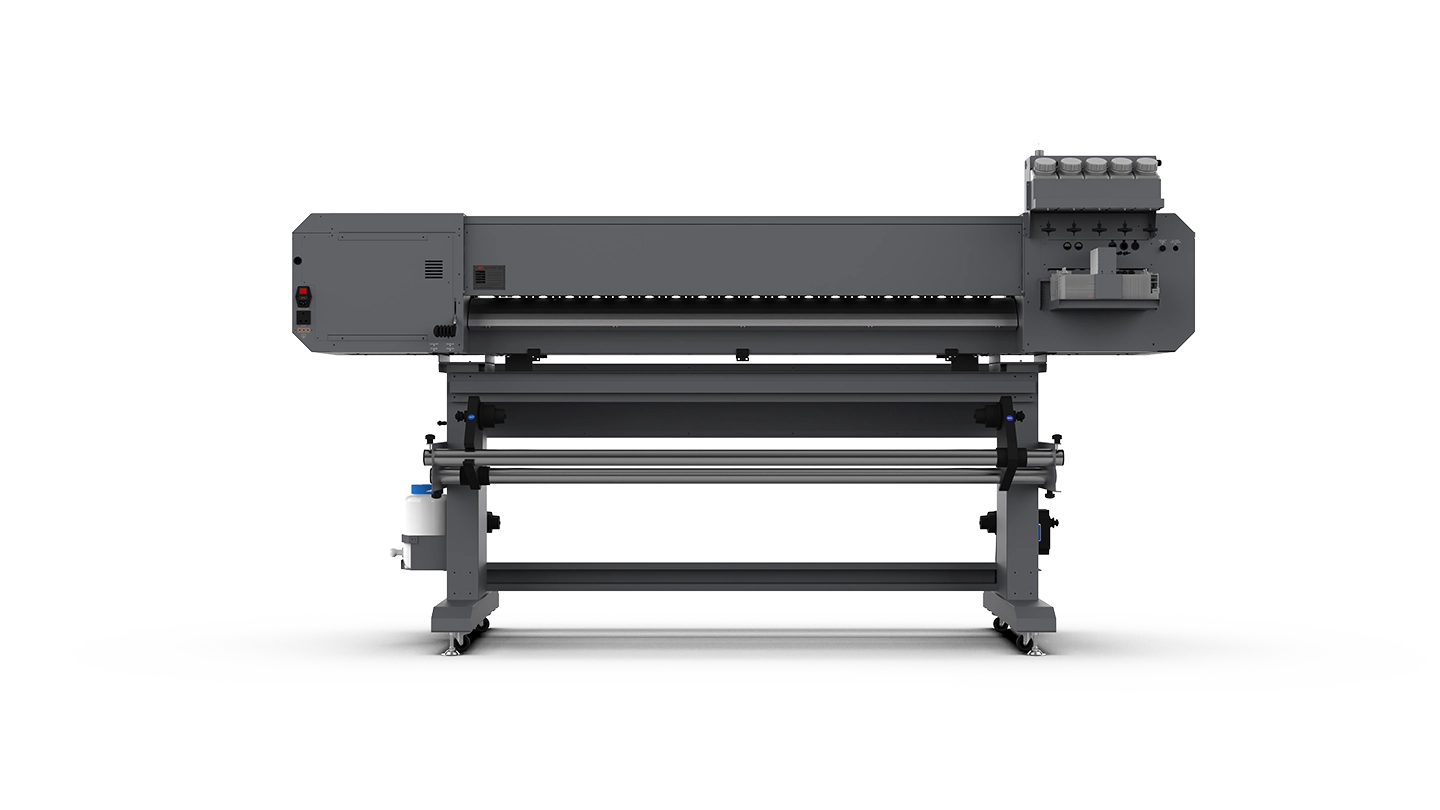

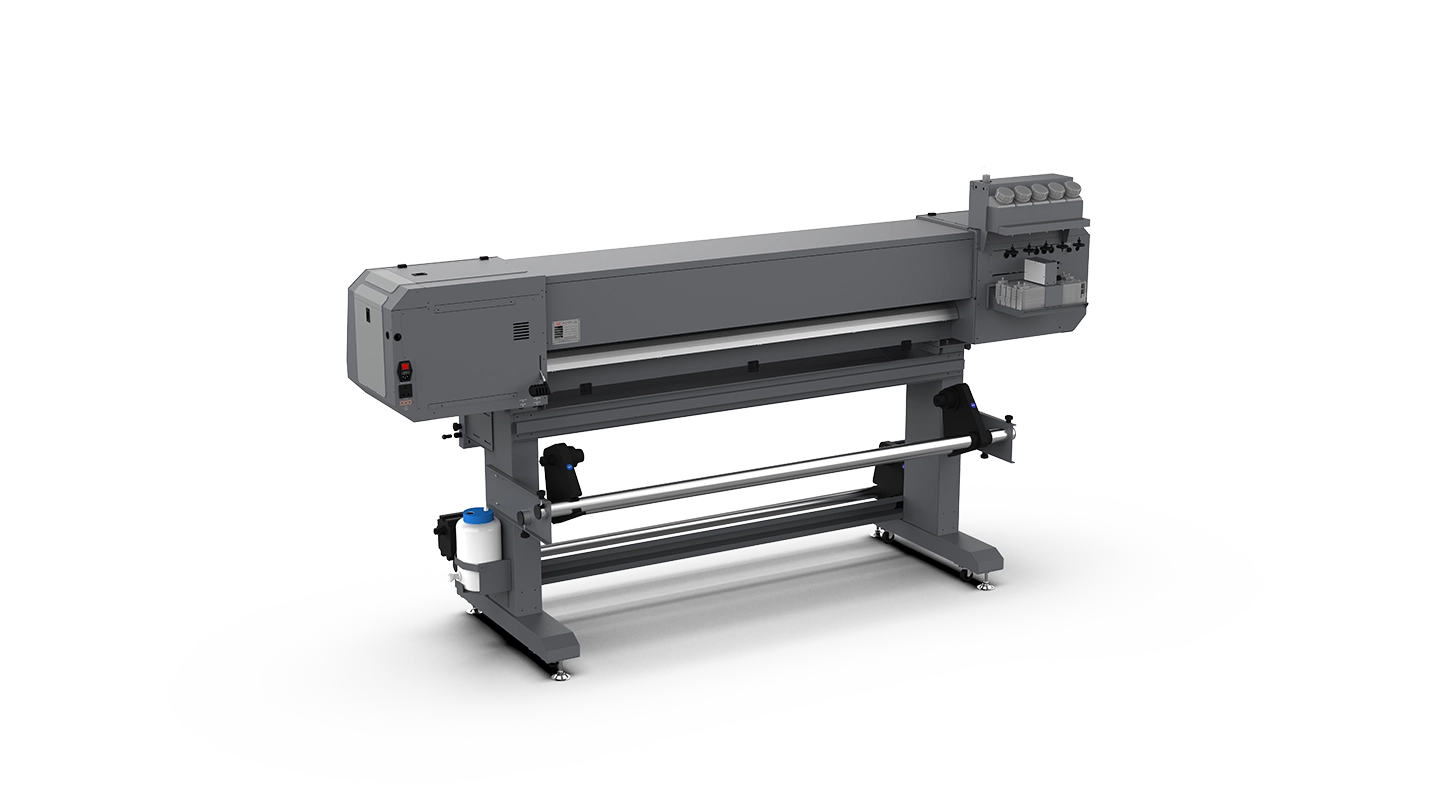

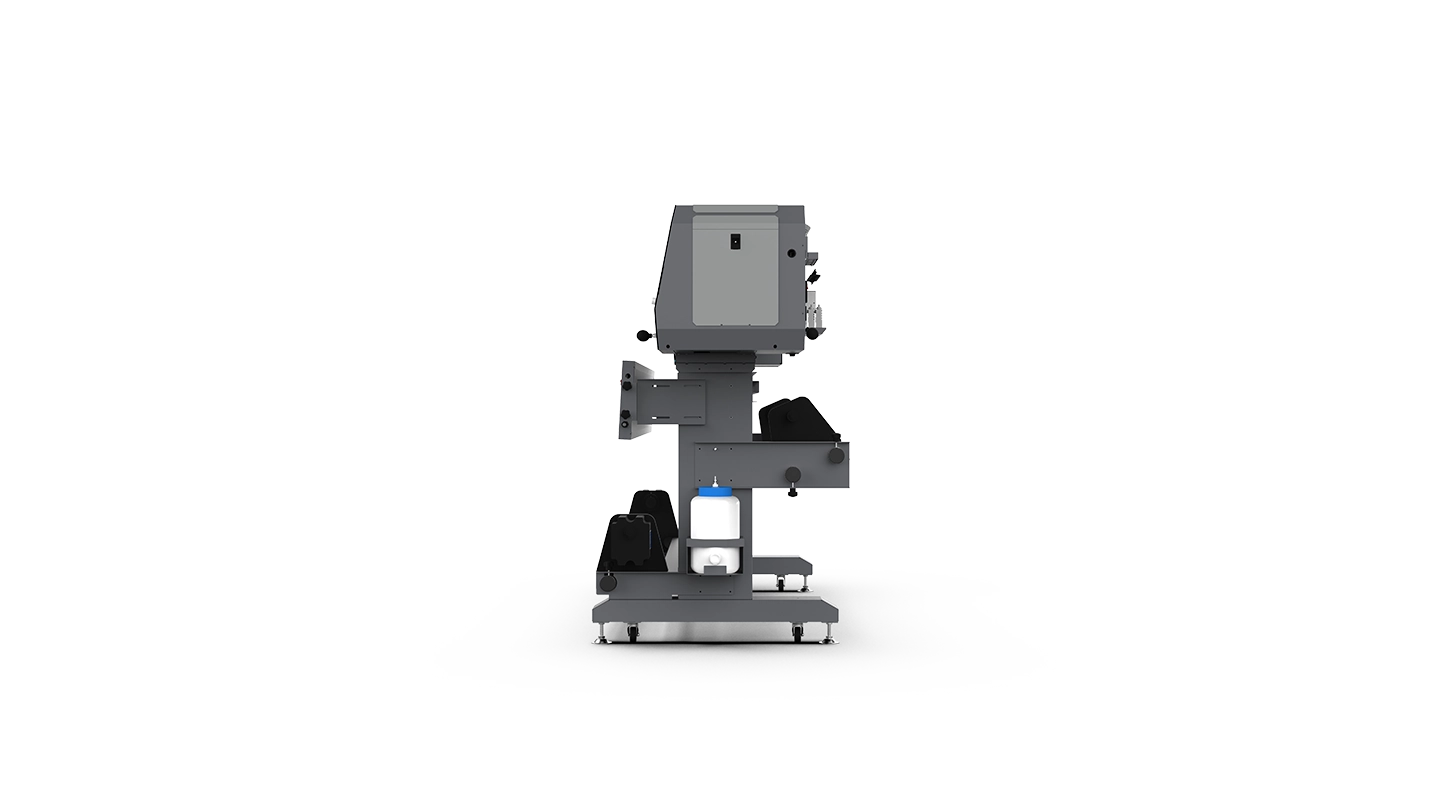

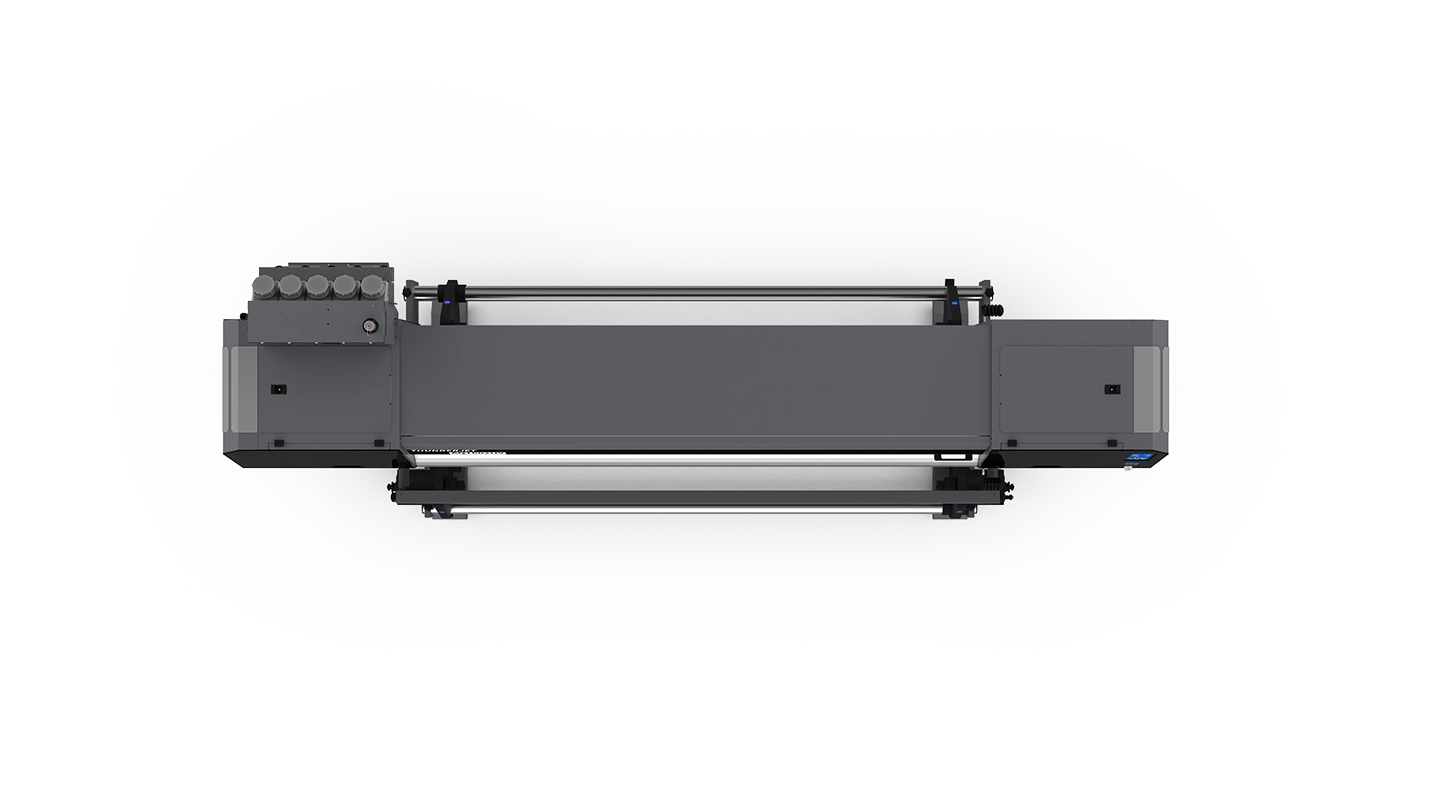

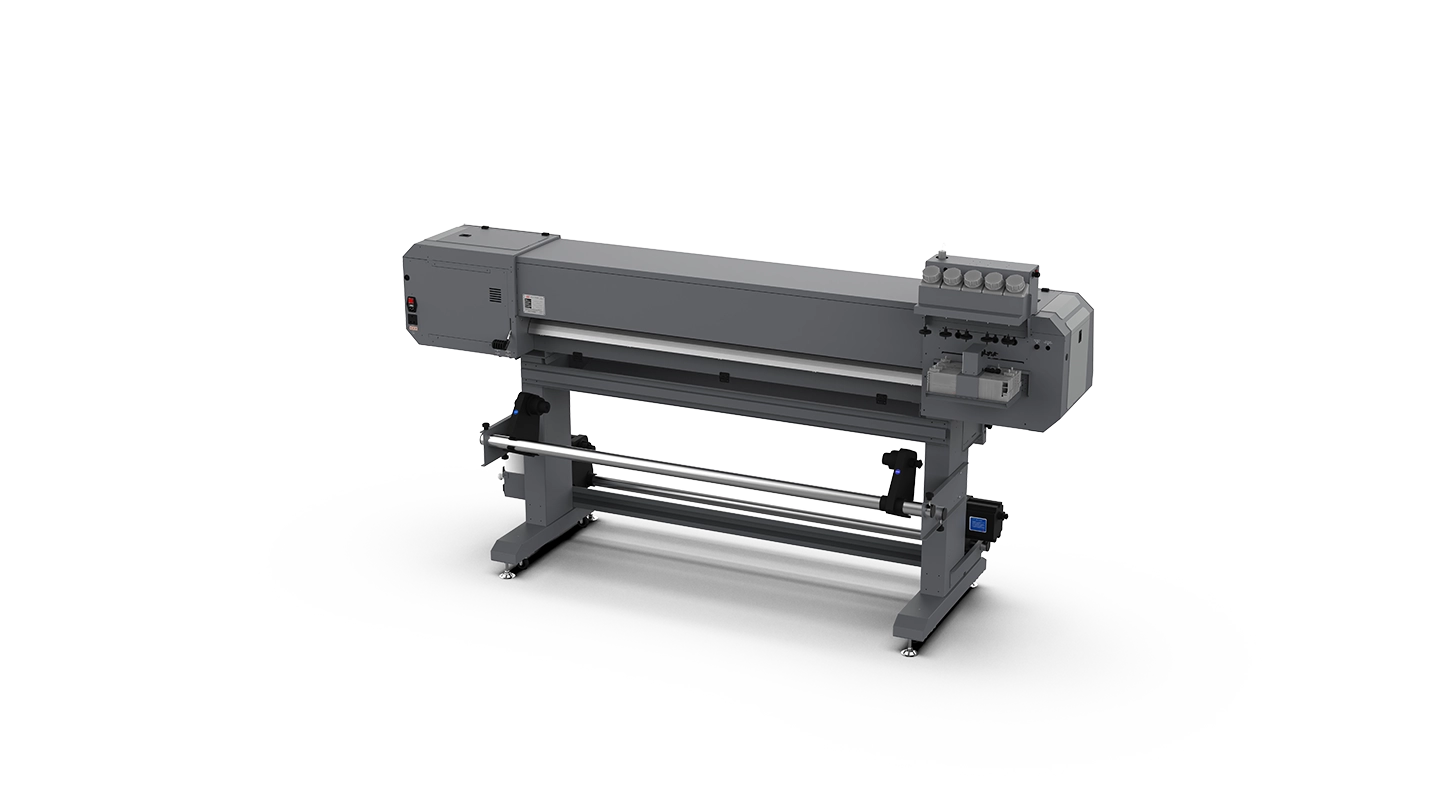

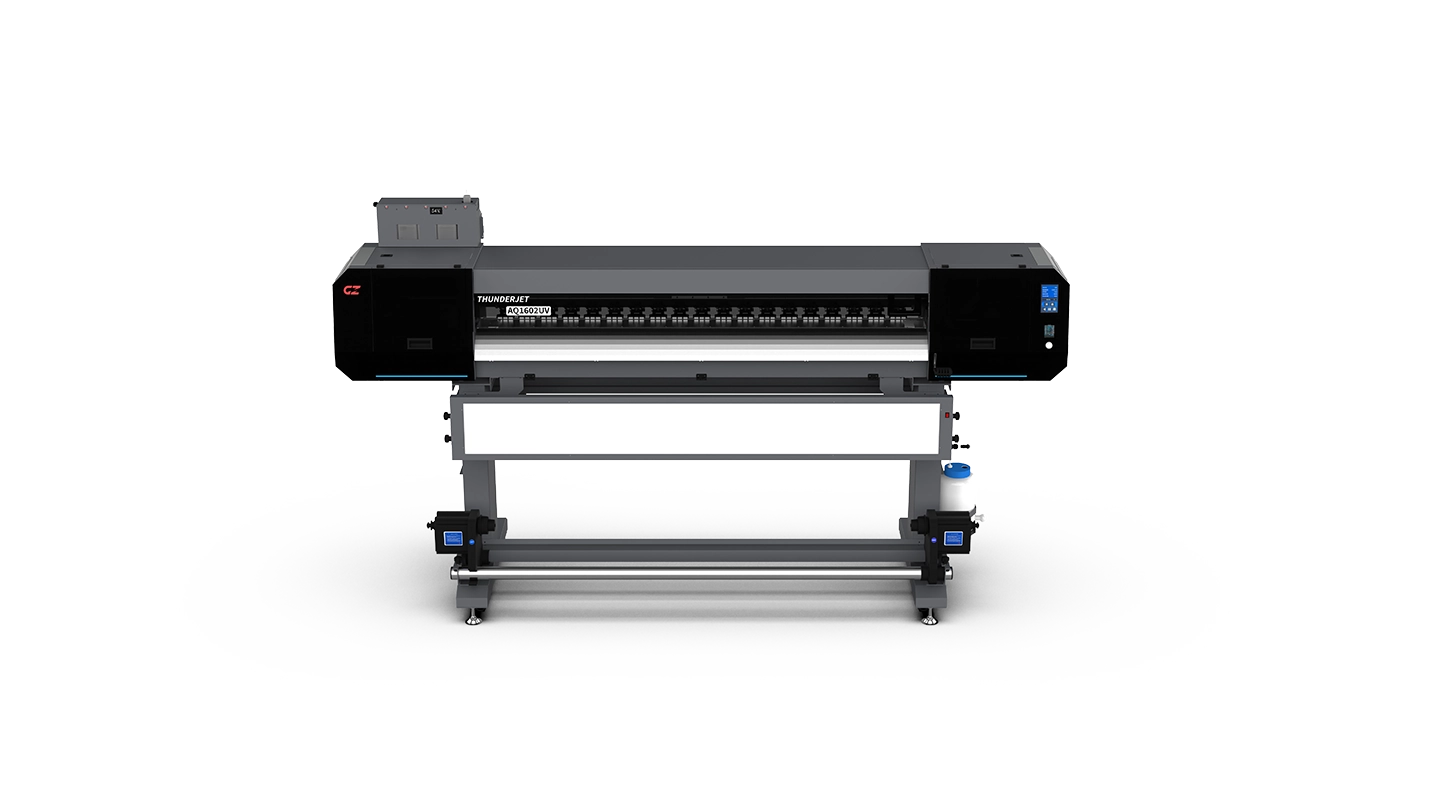

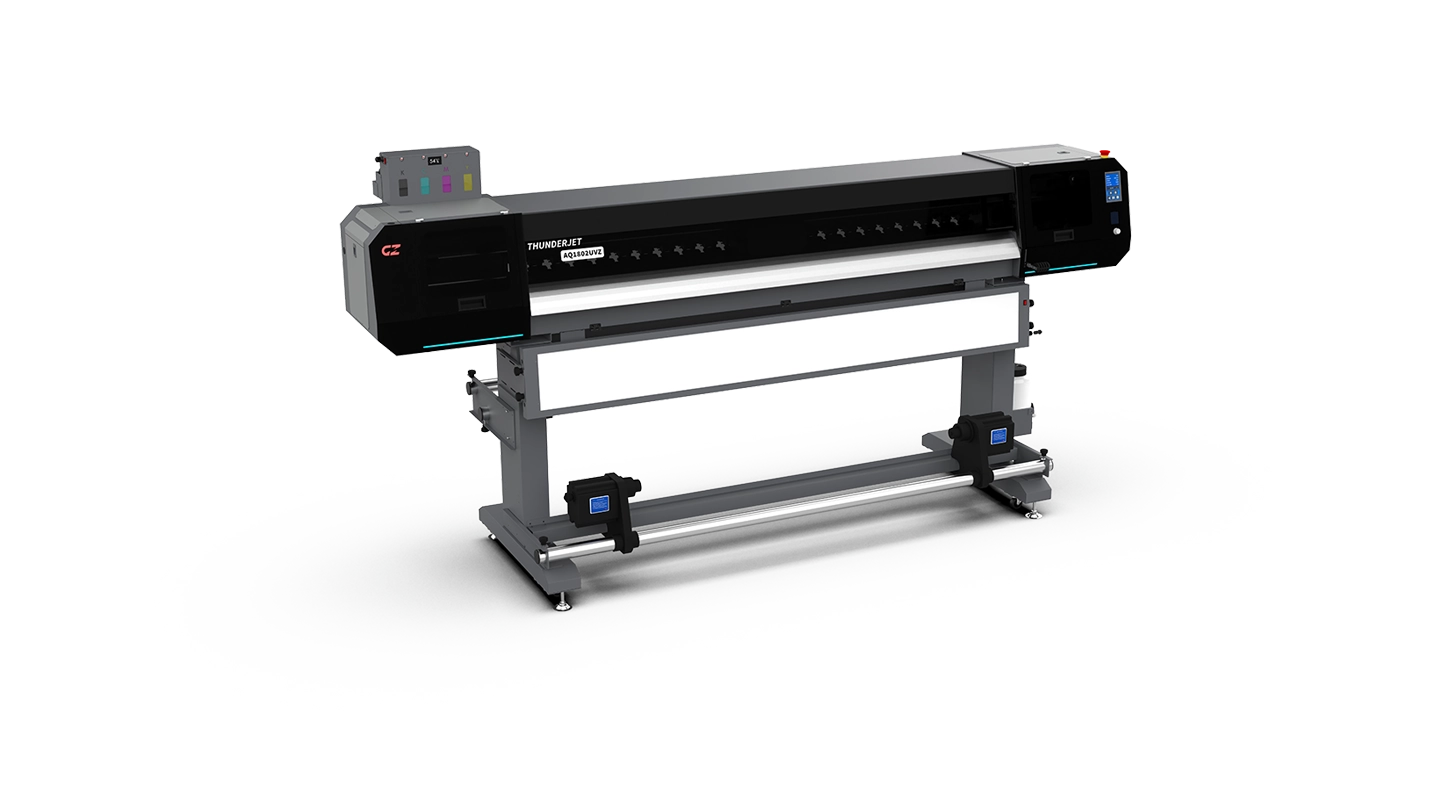

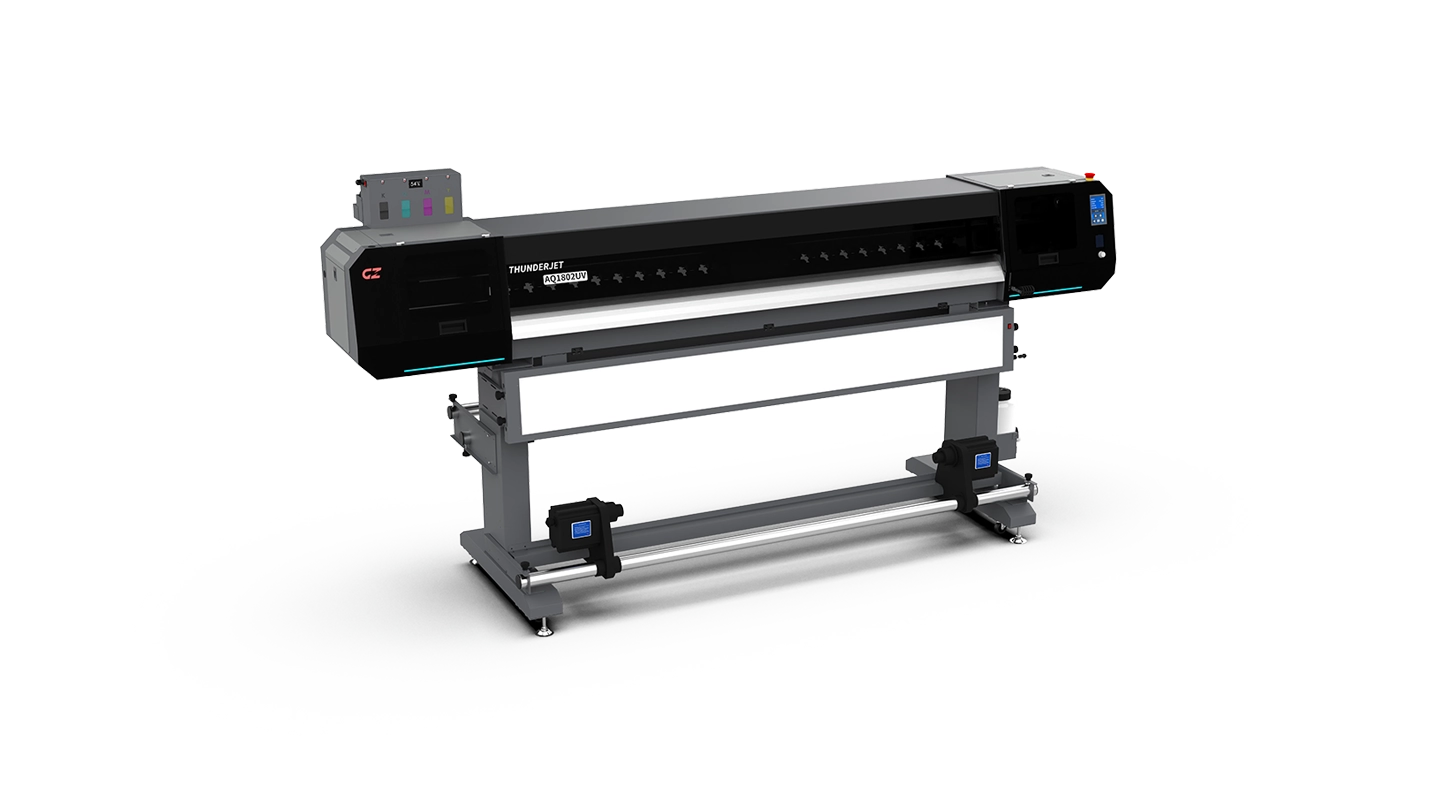

ThunderJet AQ1602UV

Entry-level 1.6m RTR UV Printer with Staggered Heads

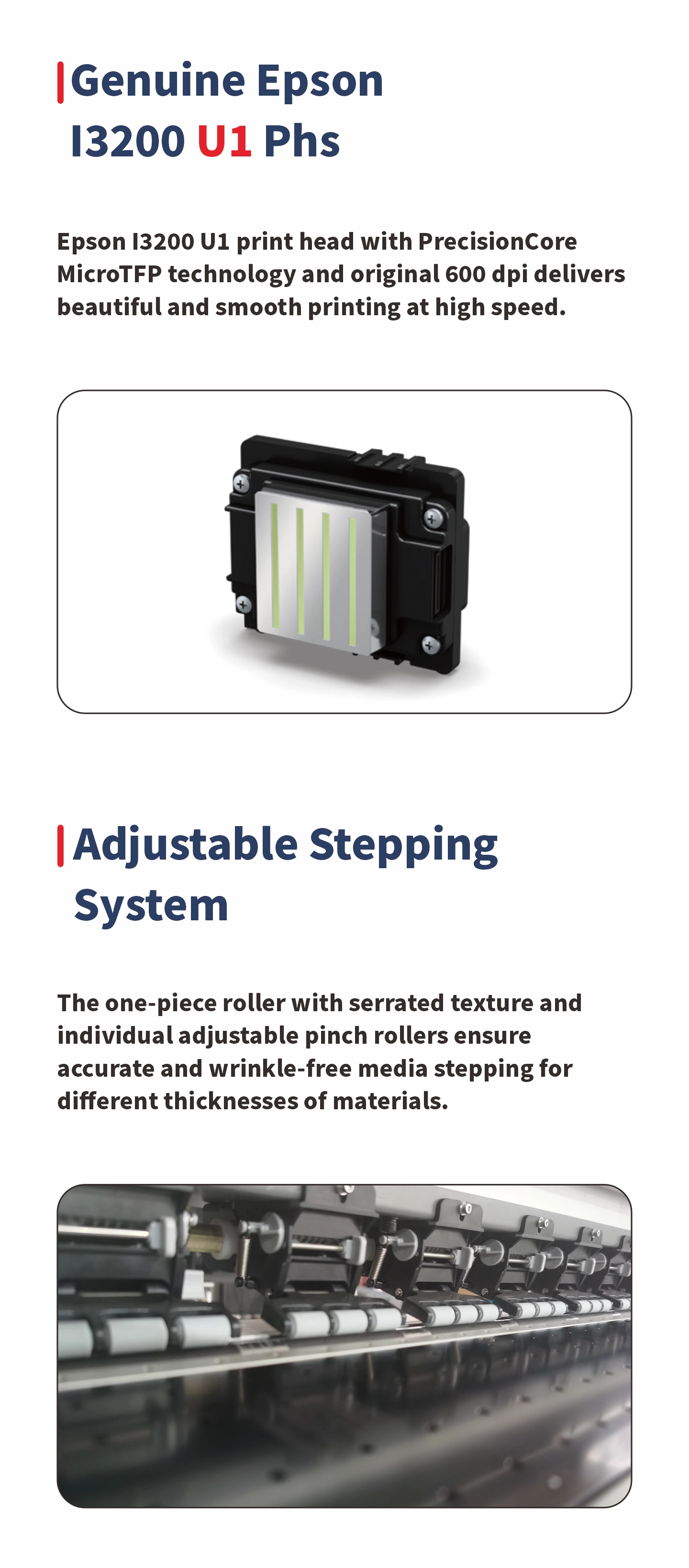

Genuine Epson I3200 U1 PHs

Water Cooling Platen


Intelligent Heating Unit


Adjustable Stepping System

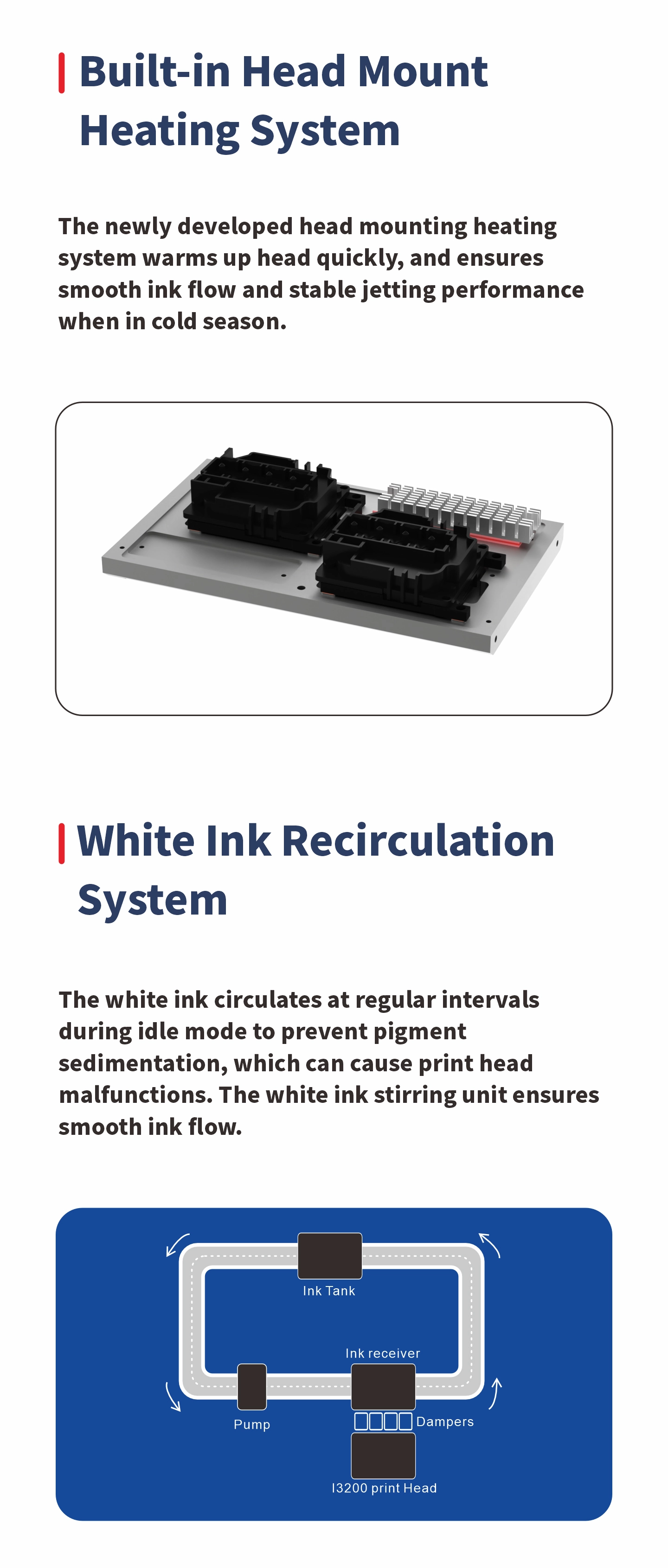

White Ink Recirculation System

Model

 ThunderJet AQ1602UV

Print Head

 1~2 Epson I3200 U1 print heads

Technology

 Drop-On-Demond Piezo with Variable Dot

Curing System

 Dual water cooling LED UV lamps

Ink

 UV Flexible Ink

Color Config.

 2xKCYM; 1xKCYM+W; W+1xKCMY

Ink Supply System

 Bulk ink supply system+White Ink Recirculation System

Ink Tank

 1500ml

Printing Width

 Max. 1600mm

Media Type

 Banner, Coated PP, Vinyl, Backlit textile, PVC film, PET film...

Roll Diameter

 Max. 300mm

Roll Weight

 Max. 50KGS

Core Diameter

 3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

 Mode                      Resolution                1xKCYM              2xKCYM

 Draft                      720X1200 dpi            10.5㎡/h               19㎡/h

 Production            720X1200 dpi             8.5㎡/h                17㎡/h

 High-res                720X1800 dpi             6㎡/h                   13㎡/h

 Photo                    720X1800 dpi             5㎡/h                   11㎡/h

Data Interface

 External: Ethernet; Internal: Fiber Optical

Working Environment

 Temp. 23℃~29℃, Humidity: 50%~80%

Software

 FlexiPRINT/ ONYX(Optional).….+GZ Printer Manager

Power

 Single phase, 50Hz/AC, 220V±10%, 5A(Printer+UV Controller)

Installed Size

 LxWxH(mm): 2783x767x1558

G.W./ N.W

 290KGS/ 190KGS


< >
