RTR UV Solutions

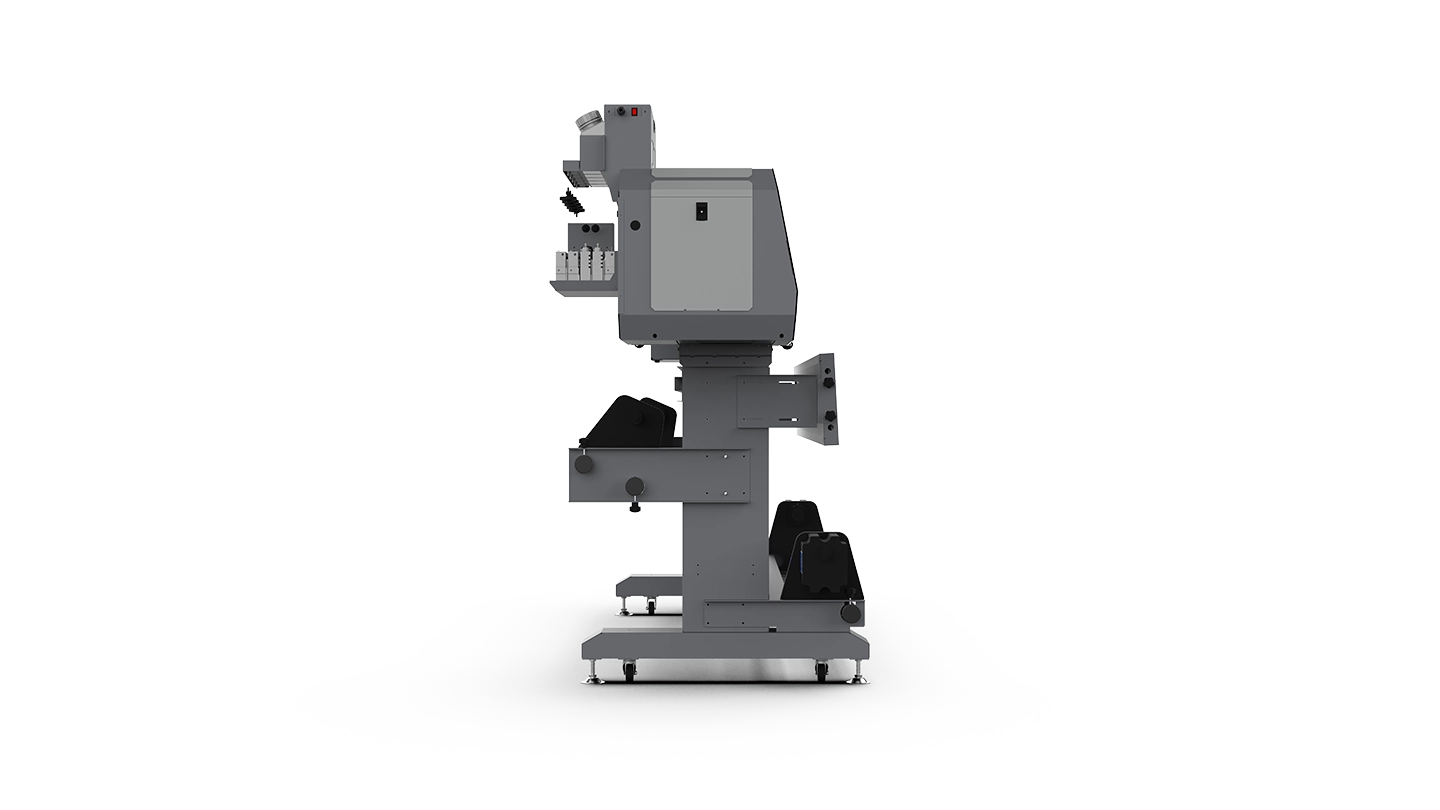

ThunderJet AQ1602UVZ

The Entry-Level 1.6m RTR UV Printer

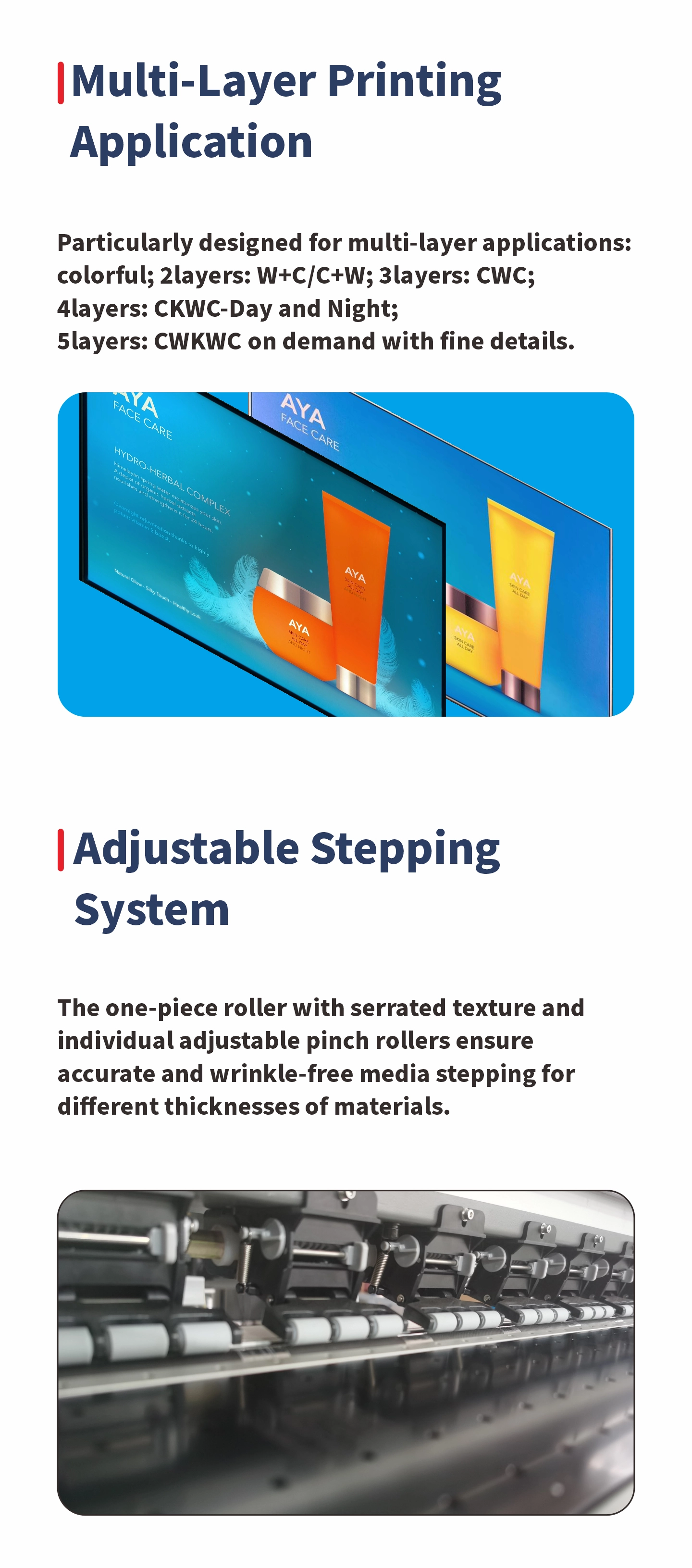

Multi-Layer Printing Application

Adjustable Stepping System

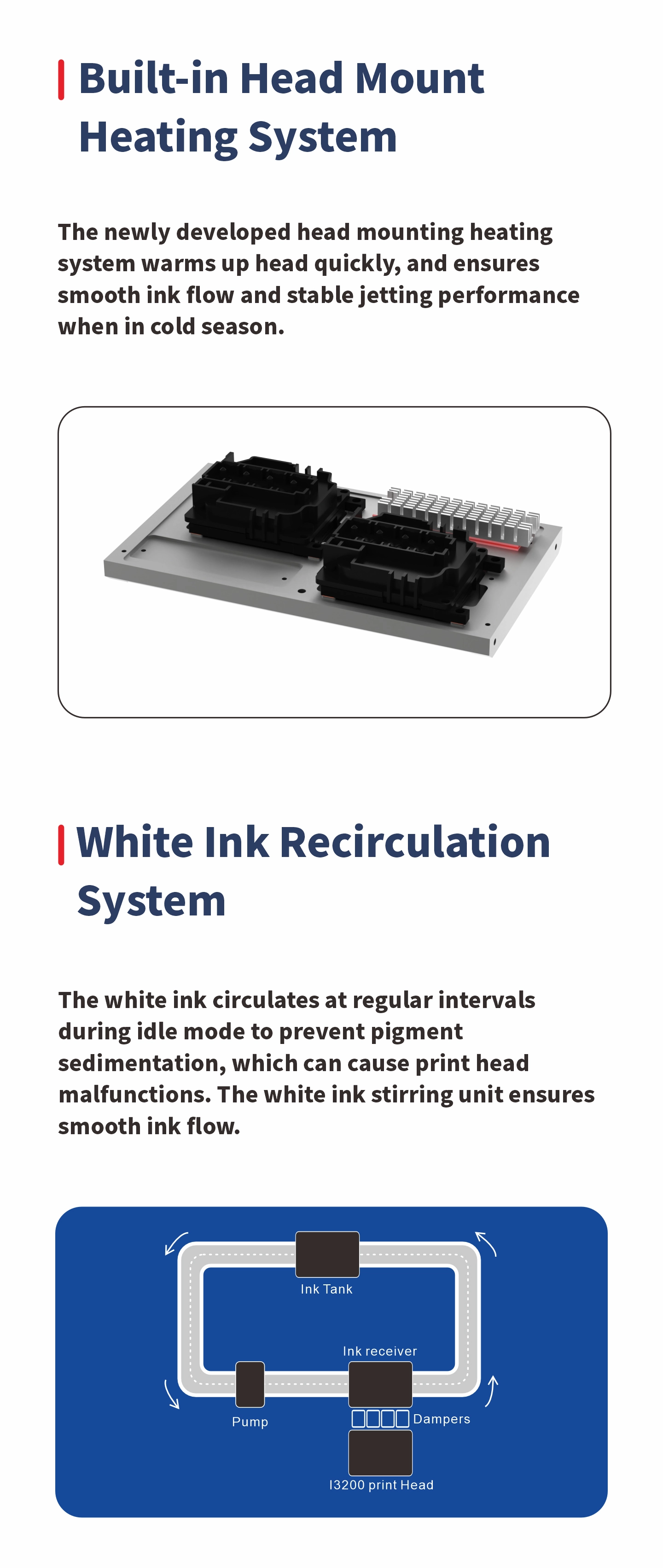

Built-in Head Mount Heating System


White Ink Recirculation System

Gz Specific REI-3 UV Ink

Model

 ThunderJet AQ1602UVZ

Print Head

 1~2 Epson I3200-U1 Print Heads

Technology

 Drop-On-Demond Piezo with Variable Dot

Curing System

 Dual Water Cooling LED UV Lamps

Ink

 Gongzheng UV Ink: Rei-3

Color Config.

 1xKCMY; W+1xKCMY

Ink Supply System

 Bulk Ink Supply System + White Ink Recirculation & Stirring System

Ink Tank

 1000ml

Printing Width

 Max. 1600mm

Media Type

 Banner, Coated PP, Viny, Backlit Textile, PVC Film, PET Film...

Roll Diameter

 Max. 300mm

Roll Weight

 Max. 50kgs

Core Diameter

 3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

 Mode                Resolution                Color(1H)               CWC               CWKWC

 Draft                720X1200 dpi            10.5㎡/h                5.2㎡/h              1.6㎡/h

 Production      720X1200 dpi             8.5㎡/h                 3.4㎡/h

 High-res          720X1800 dpi             6㎡/h                    3.1㎡/h               1㎡/h

 Photo              720X1800 dpi             5㎡/h                    2㎡/h

Data Interface

 External: Ethernet; Internal: Fiber Optical

Working Environment

 Temp. 23℃~29℃, Humidity: 50%~80%

Software

 FlexiPRINT TX22 / ONYX RIPCenter (Optional).….+GZ Printer Manager

Power

 Single Phase, 50Hz/AC, 220V±10%, 5.7A (Printer+UV Controller)

Packed / Installed Size

 LxWxH(mm): 2920x1050x750 / 2790x870x1520

G.W. / N.W.

 378kgs / 278kgs
