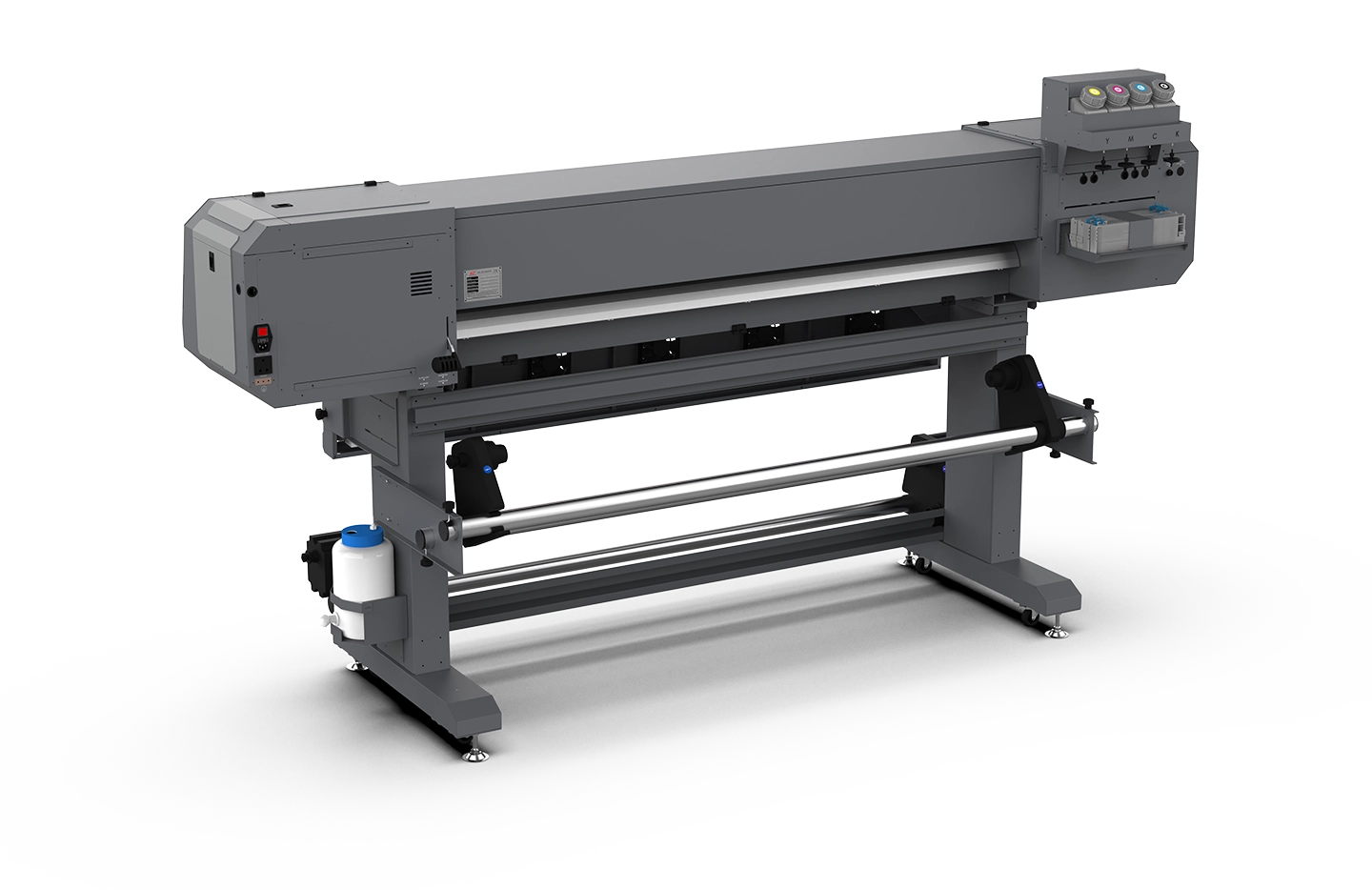

ThunderJet AQ1602S

Entry-level 1.6m Eco-solvent Printer


2 x Genuine Epson I3200 E1 Print Heads


Optimized Cleaning System


Precise & Adjustable Stepping System


GZ Variable Dot Technology

Intelligent Heating Unit

High-end Configuration of Movement System

Model

 ThunderJet AQ1602S

Print Head

 Dual Epson I3200 E1 print head

Technology

 Drop-On-Demond Piezo with Variable Dot

Ink

 EPI2-2 years durability eco solvent ink

Color Config.

 K.C.Y.M.

Ink Supply System

 Bulk ink supply system with ink cartridges

Ink Tank

 1500ml

Printing Width

 Max. 1600mm

Media Type

 Banner, Coated PP, Vinyl, PVC film...

Roll Diameter

 Max. 300mm

Roll Weight

 Max. 50KGS

Core Diameter

 3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

 Mode                     Rrsolution                    Output

 Draft                      360×1200dpi               71㎡/h

 Production            360×1800dpi                51㎡/h

 High-res                720×1200dpi                40㎡/h

 Photo                    720×1800dpi                28㎡/h

Data Interface

 External: Ethernet; Internal: Fiber Optical

Working Environment

 Temp. 23℃~29℃, Humidity: 50%~80%

Software

 PhotoPRINT / Onyx(Optional)...+ GZ Printer Manager

Power

 Single phase, 50Hz / AC, 220V±10%, 6.7A(Printer)+14.6A(IR Dryer)

Packed/Installed Size

 LxWxH(mm):2920x1000x750 / 2790x790x1530

G.W./ N.W.

 290KGS / 190KGS
