Flatbed UV Solutions
H2513GN

High-speed Industrial Level Flatbed UVSolution

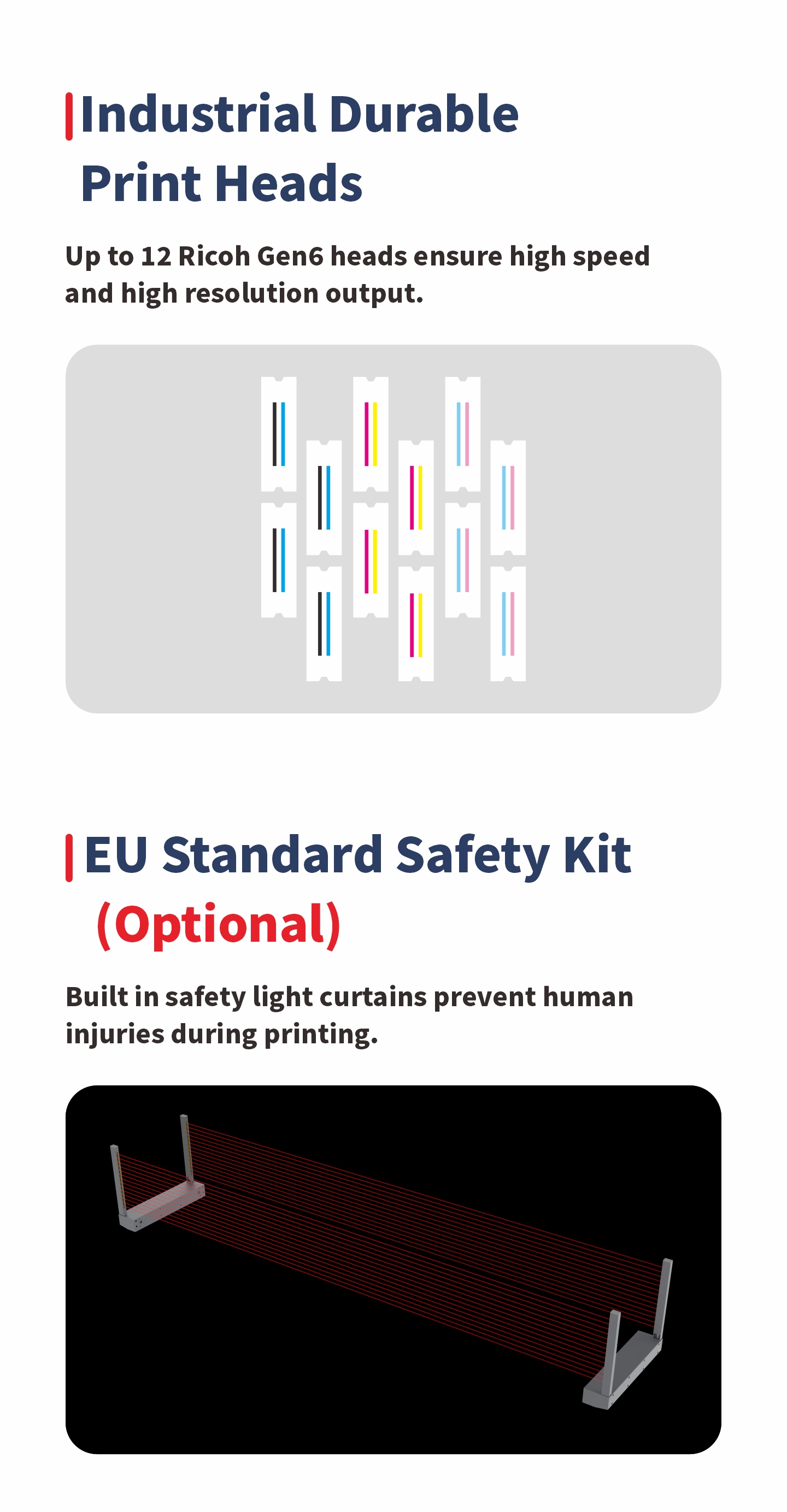

Industrial Duarable Print Heads


EU Standard Safety Kit

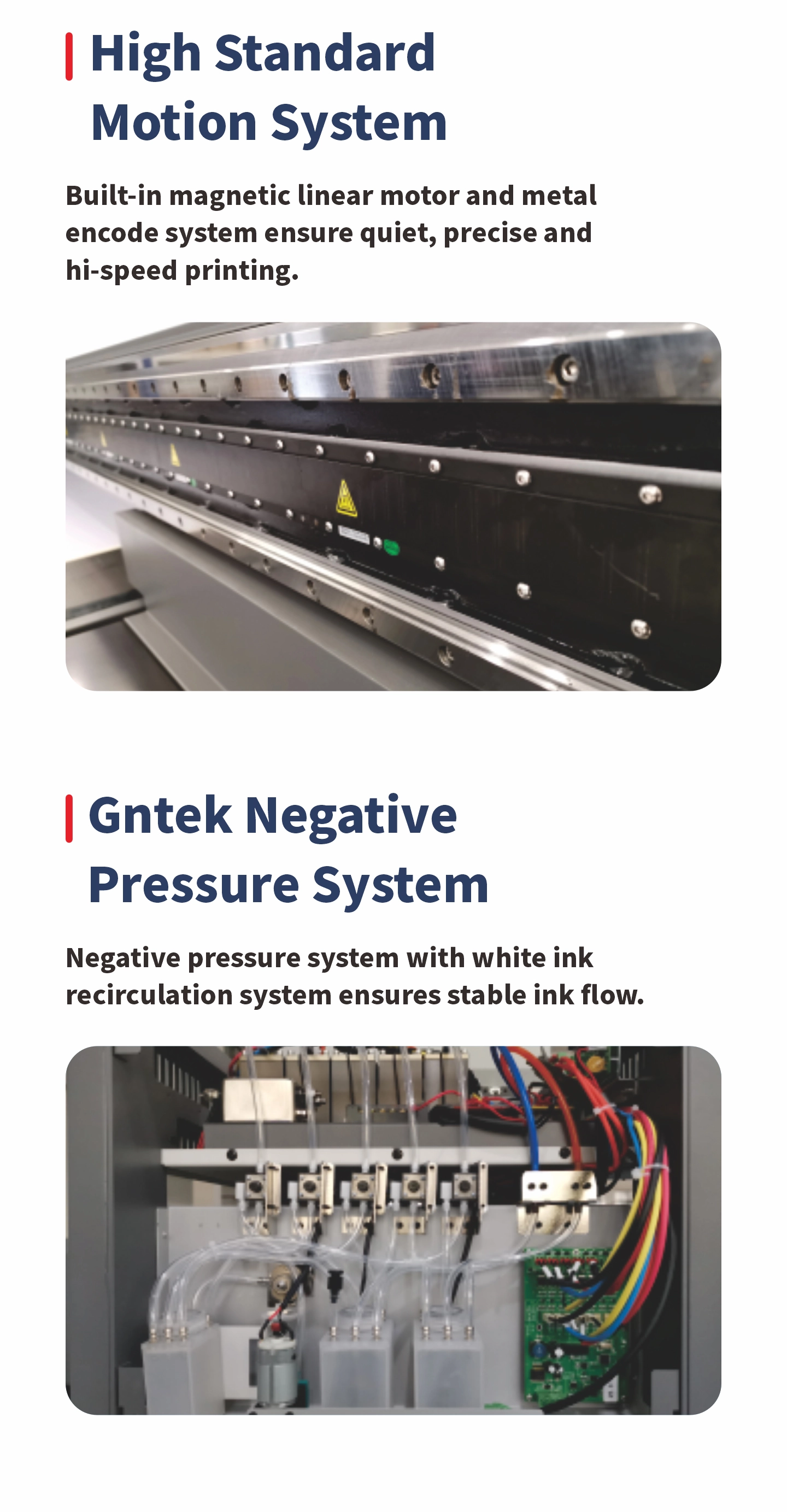

High Standard Motion System


Gntek Negative Pressure System

Model

H2513GN

Print Head

4~12 Ricoh Gen6 Print Heads

Curing System

Dual Water Cooling LED UV Curing Lamps

Ink

Specific RKA-3 UV Ink Certified by Greenguard Gold

Color Configuration

2xWW+4xKCMY; 2xWW+2xKCMY; 1xWW+1xKCMY+1xVV

Ink Supply  System

Gntek Negative Pressure System and White Ink Stirring & Circulation System

Ink Tank

2500ml

Media Thickness

Max. 100mm

Media Type

Acrylic, Aluminum Sheet, Foam Board, PVC  Board, Leather, Glass , Wood, Ceramic Tile, etc.

Table Size

2650×1325mm

Printing Size

Max. 2500×1300mm

Printing Speed

Mode              Resolution           4xKCMY          2xWW+2xKCMY           1xWW+1xKCMY+1xVV

Draft               720x900dpi           72㎡/h                  38㎡/h                                  17㎡/h

Production      720x1200dpi         56㎡/h                 29㎡/h                                  12㎡/h

High-res          720x900dpi           47㎡/h                 23㎡/h                                  10㎡/h

Photo              720x1200dpi         35㎡/h                 17㎡/h                                   6㎡/h

Data Interface

External: USB3.0; Internal: Fiber Optical

Working Environment

Temp.20℃~30℃, Humidity: 35%~65%

Software

ONYX / FlexiPRINT  UV +GZ Control Console

Power

Single-phase, AC220V±10%, 50/60Hz, 13A(Printer & UV Controller)+21A(Vacuum System )

Packed / Installed Size

LxWxH(mm): 4948x2175x1579 / 5420x2300x1800

G.W. / N.W.

2276KGS / 1758KGS

< >
