RTR UV Solutions
ThunderJet AQ1802UV

High Speed and High-quality 1.8m RTR UV Printer

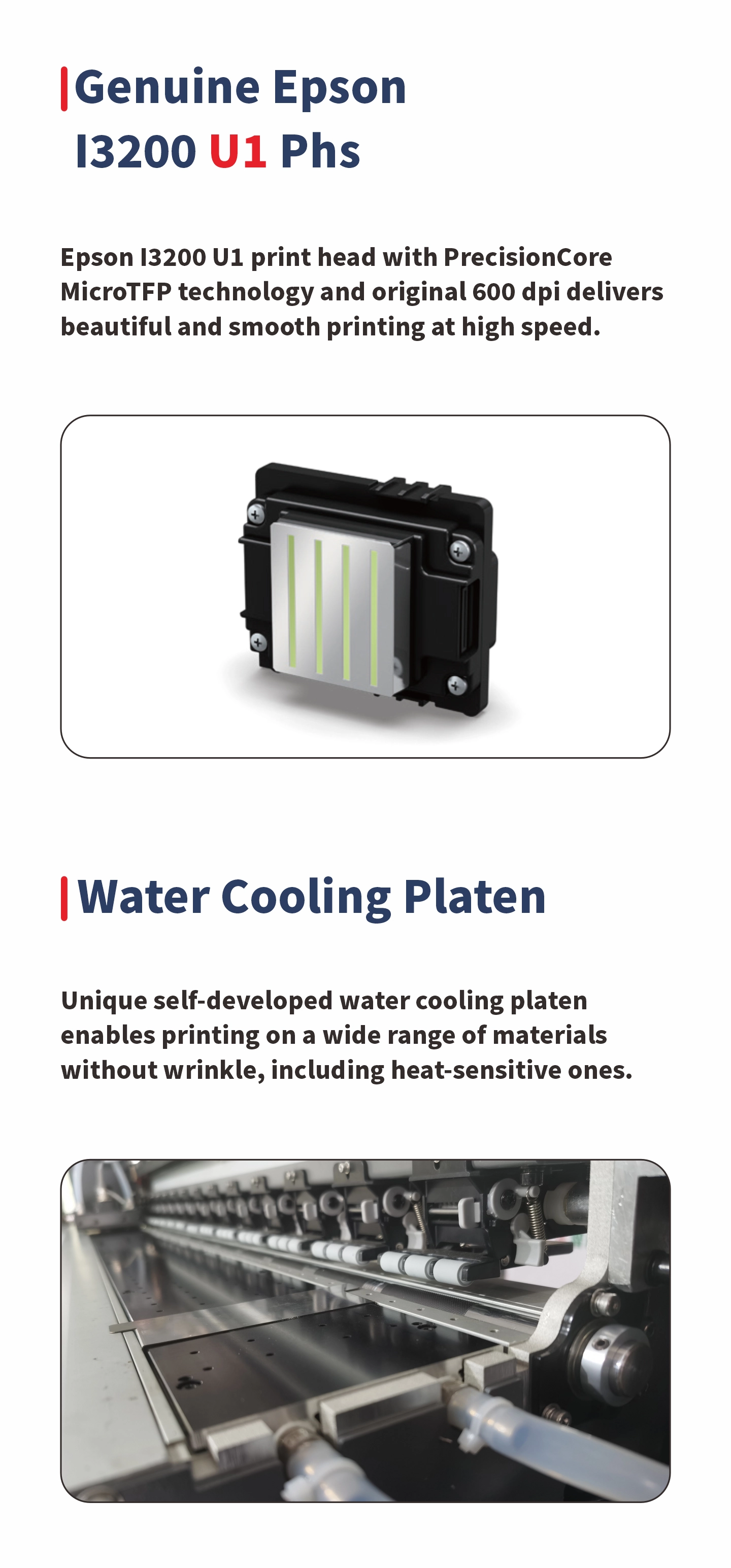

Genuine Epson I3200-U1 Phs

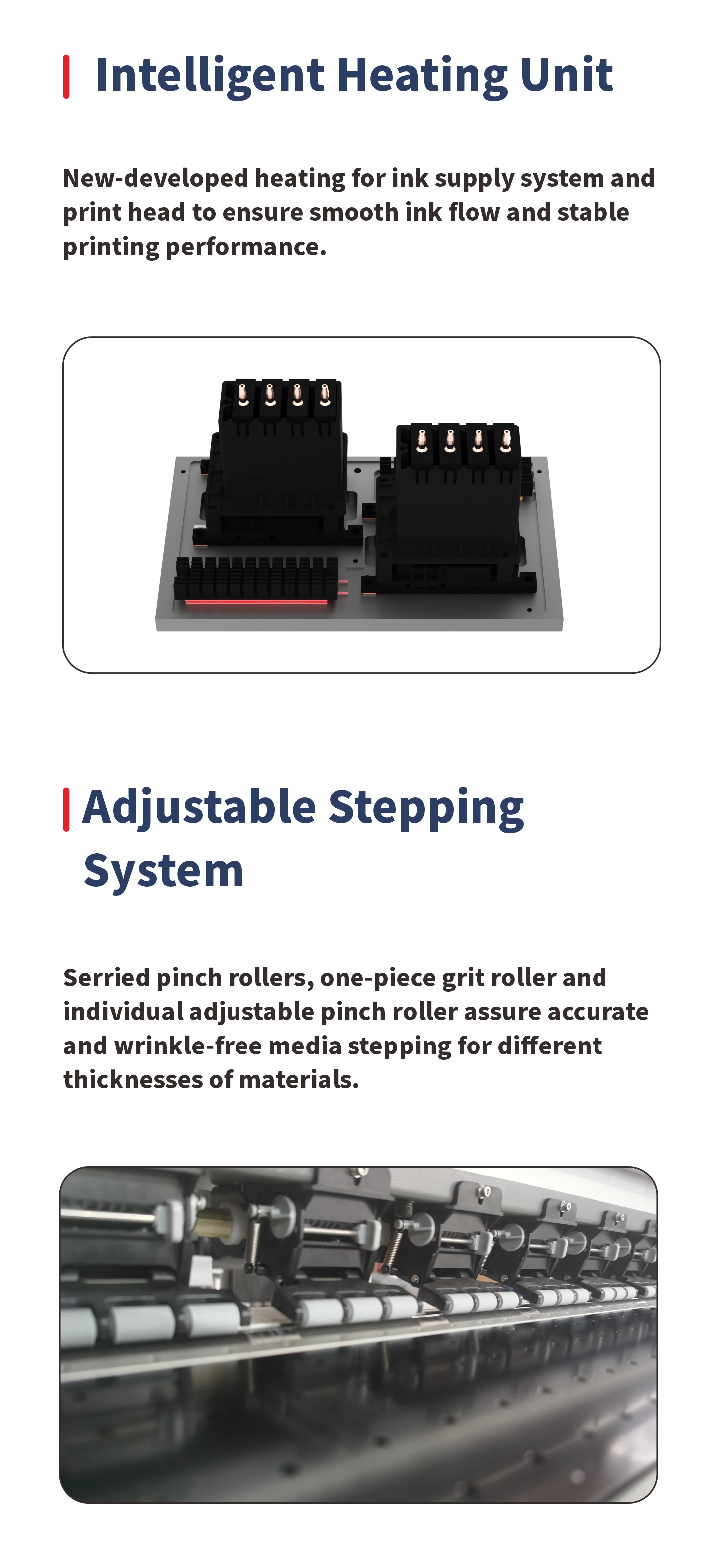

Intelligent Heating Unit

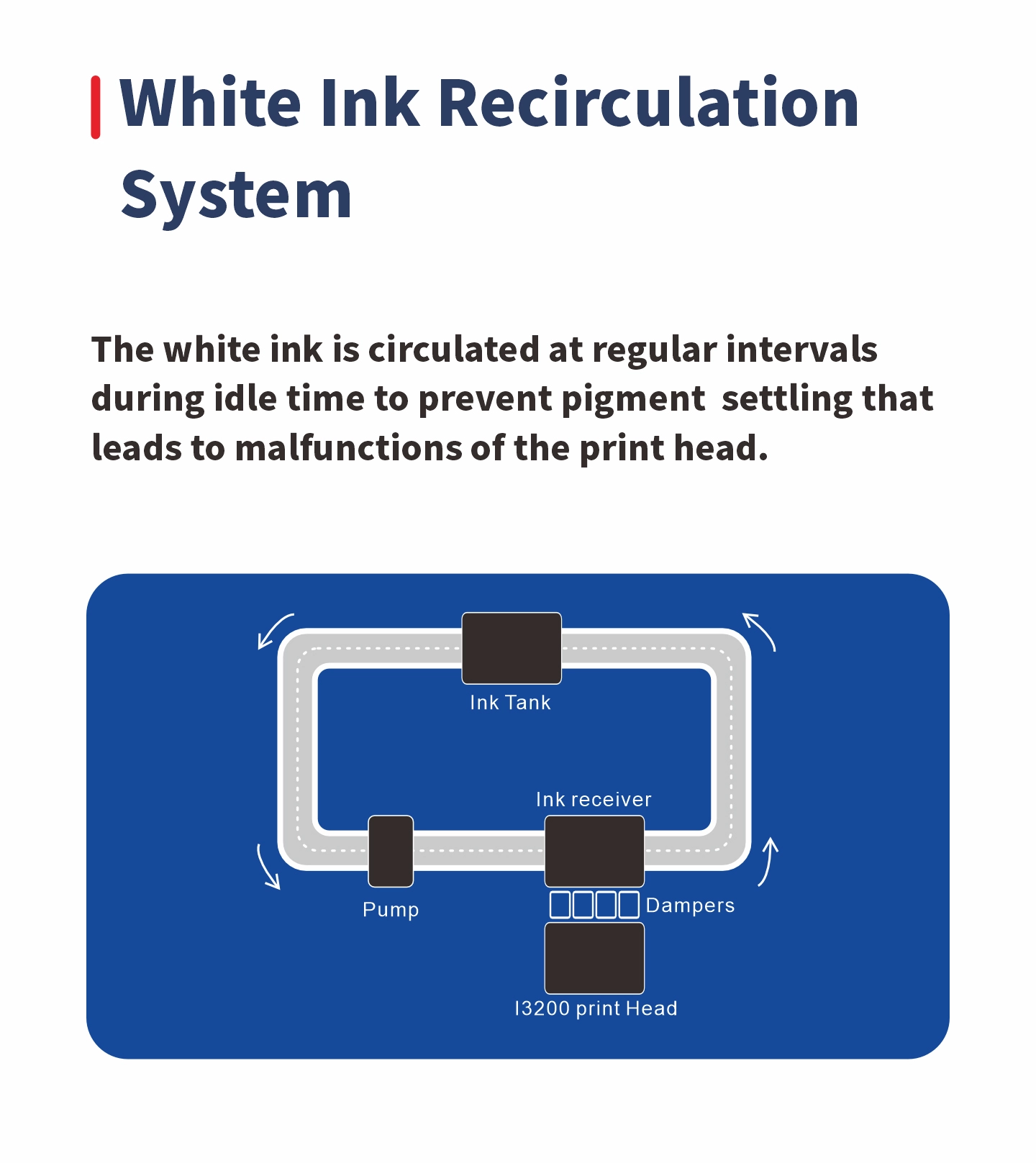

White Ink Recirculation System

Water Cooling Platen

Adjustable Stepping System

Model

ThunderJet AQ1802UV

Print Head

1~2 Epson I3200-U1 Print Heads

Technology

Drop-On-Demond Piezo with Variable

Curing System

Dual Water Cooling LED UV Lamps

Ink

UV Flexible Ink

Color Config.

2xKCYM; 1xKCYM+W; W+1xKCYM

Ink Supply System

Bulk Ink Supply System + White Ink Recirculation System

Ink Tank

1500ml

Printing Width

Max. 1800mm

Media Type

Banner, Coated PP, Vinyl, Backlit Textile, PVC Film, PET Film......

Roll Diameter

Max. 300mm

Roll Weight

Max. 50KGS

Core Diameter

3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

Mode                      Resolution             1xKCYM                2xKCYM               KCYM+W

Draft                     720x1200 dpi           24.93/h             40.01/h

Production           720x1200 dpi           19.42/h              36.19/h             19.32/h

High-res               720x1800 dpi           12.47/h              24.38/h             12.37/h

Photo                   720x1800 dpi             8.13/h              16.24/h               8.03/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp. 23°C~29°C, Humidity: 50%~80%

Software

FlexiPRINT / ONYX(Optional)...+ GZ Printer Manager

Power

Single-phase, 50Hz/AC, 220±10%; 5A(Printer+UV Controller)

Installed Size

LxWxH(mm): 2965x808x1524

G.W. / N.W.

290KGS / 200KGS

< >
