H2513ET PRO

High-end Flatbed UV Printer, up to 6 rows Epson T3200 Heads

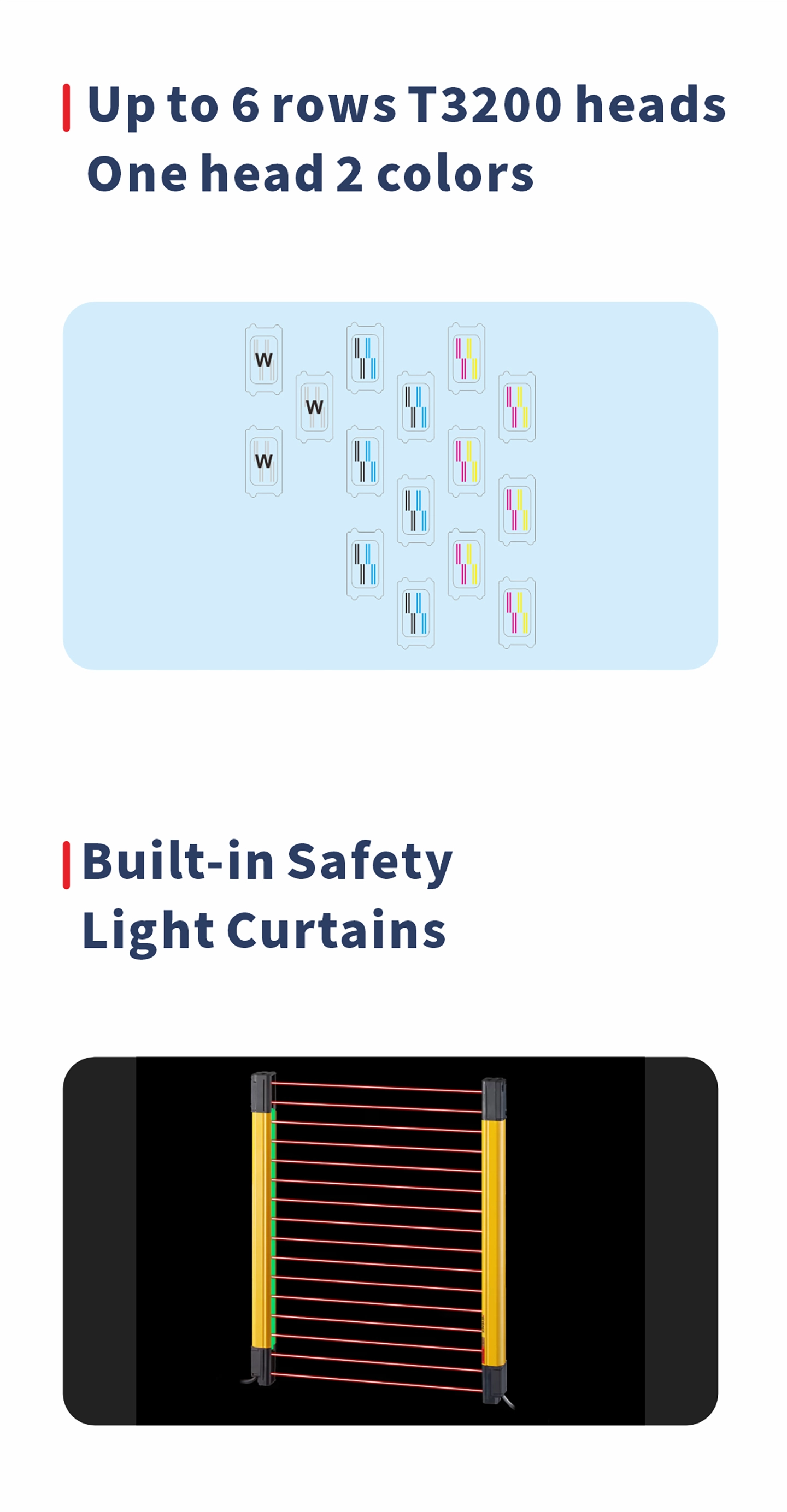

Up to 6 Rows T3200 Heads One Head 4 Colors

Built-in Safety Light Curtains

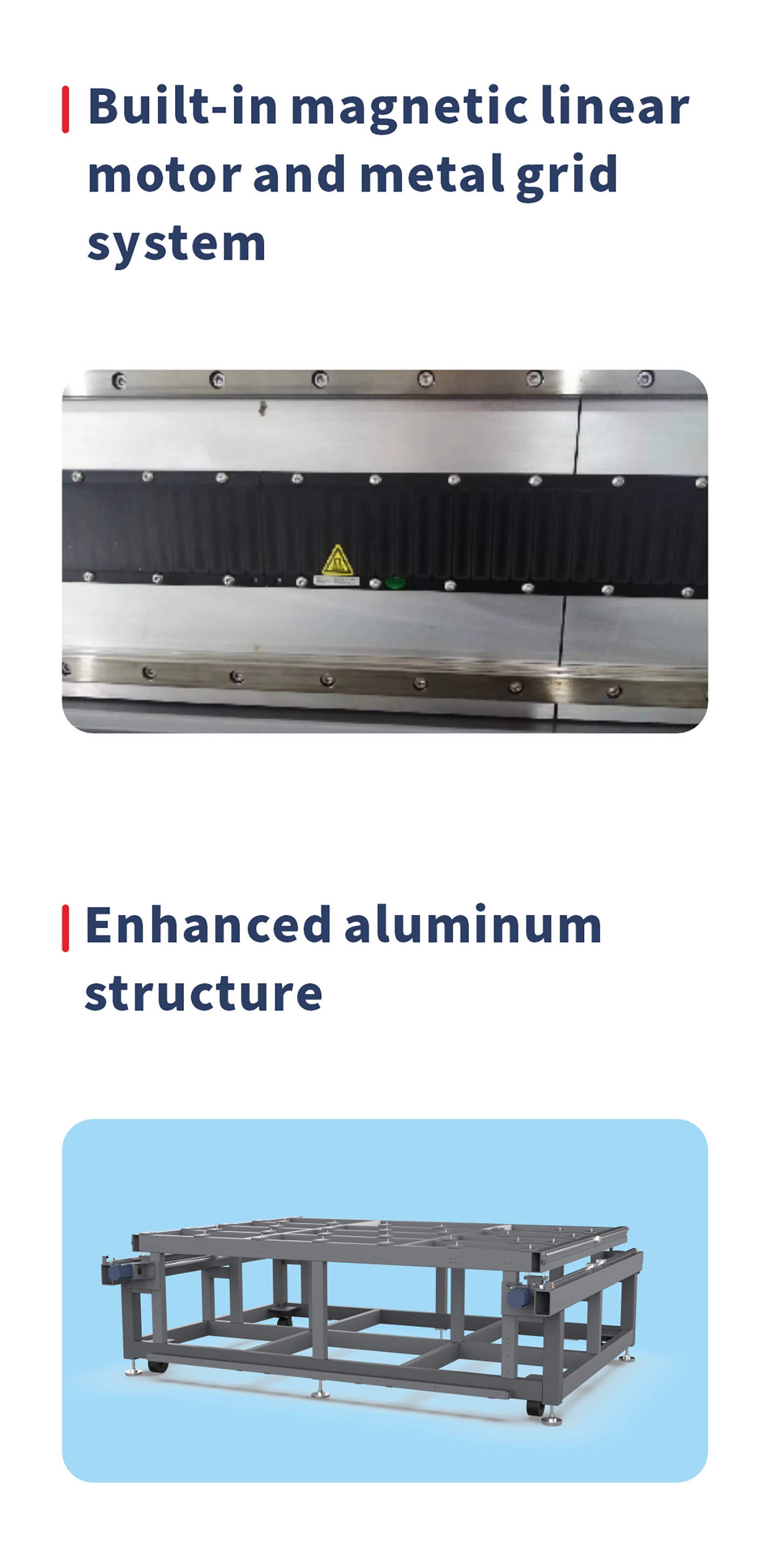

Built-in Magnetic Linear Motor and Metal Grid System


Enhanced Aluminum Structure

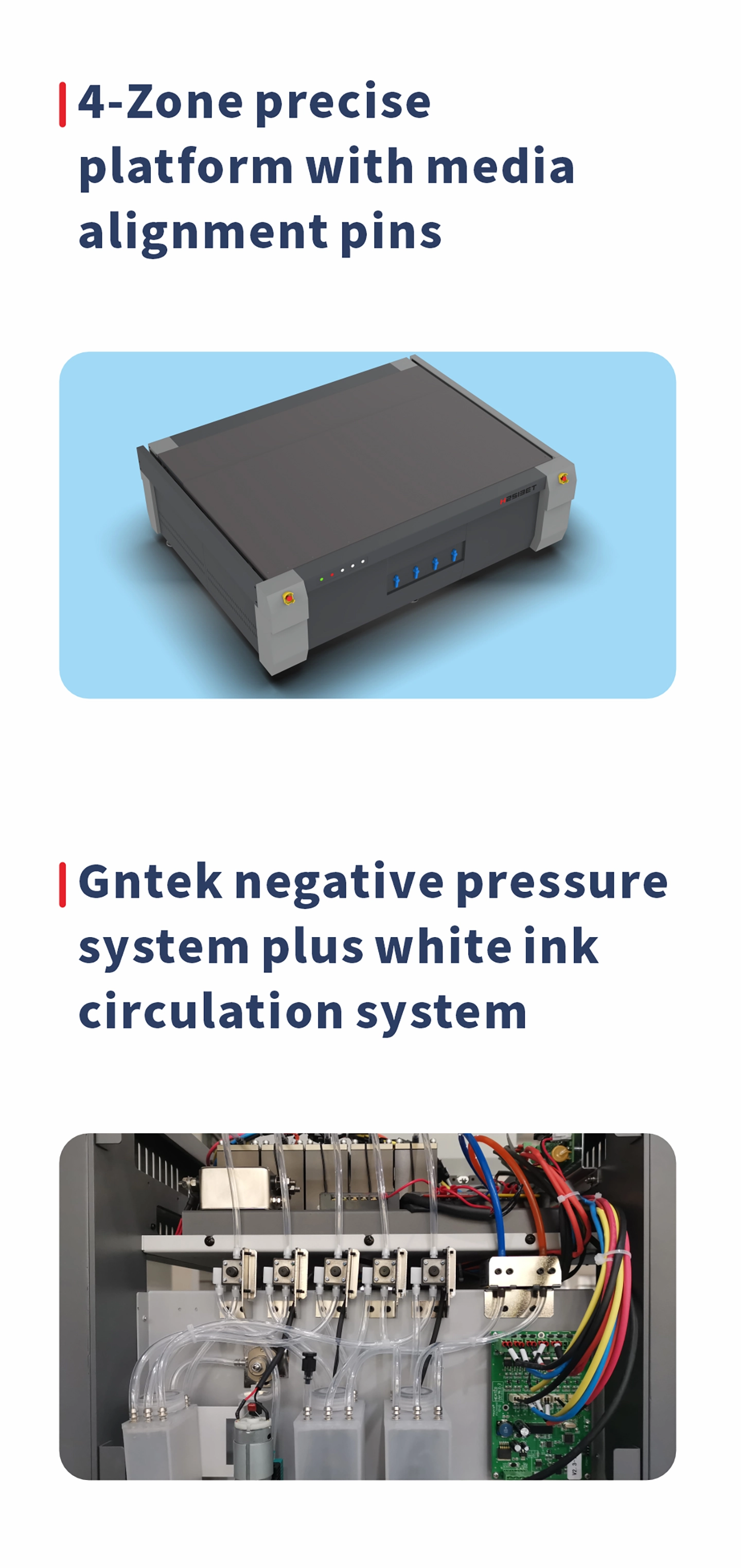

4-Zone Suction Platform with Media Alignment Pins and Built-in Extension Table

Gntek Negative Pressure System Plus White Ink Circulatian System

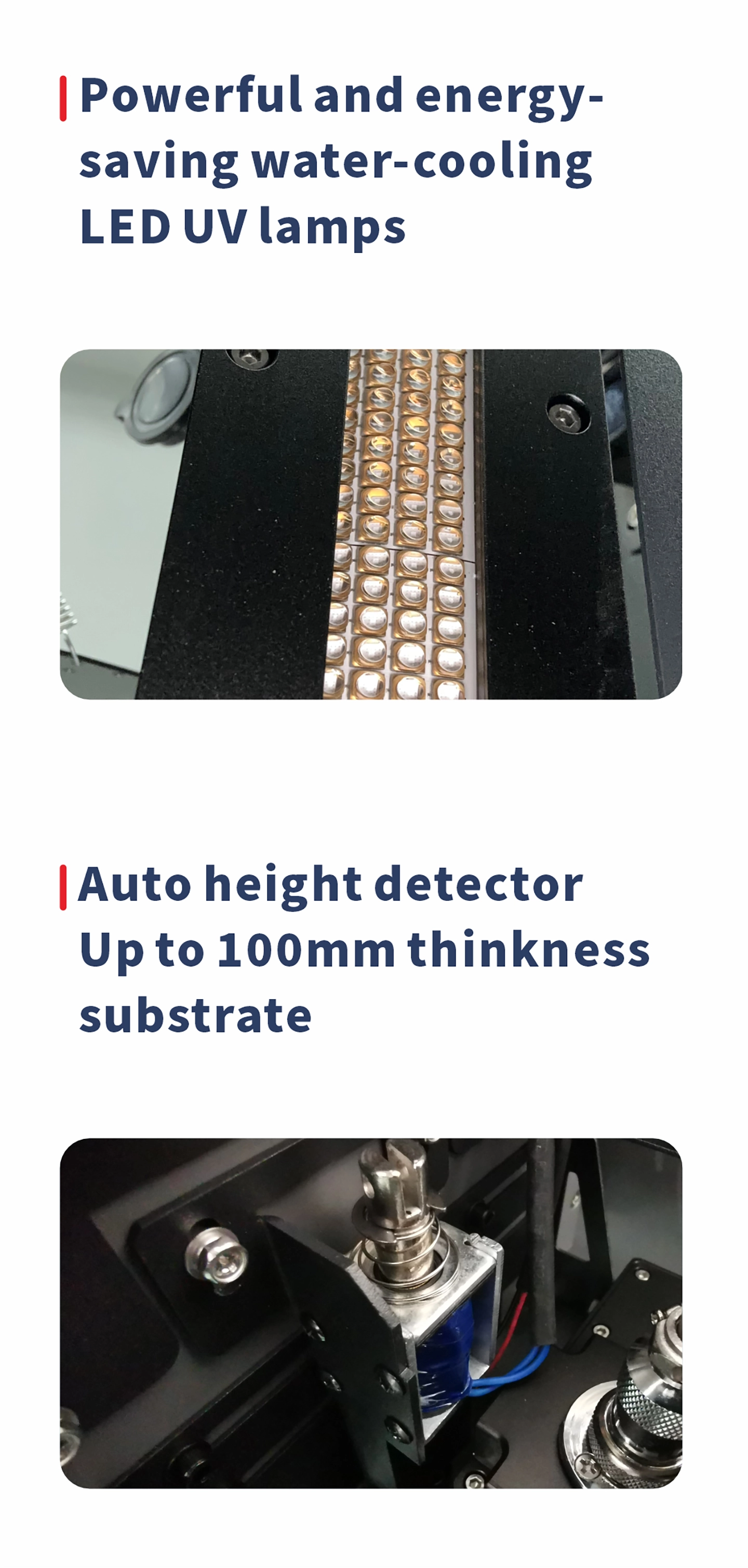

Powerful and Energy-saving Water-Cooling LED UV Lamps

Auto Height Detector, Up to 100mm Thinkness Substrate

Model

H2513ET PRO

Print Head

4~15 Epson T3200-U3  Print Heads

Resolution

726x900~726x1800dpi

Curing System

Dual Water Cooling LED UV Curing Lamps

Ink

Gongzheng UV Ink: FET-3

Ink Supply System

Gntek Negative Pressure System and White Ink Stirring & Circulation System

Ink Tank

2500ml

Media Thickness

Up to 100mm

Media Type

Acrvlic, Aluminum Sheet, Foam Board, PVC Board, Leather, Glass, Wood, Ceramic Tile, etc.

Table Size

2560×1330mm

Printing Size

Max. 2500×1300mm

Printing Speed

Printing Mode               Resolution               6×KCMY

Draft                             726x900 dpi              110sqm/h

Production                   726x1200 dpi             96sqm/h

High-res                       726x1800 dpi             75sqm/h

Data Interface

External: USB3.0; Internal: Fiber Optical

Working Environment

Temp. 20℃~28℃, Humidity: 35%~65%

Software

ONYX RIP Center+GZ Control Console

Power Requirements

Single-phase, AC220V±10%, 50/60Hz, 23A (Printer&UV Chiller)+14A (Vacuum System)

Packed / Installed Size

LxWxH(mm): 5165x2610x1520

G.W. / N.W.

2276KGS / 1758KGS
