RTR UV Solutions
ThunderJet AQ1802UV

High-Speed and High-Quality 1.8m RTR UV Printer

Genuine Epson I3200-U1 Phs
Intelligent Heating Unit
White Ink Recirculation System
Water Cooling Platen
Adjustable Stepping System

Model

ThunderJet AQ1802UV

Print Head

2x Epson I3200-U1 Print Heads

Technology

Drop-on-Demond Piezo with Variable Dot

Curing System

Dual Water Cooling LED UV Lamps

Ink

Gongzheng UV Ink: REI-3

Color Config.

2xKCYM; 1xKCYM+W; W+1xKCYM

Ink Supply System

Bulk Ink Supply System + White Ink Recirculation & Stirring System

Ink Tank

1500ml

Printing Width

Max. 1890mm

Media Type

Banner, Coated PP, Vinyl, Backlit Textile, PVC Film, PET Film......

Roll Diameter

Max. 300mm

Roll Weight

Max. 50kgs

Core Diameter

3 in (76.2mm) or 2 in (50.8mm)

Printing Speed

Mode                      Resolution             1xKCYM                2xKCYM

Draft                     720x1200 dpi           11.5/h                20/h

Production           720x1200 dpi            9.5/h                 18/h

High-Res              720x1800 dpi            7/h                    14/h

Photo                   720x1800 dpi             6/h                   12/h

Data Interface

External: Ethernet; Internal: Fiber Optical

Working Environment

Temp. 23°C~29°C, Humidity: 50%~80%

Software

FlexiPRINT Mini TX 22 / ONYX RIPCenter (Optional)...+ GZ Printer Manager

Power

Single-Phase, 50Hz/AC, 220±10%; 5.2A (Printer+UV Controller)

Packed / Installed Size

LxWxH(mm): 3190x1050x750 / 3064x815x1525

G.W. / N.W.

388KGS / 288KGS

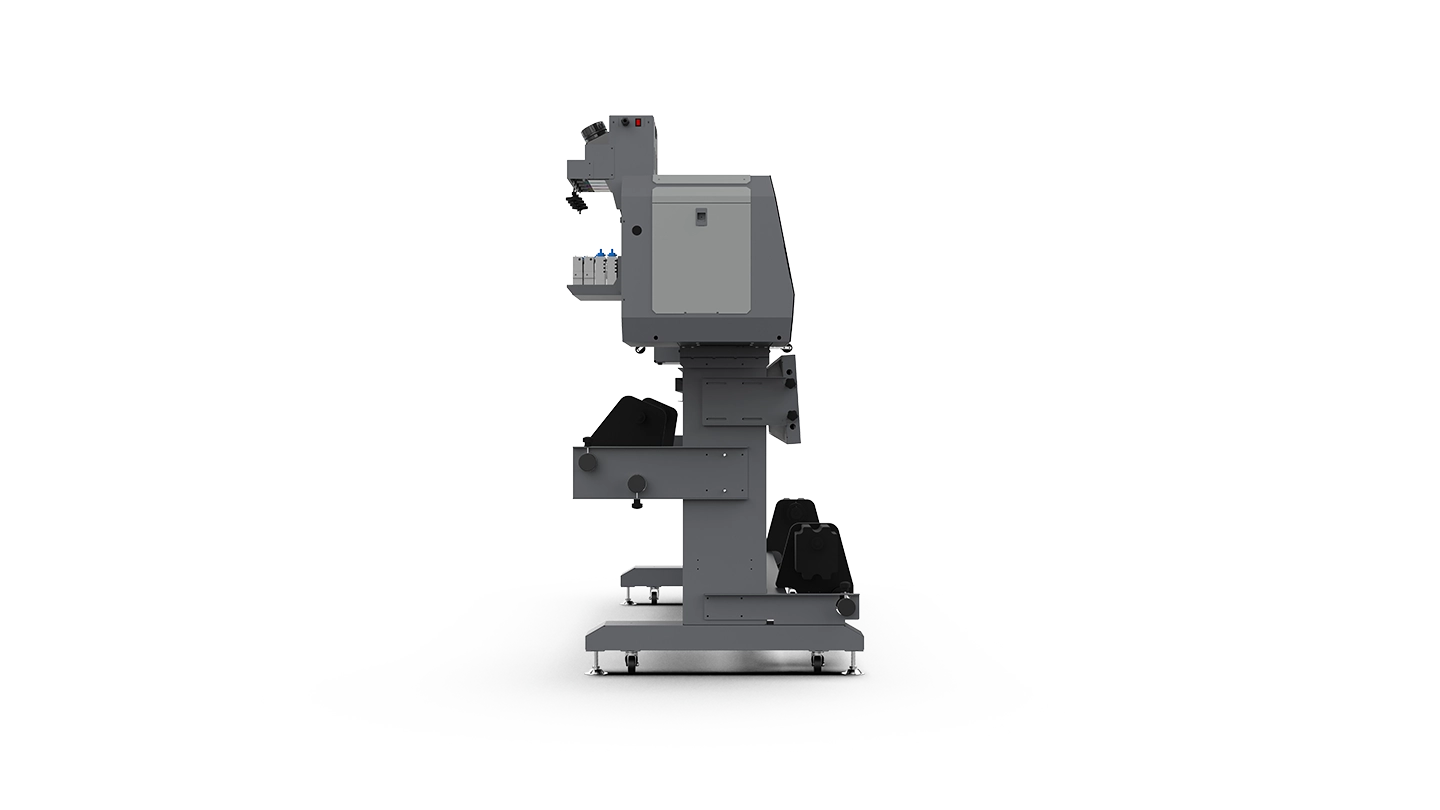

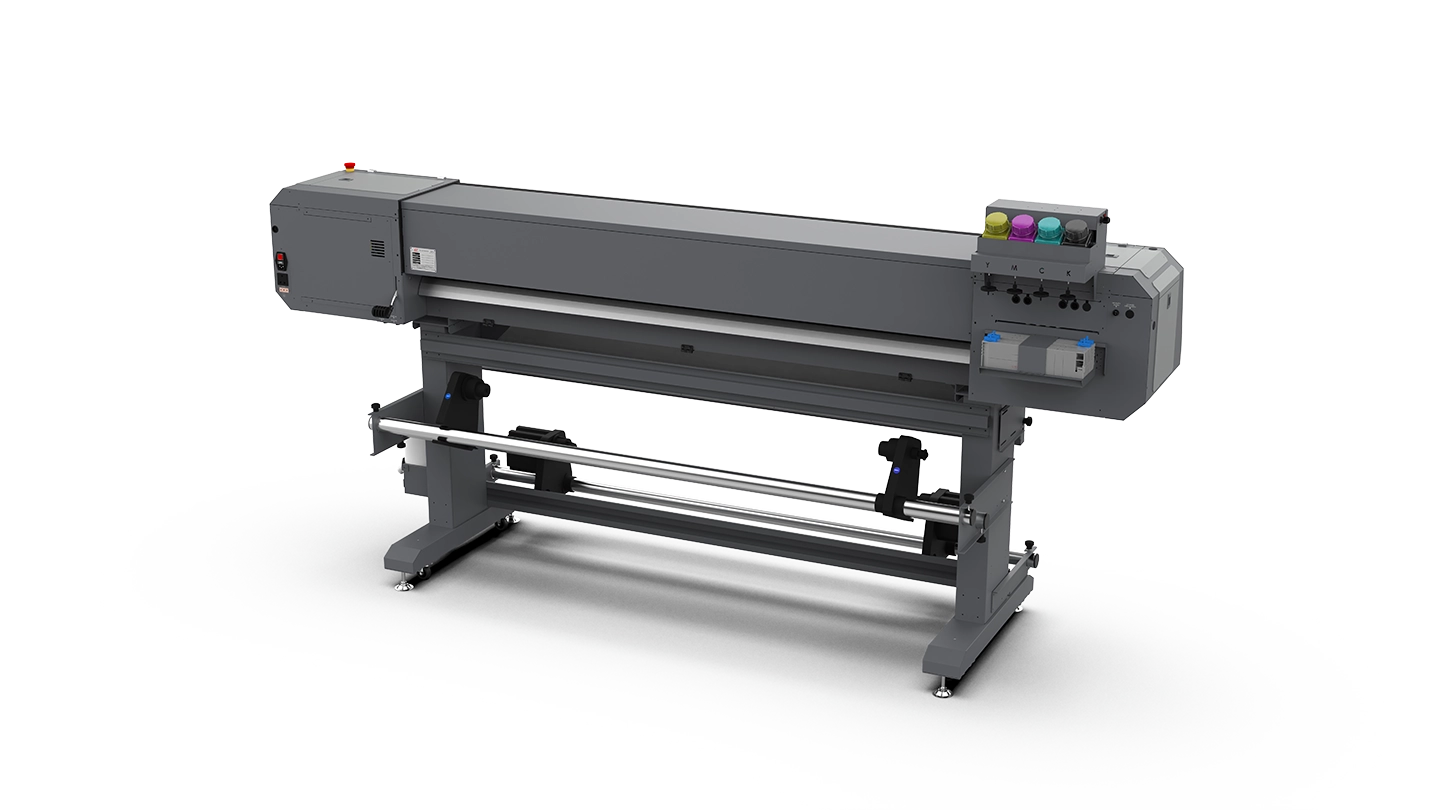

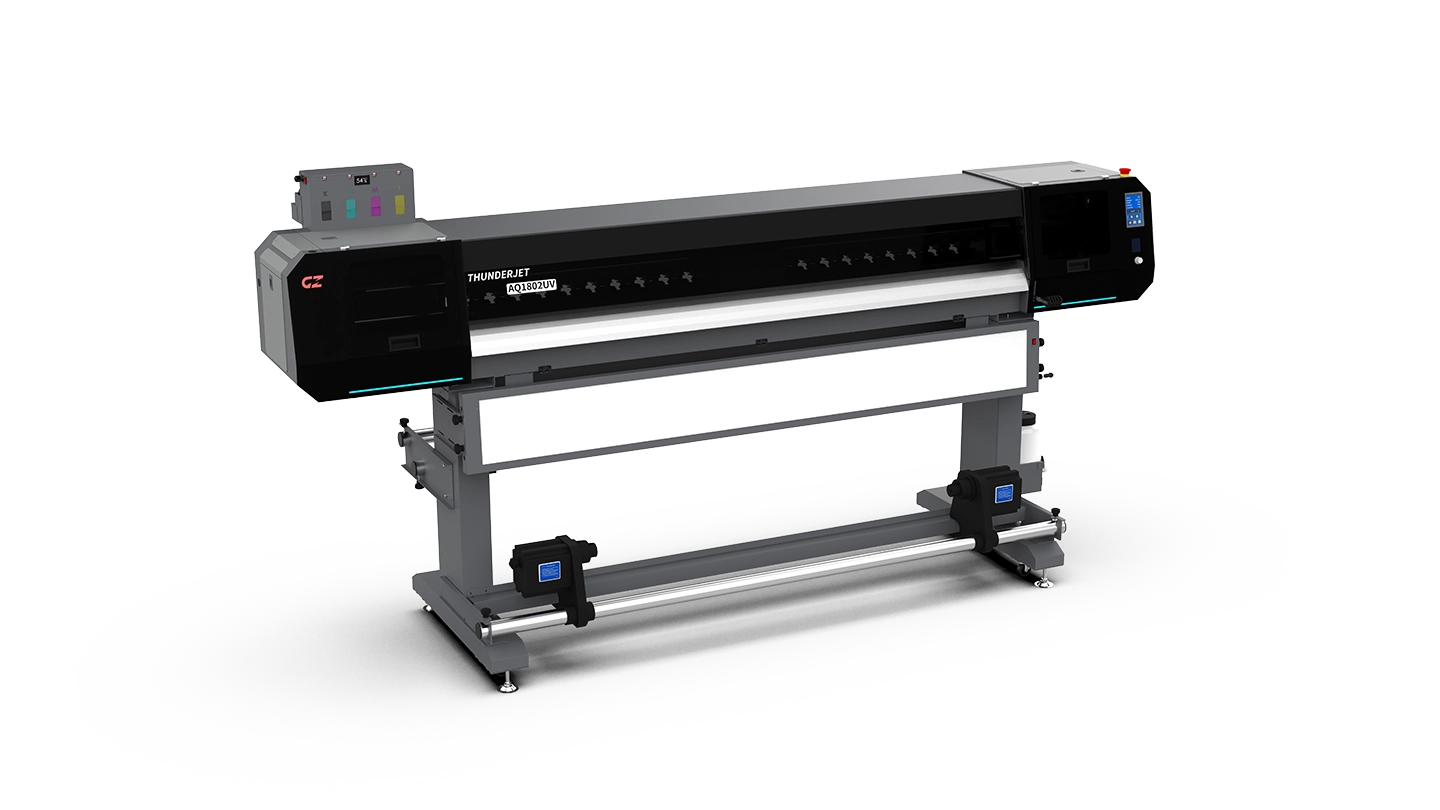

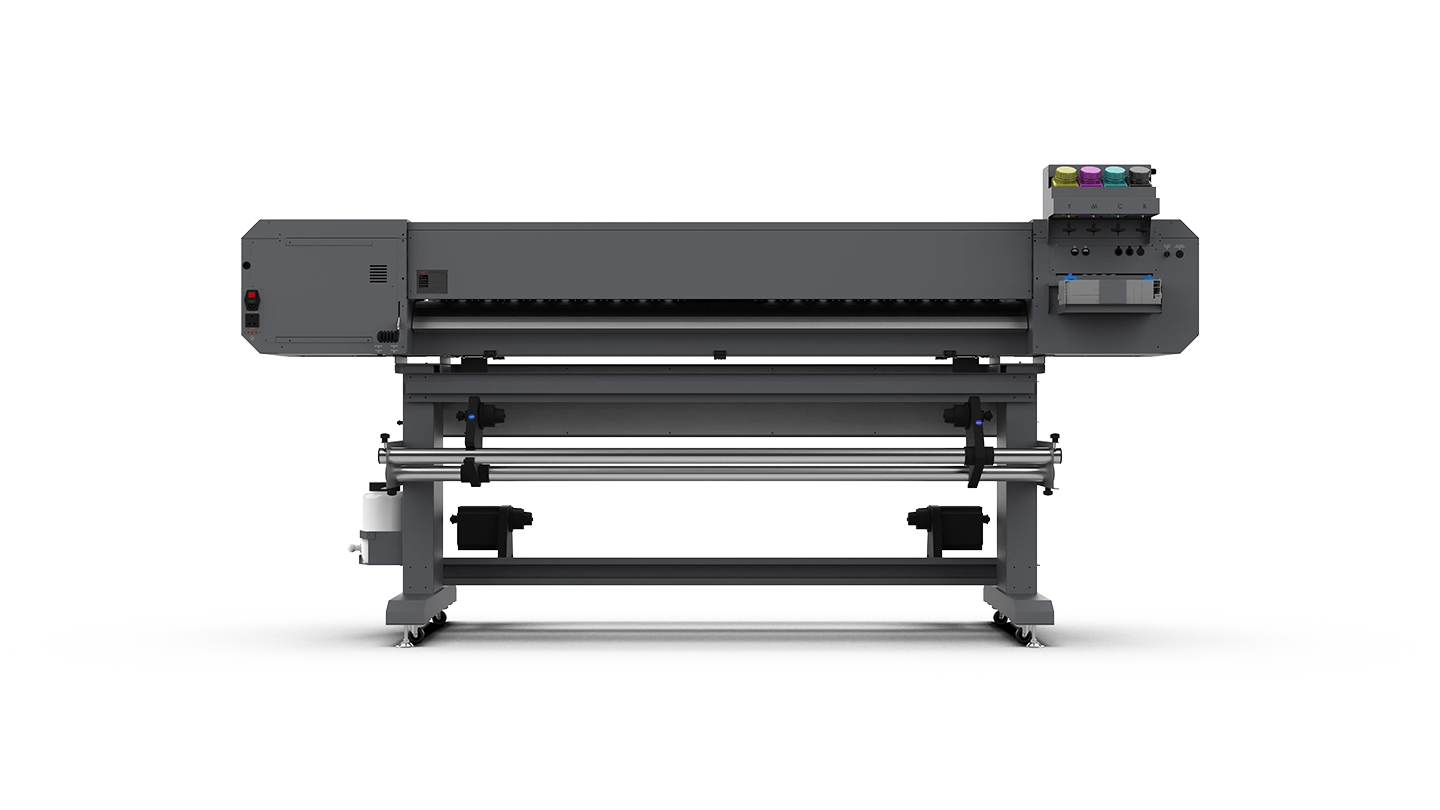

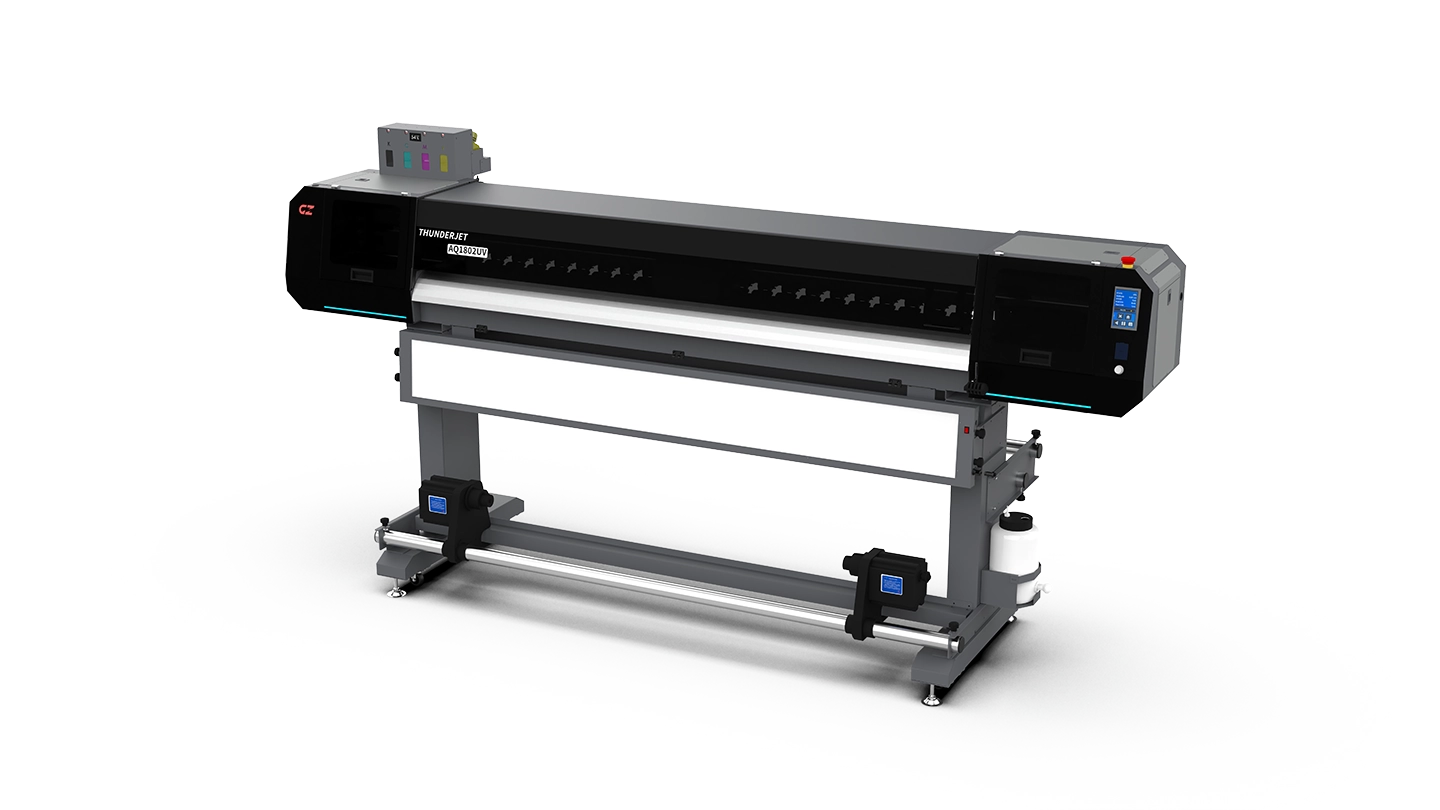

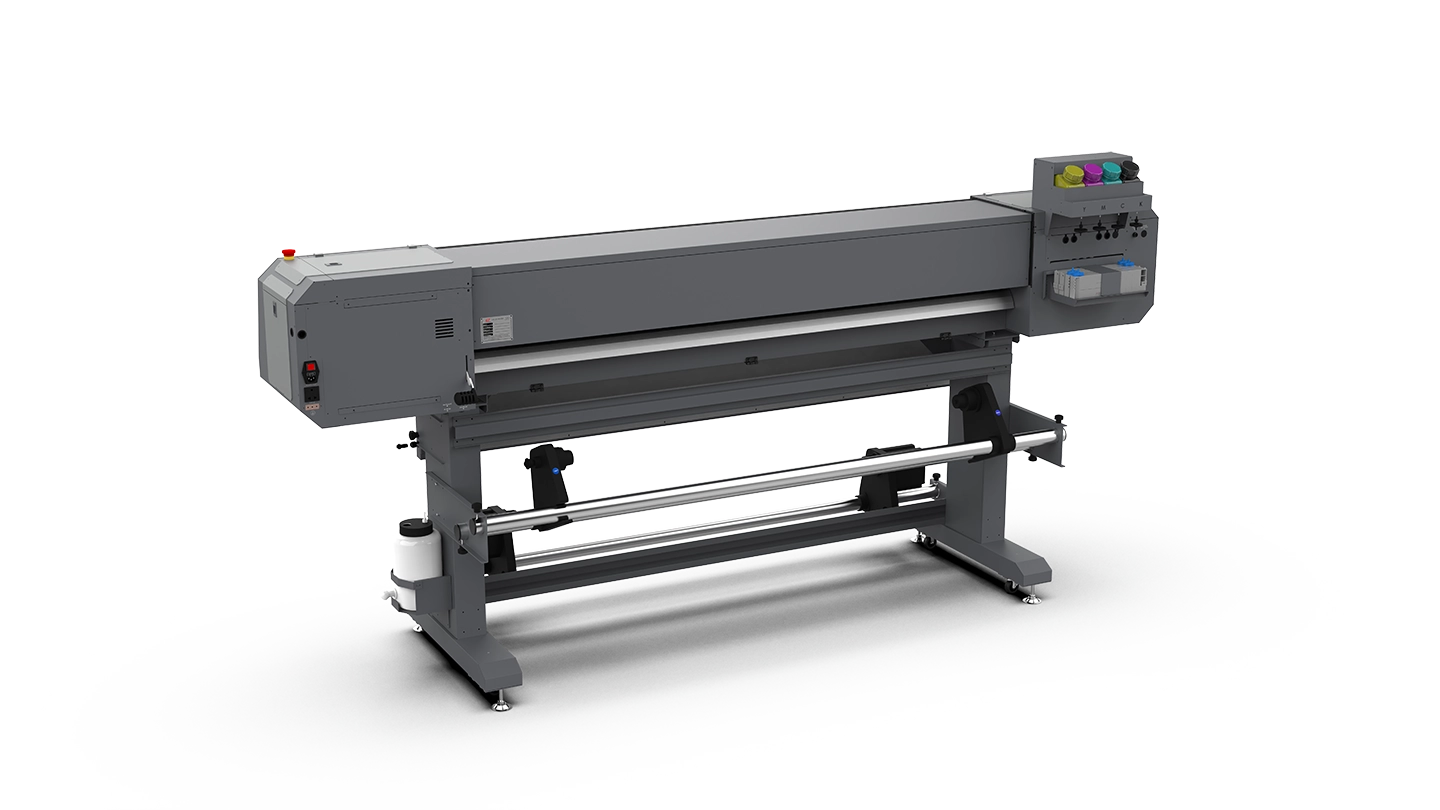

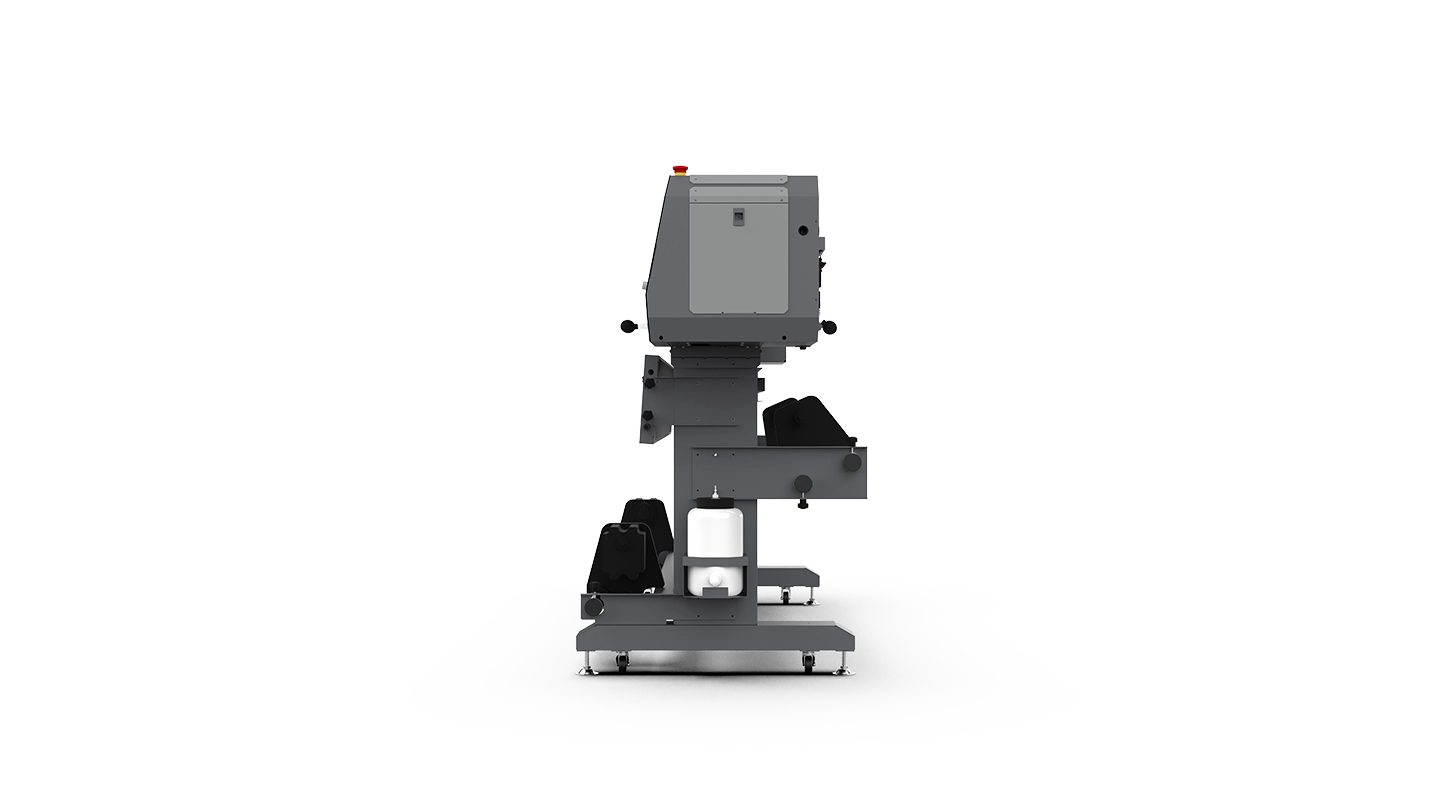

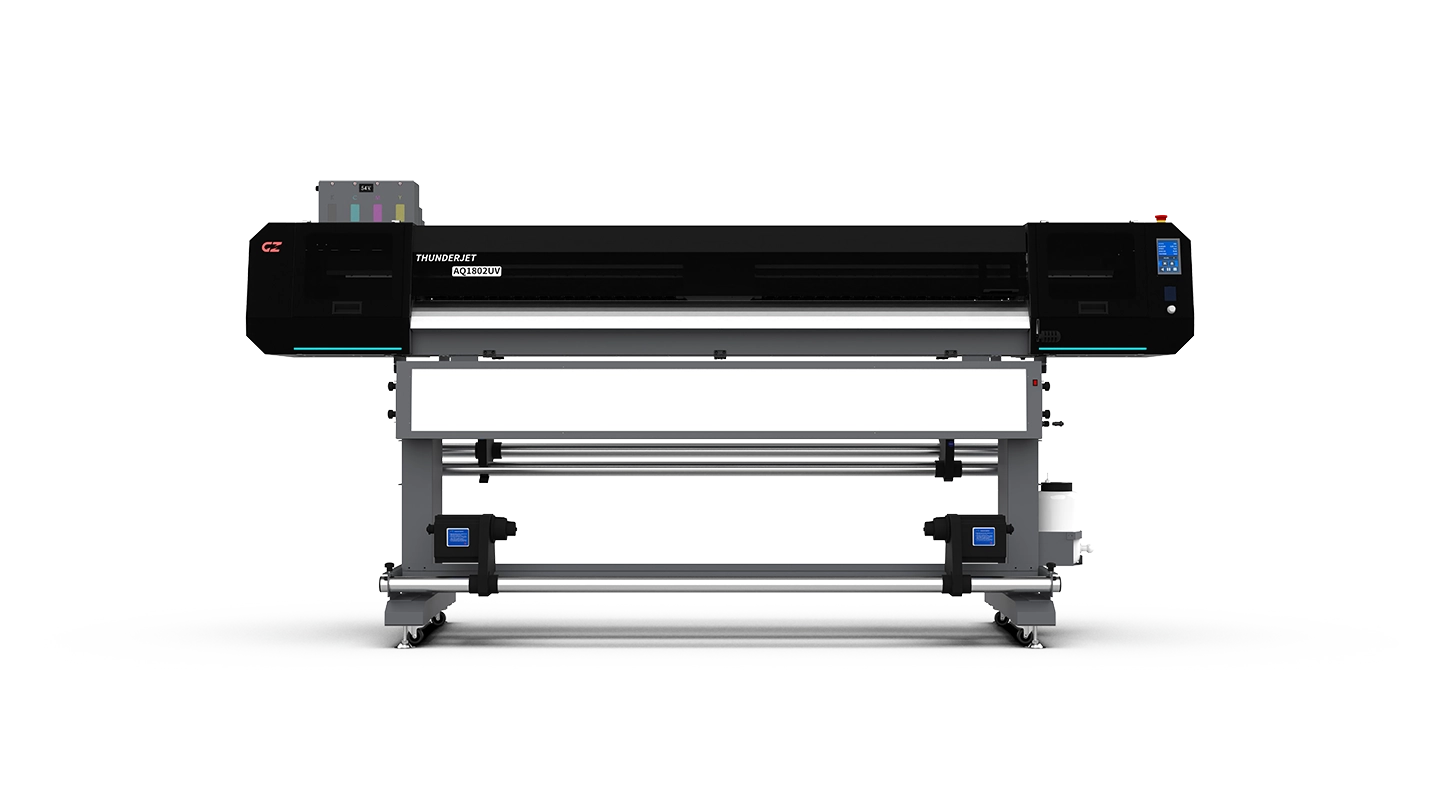

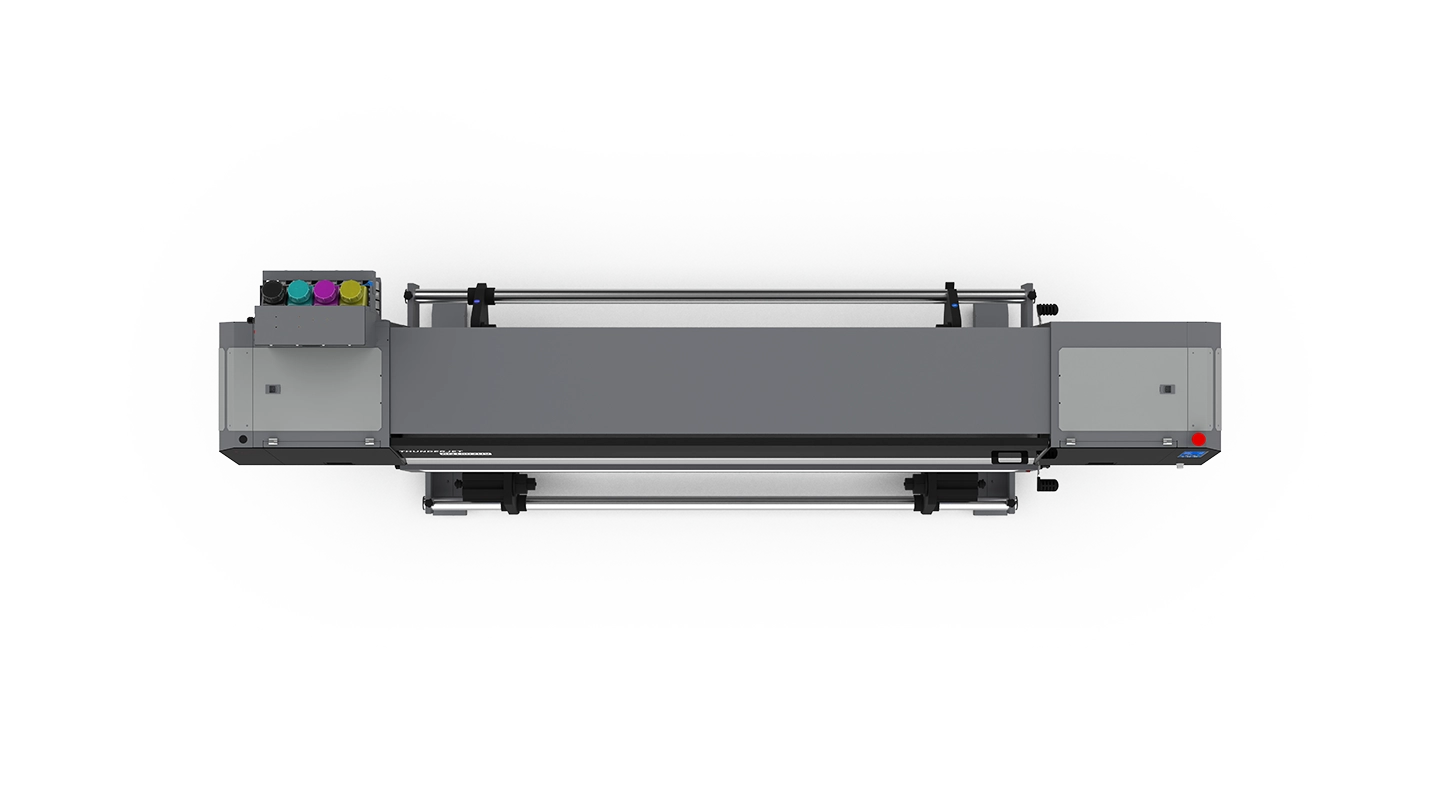

ThunderJetAQ1802UV—RTR UV Printer
