Textile Solutions

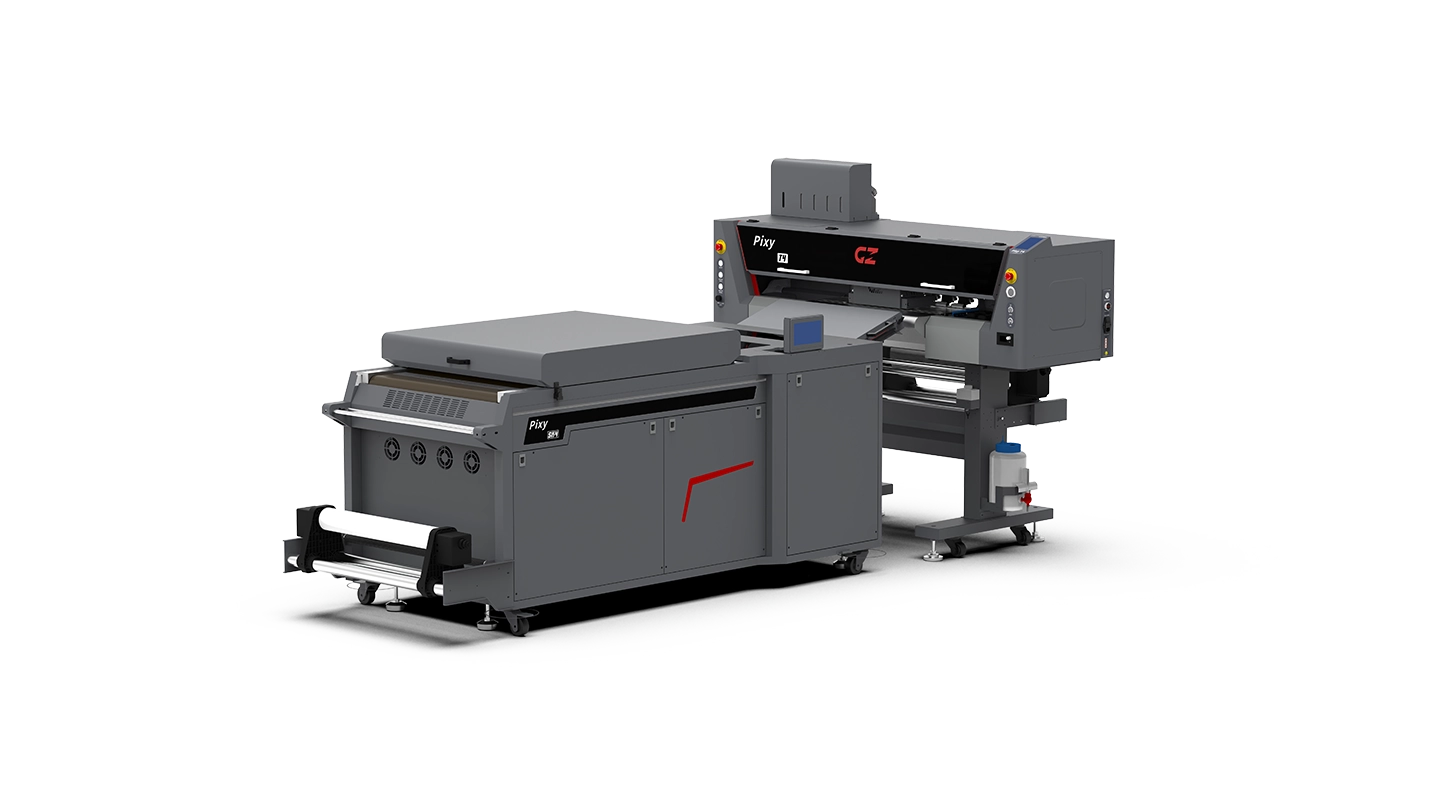

Pixy T2

60cm DTF Textile Solution with 2 Heads


High Standard Motion System

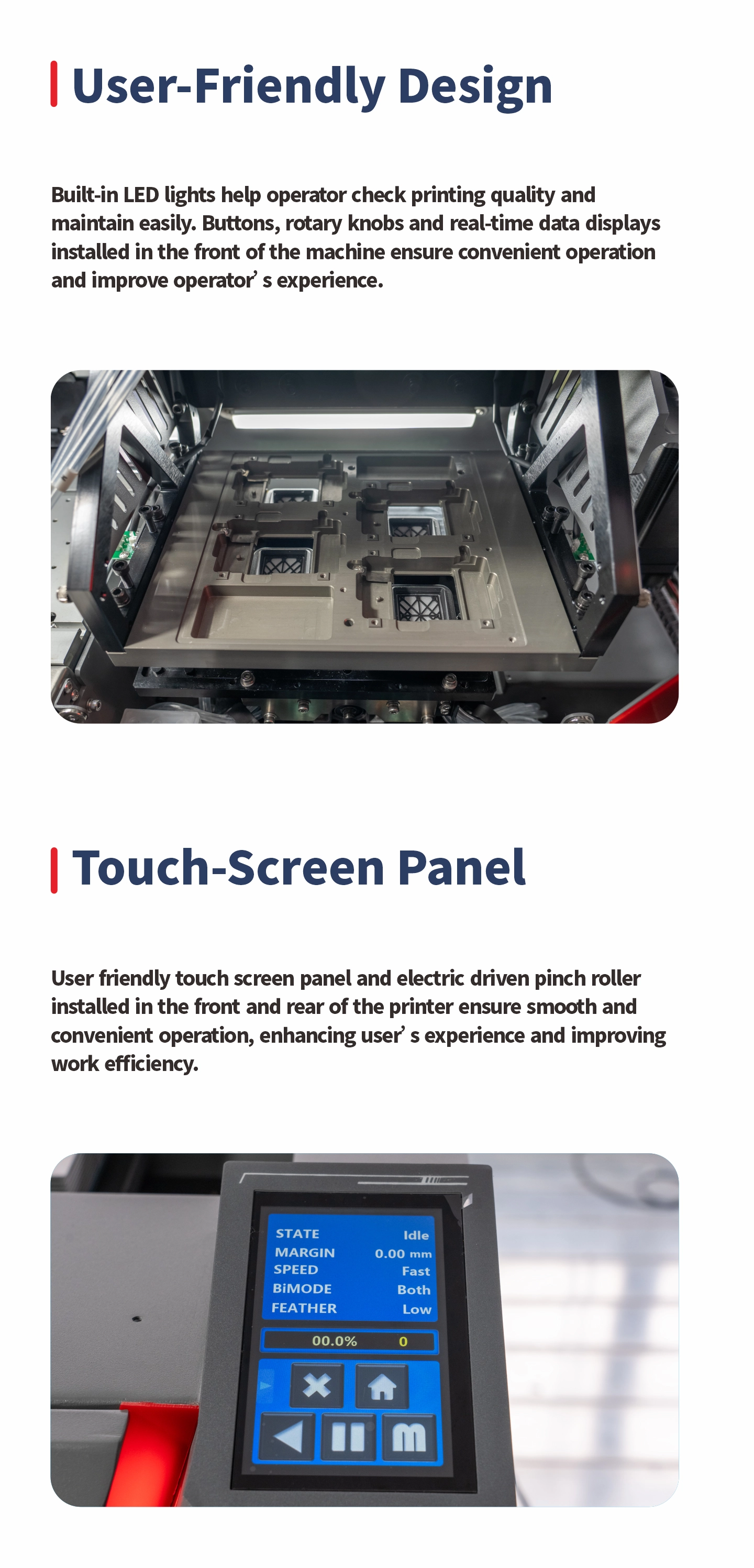

User-Friendly Design

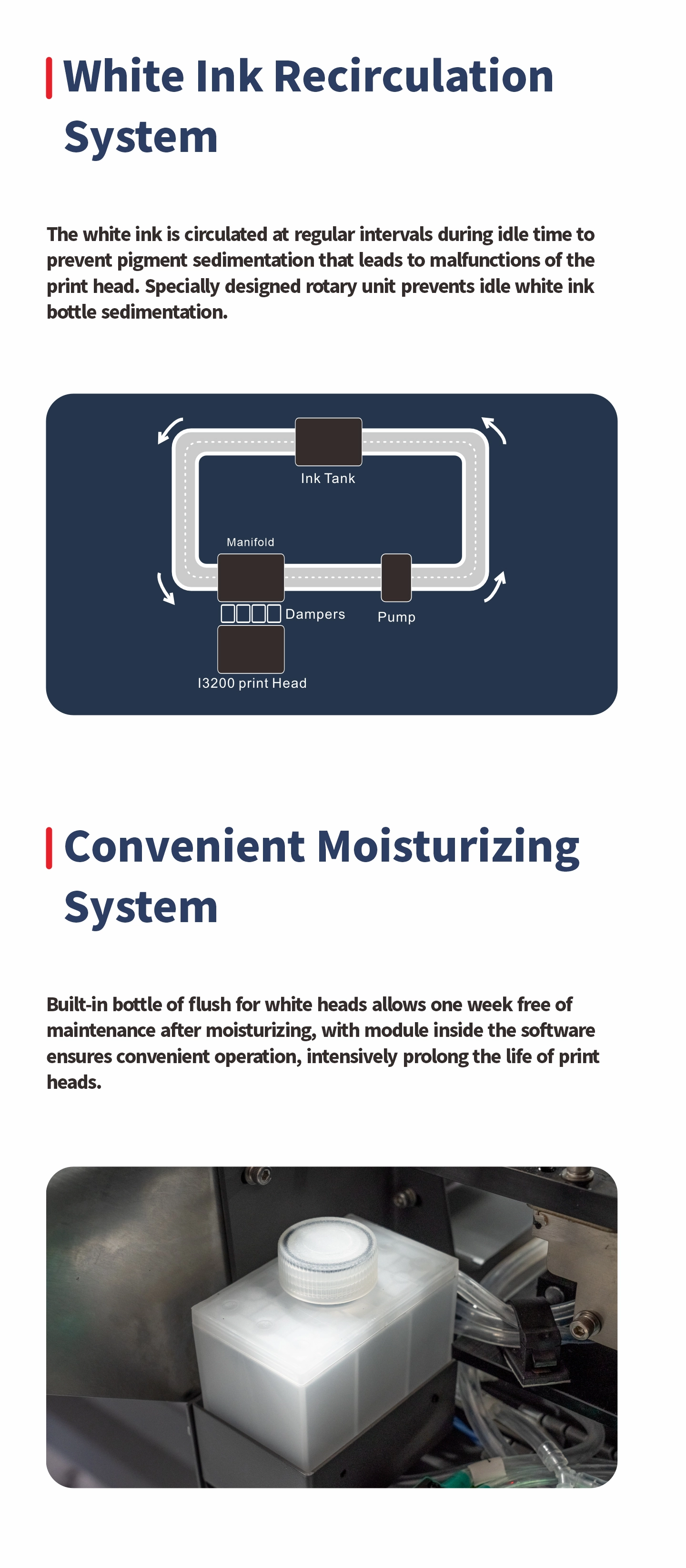

White Ink Recirculation System


Active Tension Bar


Touch-Screen Panel


Convenient Moisturizing System

Model

Pixy T2

Print Head

2 x Epson I3200-A1 Print Heads

Printing Speed

Mode           Resolution                 Output

4pass          720×1200 dpi             15㎡/h

6pass          720×1800 dpi             10㎡/h

Ink

GS Original Transfer Pigment Ink

Color Configuration

1xKCMY+1xW

Ink Supply System

Bulk Ink Supply System with White Ink Circulation System

Ink Tank

1500ml

Media Type

Transfer Film

Printing Width

600mm

RIP Software

Onyx DTF+GZ Printer Manager

Data Interface

External: Ethernet; Internal: Fiber Optical

Power

 Single Phase, 50Hz, AC220V±10%, 2.27A, 500W

Working Environment

Temp: 18℃-30℃; Humidity: 35%-65%

Installed Size

LxWxH(mm)1661x815x1507

Printer Packed Size

LxWxH(mm)2200x960x790

N.W. / G.W.

170KGS / 240KGS

Shaker & Filter

Heating & Drying System

Four Rows High-Efficient Drying Lamp & Cold Air Fan Drying

Power

Single Phase, 50Hz/AC, 220V±10%,23A (Shaker)+2A (filter); Shaker: 5000W; Filter: 440W

Installed Size

Shaker: LxWxH(mm) 2614x1022x1092; Filter: LxWxH(mm) 530x571x1366

Packed Size

Shaker: LxWxH(mm) 1800x1130x1130; Filter: LxWxH(mm) 680x630x1540

N.W. / G.W.

Shaker: 182KGS/288KGS; Filter: 95KGS/122KGS
